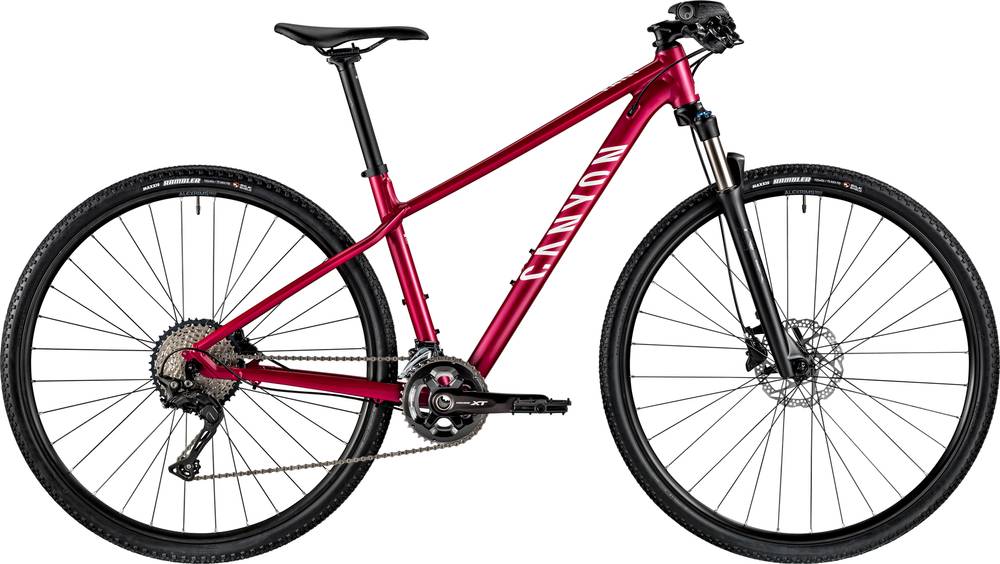

Canyon Pathlite WMN 6.0 2019
2019 Urban
Estimate price |
1,146$
Weight | 12.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Travel Front 75mm -
Fork SunTour NRX D
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 165cm
SM
163cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite WMN AL, Material: Aluminium, Axle Dimension: 10 x 135 mm, Brake Mount: Post Mount, Interface: 40 mm Kickstand Mount
Suspension Fork
SR Suntour NRX-D Air
Drivetrain
Rear Derailleur
Shimano Deore XT M8000 SGS
Front Derailleur
Shimano SLX M7025
Shift Levers
Shimano SLX M7000 11s
Cassette
Shimano SLX M7000 11-42 11s
Crank
Shimano Deore XT M8000 38/28 38/28
Bottom Bracket
Shimano BSA BB-MT800
Chain
Shimano CN-HG601 11s
Wheels
Rims
Alexrims MD23 | Shimano TX505 SH10, Rim Material: Aluminium, Rim Width: 23 mm, Hub Type: TX505
Tires
MAXXIS Rambler 40mm
Brakes
Brakes
Shimano MT201
Disk Rotors
Shimano RT54, Disc Mount: Centerlock
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GS2
Seat
Saddle
Iridium WMN
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.54 mm | 1.54 mm | 1.58 mm |
| Front Center | 613 mm | 632 mm | 635 mm | 650 |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 71 mm | 71 mm | 73 mm | 72 mm |
| Stack | 586 mm | 596 mm | 618 mm | 642 mm |
| Reach | 373 mm | 388 mm | 401 mm | 407 mm |
| Top Tube Length | 548 mm | 566 mm | 585 mm | 598 mm |
| Seat Tube Angle | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 355 mm | 385 mm | 425 mm | 455 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 125 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1055 mm | 1074 mm | 1074 mm | 1089 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 62 mm | 62 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 700 | 700 |
| Rider Max Height | 162 cm | 165 cm | 175 cm | cm |
Model Overview
Pathlite WMN 6.0 is part of the Canyon Pathlite model. 41 bikes variations carry this model name so far. You can easily view all of the Canyon Pathlite bikes models from 2019, here.
Model range prices
Canyon Pathlite WMN 4.0 2019 is the cheapest bike model and costs 689$. Canyon Pathlite SL 8.0 2019 is the most expensive one and costs 1804$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fitness bikes average price
According to our math, the average price for a trustworthy Fitness bike is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Pathlite WMN 6.0 price was 1061$. Comparing this to the average Fitness bike price, we see that the price is 61.74% higher.
Average weight for Fitness bikes
Fitness bikes have an average weight of 11.24 kg (24.78 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, Pathlite WMN 6.0 has a weight of 12.5 kg (27.56 lbs). In other words, this model is 11.21% heavier than the average Fitness bike.
Overview of components
Fork
The SunTour NRX D is included from the factory. It has a travel distance of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Pathlite WMN 6.0 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Pathlite WMN 6.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
