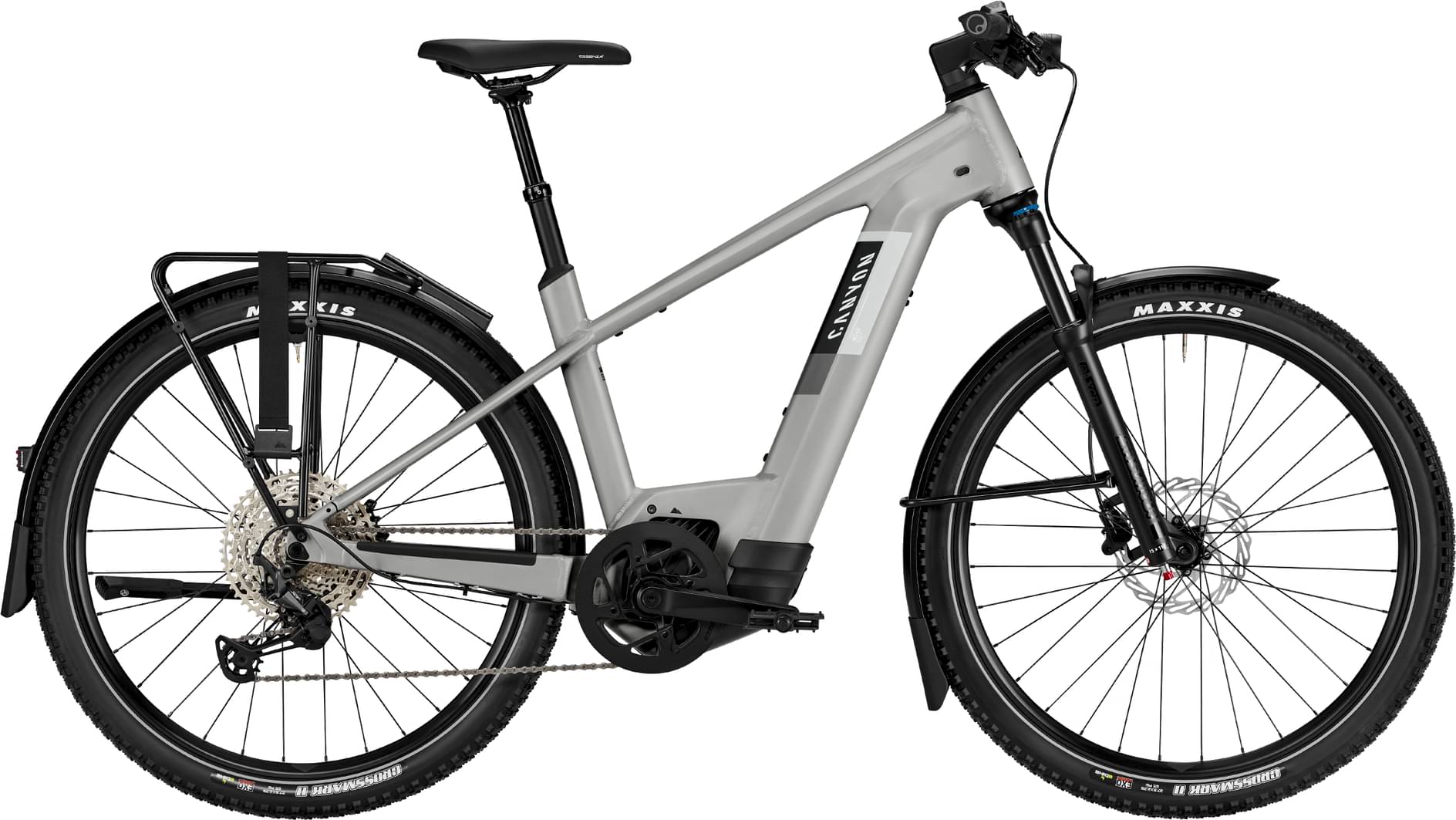

Canyon Pathlite:ON 6 750 SUV 2023
2023 E-bike
Estimate price |
4,357$
Weight | 28.08 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
SR Suntour XCR34 Air, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Weight: 2.34 kg
Drivetrain

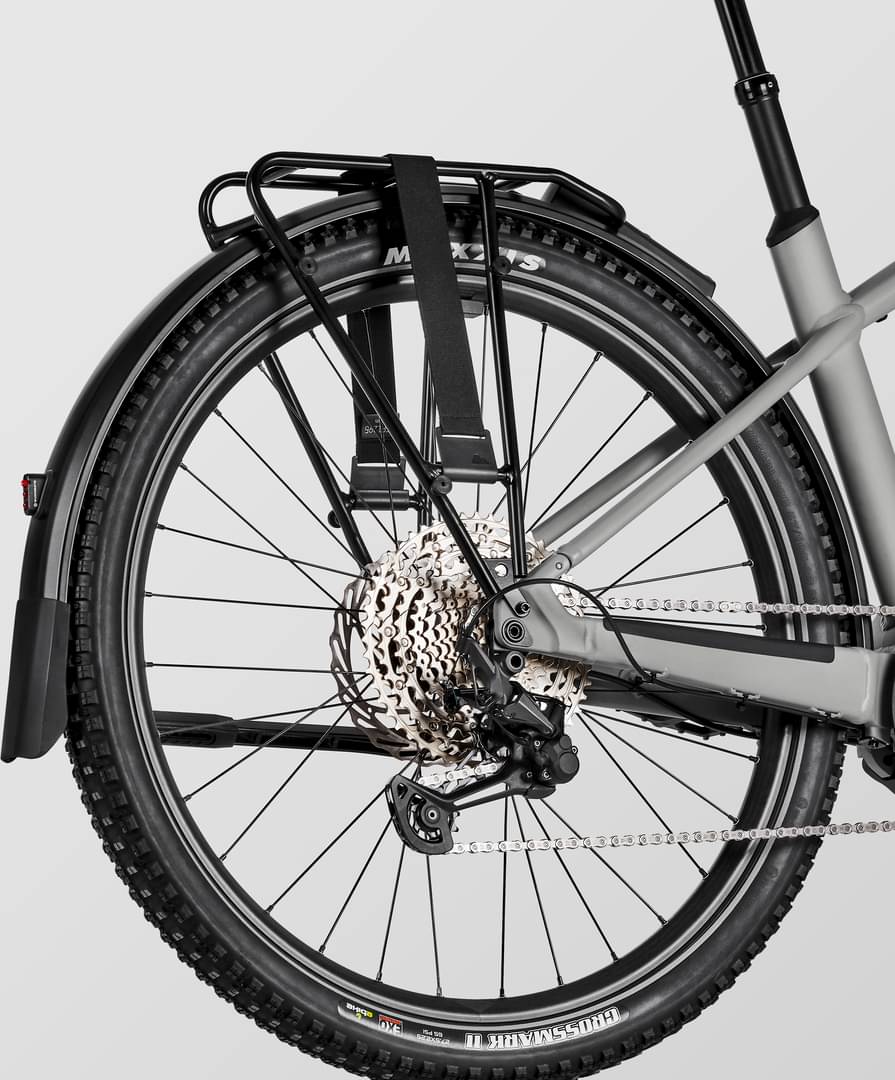

Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
FSA CK-220, Number of chainrings: 1
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims MD25 | Promax DR850, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g | Alexrims MD25 | Promax DR850 SH12, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 950 g
Tires

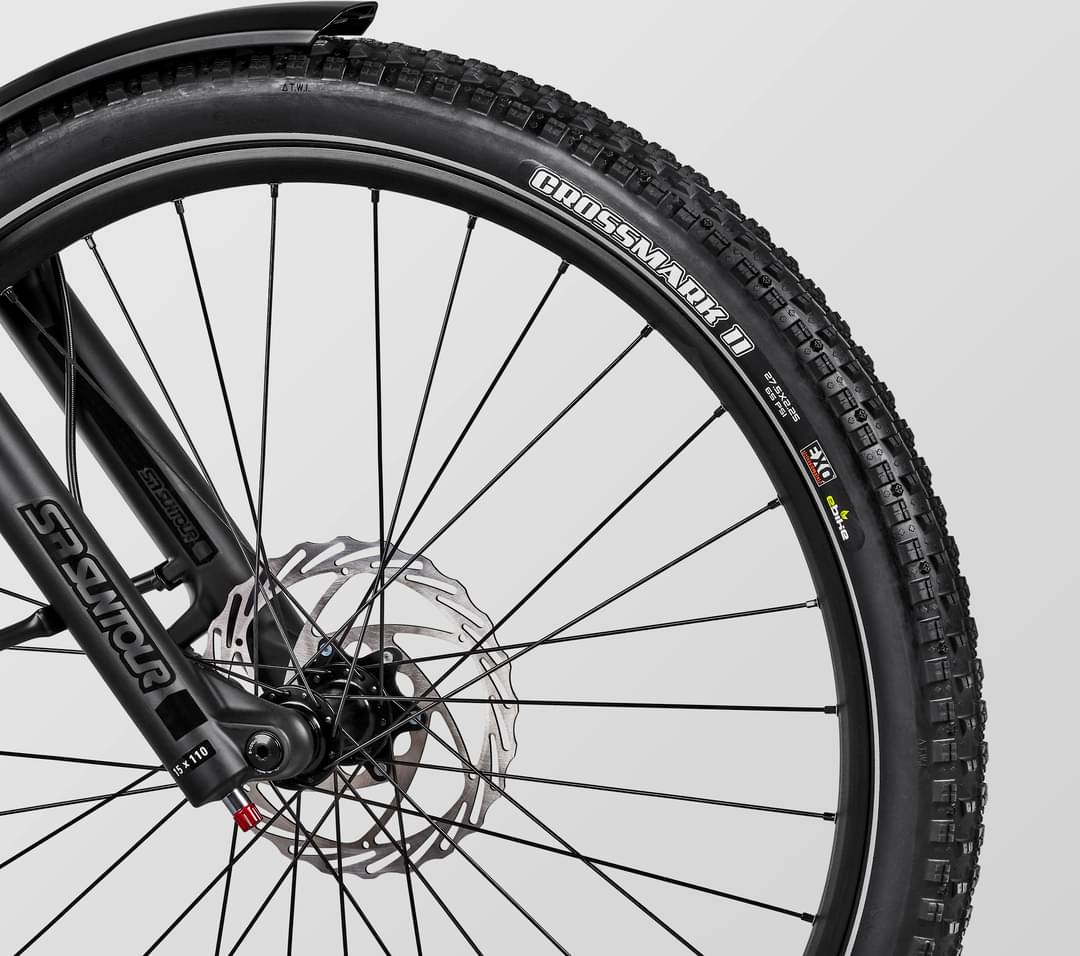

Maxxis Crossmark II Reflexstrip Clincher | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre
Brakes
Brakes
Promax DC925, Number of pistons: 2 | Promax DC927, Number of pistons: 2
Cockpit
Stem
Iridium ST0034, Fork steer tube diameter: 1 1/8"

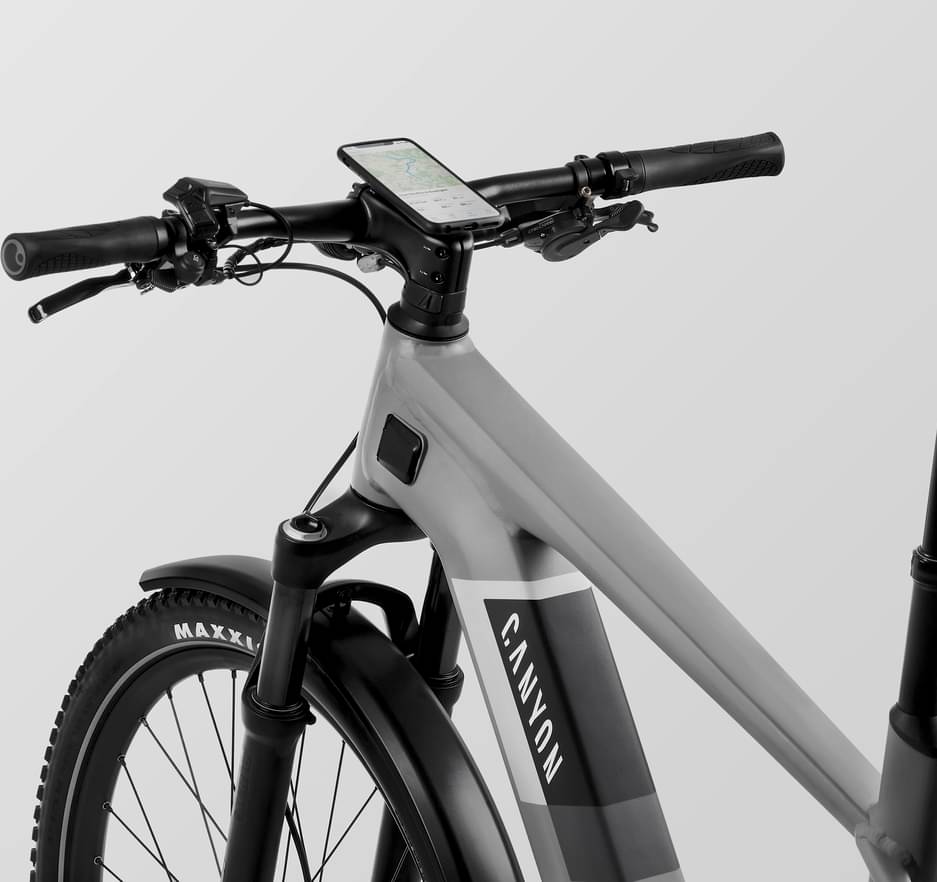

Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza+
Seatpost
Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g
Motor & Battery
Motor

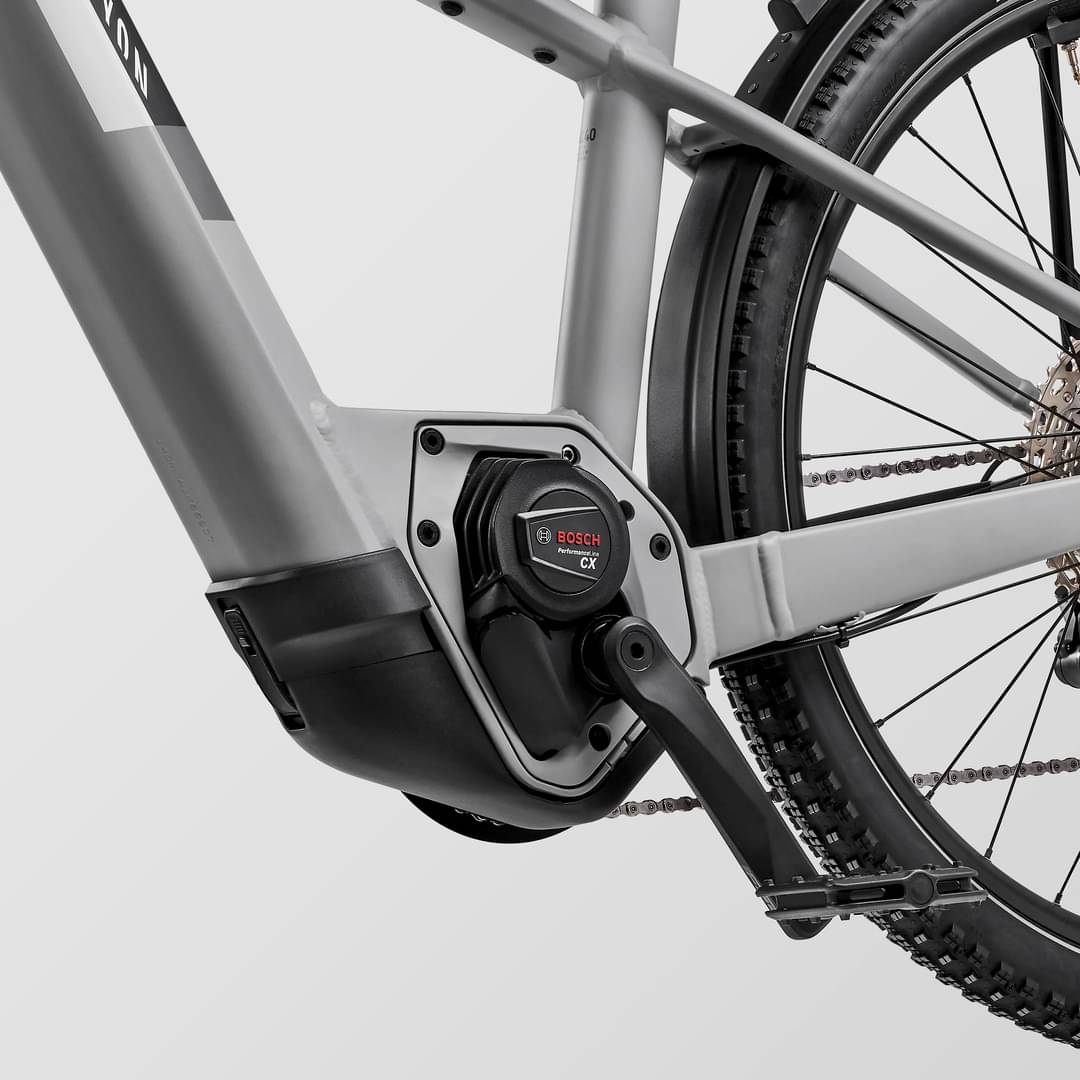

Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.59 mm | 1.58 mm |
| Front Center | 686 mm | 716 mm | 745 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 646 mm | 671 mm | 696 mm |
| Reach | 401 mm | 421 mm | 441 mm |
| Top Tube Length | 594 mm | 621 mm | 648 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 475 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 137 mm | 164 mm | 191 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1134 mm | 1164 mm | 1194 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 771 mm | 796 mm | 821 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 181 cm | 191 cm | cm |
About this model
Pathlite:ON 6 750 SUV completes the Canyon E Pathliteon model. Canyon launched 44 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Pathlite:ON 4 2023 is the most economical model, with a starting price of 2653$. Canyon Pathlite:ON 9 LTD SUV 2023 on the other hand costs 5839$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness e-bikes average price
If you want to purchase a solid Fitness e-bike, it is important to know that the average cost is 2351$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Pathlite:ON 6 750 SUV price was 4034$. In conclusion, this e-bike price is 71.59% more expensive than the price of the average Fitness e-bike.
Fitness e-bikes average weight
If we make a quick analysis of the average weight of a Fitness e-bike, we get 22.85 kg (50.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 28.08 kg (61.91 lbs), the Pathlite:ON 6 750 SUV model is much heavier than average. To sum up, it’s 22.89% heavier than the average weight of Fitness e-bikes.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Pathlite:ON 6 750 SUV 2023 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Pathlite:ON 6 750 SUV has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Pathlite:ON 6 750 SUV. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
