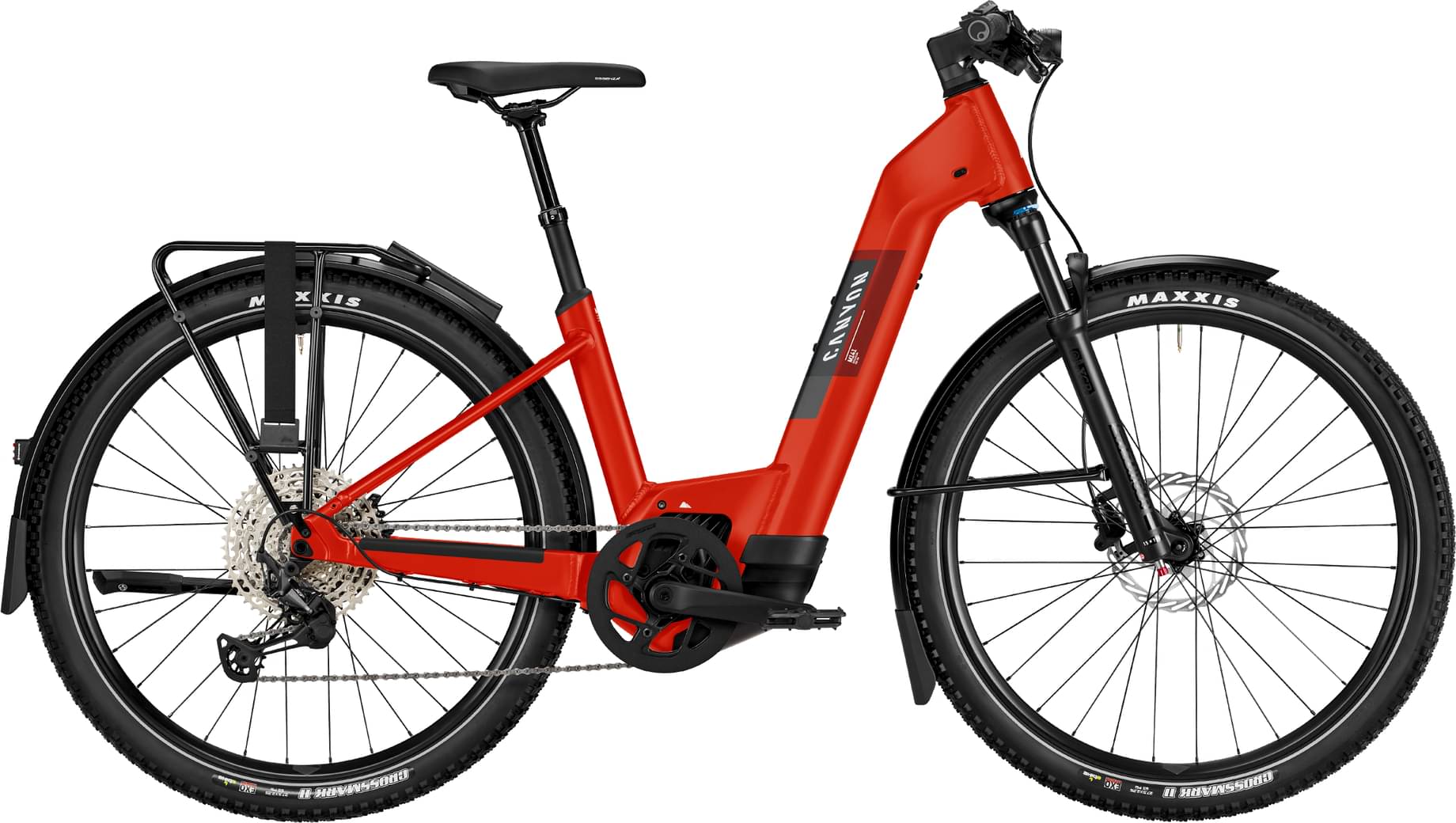

Canyon Pathlite:ON 6 750 SUV step-through 2023
2023 E-bike
Estimate price |
4,357$
Weight | 27.96 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON Step-Through, A tough, feature-packed, easy-to-mount aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12x148 mm, Material: Aluminium (AL), Weight: 3.65 kg
Suspension Fork
SR Suntour XCR34 Air, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8", Weight: 2.34 kg

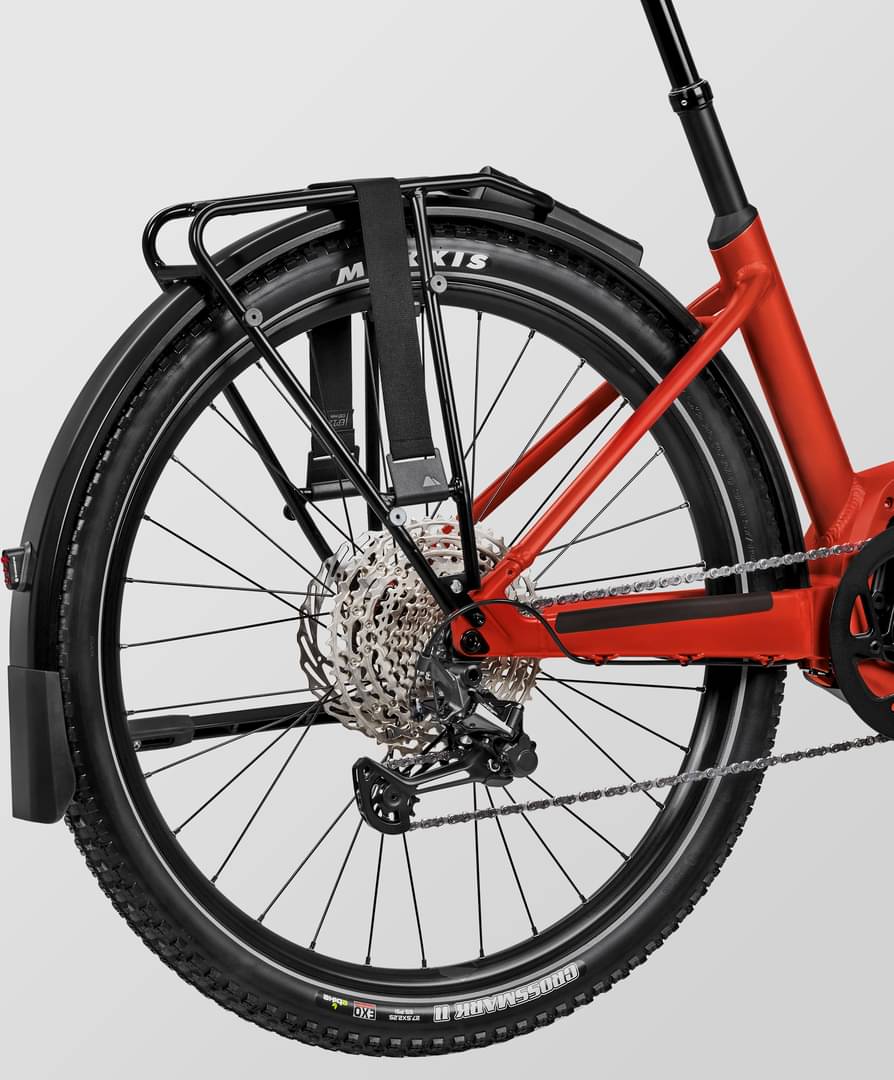

Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano DEORE M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
FSA CK-220, Number of chainrings: 1
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Wheels
Rims
Alexrims MD25 | Promax DR850, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g | Alexrims MD25 | Promax DR850 SH12, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 950 g

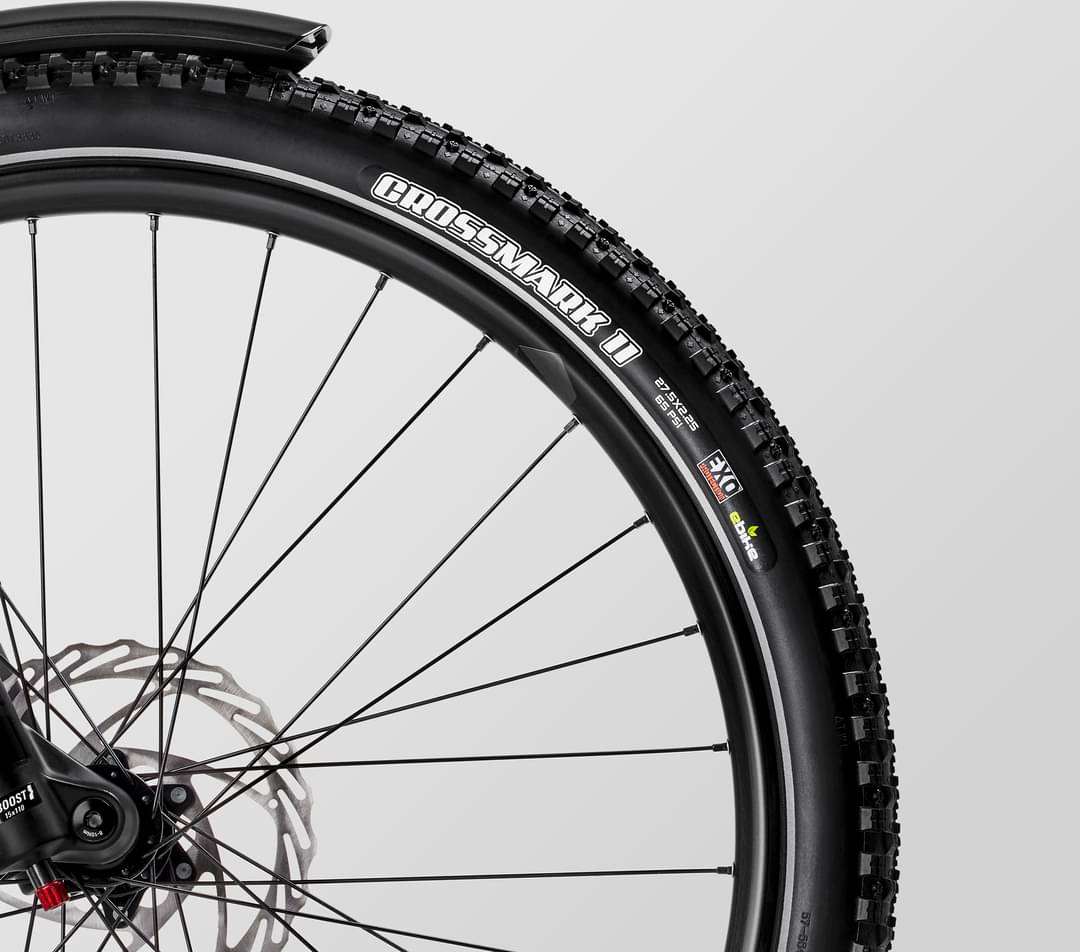

Tires
Maxxis Crossmark II Reflexstrip Clincher | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre
Brakes
Brakes
Promax DC925, Number of pistons: 2 | Promax DC927, Number of pistons: 2

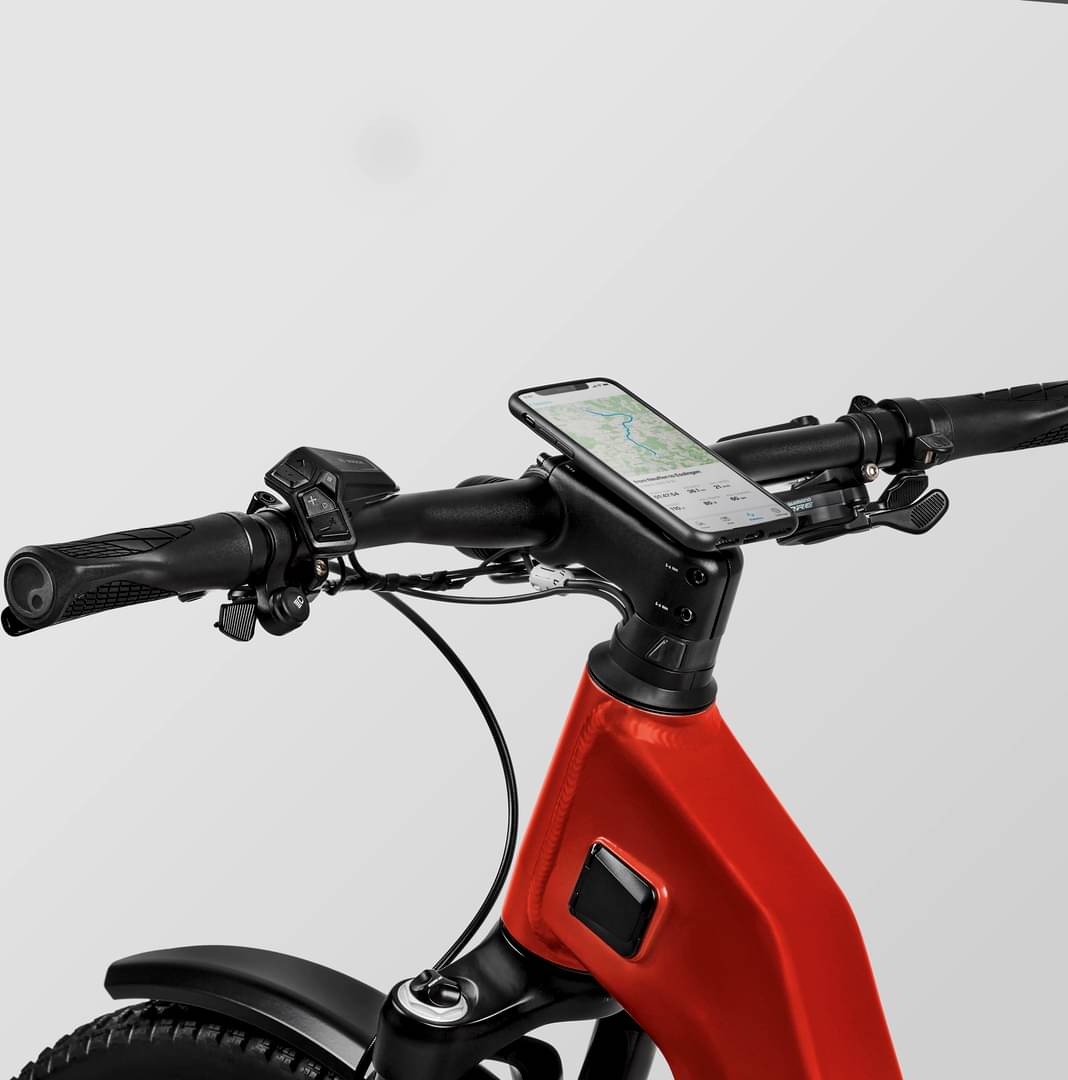

Cockpit
Stem
Iridium ST0034, Fork steer tube diameter: 1 1/8"
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza+
Seatpost
Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g
Motor & Battery

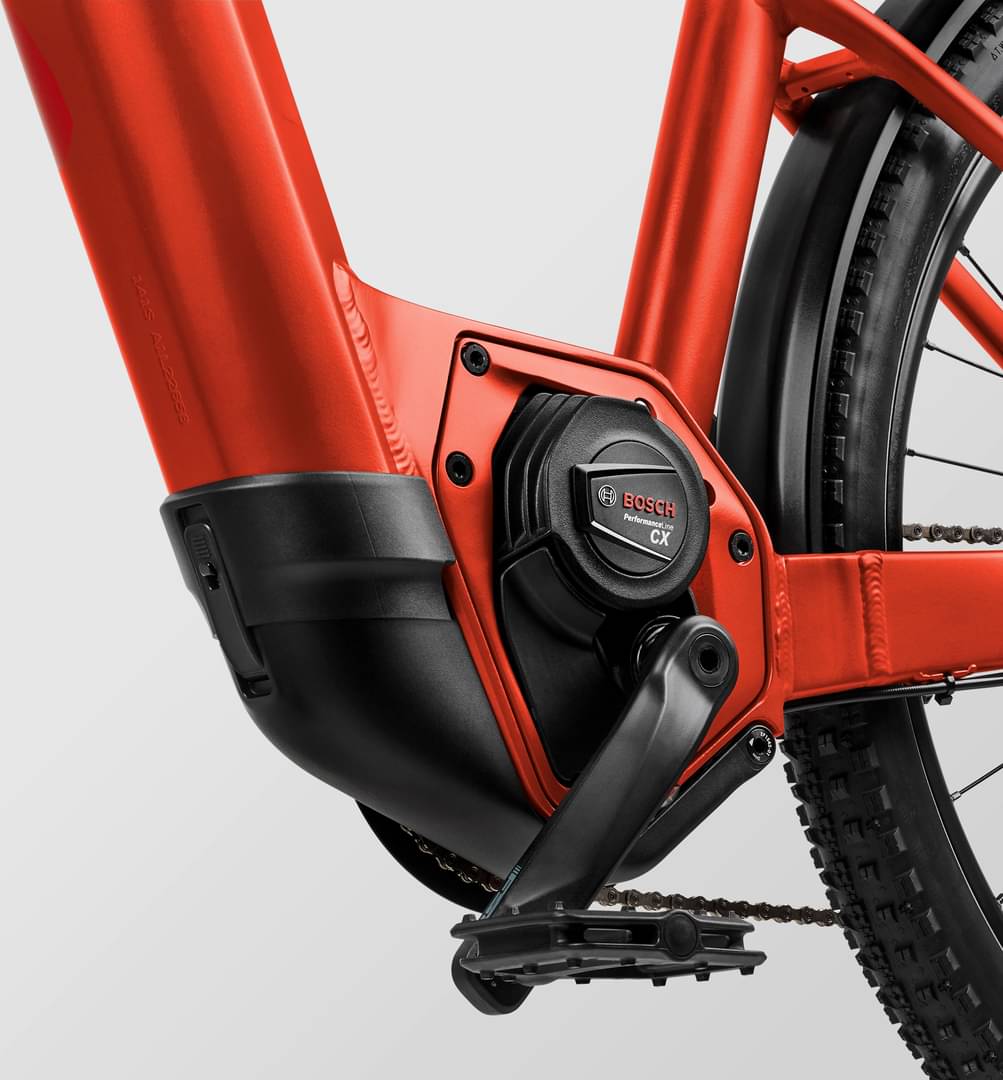

Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.59 mm |
| Front Center | 651 mm | 686 mm | 716 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 627 mm | 652 mm | 677 mm |
| Reach | 382 mm | 407 mm | 427 mm |
| Top Tube Length | 567 mm | 600 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 385 mm | 430 mm | 475 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 111 mm | 137 mm | 164 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1105 mm | 1140 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 452 mm | 452 mm | 452 mm |
| Front Travel | 80 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 171 cm | 181 cm | cm |
Model Overview
Pathlite:ON 6 750 SUV step-through is part of the Canyon E Pathliteon model. Canyon launched 44 e-bikes of this model so far. Take a sneak peek at all Canyon E Pathliteon e-bikes models from 2023, by clicking here.
Model range prices
Canyon Pathlite:ON 4 2023 is the cheapest e-bike model and costs 2653$. Canyon Pathlite:ON 9 LTD SUV 2023 is the most expensive one and costs 5839$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness e-bikes
If you want to purchase a solid Fitness e-bike, it is important to know that the average cost is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Pathlite:ON 6 750 SUV step-through price was 4034$. If we compare this with the average Fitness e-bike cost we notice that the price is 71.59% higher.
Fitness e-bikes average weight
If we make a quick analysis of the average weight of a Fitness e-bike, we get 22.85 kg (50.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 27.96 kg (61.64 lbs), the Pathlite:ON 6 750 SUV step-through model is much heavier than average. In short, the average Fitness e-bike weight is 22.36% lower than this one.
Pathlite:ON 6 750 SUV step-through components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Pathlite:ON 6 750 SUV step-through model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
Canyon Pathlite:ON 6 750 SUV step-through comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
