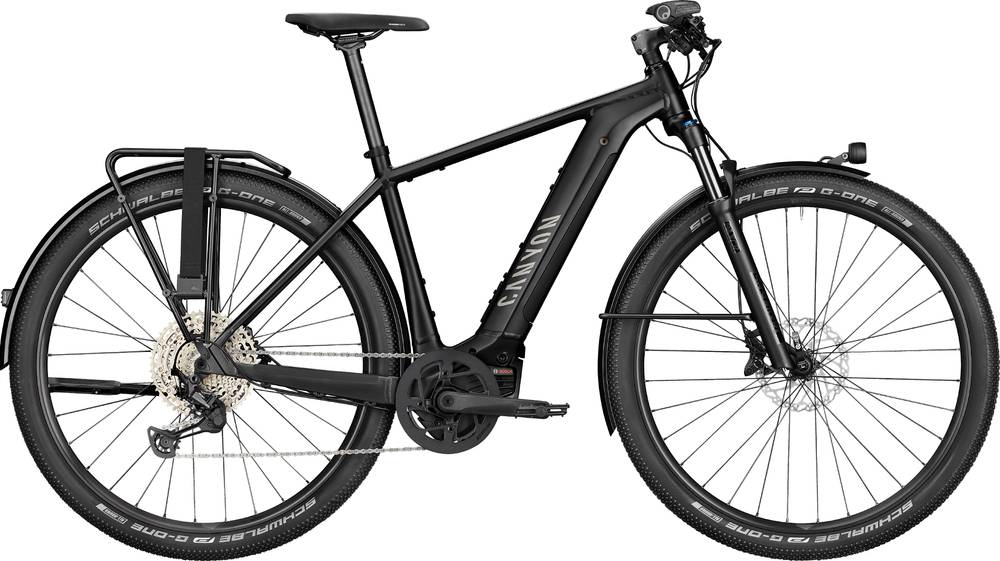

Canyon Pathlite:ON 7 2021
2021 E-bike
Estimate price |
3,795$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 29" -
Travel Front 100mm -
Fork SunTour XCR 34
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 177cm
MD
175cm - 185cm
LG
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, Material: Aluminium, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180, Interface: 40 mm Kickstand Mount
Suspension Fork
SR Suntour XCR34
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 SGS
Shift Levers
Shimano Deore M6100 12s
Cassette
Shimano Deore M6100 12s
Crank
FSA CK-220 GEN4 ISIS
Chain
Shimano CN-M6100 12s
Wheels
Rims
Alexrims MD25 | Shimano MT410-B
Tires
Schwalbe G-One Allround 57 mm
Brakes
Brakes
Shimano Deore MT4100
Disk Rotors
Shimano EM300, Disc Mount: Centerlock
Cockpit
Grips
Ergon GS2
Seat
Saddle
Fizik Essenza
Seatpost
Iridium
Motor & Battery
Motor
Bosch Performance Line CX (Gen4)
Battery
Bosch PowerTube 500 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.63 mm | 1.63 mm | 1.6 mm | 1.61 mm |
| Front Center | 623 mm | 631 mm | 646 mm | 673 mm | 714 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 76 mm | 76 mm | 71 mm | 71 mm | 71 mm |
| Stack | 616 mm | 621 mm | 636 mm | 657 mm | 703 mm |
| Reach | 374 mm | 380 mm | 391 mm | 410 mm | 436 mm |
| Top Tube Length | 555 mm | 562 mm | 581 mm | 606 mm | 646 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 440 mm | 465 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70.2 ° | 70.2 ° | 70.25 ° |
| Head Tube Length | 92 mm | 98 mm | 92 mm | 114 mm | 163 mm |
| Chainstay Length | 449 mm | 449 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1064 mm | 1072 mm | 1104 mm | 1131 mm | 1173 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 753 mm | 798 mm | 834 mm | 856 mm | 891 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 29" | 29" | 29" |
| Rider Max Height | 171 cm | 177 cm | 185 cm | 193 cm | cm |
About this model
Pathlite:ON 7 is part of the Canyon E Pathliteon model. Canyon launched 44 e-bikes of this model so far. You can easily view all of the Canyon E Pathliteon e-bikes models from 2021, here.
Model range prices
Canyon Pathlite:ON 6 2021 is the most affordable e-bike of this model and has a price of 3004$. On the other hand, Canyon Pathlite:ON 9.0 2021, is the most expensive and costs 5308$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness e-bikes
According to our calculations, the average cost of a Fitness e-bike that is reliable is 2351$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 3513$. Comparing the average cost of a Fitness e-bike to this one, you will see that Pathlite:ON 7 price is 49.43% more expensive.
Average weight for Fitness e-bikes
If we make a quick analysis of the average weight of a Fitness e-bike, we get 22.85 kg (50.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Pathlite:ON 7 weighs 24.2 kg (53.35 lbs) and is a bit heavier than the average. In short, the average Fitness e-bike weight is 5.91% lower than this one.
Pathlite:ON 7 components
Fork
The SunTour XCR 34 is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Pathlite:ON 7 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Pathlite:ON 7 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
