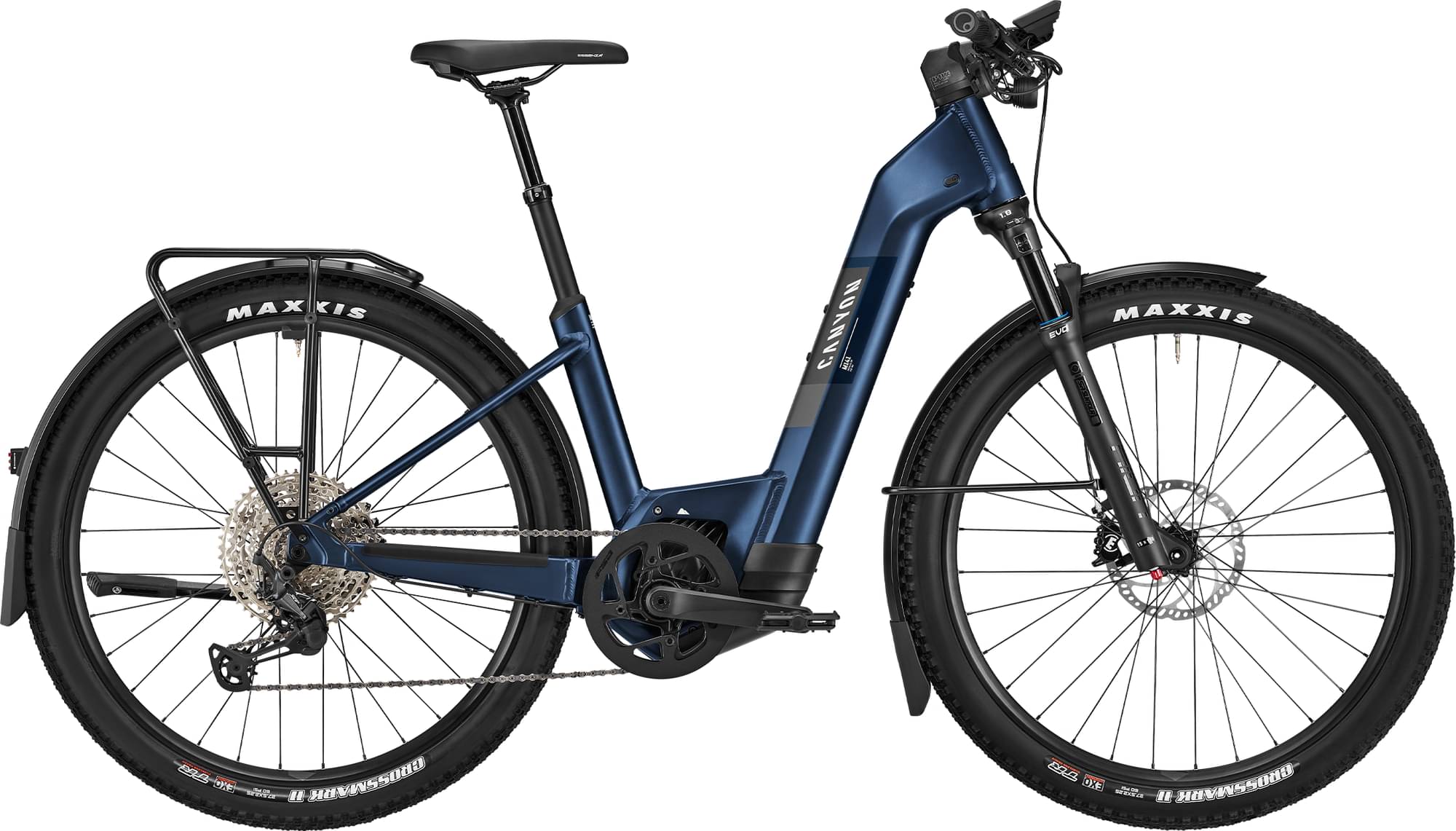

Canyon Pathlite:ON 7 SUV step-through 2022
2022 E-bike
Estimate price |
4,816$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour AION
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON Step-Through, Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
SR Suntour AION35 EVO BOOST, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 12speed, Precise 1x12 drivetrain.
Shift Levers
Shimano Deore M6100 12speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Cassette
Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Crank
FSA CK-220, Number of chainrings: 1
Chain
Shimano Deore M6100 12speed
Wheels
Rims
Alexrims MD25 | Promax DR850, Rotor mount: Center Lock | Alexrims MD25 | Promax DR850 SH12, Rotor mount: Center Lock
Tires
Maxxis Crossmark II EXO TR | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre
Brakes
Brakes
Magura MT thirty rear, Number of pistons: 2 | Magura MT thirty front, Number of pistons: 2
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza plus athletic
Seatpost
Iridium Suspenion Dropper Post, Clamp diameter: 30,9 mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.59 mm |
| Front Center | 651 mm | 686 mm | 716 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 627 mm | 652 mm | 677 mm |
| Reach | 382 mm | 407 mm | 427 mm |
| Top Tube Length | 567 mm | 600 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 385 mm | 430 mm | 475 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 111 mm | 137 mm | 164 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1105 mm | 1140 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 452 mm | 452 mm | 452 mm |
| Front Travel | 80 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 171 cm | 181 cm | cm |
Model Overview
Pathlite:ON 7 SUV step-through is a Canyon E Pathliteon model. 44 e-bikes variations carry this model name so far. Take a sneak peek at all Canyon E Pathliteon e-bikes models from 2022, by clicking here.
Model range prices
Canyon Pathlite:ON 4 2022 is the cheapest e-bike model and costs 2653$. Canyon Pathlite:ON 9.0 2022 is the most expensive one and costs 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fitness e-bikes average price
If you want an acceptable Fitness e-bike you should know that the average price is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4458$. Comparing the average cost of a Fitness e-bike to this one, you will see that Pathlite:ON 7 SUV step-through price is 89.62% more expensive.
Fitness e-bikes average weight
Fitness e-bikes have an average weight of 22.85 kg (50.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 27.6 kg (60.85 lbs), Canyon e-bike is much heavier than average. In conclusion, the average Fitness e-bike weighs 20.79% less than Pathlite:ON 7 SUV step-through.
Pathlite:ON 7 SUV step-through components
Fork
The Pathlite:ON 7 SUV step-through comes factory-installed with the Suntour AION fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Pathlite:ON 7 SUV step-through 2022 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Pathlite:ON 7 SUV step-through has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Pathlite:ON 7 SUV step-through. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
