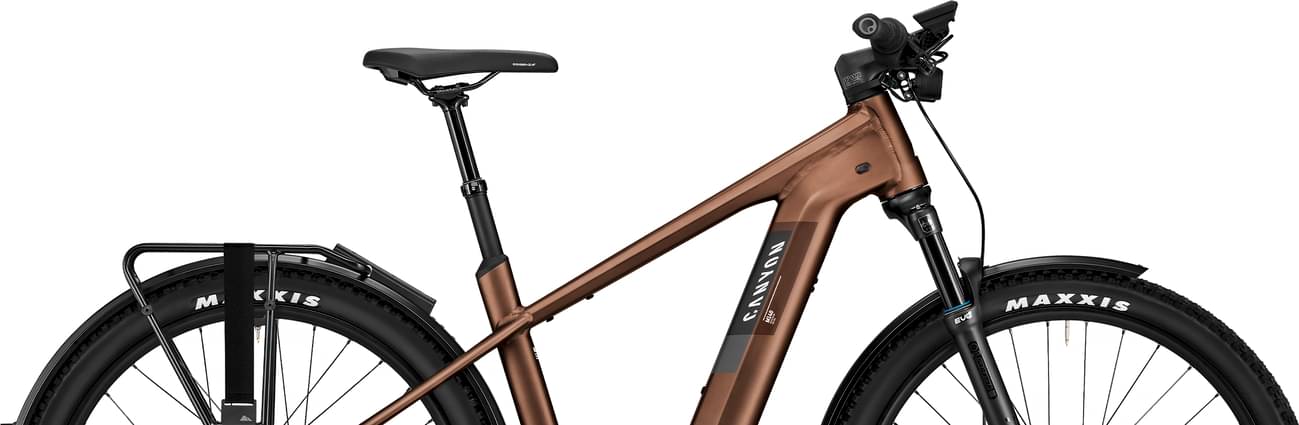

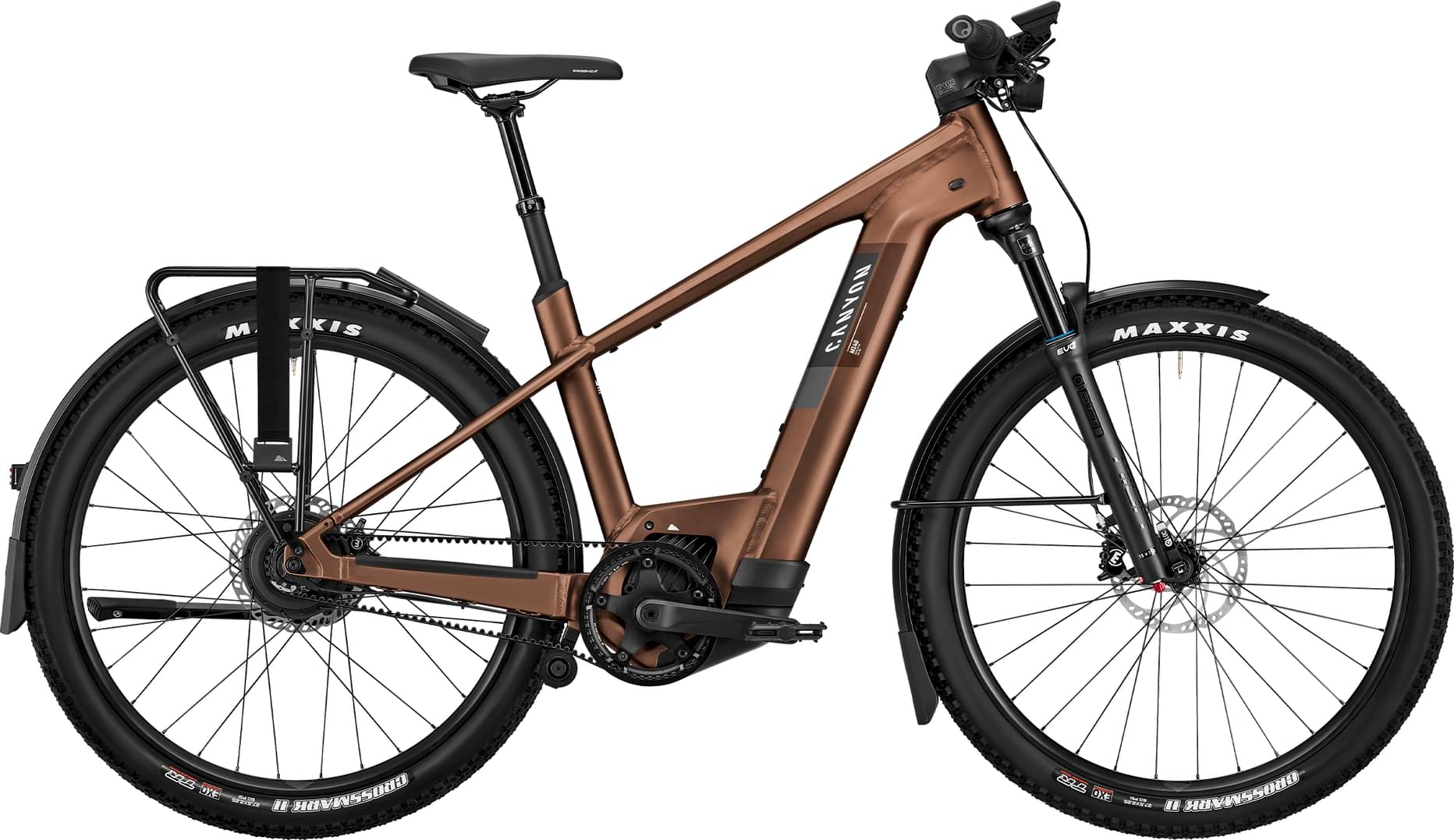

Canyon Pathlite:ON 8 SUV 2023
2023 E-bike
Estimate price |
5,390$
Weight | 29.16 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour AION
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
SR Suntour AION35 EVO BOOST, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.11 kg
Drivetrain
Shift Levers
Enviolo Twist Pro
Cassette
Gates CDX 22T rear sprocket, Number of sprockets: 1
Crank
FSA CK-220, Number of chainrings: 1
Chain
Gates CDX Belt
Chain Guide
Gates Belt Tensioner | Canyon EP1331-01 | Canyon EP2129-01
Wheels
Rims
Alexrims MD25 | Enviolo heavy duty hub, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium | Alexrims MD25 | Promax DR850, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g

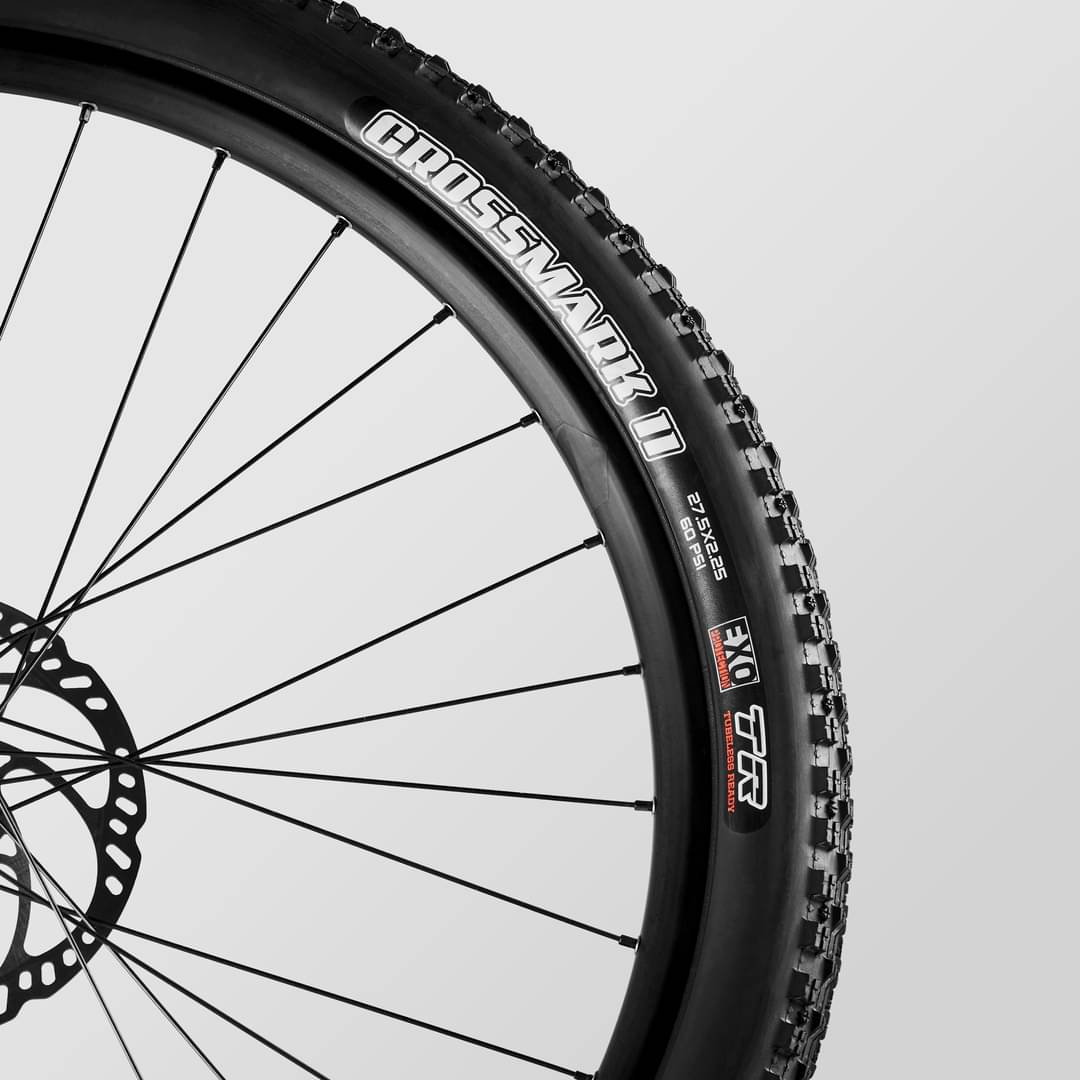

Tires
Maxxis Crossmark II EXO TR | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre
Brakes
Brakes
Magura MT thirty rear, Number of pistons: 2 | Magura MT thirty front, Number of pistons: 2

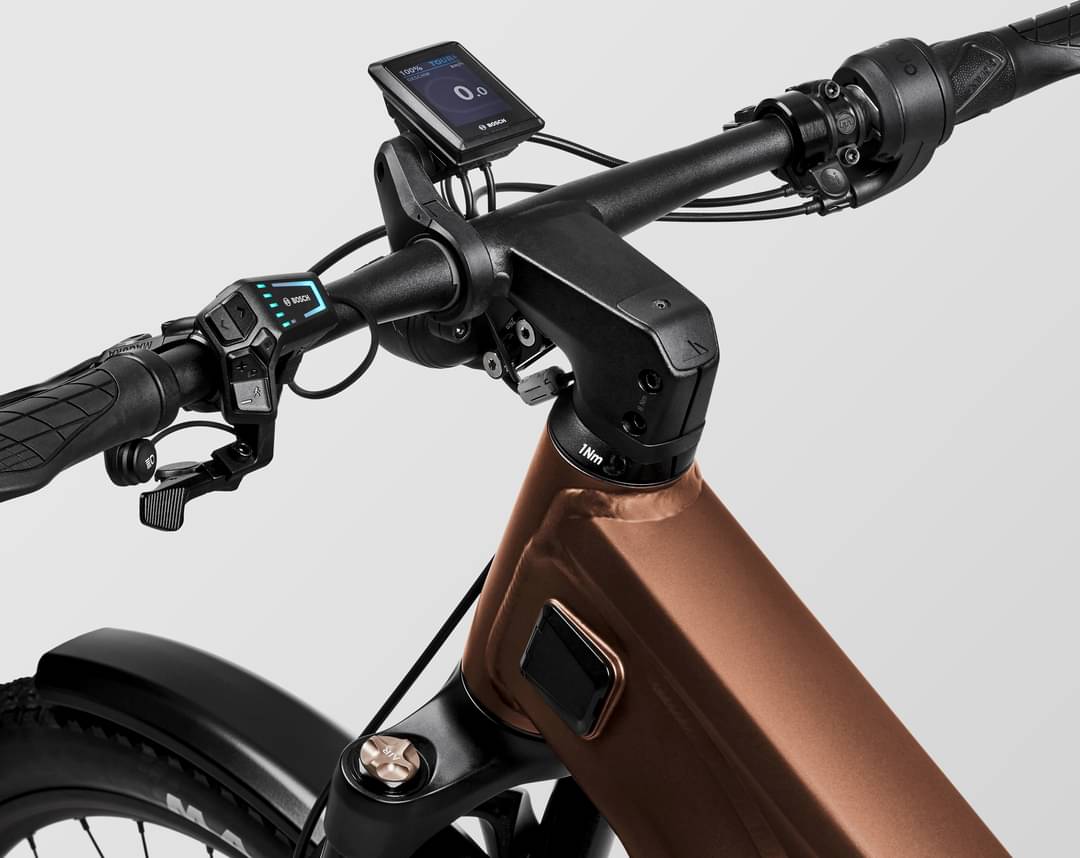

Cockpit
Grips
Ergon GA30 Twist Shift Supernova down left
Seat
Saddle
SR Royal Essenza+
Seatpost
Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g
Motor & Battery

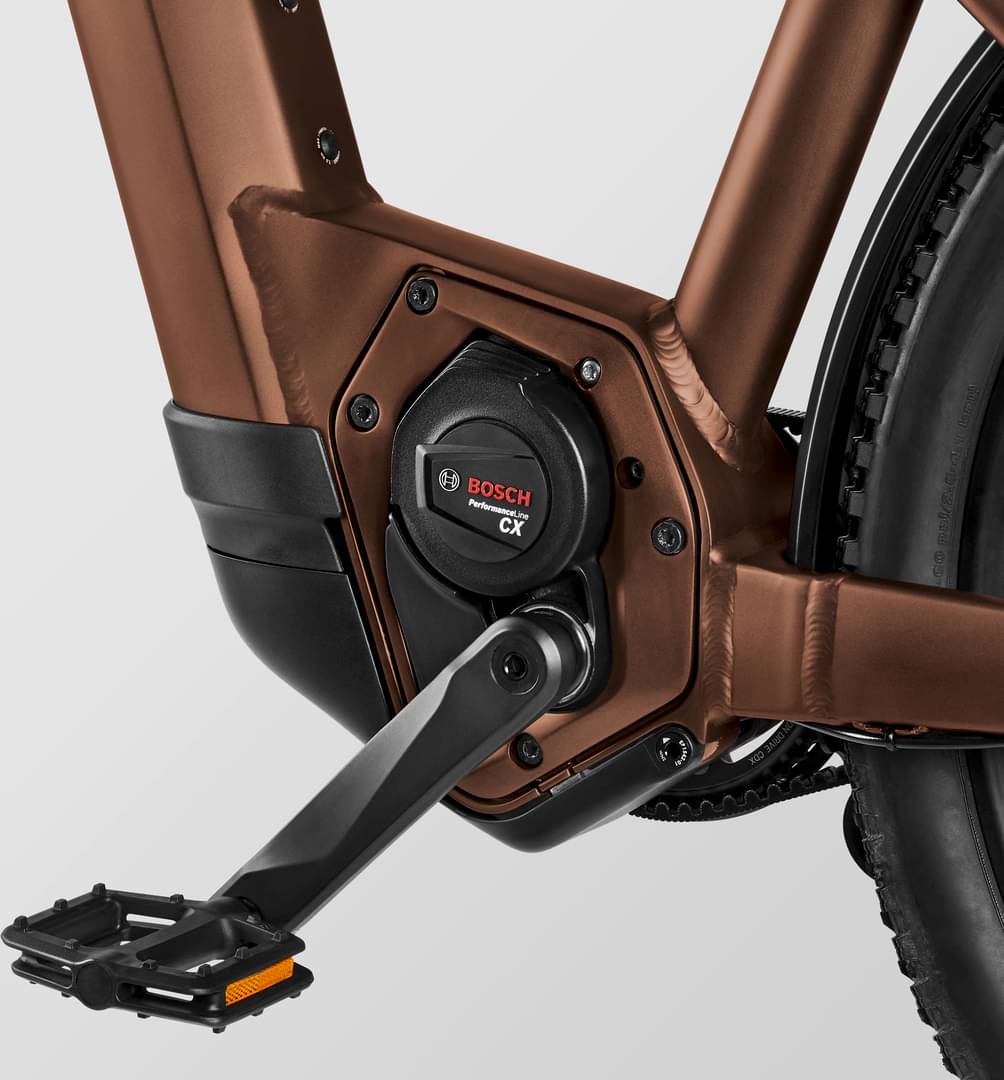

Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.59 mm | 1.58 mm |
| Front Center | 686 mm | 716 mm | 745 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 646 mm | 671 mm | 696 mm |
| Reach | 401 mm | 421 mm | 441 mm |
| Top Tube Length | 594 mm | 621 mm | 648 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 475 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 137 mm | 164 mm | 191 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1134 mm | 1164 mm | 1194 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 771 mm | 796 mm | 821 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 181 cm | 191 cm | cm |
About this model
Pathlite:ON 8 SUV is a Canyon E Pathliteon model. 44 e-bikes variations carry this model name so far. Take a sneak peek at all Canyon E Pathliteon e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Canyon Pathlite:ON 4 2023 has a starting price of 2653$. Canyon Pathlite:ON 9 LTD SUV 2023 on the other hand is the most expensive at 5839$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness e-bikes
According to our math, the average price for a trustworthy Fitness e-bike is 2351$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 4989$. Doing a quick comparison, we notice that Pathlite:ON 8 SUV price is 112.21% more expensive than the average cost of a Fitness e-bike.
Average weight for Fitness e-bikes
Fitness e-bikes have an average weight of 22.85 kg (50.38 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Canyon Pathlite:ON 8 SUV it’s weighing 29.16 kg (64.29 lbs). At this weight, is much heavier than average. To sum up, it’s 27.61% heavier than the average weight of Fitness e-bikes.
Pathlite:ON 8 SUV components
Fork
The Suntour AION is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Pathlite:ON 8 SUV are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Pathlite:ON 8 SUV comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Canyon Pathlite:ON 8 SUV comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
