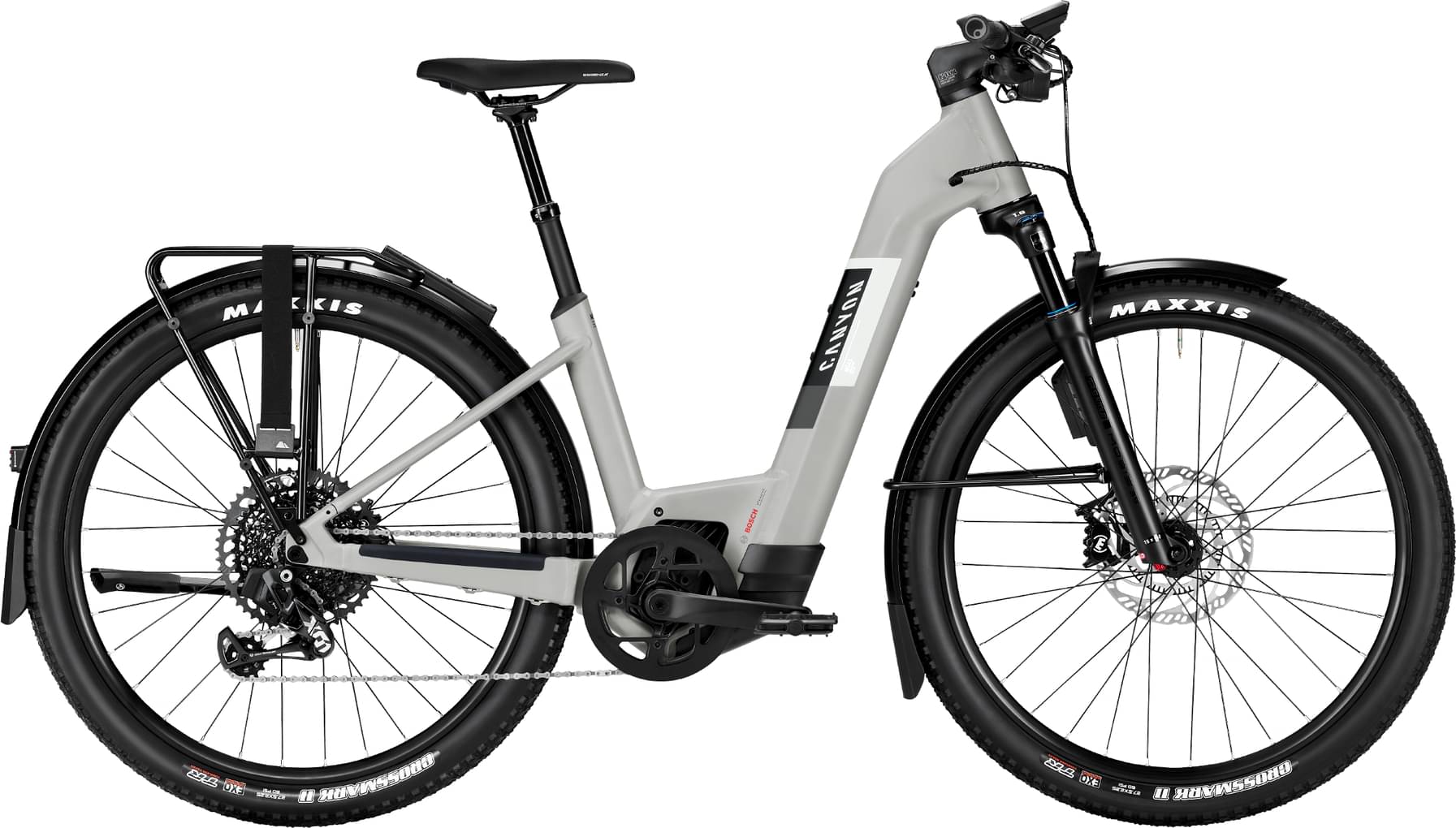

Canyon Pathlite:ON 9 LTD SUV step-through 2023
2023 E-bike
Estimate price |
6,307$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh, High-capacity battery with plenty charge for all-day adventures at maximum motor support. -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON step-through, A tough, feature-rich e-touring bike with a comfortable riding position and easy-to-mount design., Material: Aluminium (AL)
Suspension Fork
SR Suntour MOBIE35 BOOST EQ, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, Precise 1x12 rear derailleur with wireless AXS technology.
Shift Levers
SRAM GX Eagle AXS, Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy.
Cassette
SRAM GX Eagle, 12-speed (10-52), Cassette size: 10-52T, Gear range: 520% | SRAM GX XG-1275 12-speed Cassette 10-52
Crank
FSA CK-220, Number of chainrings: 1
Chain
SRAM NX Eagle 12-speed Chain 126 Links
Wheels
Rims
Alex Rims MXD7, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 20 mm, Inner width: 25 mm, Wheelsize: 27,5" | Alex Rims MXD7, Rotor mount: IS 6-bolt, Wheelsize: 27,5"
Tires
Maxxis Crossmark II EXO TR, Grippy, fast-rolling tyres that perform outstandingly well on all surfaces from asphalt to medium gravel. | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre
Brakes
Brakes
Magura MT C ABS, Number of pistons: 4 | Magura MT C, Number of pistons: 2
Cockpit
Grips
Ergon GA3, Premium grips design for extra hand support.
Seat
Saddle
Selle Royal Essenza plus athletic
Seatpost
Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Motor

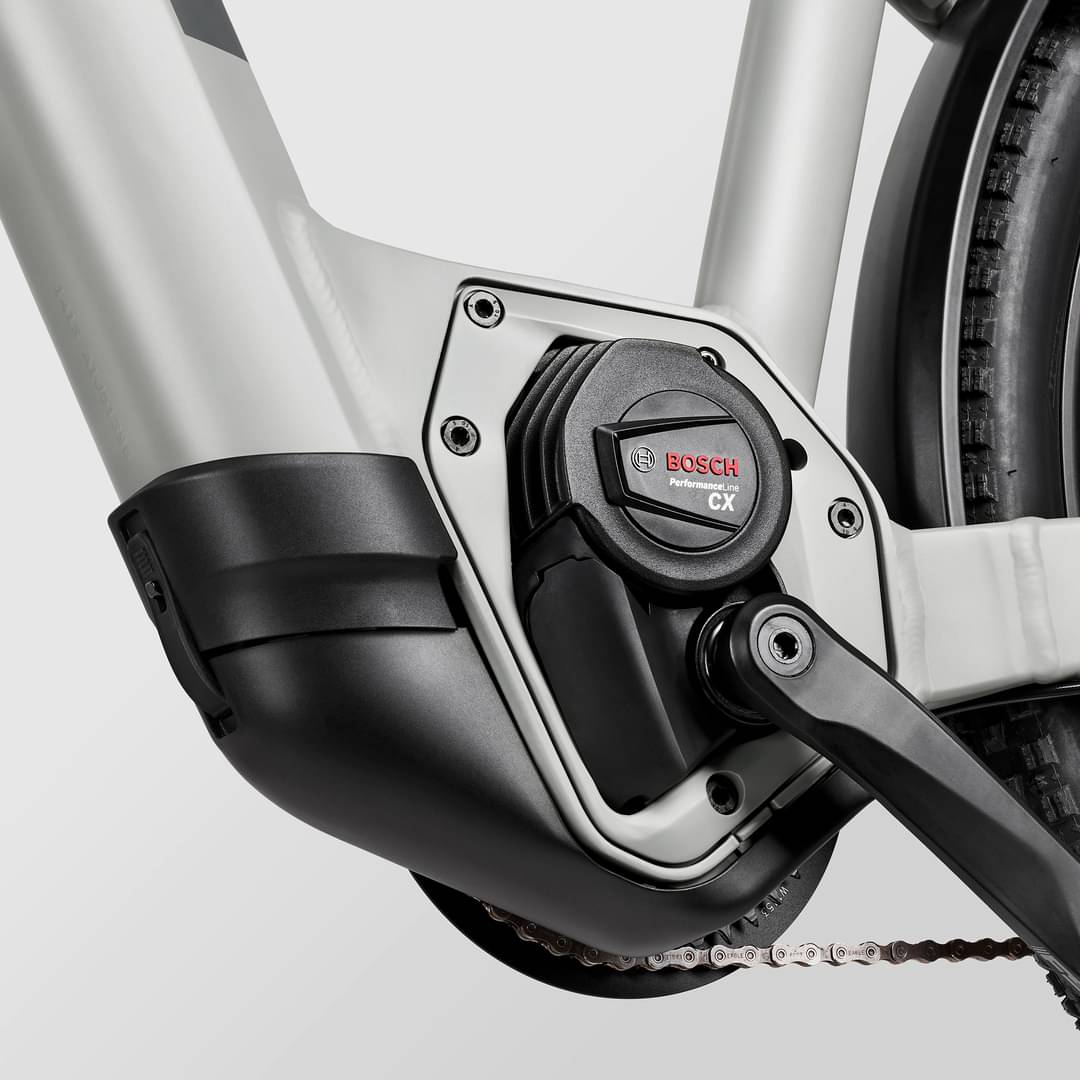

Bosch Performance Line CX, Powerful, high-torque motor with the power to surge up the steepest off-road climbs.
Battery
Bosch PowerTube 750Wh, High-capacity battery with plenty charge for all-day adventures at maximum motor support.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.6 mm | 1.59 mm |
| Front Center | 651 mm | 686 mm | 716 mm |
| Rake | 39 mm | 44 mm | 44 mm |
| Trail | 88 mm | 83 mm | 83 mm |
| Stack | 627 mm | 652 mm | 677 mm |
| Reach | 387 mm | 407 mm | 427 mm |
| Top Tube Length | 567 mm | 600 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 385 mm | 430 mm | 475 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 111 mm | 137 mm | 164 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1105 mm | 1140 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 452 mm | 452 mm | 452 mm |
| Front Travel | 80 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 171 cm | 181 cm | cm |
About this model
Pathlite:ON 9 LTD SUV step-through is a Canyon E Pathliteon model. There are 44 e-bikes that carry this model name. You can easily view all of the Canyon E Pathliteon e-bikes models from 2023, here.
Model range prices
The most economical model, the Canyon Pathlite:ON 4 2023 has a starting price of 2653$. Canyon Pathlite:ON 9 LTD SUV 2023 on the other hand is the most expensive at 5839$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fitness e-bikes average price
If you want an acceptable Fitness e-bike you should know that the average price is 2351$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2023, its price was 5839$. Doing a quick comparison, we notice that Pathlite:ON 9 LTD SUV step-through price is 148.36% higher than the average cost of a Fitness e-bike.
Average weight for Fitness e-bikes
If we make a quick analysis of the average weight of a Fitness e-bike, we get 22.85 kg (50.38 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Pathlite:ON 9 LTD SUV step-through weighs 28 kg (61.73 lbs) and is much heavier than the average. In conclusion, the average Fitness e-bike weighs 22.54% less than Pathlite:ON 9 LTD SUV step-through.
Pathlite:ON 9 LTD SUV step-through components
Fork

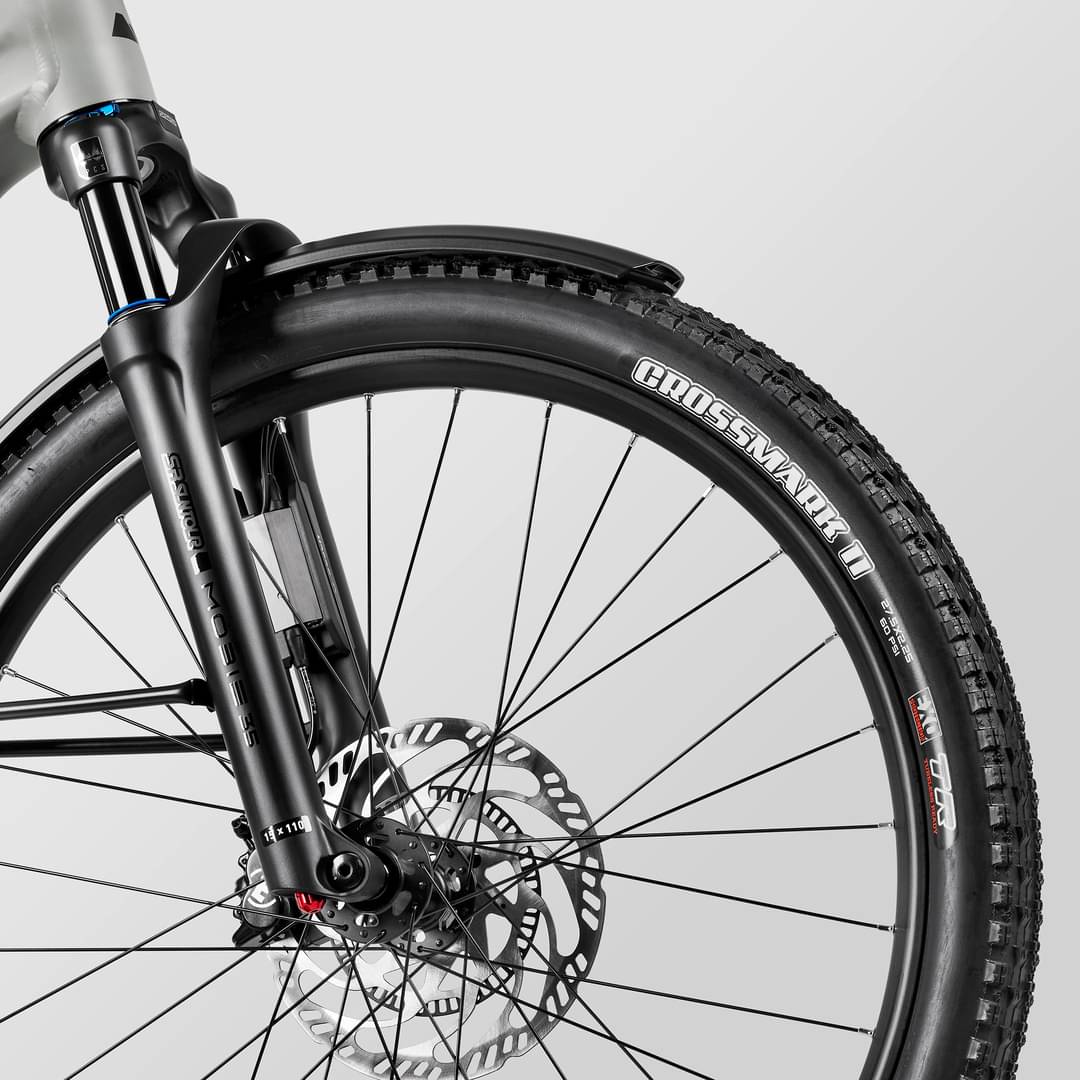

The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Pathlite:ON 9 LTD SUV step-through are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Pathlite:ON 9 LTD SUV step-through is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Pathlite:ON 9 LTD SUV step-through. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
