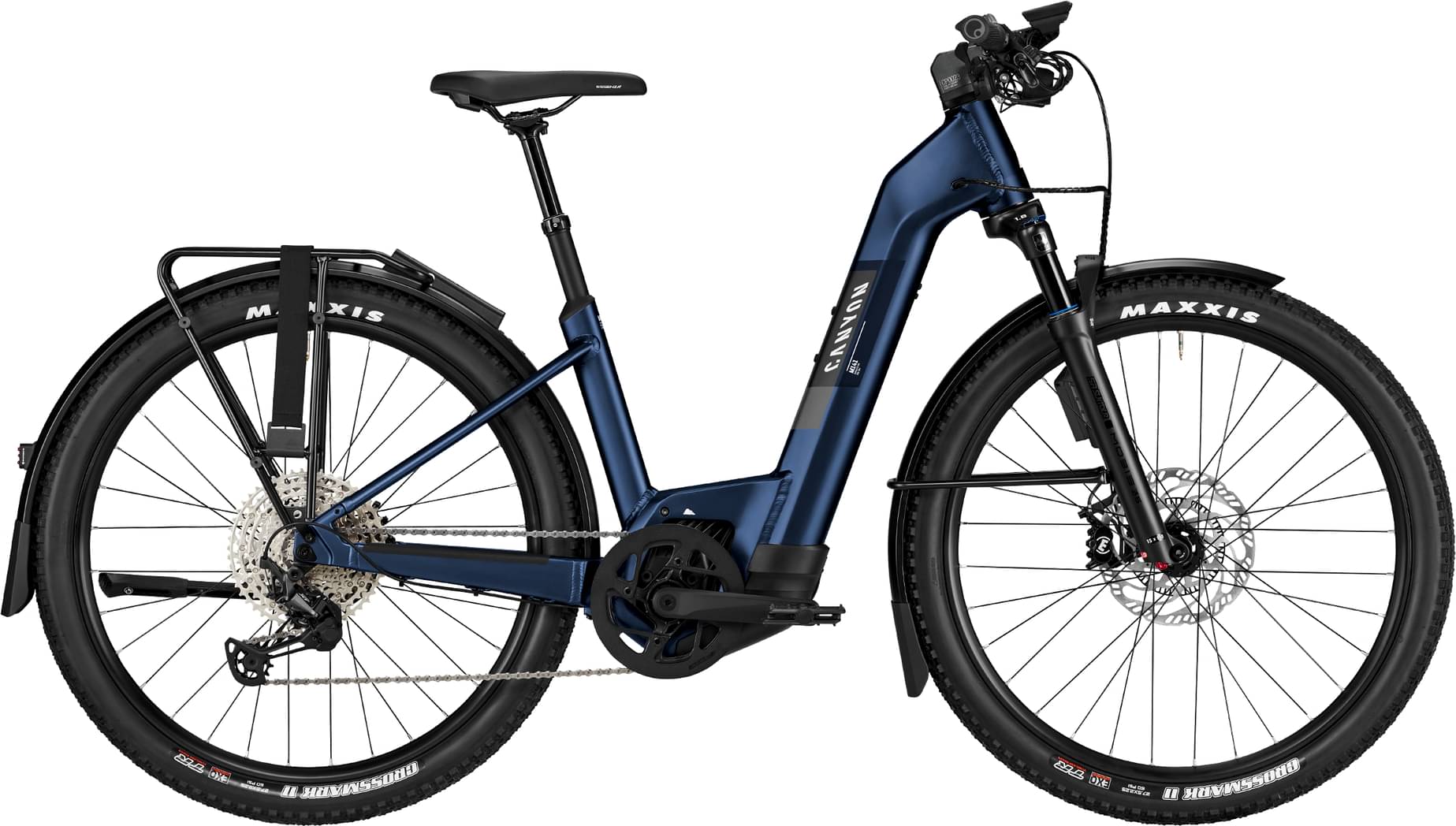

Canyon Pathlite:ON 9 SUV step-through 2023
2023 E-bike
Estimate price |
5,734$
Weight | 28.44 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Pathlite:ON Step-Through, Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
SR Suntour MOBIE35 BOOST EQ, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 2.29 kg
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano DEORE M6100
Cassette
Shimano DEORE M6100, Number of sprockets: 12 | Shimano CS-M6100 Deore 12-speed Cassette 10-51
Crank
FSA CK-220, Number of chainrings: 1
Chain
Shimano Deore M6100 12speed | Shimano CN-M6100 Deore 12-speed Chain 138 Links | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Wheels
Rims
Alex Rims MXD7, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 870 g | Alexrims MXD7 11S, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1.03 kg
Tires
Maxxis Crossmark II EXO TR | Maxxis Crossmark II TR EXO 27.5" x 2.25" MTB Tyre
Brakes
Brakes
Magura MT C ABS | Magura MT C
Cockpit
Grips
Ergon GA3
Seat
Saddle
SR Royal Essenza+
Seatpost
Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g
Motor & Battery

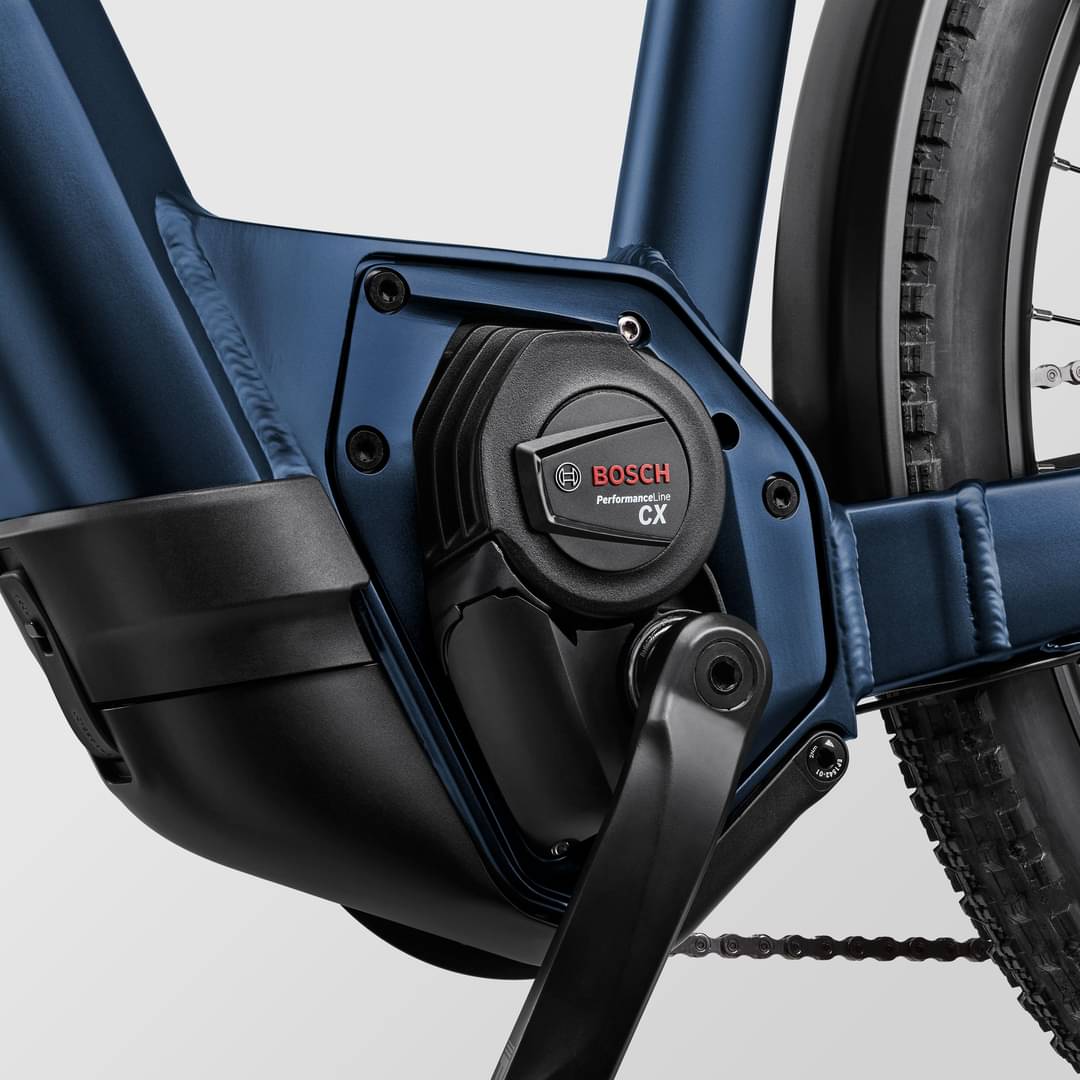

Motor
Bosch Performance Line CX
Battery
Bosch PowerTube 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.59 mm |
| Front Center | 651 mm | 686 mm | 716 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 627 mm | 652 mm | 677 mm |
| Reach | 382 mm | 407 mm | 427 mm |
| Top Tube Length | 567 mm | 600 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 385 mm | 430 mm | 475 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 111 mm | 137 mm | 164 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1105 mm | 1140 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 452 mm | 452 mm | 452 mm |
| Front Travel | 80 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 171 cm | 181 cm | cm |
Model Overview
Pathlite:ON 9 SUV step-through completes the Canyon E Pathliteon model. Canyon launched 44 e-bikes of this model so far. Take a sneak peek at all Canyon E Pathliteon e-bikes models from 2023, by clicking here.
Model range prices
Canyon Pathlite:ON 4 2023 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, Canyon Pathlite:ON 9 LTD SUV 2023, is the most expensive and costs 5839$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fitness e-bikes average price
According to our calculations, the average cost of a Fitness e-bike that is reliable is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 5308$. Doing a quick comparison, we notice that Pathlite:ON 9 SUV step-through price is 125.78% more expensive than the average cost of a Fitness e-bike.
Fitness e-bikes average weight
Fitness e-bikes have an average weight of 22.85 kg (50.38 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 28.44 kg (62.7 lbs), the Pathlite:ON 9 SUV step-through model is much heavier than average. In short, the average Fitness e-bike weight is 24.46% lower than this one.
Overview of components

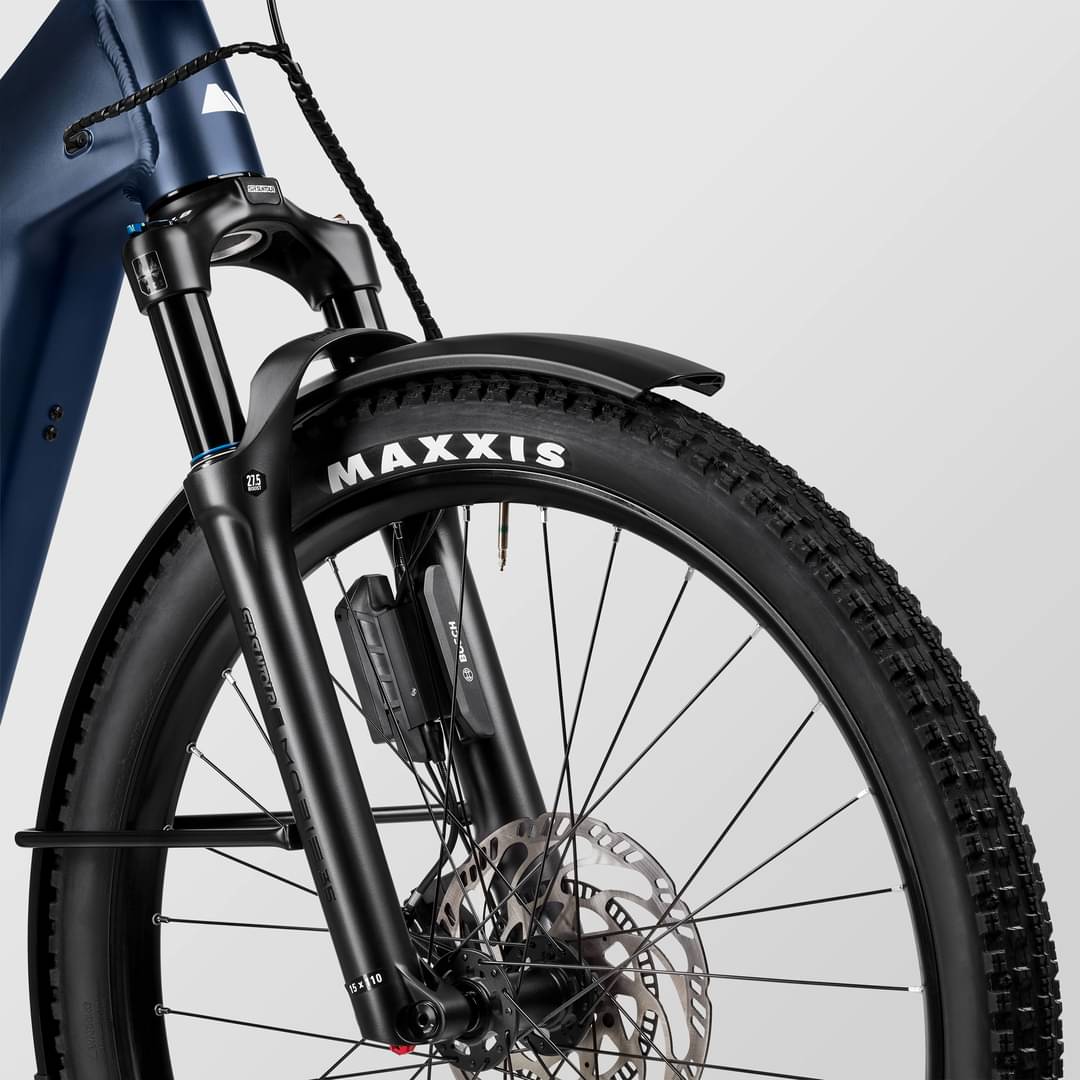

Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Pathlite:ON 9 SUV step-through 2023 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Pathlite:ON 9 SUV step-through has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Pathlite:ON 9 SUV step-through. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
