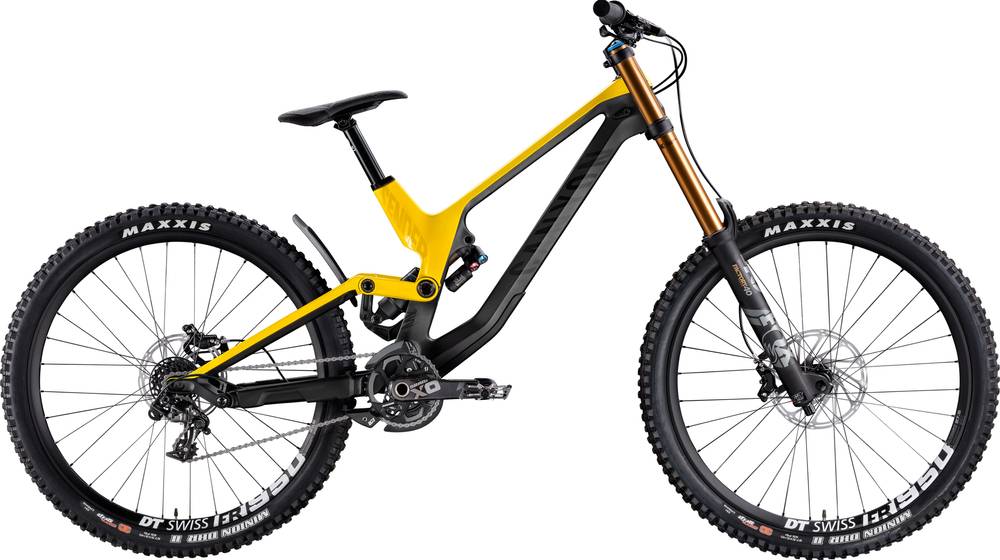

Canyon Sender CF 9.0 2018
2018 Mountain
Estimate price |
5,504$
Weight | 16.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 200mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Sender CF, Material: Carbon, Travel: 200 mm, Axle Dimension: 12 x 157 mm, Brake Mount: Post Mount 180
Suspension Fork
FOX 40 Factory, Travel: 203 mm, Technology: FIT4, Axle Dimension: 20 x 110 mm
Rear Shock
FOX FLOAT X2 Factory, Length: 240 x 75 mm
Drivetrain
Rear Derailleur
SRAM XO1 DH
Shift Levers
SRAM X01 DH Trigger 7s
Cassette
SRAM XG-795 DH 10-24 7s
Crank
SRAM XO1 DH XSYNC 36T 36
Bottom Bracket
SRAM BSA GXP
Chain
SRAM PC 1110 11s
Pedals
None included
Wheels
Rims
DT Swiss FR 1950 Classic XD, Rim Material: Aluminium, Inner Width: 30 mm, Weight: 1098 g
Tires
MAXXIS Minion DHR II 2.4'', Compound: 3C Maxx Grip
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Canyon V22
Handlebar
Canyon H24 Carbon Riserbar, Material: Carbon, Rise: 20 mm
Grips
Canyon G5 Flange
Headset
Acros AZX-227
Seat
Saddle
SDG I-Fly
Seatpost
SDG I-Beam
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.38 mm | 1.339 mm | 1.302 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 777 mm | 802 mm | 826 mm | 851 mm |
| Rake | 49 mm | 50 mm | 49 mm | 50 mm |
| Trail | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 599 mm | 607 mm | 616 mm | 625 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 562 mm | 586 mm | 611 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 450 mm | 450 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1207 mm | 1232 mm | 1256 mm | 1281 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 735 mm | 740 mm | 743 mm | 747 mm |
| Front Travel | 203 mm | 203 mm | 203 mm | 203 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
Sender CF 9.0 completes the Canyon Sender model. Canyon released 33 bikes variations of this model so far. You can easily view all of the Canyon Sender bikes models from 2018, here.
Model range prices
Canyon Sender AL 6.0 2018 is the most economical model, with a starting price of 2999$. Canyon Sender CF 9.0 LTD 2018 on the other hand costs 8000$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Sender CF 9.0 price was 5096$. In conclusion, this bike price is 50.28% more expensive than the price of the average Downhill bike.
Downhill bikes average weight
If we make a quick analysis of the average weight of a Downhill bike, we get 15.89 kg (35.03 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 16.1 kg (35.49 lbs), the Sender CF 9.0 model is slightly heavier than average. In conclusion, the average Downhill bike weighs 1.32% less than Sender CF 9.0.
Overview of components
Fork
The Fox Factory Float 40 is included from the factory. It has a travel distance of 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX FLOAT X2 Factory model, with a travel of 200mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Sender CF 9.0 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
