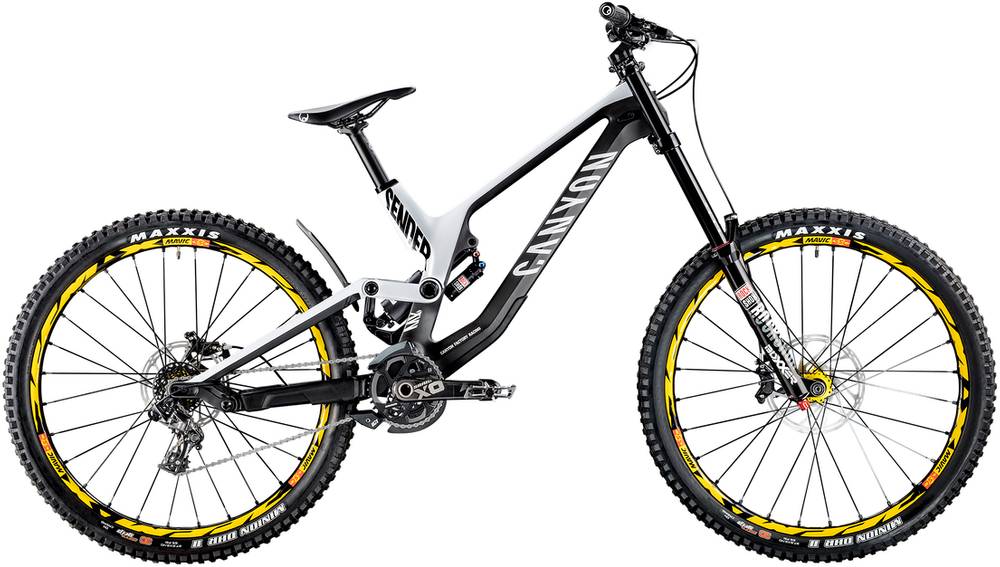

Canyon Sender CF 9.0 Team 2018
2018 Mountain
Estimate price |
5,999$
Weight | 16.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Sender CF, Highly impact- and fatigue-resistant carbon main frame, Premium 6066 T6 aluminium rear triangle, Motocross-inspired MX Link, Geo Tune enables six distinct geometry settings by adjusting head angle and chainstay length, Long-lasting, smooth industrial bearings throughout, Protection at key points across frame keeps structure unharmed, SAG Monitor for simplified shock tuning, Sound-proofed Internal Cable and line Routing, Weight: Approx. 3795g (M)
Suspension Fork
RockShox Boxxer World Cup, 35 mm down tube, 20mm quick-release axle, Air suspension
Rear Shock
RockShox Vivid Air R2C, Dual Flow Adjust Damper with rapid recovery, Adjustability: Airpressure, external rebound adjustment, external low-speed compression
Drivetrain
Rear Derailleur
SRAM X01 DH, 7s, X-HORIZON™ limits horizontal movement to eliminate ghost shifting and reduce shift force, EXACT ACTUATION™ enables easy indexing with little need for adjustment, ROLLER BEARING CLUTCH™ and CAGE LOCK™ technology reduce derailleur bounce and chain slap without sacrificing precision.
Shift Levers
SRAM X01 DH, 7s, SRAM 1X™ X-ACTUATION™ for easy indexing and lasting shift accuracy, Highly adjustable trigger shift, ZERO LOSS™ technology for rapid changes, MatchMaker™ X compatible
Cassette
SRAM XG-795, 7s, XD™ driver body, X-DOME, Mini Block, Gradation: 10-12-14-16-18-21-24
Crank
SRAM X01 DH
Bottom Bracket
SRAM GXP
Chain
SRAM PC-1110
Chain Guide
e.thirteen LG1+ | Bashguard | AL Backplate
Pedals
none included
Wheels
Rims
Mavic Deemax DH
Tires
Maxxis Minion DHR II 3C Maxx Grip DW, 3C MaxxGrip | TR | EXO | 60 TPI, Redesigned, wider shoulder knobs for better cornering, Paddle-like center knobs for improved braking, Width: 2.4 inches
Brakes
Brakes
SRAM Code RSC
Cockpit
Stem
Canyon V22-16, Rise: 50 mm, Stem designed by Canyon, Compliant with Canyon Category 5 testing standards
Handlebar
Canyon H24-16 CF, Diameter: 31.8 MM
Grips
Ergon GD1
Headset
Acros DH
Seat
Saddle
Ergon SMD2
Seatpost
Canyon G5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.38 mm | 1.339 mm | 1.302 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 777 mm | 802 mm | 826 mm | 851 mm |
| Rake | 49 mm | 50 mm | 49 mm | 50 mm |
| Trail | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 599 mm | 607 mm | 616 mm | 625 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 562 mm | 586 mm | 611 mm | 635 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 400 mm | 450 mm | 450 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1207 mm | 1232 mm | 1256 mm | 1281 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Front Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm | 200 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sender CF 9.0 Team belongs to the Canyon Sender model. 33 bikes variations carry this model name so far. You can easily view all of the Canyon Sender bikes models from 2018, here.
Model range prices
Canyon Sender AL 6.0 2018 is the most affordable bike of this model and has a price of 2999$. On the other hand, Canyon Sender CF 9.0 LTD 2018, is the most expensive and costs 8000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2018 and its price was 5999$. Doing a quick comparison, we notice that Sender CF 9.0 Team price is 76.91% more expensive than the average cost of a Downhill bike.
Downhill bikes average weight
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 16.2 kg (35.71 lbs), Canyon bike is slightly heavier than average. In short, the average Downhill bike weight is 1.95% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Canyon Sender CF 9.0 Team 2018 bike is equipped with the RockShox BoXXer fork, and has 200mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Canyon Sender CF 9.0 Team bike has the RockShox Vivid Air R2C model installed, and has a travel of 200mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Sender CF 9.0 Team model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Sender CF 9.0 Team has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
