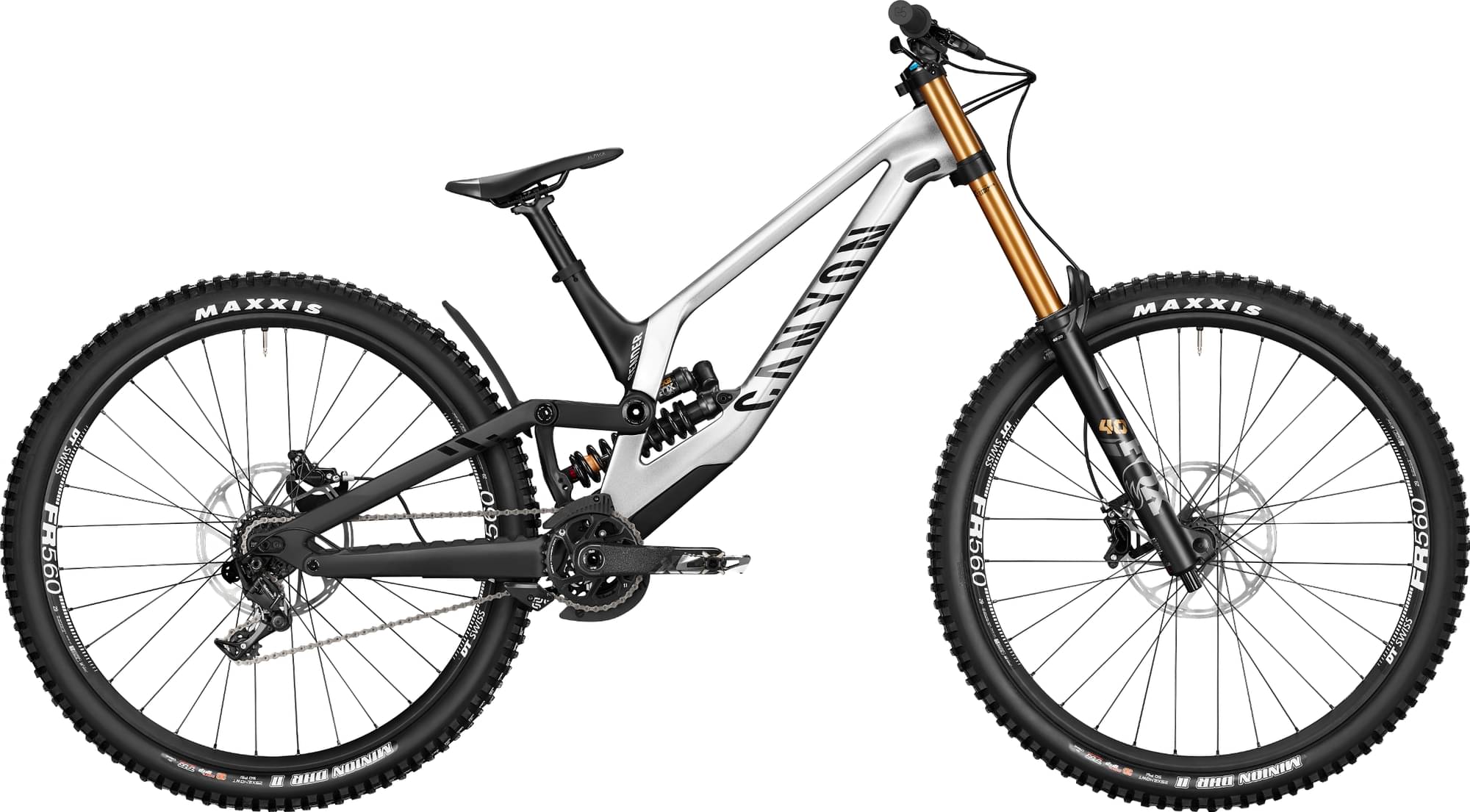

Canyon Sender CFR 29 2022
2022 Mountain
Estimate price |
7,225$
Weight | 16.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 200mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Sender CFR
Suspension Fork
FOX 40 Factory GRIP2
Rear Shock
FOX DHX2 Factory
Drivetrain
Rear Derailleur
SRAM X01 DH
Shift Levers
SRAM X01 DH
Cassette
SRAM XG-795 DH 10-24 7s
Crank
SRAM X01 DH
Bottom Bracket
SRAM BSA DUB
Chain
SRAM PC 1110 11-speed
Chain Guide
e*thirteen LG1 Plus
Pedals
None included
Wheels
Rims
DT Swiss FR 560 240 EXP | DT Swiss FR560 240 EXP
Tires
MAXXIS Minion DHR II 2.4'' Wide Trail
Brakes
Brakes
SRAM Code RSC 4-piston rear brake, SRAM's most powerful and adjustable four-piston brake. Features reach and contact point adjusters | SRAM Code RSC
Disk Rotors
SRAM Centerline front rotor, 220mm, Maximum stopping power courtesy of 220mm size, stainless steel construction, 12-spoke design reduces distortion, rounded edges are UCI compliant, six-bolt attachment
Cockpit
Stem
Canyon G5
Handlebar
Canyon G5 Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon G5 Grips
Headset
Acros AZX-227
Seat
Saddle
Fizik Gravita Alpaca X5
Seatpost
Canyon G5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.352 mm | 1.301 mm | 1.245 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm |
| Front Center | 832 mm | 861 mm | 889 mm |
| Rake | 58 mm | 58 mm | 58 mm |
| Trail | 126 mm | 126 mm | 126 mm |
| Stack | 622 mm | 631 mm | 635 mm |
| Reach | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 625 mm | 650 | 672 mm |
| Seat Tube Angle | 78.5 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1276 mm | 1305 mm | 1333 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm |
| Standover Height | 763 mm | 747 mm | 752 mm |
| Front Travel | 203 mm | 203 mm | 203 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 185 cm | 194 cm | cm |
Model Overview
Sender CFR 29 completes the Canyon Sender model. Canyon released 33 bikes variations of this model so far. You can easily view all of the Canyon Sender bikes models from 2022, here.
Model range prices
Canyon Sender CFR Mullet Underdog 2022 is the most economical model, with a starting price of 5308$. Canyon Sender CFR 29 TLD 2022 on the other hand costs 6999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Sender CFR 29 price was 6688$. In conclusion, this bike price is 97.23% more expensive than the price of the average Downhill bike.
Downhill bikes average weight
If we make a quick analysis of the average weight of a Downhill bike, we get 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Sender CFR 29 it’s weighing 16.8 kg (37.04 lbs). At this weight, is a bit heavier than average. In short, the average Downhill bike weight is 5.73% lower than this one.
Overview of components
Fork
The Sender CFR 29 comes factory-installed with the Fox Factory Float 40 fork. This has a travel range of 203mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Canyon Sender CFR 29 bike has the FOX DHX2 Factory model installed, and has a travel of 200mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Sender CFR 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
