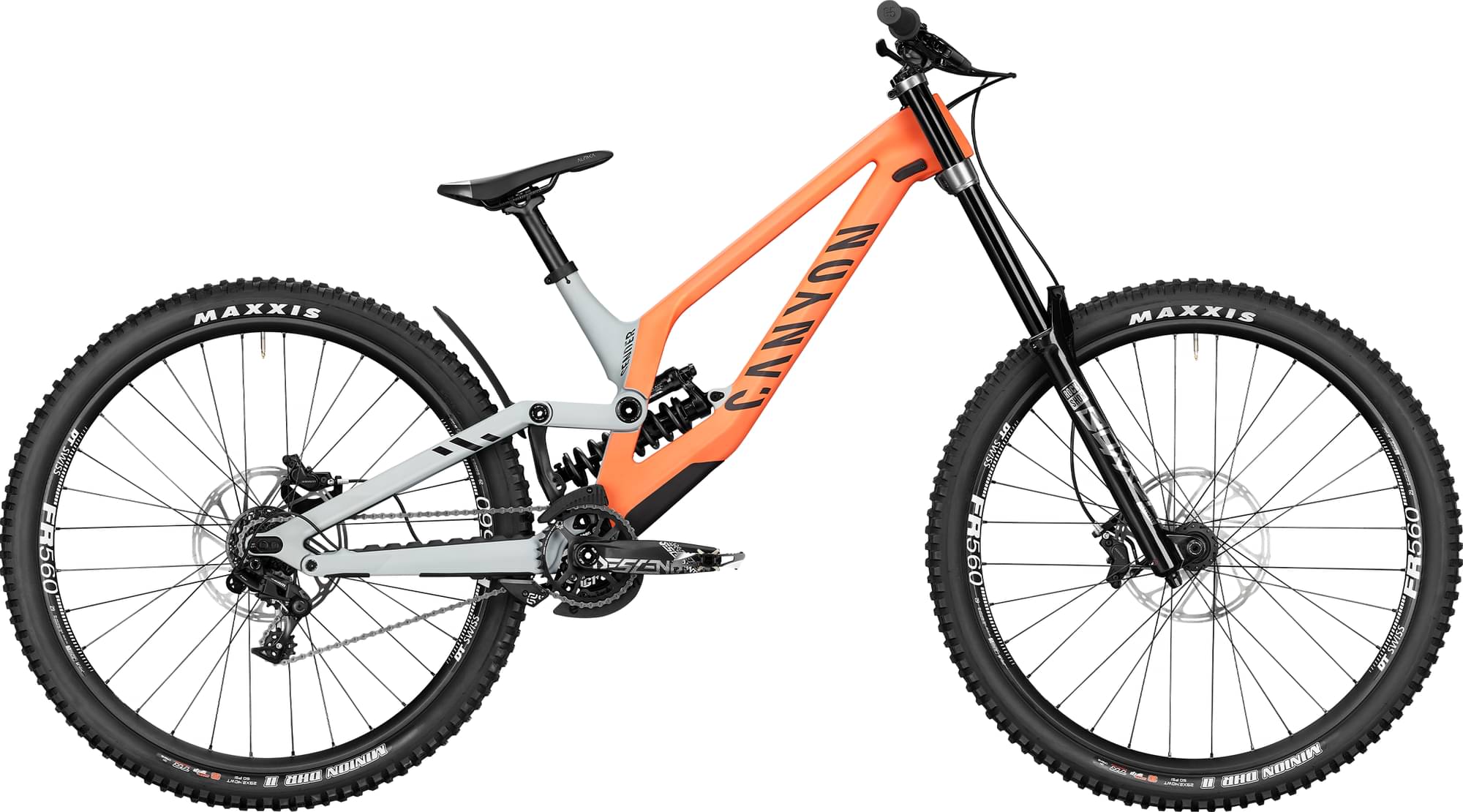

Canyon Sender CFR 29 Underdog 2022
2022 Mountain
Estimate price |
5,734$
Weight | 16.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer Ultimate
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Sender CFR
Suspension Fork
RockShox Boxxer Ultimate RC2
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM GX DH 7s
Shift Levers
SRAM GX DH Trigger 7s
Cassette
SRAM PG-720 DH 11-25 7s
Crank
SRAM Descendant DH
Bottom Bracket
SRAM BSA DUB
Chain
SRAM PC 1110 11s
Chain Guide
e*thirteen LG1 Plus
Pedals
None included
Wheels
Rims
DT Swiss FR560 350 | DT Swiss FR 560 350
Tires
MAXXIS Minion DHR II 2.4'' Wide Trail
Brakes
Brakes
SRAM Code R
Disk Rotors
SRAM Centerline front rotor, 220mm, Maximum stopping power courtesy of 220mm size, stainless steel construction, 12-spoke design reduces distortion, rounded edges are UCI compliant, six-bolt attachment
Cockpit
Stem
Canyon G5
Handlebar
Canyon G5 Riserbar, Material: Aluminium, Rise: 20 mm
Grips
Canyon G5 Grips
Headset
Acros AZX-227
Seat
Saddle
Fizik Gravita Alpaca X5
Seatpost
Canyon G5
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.352 mm | 1.301 mm | 1.245 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm |
| Front Center | 832 mm | 861 mm | 889 mm |
| Rake | 58 mm | 58 mm | 58 mm |
| Trail | 126 mm | 126 mm | 126 mm |
| Stack | 622 mm | 631 mm | 635 mm |
| Reach | 460 mm | 485 mm | 510 mm |
| Top Tube Length | 625 mm | 650 | 672 mm |
| Seat Tube Angle | 78.5 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1276 mm | 1305 mm | 1333 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm |
| Standover Height | 763 mm | 747 mm | 752 mm |
| Front Travel | 200 mm | 200 mm | 200 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 185 cm | 194 cm | cm |
About this model
Sender CFR 29 Underdog is a Canyon Sender model. There are 33 bikes that carry this model name. Take a sneak peek at all Canyon Sender bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Canyon Sender CFR Mullet Underdog 2022 has a starting price of 5308$. Canyon Sender CFR 29 TLD 2022 on the other hand is the most expensive at 6999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Canyon released this model in 2022, its price was 5308$. Comparing the average cost of a Downhill bike to this one, you will see that Sender CFR 29 Underdog price is 56.53% higher.
Downhill bikes average weight
The average weight for Downhill bikes is 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Sender CFR 29 Underdog weighs 16.9 kg (37.26 lbs) and is a bit heavier than the average. In other words, this model is 6.36% heavier than the average Downhill bike.
Overview of components
Fork
Canyon Sender CFR 29 Underdog 2022 bike is equipped with the RockShox BoXXer Ultimate fork, and has 200mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Ultimate, with a travel distance of 200mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Sender CFR 29 Underdog are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Sender CFR 29 Underdog is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
