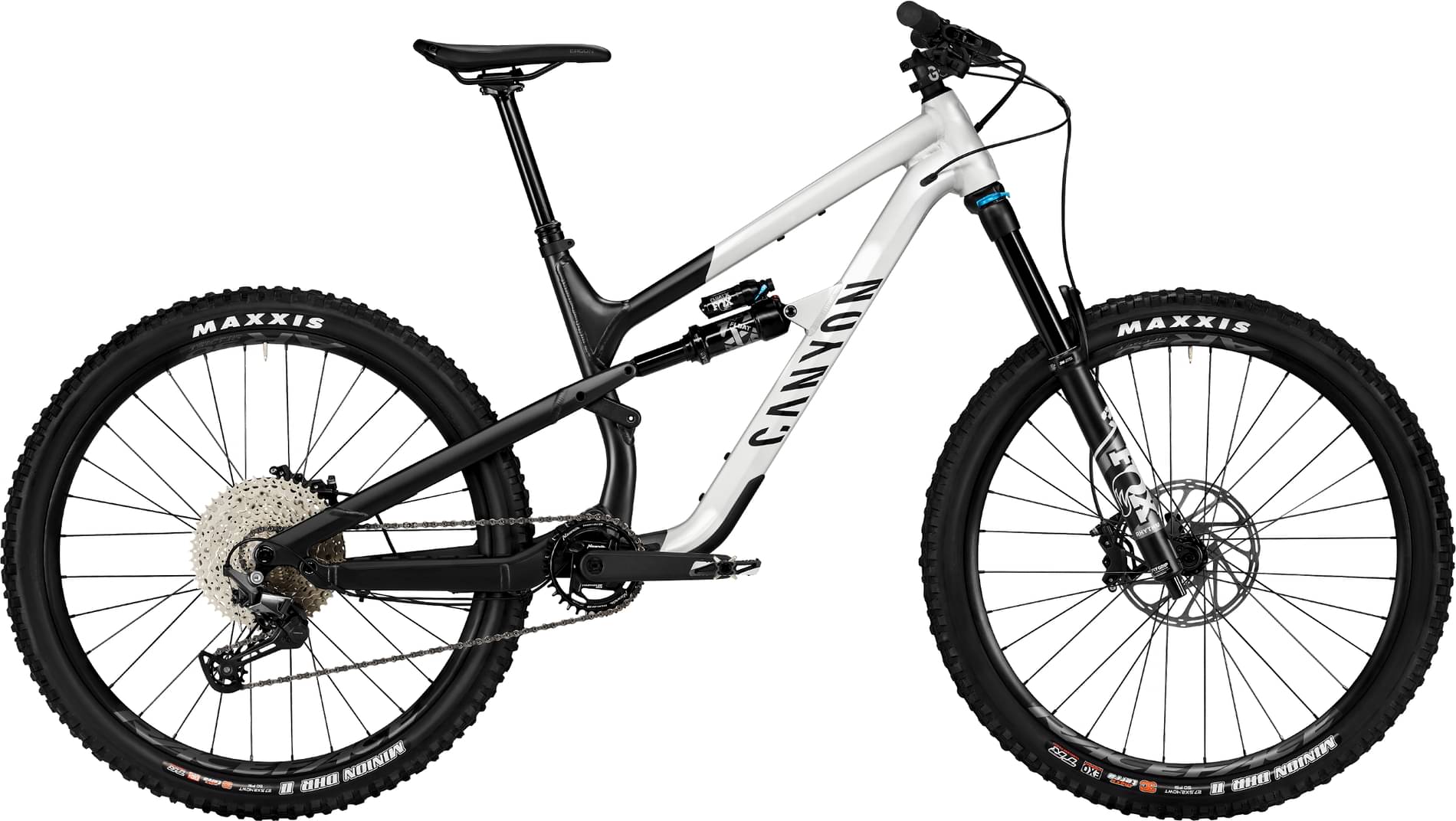

Canyon Spectral 27 AL 5 2023
2023 Mountain
Estimate price |
2,675$
Weight | 15.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 177cm
MD
172cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral, Aluminium frame with optimised frame forms for increased stiffness and strength with thinner walls. Category 4., Axle dimension: 12x148 mm, Material: Aluminium (AL)
Suspension Fork
FOX 36 Rhythm Grip, Axle dimension: 15x110 mm, Stanchion Diameter: 36 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 37 mm
Rear Shock
FOX X Performance 2-Position
Drivetrain
Rear Derailleur
Shimano DEORE M6100, Cage length: long
Shift Levers
Shimano DEORE M6100
Cassette
SunRace CSMZ800 12s 11-51T, Number of sprockets: 12
Crank
Miranda Delta, Number of chainrings: 1
Bottom Bracket
Shimano BB-MT501, Bottom bracket standard: BSA HT2 68/73
Chain
Shimano CN-M6100 | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M6100 Deore 12-speed Chain 138 Links
Pedals
None included
Wheels
Rims
Alexrims DR850, Rotor mount: Center Lock
Tires
MAXXIS Minion DHR II 2.4'', Width: 2.4" | Maxxis Minion DHR II 3C MaxxTerra EXO+ 2,4x27,5", Wheelsize: 27.5" | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 27.5" x 2.4" MTB Tyre
Brakes
Brakes
SRAM Matchmaker Clamp | SRAM DB8 | SRAM DB8
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro
Seatpost
Iridium Dropper, The Iridium dropper post offers 150-200mm of on-the-fly seat height adjustability., Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.41 mm | 1.35 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 732 mm | 765 mm | 795 mm |
| Rake | 42 mm | 42 mm | 43 mm |
| Trail | 123 mm | 123 mm | 122 mm |
| Stack | 587 mm | 605 mm | 614 mm |
| Reach | 405 mm | 430 mm | 455 mm |
| Top Tube Length | 542 mm | 571 mm | 598 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 395 mm | 395 mm | 430 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 125 mm | 135 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1159 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 747 mm | 753 mm | 757 mm |
| Front Travel | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" |
| Rider Max Height | 168 cm | 177 cm | 184 cm |
About this model
Spectral 27 AL 5 is part of the Canyon Spectral model. Canyon released 97 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Canyon Spectral 4 2023 has a starting price of 2299$. Canyon Spectral 29 CFR 2023 on the other hand is the most expensive at 6499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2441$. Doing a quick comparison, we notice that Spectral 27 AL 5 price is 47.44% lower than the average cost of an Enduro bike.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.95 kg (35.16 lbs), the Spectral 27 AL 5 model is considerably heavier than average. In conclusion, the average Enduro bike weighs 11.77% less than Spectral 27 AL 5.
Overview of components

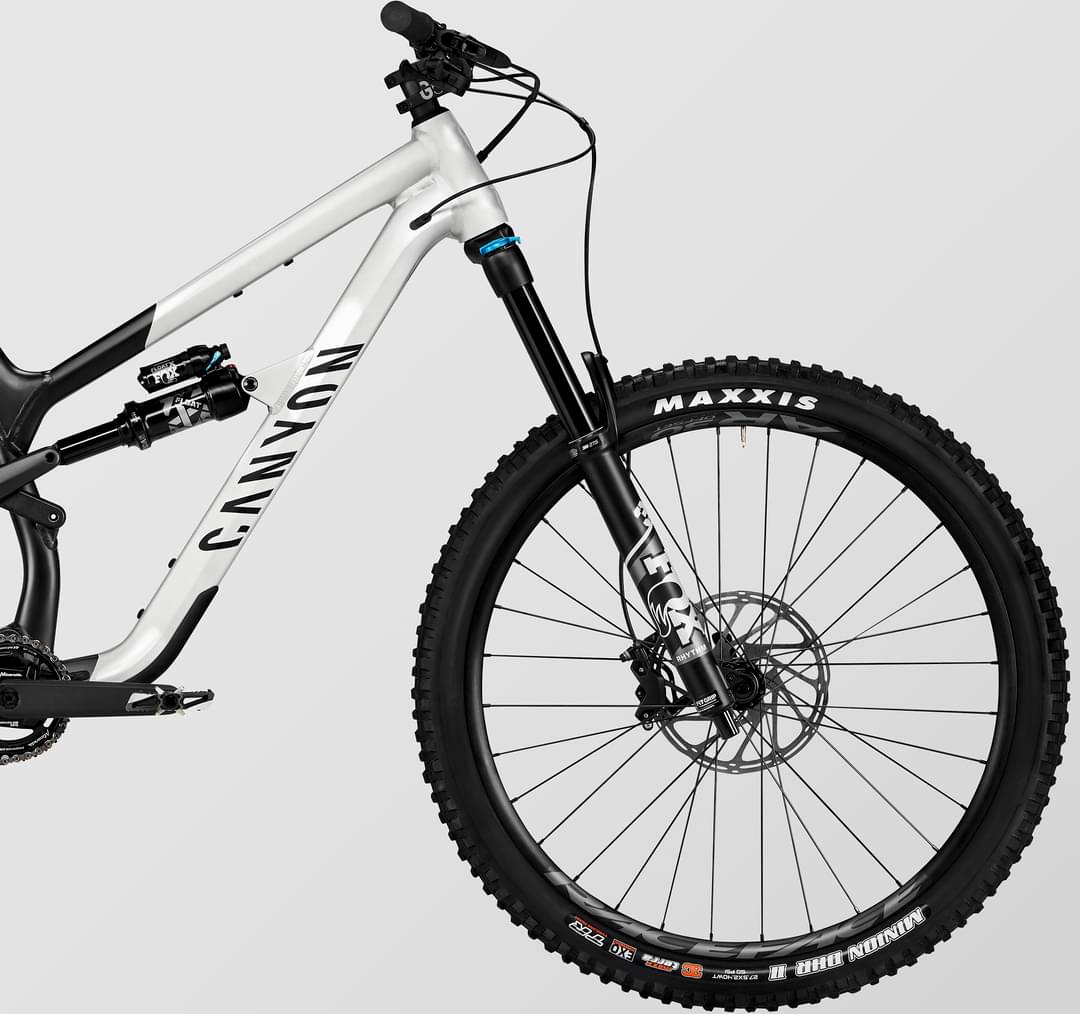

Fork
Canyon Spectral 27 AL 5 2023 bike is equipped with the Fox Rhythm Float 36 fork, and has 160mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

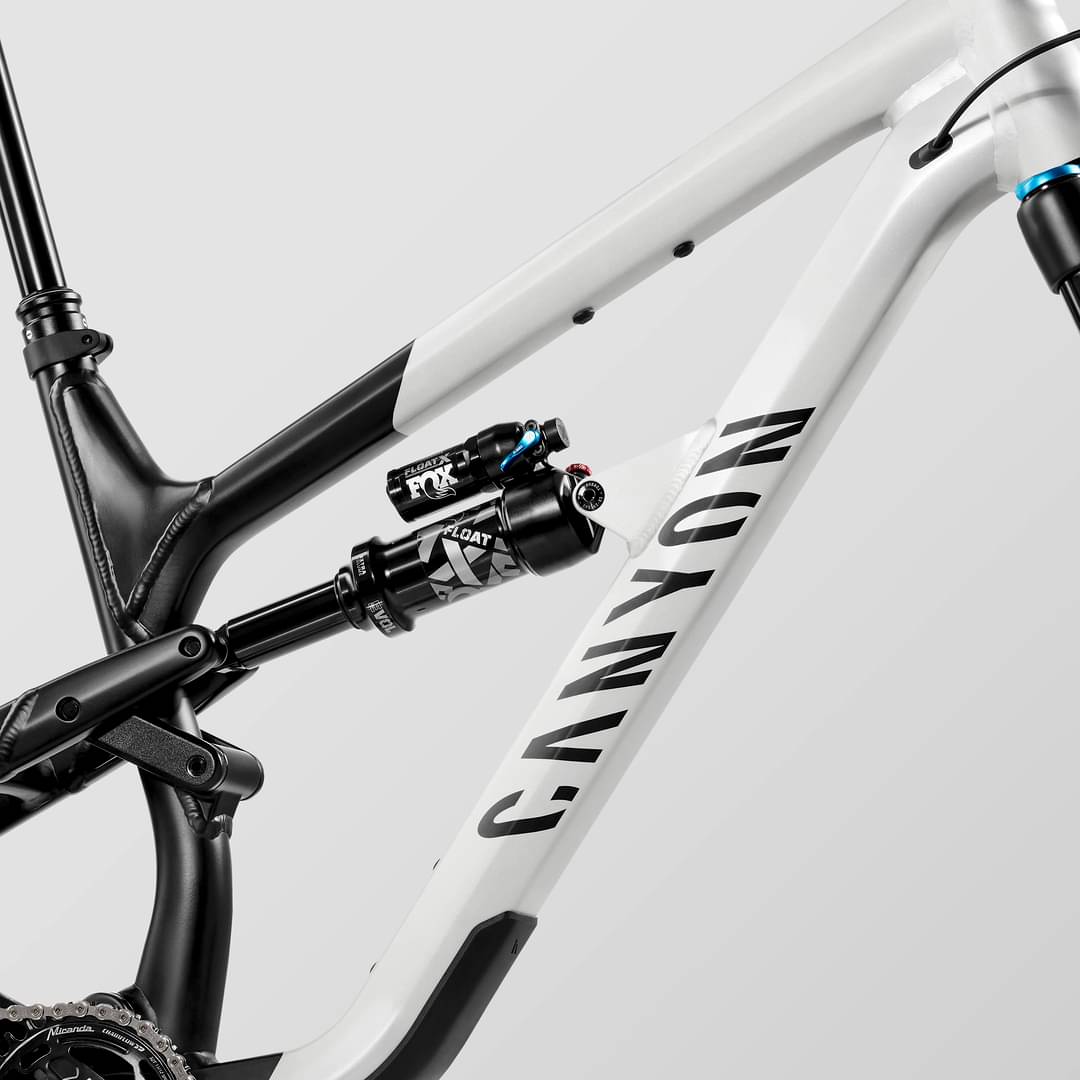

Rear Shock
Canyon Spectral 27 AL 5 bike has the FOX X Performance 2-Position model installed, and has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Spectral 27 AL 5 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Spectral 27 AL 5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
