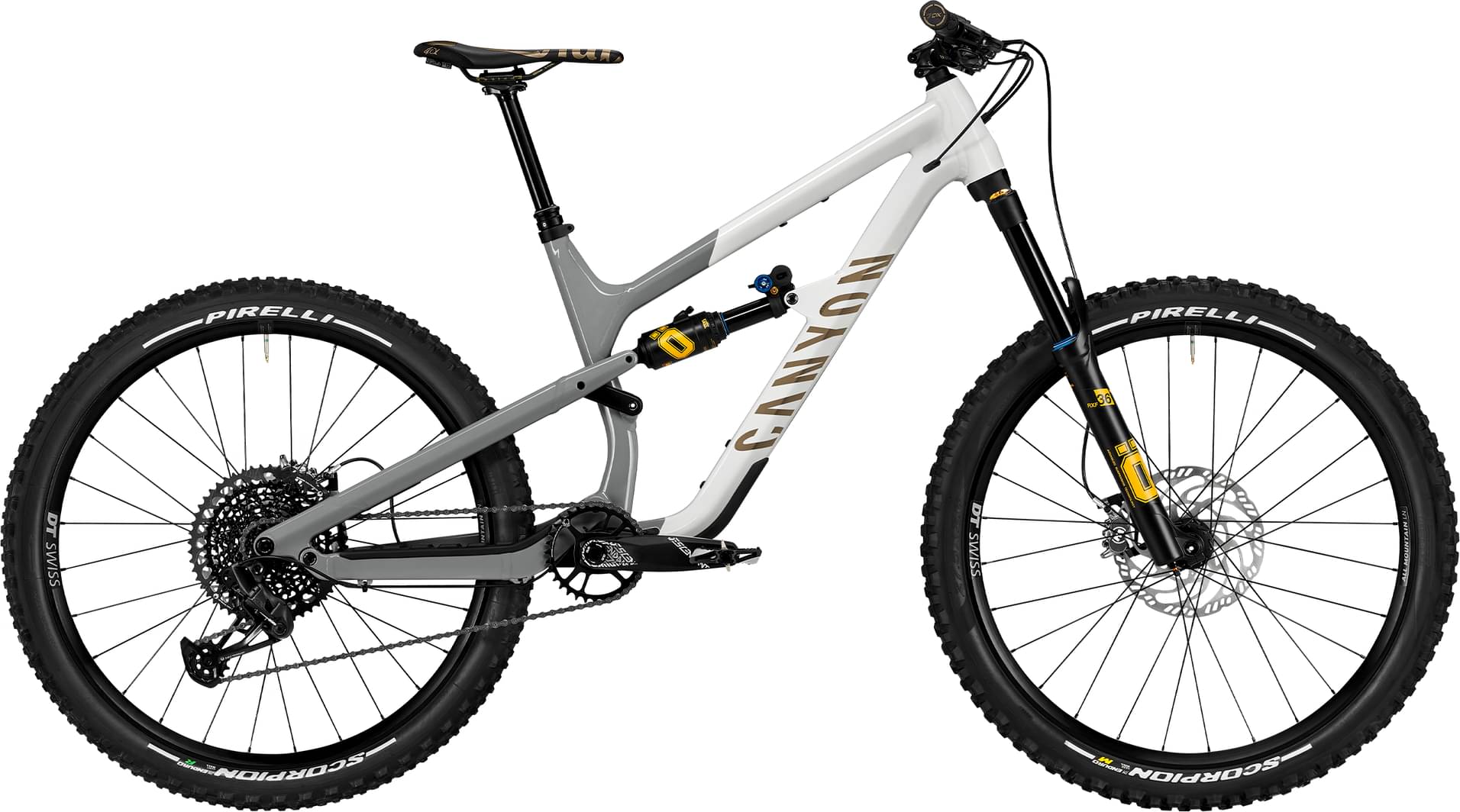

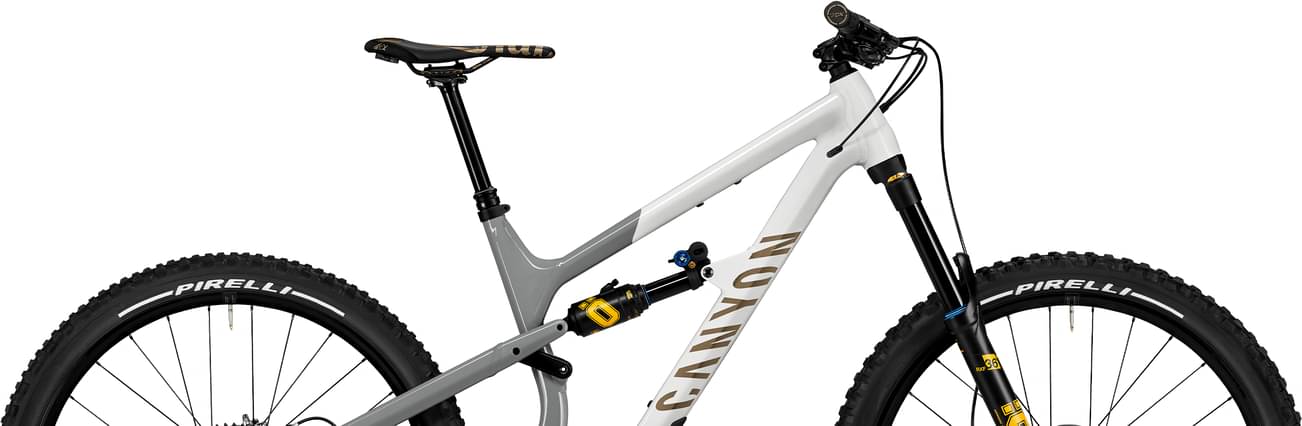

Canyon Spectral 27 FW 2023
2023 Mountain
Estimate price |
4,071$
Weight | 14.85 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Öhlins RXF36
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 177cm
MD
172cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components

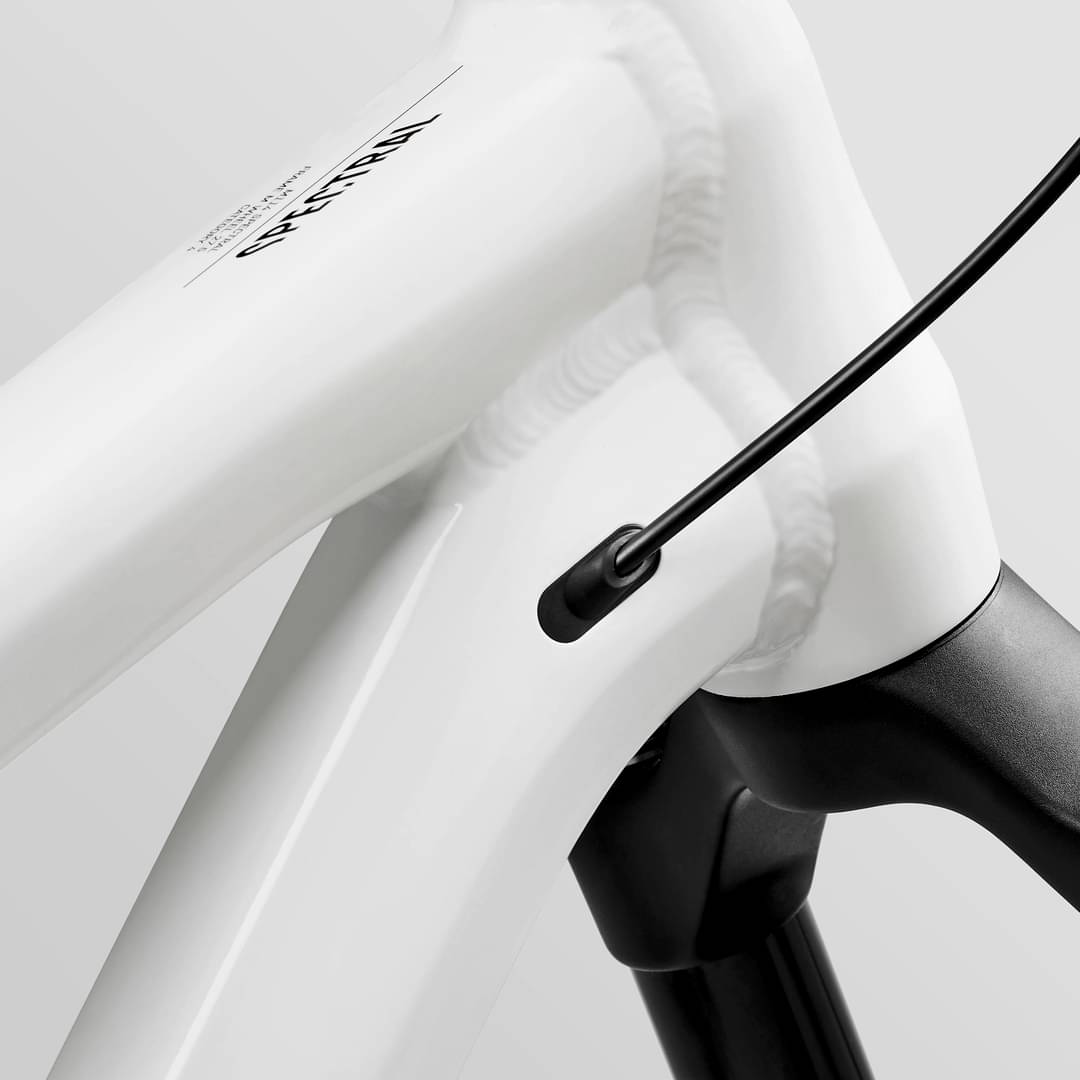

Frame
Frame
Canyon Spectral, Aluminium frame with progressive trail geometry and optimised frame forms for increased stiffness and strength with thinner walls. Category 4., Material: Aluminium (AL)
Suspension Fork
ÖHLINS RXF36, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
ÖHLINS TTX2 Air
Drivetrain
Rear Derailleur
SRAM GX Eagle, Cage length: long
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle, 12-speed (10-52), Number of sprockets: 12 | SRAM GX XG-1275 12-speed Cassette 10-52
Crank
Descendant 6K, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Bottom bracket standard: BSA 73
Chain
SRAM SX Eagle 12s | SRAM NX Eagle 12-speed Chain 126 Links
Pedals
None included
Wheels
Rims
DT Swiss AM LN 370, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Wheelsize: 27.5" | DT Swiss AM LN 370, Rotor mount: IS 6-bolt, Wheelsize: 27.5"
Tires
Pirelli Scorpion Enduro R | PIRELLI SCORPION ENDURO M
Brakes
Brakes
MAGURA MT7 CSL | Magura MT7 CSL
Cockpit
Stem
SQlab 80X Fabio Wibmer, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
SQlab 30X Fabio Wibmer, Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 25 mm
Grips
SQlab 70X Fabio Wibmer
Seat
Saddle
SQlab 611 Ergowave, Gender: Male
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.41 mm | 1.35 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 732 mm | 765 mm | 795 mm |
| Rake | 42 mm | 42 mm | 43 mm |
| Trail | 123 mm | 123 mm | 122 mm |
| Stack | 587 mm | 605 mm | 614 mm |
| Reach | 405 mm | 430 mm | 455 mm |
| Top Tube Length | 542 mm | 571 mm | 598 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 395 mm | 395 mm | 430 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 125 mm | 135 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1159 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 747 mm | 753 mm | 757 mm |
| Front Travel | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" |
| Rider Max Height | 168 cm | 177 cm | 185 cm |
Model Overview
Spectral 27 FW completes the Canyon Spectral model. 97 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Canyon Spectral 4 2023 has a starting price of 2299$. Canyon Spectral 29 CFR 2023 on the other hand is the most expensive at 6499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Canyon Spectral 27 FW price was 3715$. Comparing the average cost of an Enduro bike to this one, you will see that Spectral 27 FW price is 3.22% more expensive.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Spectral 27 FW it’s weighing 14.85 kg (32.74 lbs). At this weight, is slightly heavier than average. In short, the average Enduro bike weight is 4.06% lower than this one.
Spectral 27 FW components

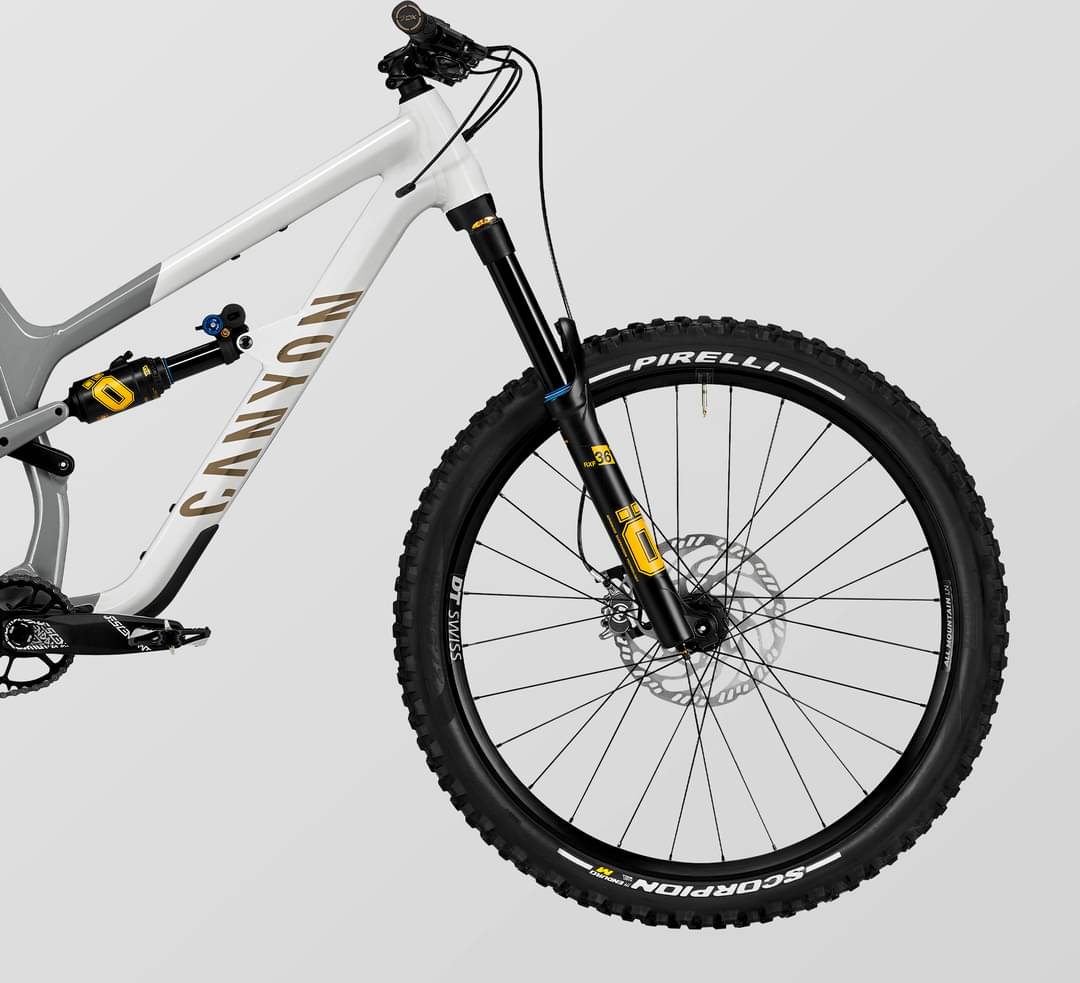

Fork
This bike has the Öhlins RXF36 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

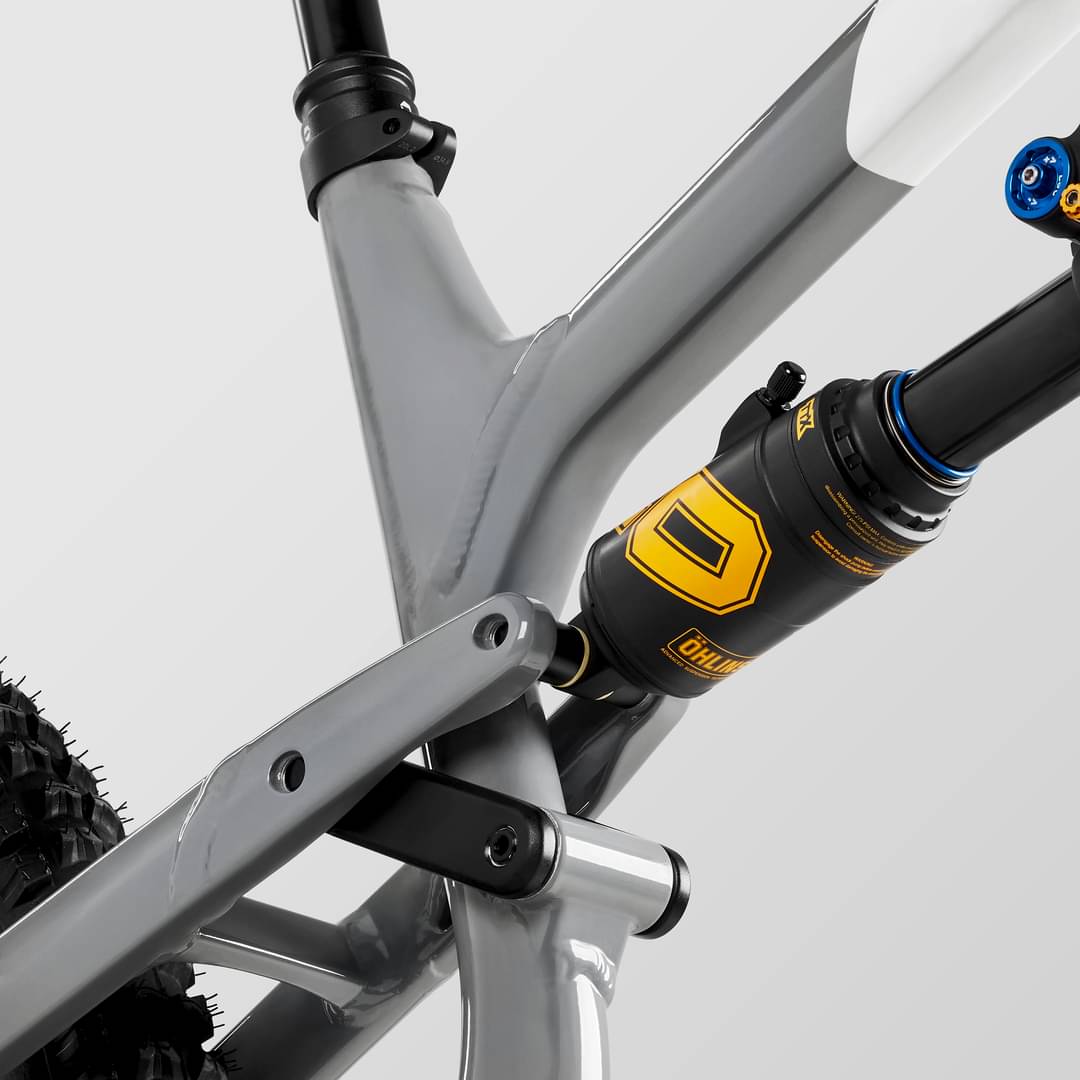

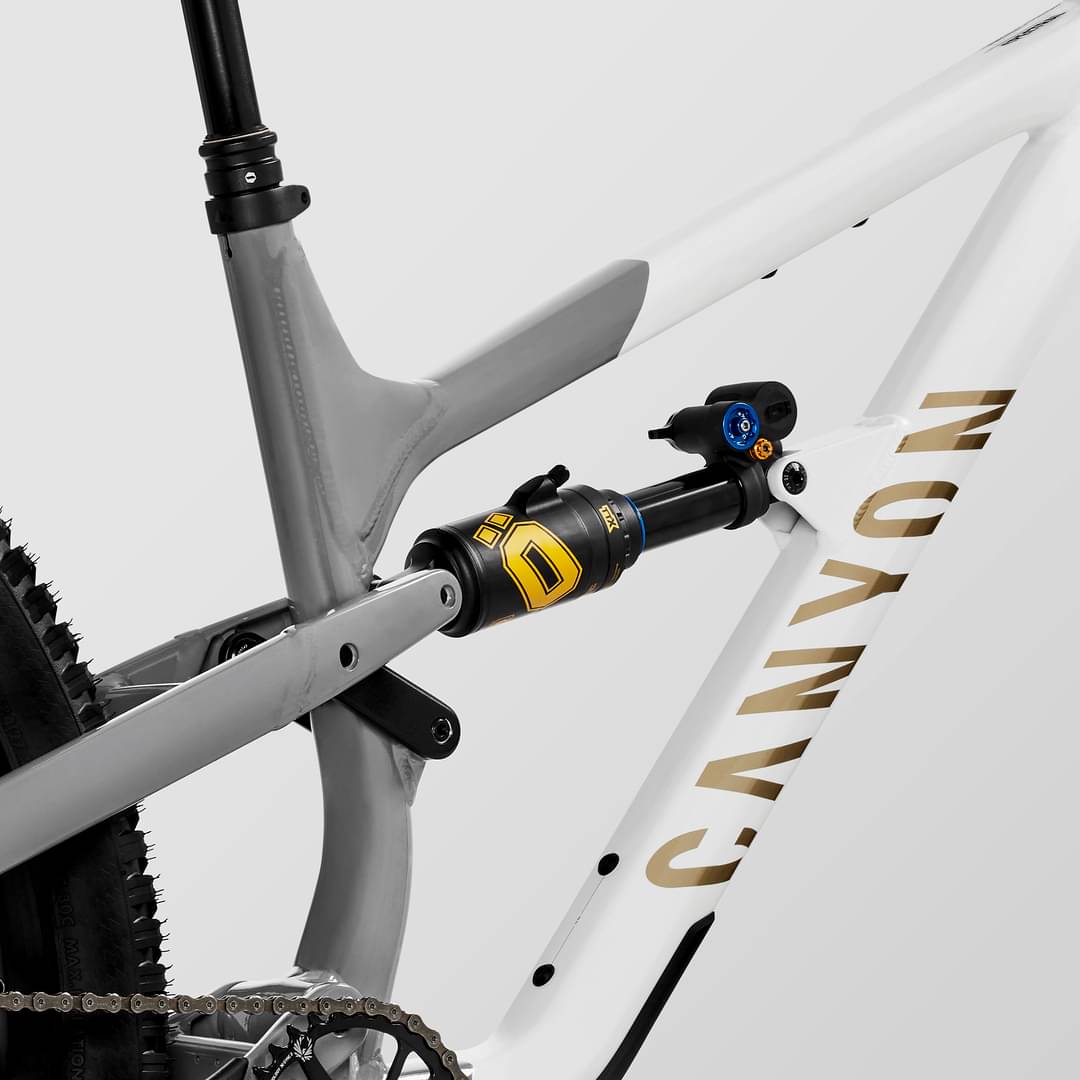

Rear Shock
From the factory, it comes with the ÖHLINS TTX2 Air rear shock model, which has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Spectral 27 FW 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Spectral 27 FW has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Canyon Spectral 27 FW includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
