Canyon Spectral 29 CF 8 2023
2023 Mountain
Estimate price |
4,199$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral CF 29, Full-carbon MTB frame. Built to shred with a long, slack, progressive geometry. With Flip Chip system for simple geometry adjustment. Category 4., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 36 Performance Elite Grip 2, Axle dimension: 15x110 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm
Rear Shock
FOX Float X Performance Elite
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano DEORE XT M8100
Cassette
Shimano DEORE XT M8100, Number of sprockets: 12
Crank
Shimano DEORE XT M8120, Number of chainrings: 1
Bottom Bracket
Shimano MT800, Bottom bracket standard: BSA 68/73, Weight: 100 g
Chain
Shimano M6100, SIL-TEC treatment for extended offroad durability, HYPERGLIDE+ shift technology, quick link for easy connect and tool-free assembly
Chain Guide
Canyon EP1266-01 ISCG05 Plate | Canyon GP0293-02
Pedals
None included
Wheels
Rims
DT Swiss XM1700 29", Rotor mount: IS 6-bolt, Weight: 883 g | DT Swiss XM1700 29", Rotor mount: IS 6-bolt, Weight: 980 g
Tires
Maxxis Minion DHR II, Wheelsize: 29", Weight: 955 g | Maxxis Minion DHRII, Width: 2,4", Weight: 1.08 kg
Brakes
Brakes
Shimano DEORE XT M8120
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro Comp
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 762 mm | 791 mm | 820 mm | 850 mm |
| Rake | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 136 mm | 137 mm | 137 mm | 136 mm |
| Stack | 610 mm | 619 mm | 628 mm | 637 mm |
| Reach | 426 mm | 451 mm | 476 mm | 501 mm |
| Top Tube Length | 578 mm | 605 mm | 632 mm | 659 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1192 mm | 1221 mm | 1250 mm | 1280 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 746 mm | 753 mm | 758 mm | 770 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Spectral 29 CF 8 belongs to the Canyon Spectral model. There are 97 bikes that carry this model name. Take a sneak peek at all Canyon Spectral bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Canyon Spectral 4 2023 has a starting price of 2299$. Canyon Spectral 29 CFR 2023 on the other hand is the most expensive at 6499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Spectral 29 CF 8 price was 4199$. Comparing the average cost of an Enduro bike to this one, you will see that Spectral 29 CF 8 price is 16.67% higher.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Spectral 29 CF 8 weighs 14.3 kg (31.53 lbs) and is slightly heavier than the average. In other words, this model is 0.21% heavier than the average Enduro bike.
Spectral 29 CF 8 components
Fork
Canyon Spectral 29 CF 8 2023 bike is equipped with the Fox Performance Elite Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.

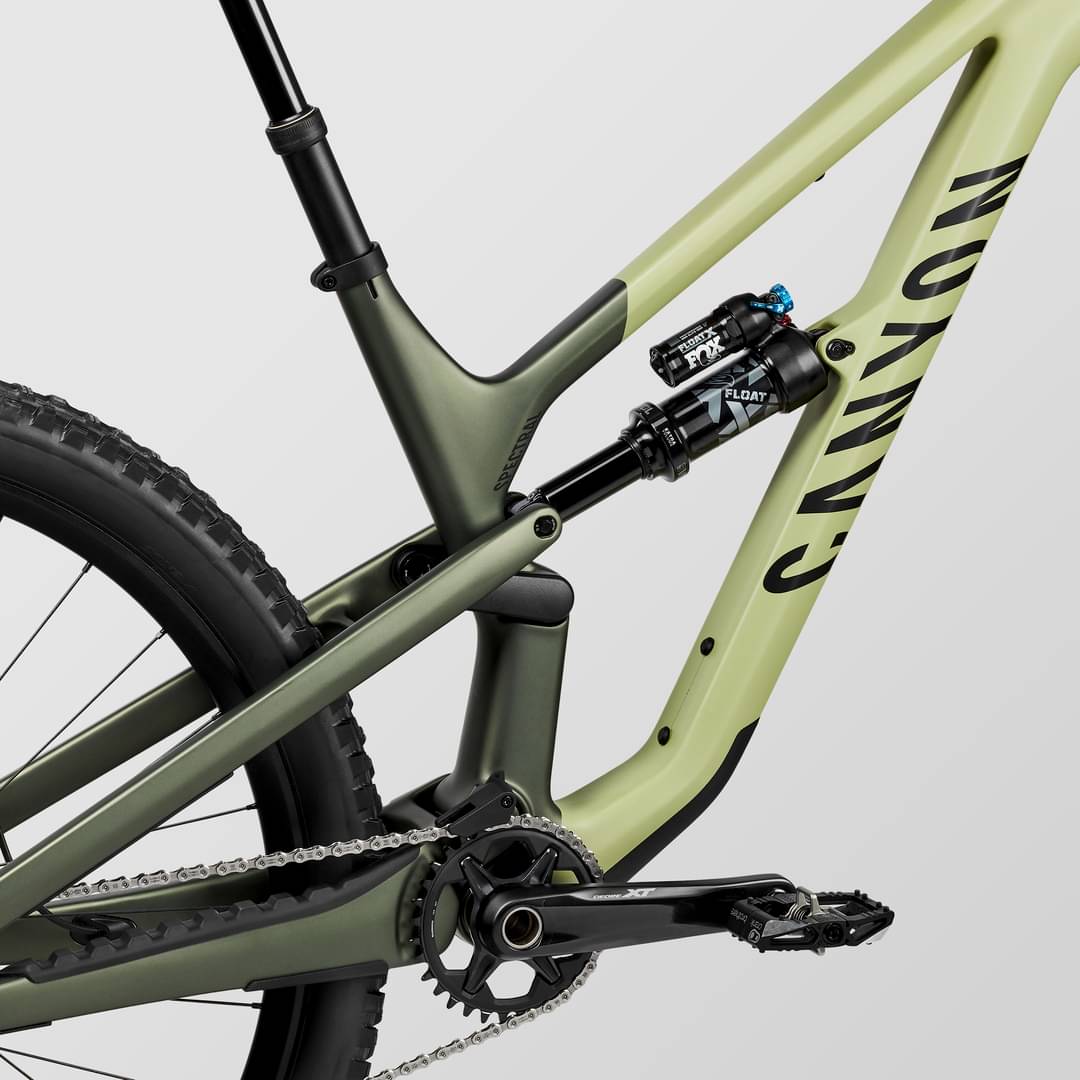

Rear Shock
As for the rear shock, this bike has the FOX Float X Performance Elite model, with a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Spectral 29 CF 8 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Spectral 29 CF 8 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Spectral 29 CF 8. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
