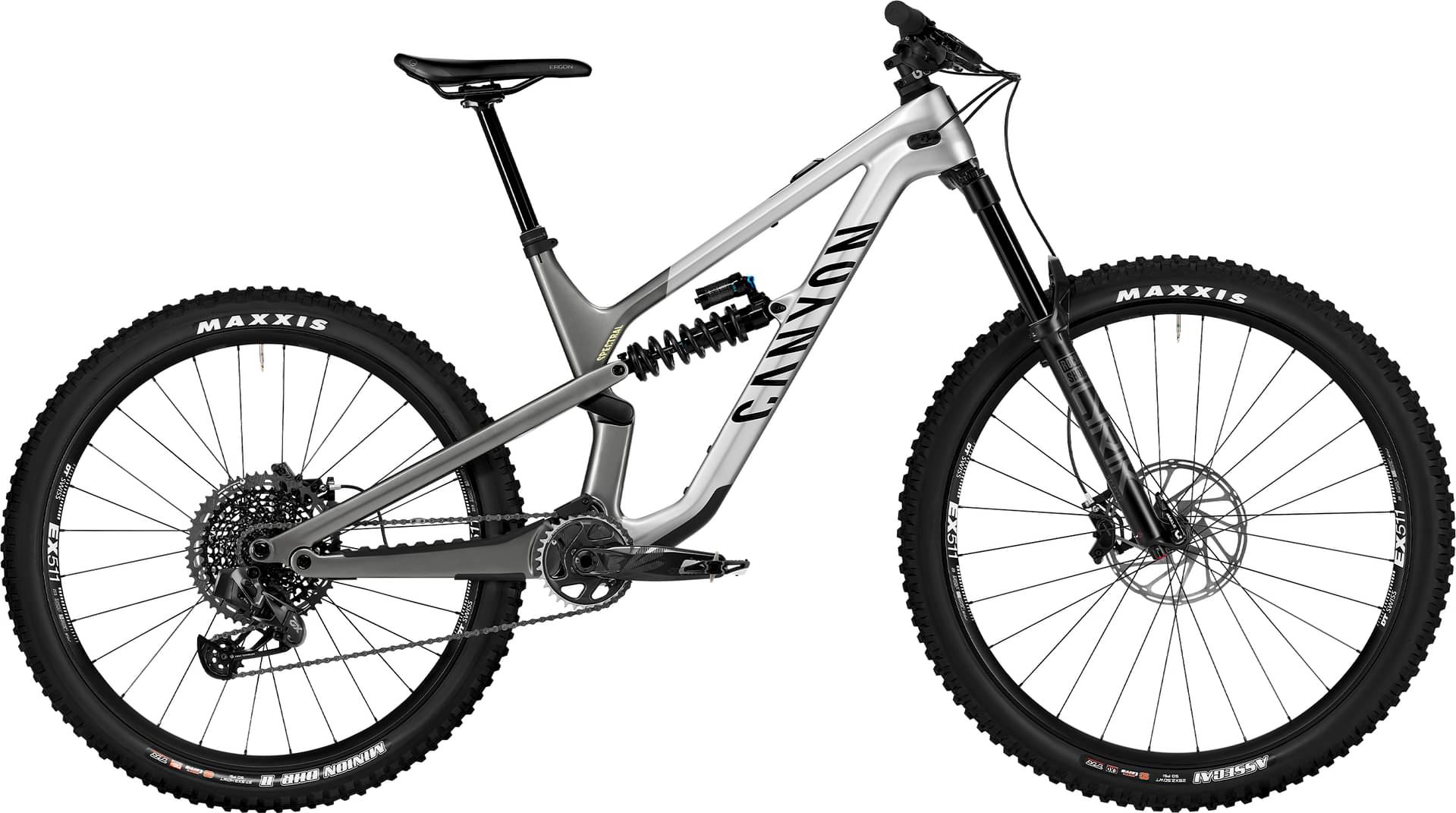

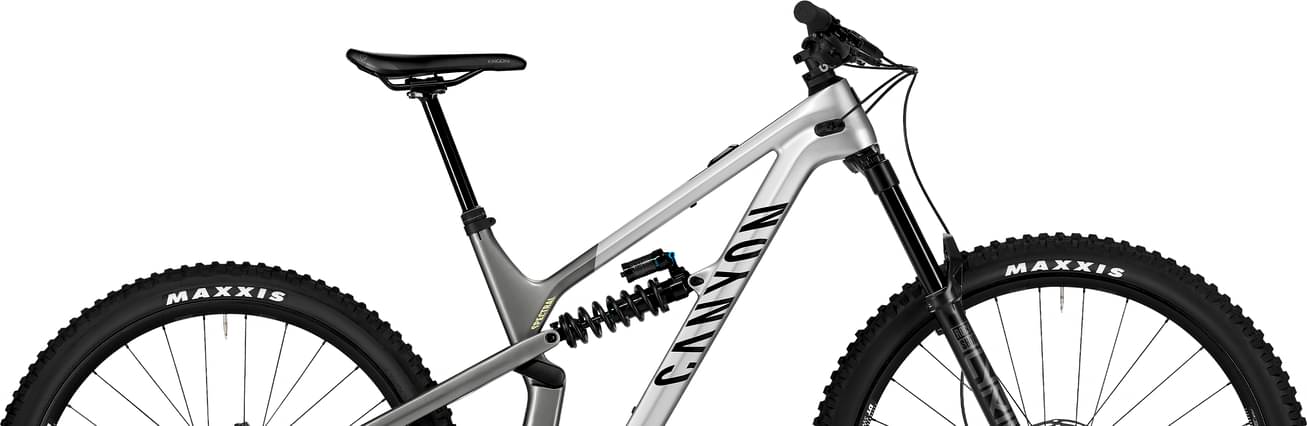

Canyon Spectral CF 8 2023
2023 Mountain
Estimate price |
4,699$
Weight | 14.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select+
-
Groupset GX Eagle AXS -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
172cm - 185cm
LG
180cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

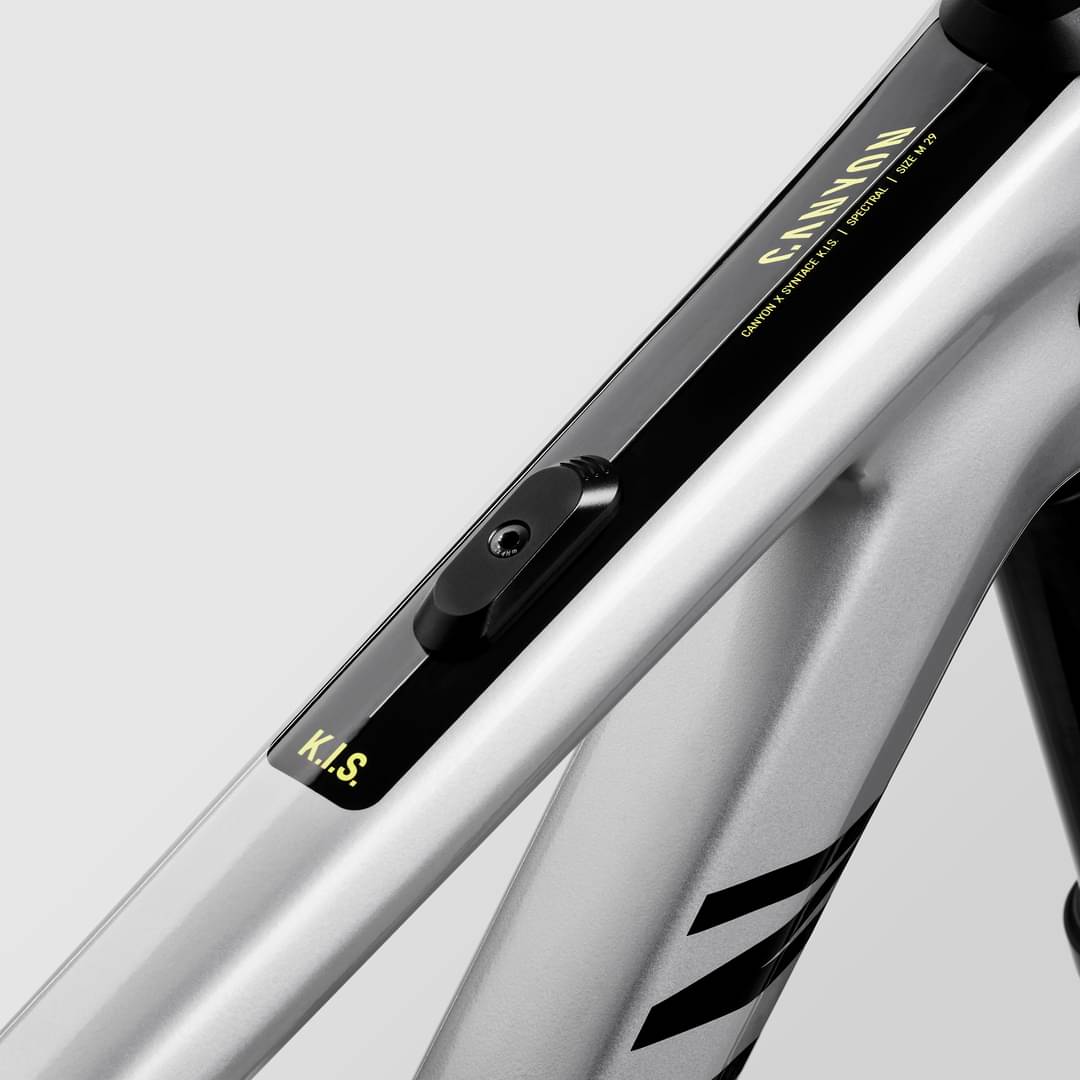

Canyon Spectral CF, Full-carbon frame with optimised stiffness-to-weight ratio and integrated K.I.S. technology. Our famous triple phase suspension design with the Flip Chip system for simple geometry adjustment., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
RockShox Lyrik Select+ RC, Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 44 mm, Weight: 2.34 kg
Rear Shock

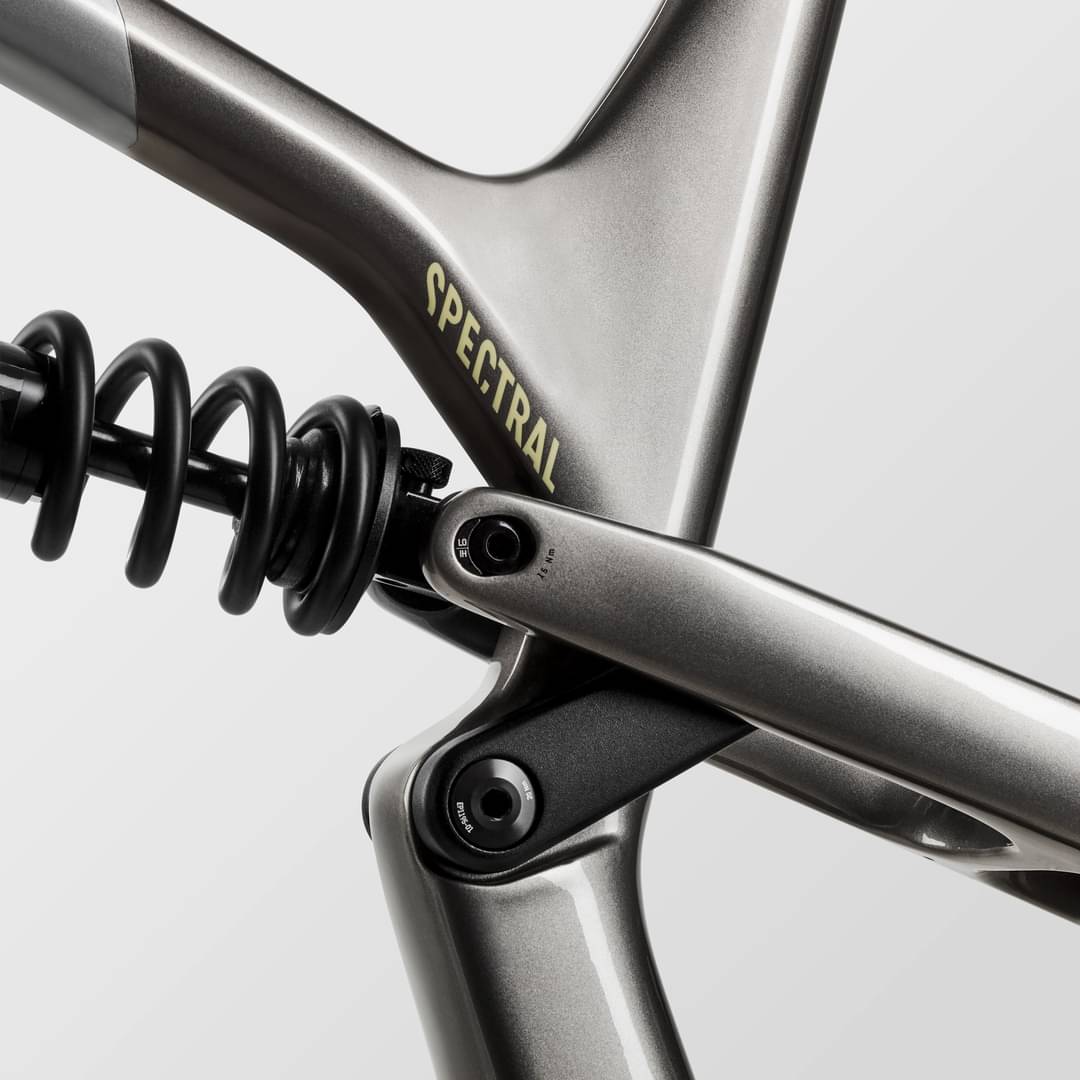

RockShox Super Deluxe Coil Select+ RT, Spring: 400
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS
Shift Levers
SRAM GX Eagle AXS
Cassette
SRAM GX Eagle, 12-speed (10-52), Number of sprockets: 12
Crank
SRAM GX Eagle, Number of chainrings: 1
Bottom Bracket
SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 87 g
Chain
SRAM SX Eagle
Chain Guide
Canyon GP0293-02 | Canyon EP1266-01 ISCG05 Plate
Pedals
None included
Wheels
Rims
DT Swiss EX511 370LN, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 988 g | DT Swiss EX511, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 1.04 kg
Tires
Maxxis Assegai, Width: 2.5", Weight: 1.02 kg | Maxxis Minion DHR II 3C MaxxTerra EXO+ 2,4x27,5", Wheelsize: 27.5", Weight: 1.07 kg
Brakes
Brakes
SRAM Code R | SRAM Matchmaker Clamp
Cockpit
Stem
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails., Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon G5
Seat
Saddle
Ergon SM10 Enduro Comp, Gender: Unisex, Weight: 265 g
Seatpost
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.32 mm | 1.27 mm |
| Front Center | 762 mm | 791 mm | 820 mm | 850 mm |
| Rake | 42 mm | 41 mm | 41 mm | 54 mm |
| Trail | 136 mm | 137 mm | 137 mm | 115 mm |
| Stack | 610 mm | 619 mm | 628 mm | 637 mm |
| Reach | 426 mm | 451 mm | 476 mm | 501 mm |
| Top Tube Length | 578 mm | 605 mm | 632 mm | 659 mm |
| Seat Tube Angle | 68.9 ° | 69.3 ° | 69.8 ° | 70.2 ° |
| Seat Tube Length | 395 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 65 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1192 mm | 1221 mm | 1250 mm | 1280 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 750 mm | 757 mm | 762 mm | 774 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 177 cm | 185 cm | 194 cm | cm |
Model Overview
Spectral CF 8 is a Canyon Spectral model. 101 bikes variations carry this model name so far. You can easily view all of the Canyon Spectral bikes models from 2023, here.
Model range prices
Canyon Spectral 4 2023 is the most economical model, with a starting price of 2299$. Canyon Spectral 29 CFR 2023 on the other hand costs 6499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Canyon released this model in 2023, its price was 4699$. In conclusion, this bike price is 30.56% more expensive than the price of the average Enduro bike.
Enduro bikes average weight
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.46 kg (31.88 lbs), Canyon bike is slightly heavier than average. In other words, this model is 1.33% heavier than the average Enduro bike.
Spectral CF 8 components
Fork
The Spectral CF 8 comes factory-installed with the RockShox Lyrik Select+ fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe Coil Select+ RT model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Spectral CF 8 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Spectral CF 8. Therefore, climbing or descending will be a breeze.
