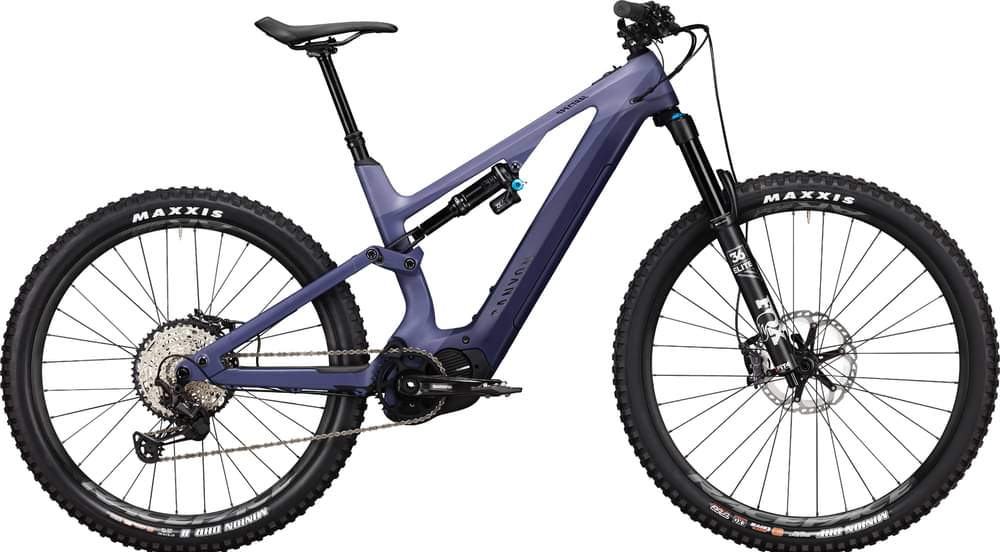

Canyon Spectral:ON CF 8.0 2021
2021 E-bike
Estimate price |
6,958$
Weight | 21.85 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8035-L 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:On, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 203
Suspension Fork
FOX 36 Performance Elite
Rear Shock
FOX FLOAT DPX2 Performance
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed, 1x12 drivetrain for simpler, intuitive shifting. Proven Shimano XT performance.
Shift Levers
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Cassette
Shimano SLX, 12-speed (10-51), Primarily-steel cogs with aluminium 51T cog, Microspline interface, Gear range: 10-51T, weight: 533 g, Hyperglide+ technology provides better chain engagement.
Crank
Shimano E8000
Chain
Shimano M7100 12-speed
Wheels
Rims
RaceFace AR30 | Shimano M8110 | RaceFace AR35 | Shimano M8110
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound
Brakes
Brakes
Shimano Deore XT M8120 | Shimano XT 4-piston brake, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 410 g
Disk Rotors
Shimano XT STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH FREEZA design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano XT brake rotor, 203mm, ICE TECH FREEZA design reduces heat build-up and brake fade, center lock mounting for quick installation/removal
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 50mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Motor & Battery
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Battery
Shimano BT-E8035-L 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included
Remote
Shimano Steps E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 322 mm | 322 mm | 322 mm | 322 mm |
| Front Center | 738 mm | 764 mm | 788 mm | 812 mm |
| Rake | 52 mm | 56 mm | 55 mm | 55 mm |
| Trail | 98 mm | 94 mm | 95 mm | 95 mm |
| Stack | 616 mm | 621 mm | 631 mm | 641 mm |
| Reach | 421 mm | 441 mm | 461 mm | 481 mm |
| Top Tube Length | 586 mm | 608 mm | 628 mm | 649 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1167 mm | 1193 mm | 1217 mm | 1241 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 780 mm | 784 mm | 788 mm | 802 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
About this model
Spectral:ON CF 8.0 belongs to the Canyon E Spectralon model. Canyon launched 37 e-bikes of this model so far. You can easily view all of the Canyon E Spectralon e-bikes models from 2021, here.
Model range prices
The most economical model, the Canyon Spectral:ON CF 6 WMN 2021 has a starting price of 4989$. Canyon Spectral:ON CF 9 2021 on the other hand is the most expensive at 9000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Spectral:ON CF 8.0 price was 6324$. If we compare this with the average Enduro e-bike cost we notice that the price is 32.16% higher.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 21.85 kg (48.17 lbs), the Spectral:ON CF 8.0 model is a bit lighter than average. In conclusion, the average Enduro e-bike weighs 7.19% more than Spectral:ON CF 8.0.
Spectral:ON CF 8.0 components
Fork
The Spectral:ON CF 8.0 comes factory-installed with the Fox Performance Elite Float 36 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT DPX2 Performance, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Spectral:ON CF 8.0 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spectral:ON CF 8.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Canyon Spectral:ON CF 8.0 includes a dropper post. Therefore, climbing or descending will be a breeze.
