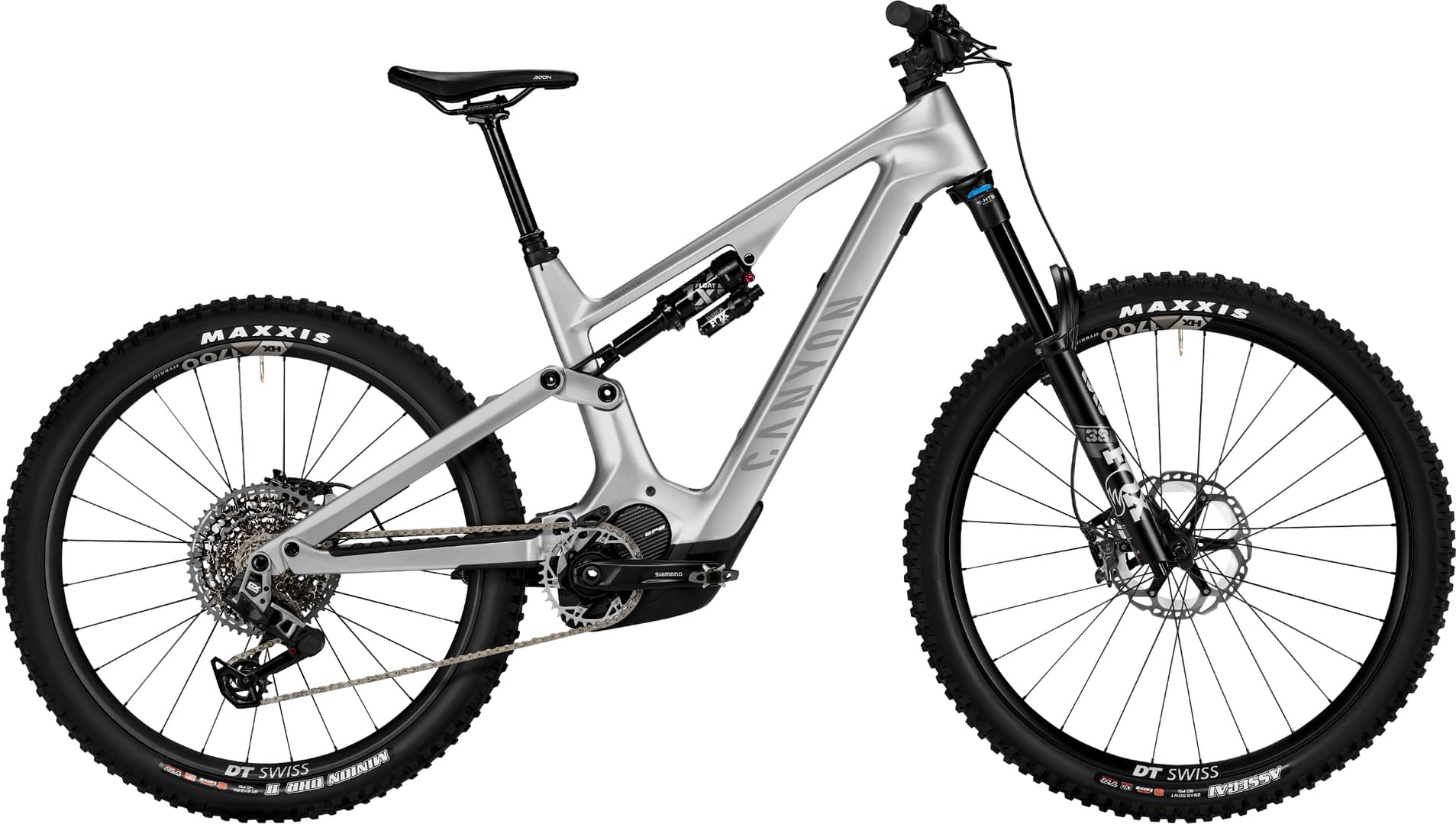

Canyon Spectral:ON CF 9 2023
2023 E-bike
Estimate price |
8,601$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 155mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Shimano mid-drive -
Battery SRAM Powerpack | Depending on your selected configuration. -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Spectral:ON CF, Material: Carbon (CF)
Suspension Fork
FOX 38 PERFORMANCE ELITE, Travel: 160 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.18 kg
Rear Shock
Fox Float X Performance Evolution
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS Transmission
Shift Levers
SRAM AXS POD Infinity
Cassette
SRAM GX Eagle Transmission Cassette 12s 10-52, Number of sprockets: 12 | SRAM XS-1275 T-Type GX 12-speed Cassette 10-52
Crank
Shimano STEPS
Bottom Bracket
STEPS, press-fit
Chain
SRAM GX Eagle Transmission | SRAM Eagle Transmission PowerLock | SRAM GX T-Type 12-speed Chain 126L
Chain Guide
Canyon Chainguide M091/M129
Wheels
Rims
DT Swiss HX1700, Rotor mount: Center Lock, Weight: 997 g | DT Swiss H1700, Rotor mount: Center Lock, Weight: 1.15 kg
Tires
Maxxis Assegai, Width: 2.5", Weight: 1.02 kg | Maxxis Minion DHR II 27,5" x 2.60 WT, Width: 2.6", Weight: 900 g | Maxxis Minion DHR II EXO+ 3C MaxxTerra WT 27.5" x 2.6" MTB Tyre | Maxxis Assegai EXO+ TR MaxxTerra WT 29" x 2.5" MTB Tyre
Brakes
Brakes
Shimano DEORE XT M8120
Cockpit
Stem
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8", Clamping diameter: 35,0 mm
Handlebar
Canyon:ON HB0057 Riser bar, Canyon-developed E-MTB handlebar for top control levels on the trail., Clamping diameter: 35,0 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon Lock-On
Seat
Saddle
Fizik Terra Aidon X5, Gender: Unisex, Weight: 262 g
Seatpost
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 580 g
Motor & Battery

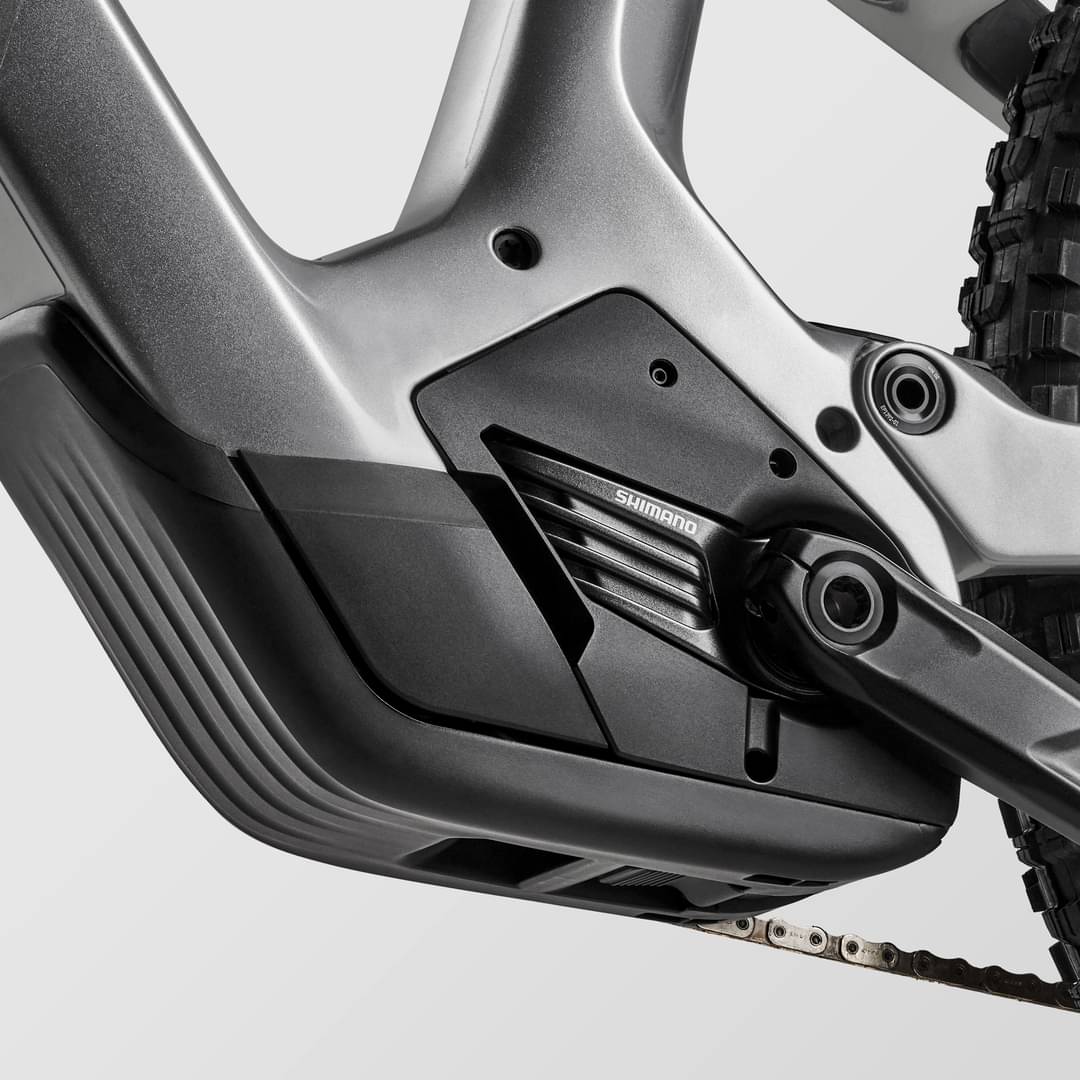

Motor
Shimano EP801

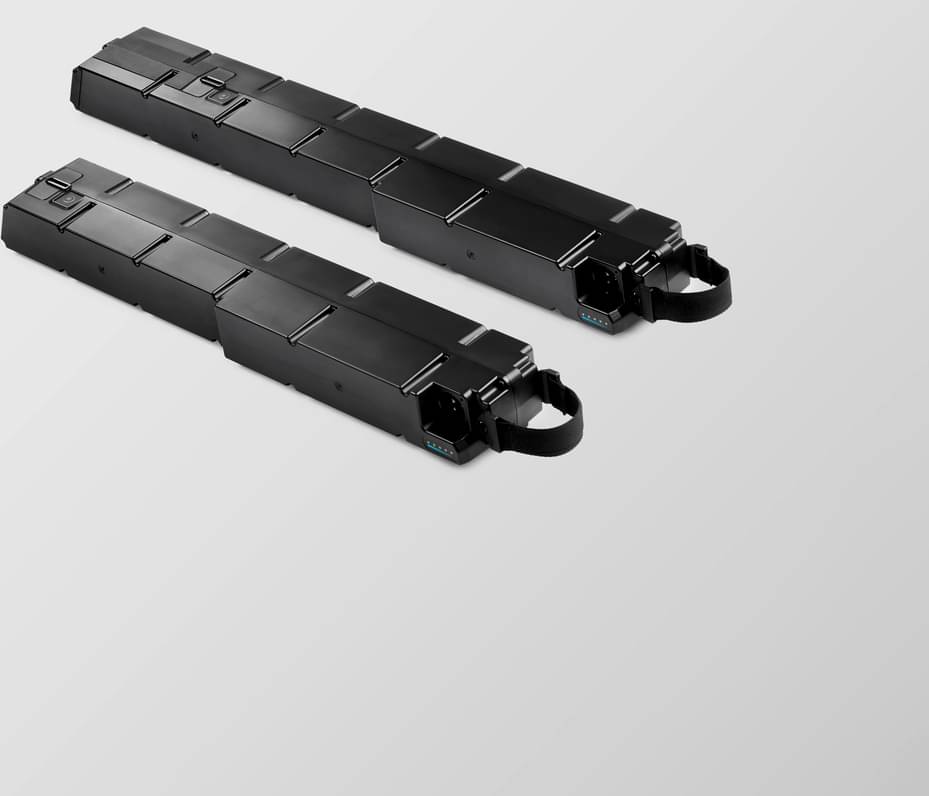

Battery
SRAM Powerpack | Depending on your selected configuration.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.34 mm | 1.29 mm |
| Front Center | 756 mm | 785 mm | 814 mm | 843 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 122 mm | 122 mm | 123 mm | 123 mm |
| Stack | 637 mm | 646 mm | 655 mm | 664 mm |
| Reach | 438 mm | 463 mm | 488 mm | 513 mm |
| Top Tube Length | 592 mm | 616 mm | 640 mm | 666 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1197 mm | 1226 mm | 1255 mm | 1284 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Standover Height | 812 mm | 817 mm | 823 mm | 828 mm |
| Front Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Rear Travel | 155 mm | 155 mm | 155 mm | 155 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Spectral:ON CF 9 is a Canyon E Spectralon model. There are 37 e-bikes that carry this model name. You can easily view all of the Canyon E Spectralon e-bikes models from 2023, here.
Model range prices
Canyon Spectral:ON CF 7 2023 is the cheapest e-bike model and costs 4999$. Canyon Spectral:ON CFR LTD 2023 is the most expensive one and costs 12740$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7962$. If we compare this with the average Enduro e-bike cost we notice that the price is 66.39% higher.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 24.5 kg (54.01 lbs), Canyon e-bike is slightly heavier than average. In short, the average Enduro e-bike weight is 4.61% lower than this one.
Spectral:ON CF 9 components
Fork
Canyon Spectral:ON CF 9 2023 e-bike is equipped with the Fox Performance Elite Float 38 fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float X Performance Evolution, with a travel distance of 155mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Spectral:ON CF 9 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Spectral:ON CF 9 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
The Canyon model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
