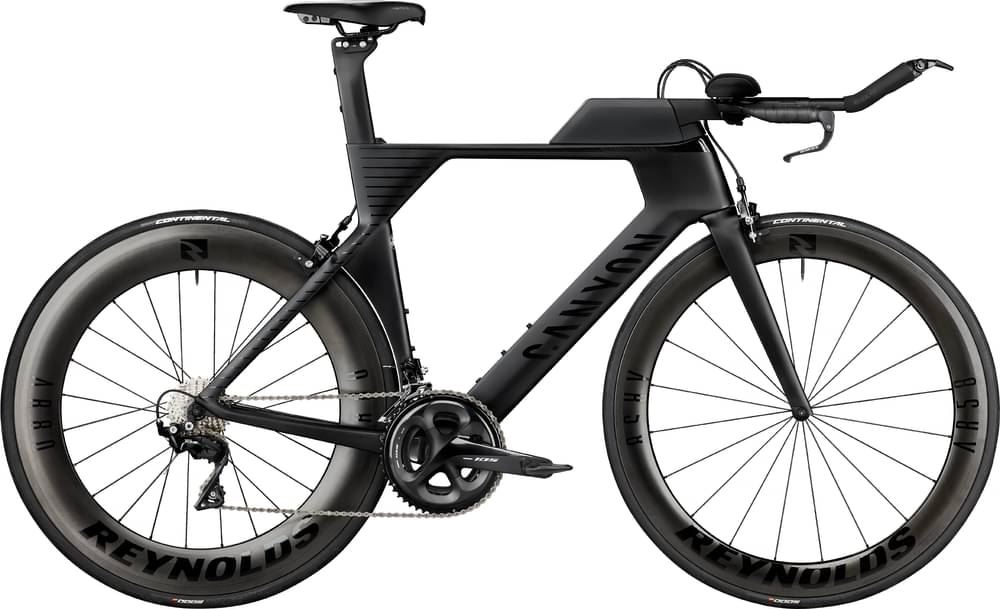

Canyon Speedmax CF 7.0 2020
2020 Road
Estimate price |
3,699$
Weight | 8.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
164cm - 176cm
MD
174cm - 186cm
LG
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CF, Material: Carbon, Axle Dimension: 9 x 130 mm, Brake Mount: Direct Mount
Suspension Fork
Canyon F39 CF, Material: Carbon, Steerer: 1 1/8", Axle Dimension: 9 x 100 mm, Brake Mount: Rim Brake
Drivetrain
Rear Derailleur
Shimano 105 R7000 SS, 11-speed, short cage design, max. cassette size: 30T, Shadow Shifting technology. Weight: 225g
Front Derailleur
Shimano 105 R7000, 2x11-speed, new link construction allows for lighter front shifting, integrated cable tension adjustment and disc brake-optimised shorter cage design, black, braze-on mount. Weight: 90 g
Shift Levers
Shimano Dura-Ace 9000 TT 2x11s, 2x11 speed bar-end shift levers, aero design for triathlon and time trial bikes. Weight: 153 g
Cassette
Shimano 105 R7000 11-28 11s
Crank
Shimano 105 R7000, Chainring size: See ‘Geometry and dimensions’ below
Bottom Bracket
Shimano Pressfit BB72, Pressfit BB86 road standard, compatible with 24 mm axles featuring Hollowtech 2 technology. Weight: 69 g
Chain
Shimano HG601 11-speed
Pedals
None included
Wheels
Rims
Reynolds AR58, Rim Material: Carbon, Rim Height: 58 mm, Inner Width: 19 mm, Weight: 1700 g (set) | Reynolds AR80 SH11, Rim Material: Carbon, Rim Height: 80 mm, Inner Width: 19 mm, Weight: 1797 g (set)
Tires
Continental Grand Prix Attack 23 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable | Continental Grand Prix 5000, 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brakes
Shimano 105 R7010
Cockpit
Stem
Canyon V21 Stem Medium, Material: Aluminum, Length: 80 mm, 1 x Canyon V21 medium stem, Install hardware
Handlebar
Canyon H30 Basebar Flat CF, Material: Carbon, Rise: 0 mm, 1 x Canyon H30 basebar, Installed Ergon basebar grips
Headset
Tange IS-22AE-SCT
Seat
Saddle
Fizik Mistica
Seatpost
Canyon S31 TRI CF, Material: Carbon, Setback: Adjustable, Technology: Fliphead, Interface: Canyon Bottle Cage Adapter Mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.21 mm | 1.26 mm | 1.25 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 571 mm | 584 mm | 610 mm | 627 mm | 656 mm |
| Rake | 38 mm | 39 mm | 38 mm | 38 mm | 39 mm |
| Trail | 66 mm | 62 mm | 63 mm | 63 mm | 62 mm |
| Stack | 487 mm | 516 mm | 539 mm | 561 mm | 588 mm |
| Reach | 403 mm | 411 mm | 431 mm | 441 mm | 461 mm |
| Top Tube Length | 483 mm | 496 mm | 520 mm | 534 mm | 558 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 491 mm | 520 mm | 543 mm | 565 mm | 593 mm |
| Head Tube Angle | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 75 mm | 104 mm | 128 mm | 151 mm | 179 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 987 mm | 1000 mm | 1026 mm | 1043 mm | 1072 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 196 cm | cm |
Model Overview
Speedmax CF 7.0 is part of the Canyon Speedmax model. There are 95 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Canyon Speedmax WMN CF 7.0 2020 is the most economical model, with a starting price of 3099$. Canyon Speedmax CF SLX 9.0 LTD 2020 on the other hand costs 10500$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, you could also get a good Triathlon bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2020, its price was 3699$. In conclusion, this bike price is 12.92% lower than the price of the average Triathlon bike.
Average weight for Triathlon bikes
On a deeper look, we notice that the average weight of a Triathlon bike is 8.9 kg (19.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, Speedmax CF 7.0 has a weight of 8.5 kg (18.74 lbs). In conclusion, the average Triathlon bike weighs 4.71% more than Speedmax CF 7.0.
Speedmax CF 7.0 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Canyon Speedmax CF 7.0 2020, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
