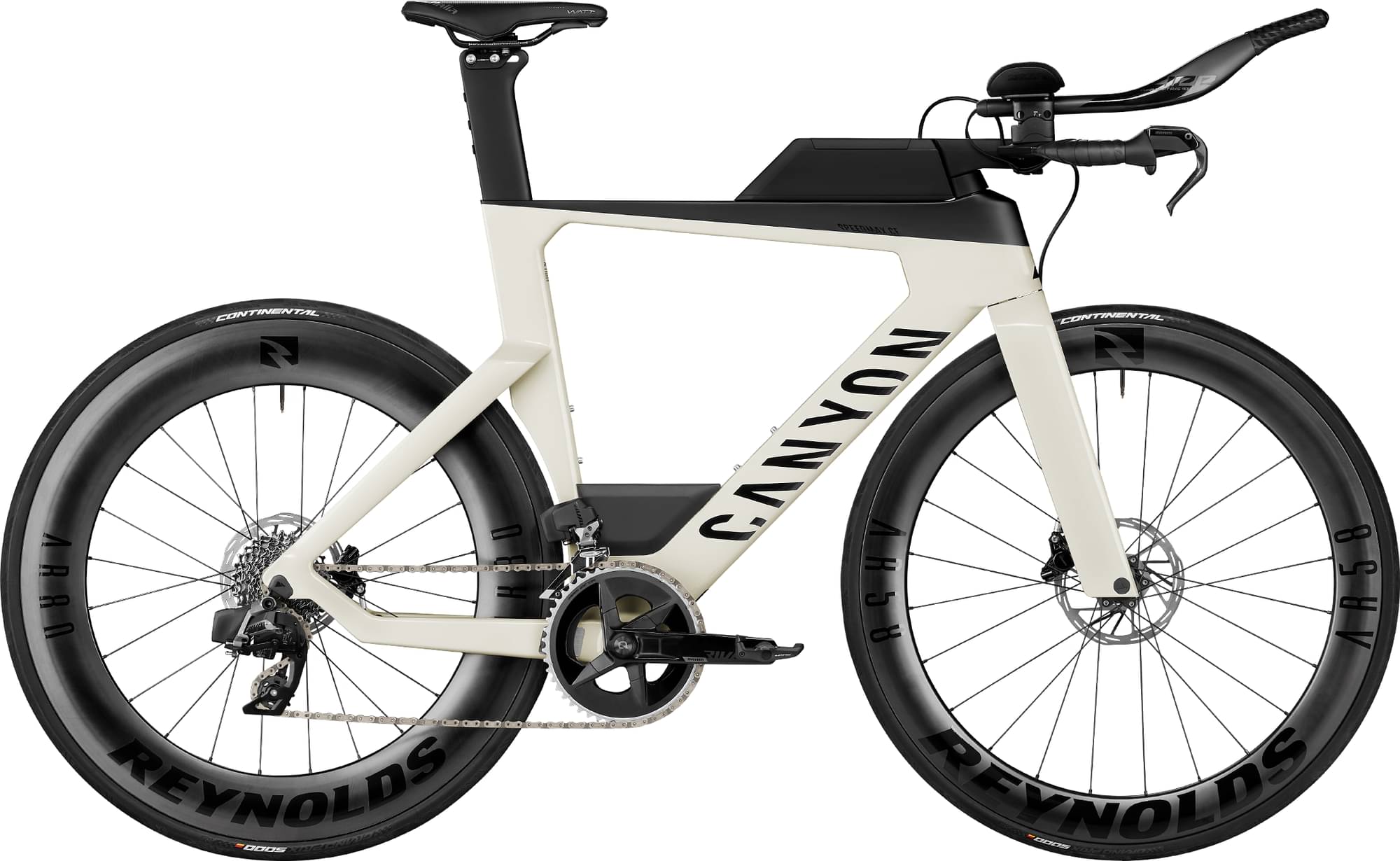

Canyon Speedmax CF 7 Disc eTap 2022
2022 Road
Estimate price |
5,963$
Weight | 9.64 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival eTap, RED eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CF Disc
Suspension Fork
Canyon FK0077 CF Disc
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS, Rear derailleur with wireless shifting. Featuring robust steel bearings and spring clutch for quiet, secure operation. Cage material: aluminium. Maximum cassette size: 36T.
Front Derailleur
SRAM Rival eTap AXS, Front derailleur with wireless shifting. Featuring Yaw technology, eliminating the need for derailleur trim. Mounting type: braze-on.
Shift Levers
SRAM Vukashift AXS, Aero extensions with built in shifting buttons. Featuring integrated computer mount, and trimmable length.
Cassette
SRAM Rival, 12-speed, 10-30T
Crank
SRAM Rival eTap AXS Powermeter
Bottom Bracket
SRAM Pressfit RED DUB, Pressfit BB86 road standard, compatible with SRAM DUB axles. Weight: 72 g
Chain
SRAM RIVAL D1 12s, 12-speed chain with flattop technology for narrower design, quieter operation, and increased strength and durability
Pedals
None included
Wheels
Rims
Reynolds AR58 DB, Front wheel with refined wider rim shape optimised for crosswind stability and better fit for higher volume tires. Tubeless-ready. Rim depth: 58 mm, inner width: 19 mm, weight: 820 g | Reynolds AR80 DB, XDR
Tires
Continental Grand Prix 5000, 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II | Continental Grand Prix 5000 28 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable
Brakes
Brakes
hydraulicDisc
Brake Levers
SRAM S-900 Aero HRD, Aero design specifically for triathlon and time trial bikes. Profiled carbon brake lever for better finger grip. Adjustable reach. Weight: 300 g
Disk Rotors
SRAM Paceline, Designed for optimal venting. With rounded edges for easier wheel installs. Disc mount: centerlock. Weight: 155 g.
Cockpit
Stem
Canyon V21 Stem Medium, Material: Aluminum, Length: 80 mm
Handlebar
Canyon HB0053 Triathlon Basebar, Aerodynamically optimsed triathlon handlebar with direct mount spacer system featuring the Aeria Ultimate Race Bracket by Profile Design., Type: Flat, Basebar Rise: 0 mm
Seat
Saddle
Selle Italia Watt Superflow
Seatpost
Canyon SP0048 Aero Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.29 mm | 1.3 mm | 1.31 mm | 1.3 mm |
| Front Center | 552 mm | 579 mm | 605 mm | 637 mm | 671 mm |
| Rake | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Stack | 477 mm | 514 mm | 539 mm | 573 mm | 603 mm |
| Reach | 369 mm | 397 mm | 415 mm | 438 mm | 463 mm |
| Top Tube Length | 449 mm | 484 mm | 506 mm | 535 mm | 565 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 480 mm | 518 mm | 543 mm | 577 mm | 607 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 113 mm | 115 mm | 140 mm | 176 mm | 207 mm |
| Chainstay Length | 405 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 951 mm | 983 mm | 1009 mm | 1042 mm | 1076 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 749 mm | 786 mm | 810 mm | 844 mm | 874 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 175 cm | 187 cm | 197 cm | cm |
About this model
Speedmax CF 7 Disc eTap completes the Canyon Speedmax model. 95 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Canyon Speedmax CF 7 DISC 2022 is the most economical model, with a starting price of 3799$. Canyon Speedmax CFR eTap 2022 on the other hand costs 12740$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Triathlon bikes
According to our calculations, the average cost of a Triathlon bike that is reliable is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 5520$. Comparing this to the average Triathlon bike price, we see that the price is 32.15% higher.
Triathlon bikes average weight
If we make a quick analysis of the average weight of a Triathlon bike, we get 8.9 kg (19.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canyon Speedmax CF 7 Disc eTap it’s weighing 9.64 kg (21.25 lbs). At this weight, is a bit heavier than average. In conclusion, the average Triathlon bike weighs 8.31% less than Speedmax CF 7 Disc eTap.
Speedmax CF 7 Disc eTap components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Speedmax CF 7 Disc eTap bike is equipped with the carbon model. These wheels are less popular than 650b and 700c. However, they are a little lighter than 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Speedmax CF 7 Disc eTap is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
