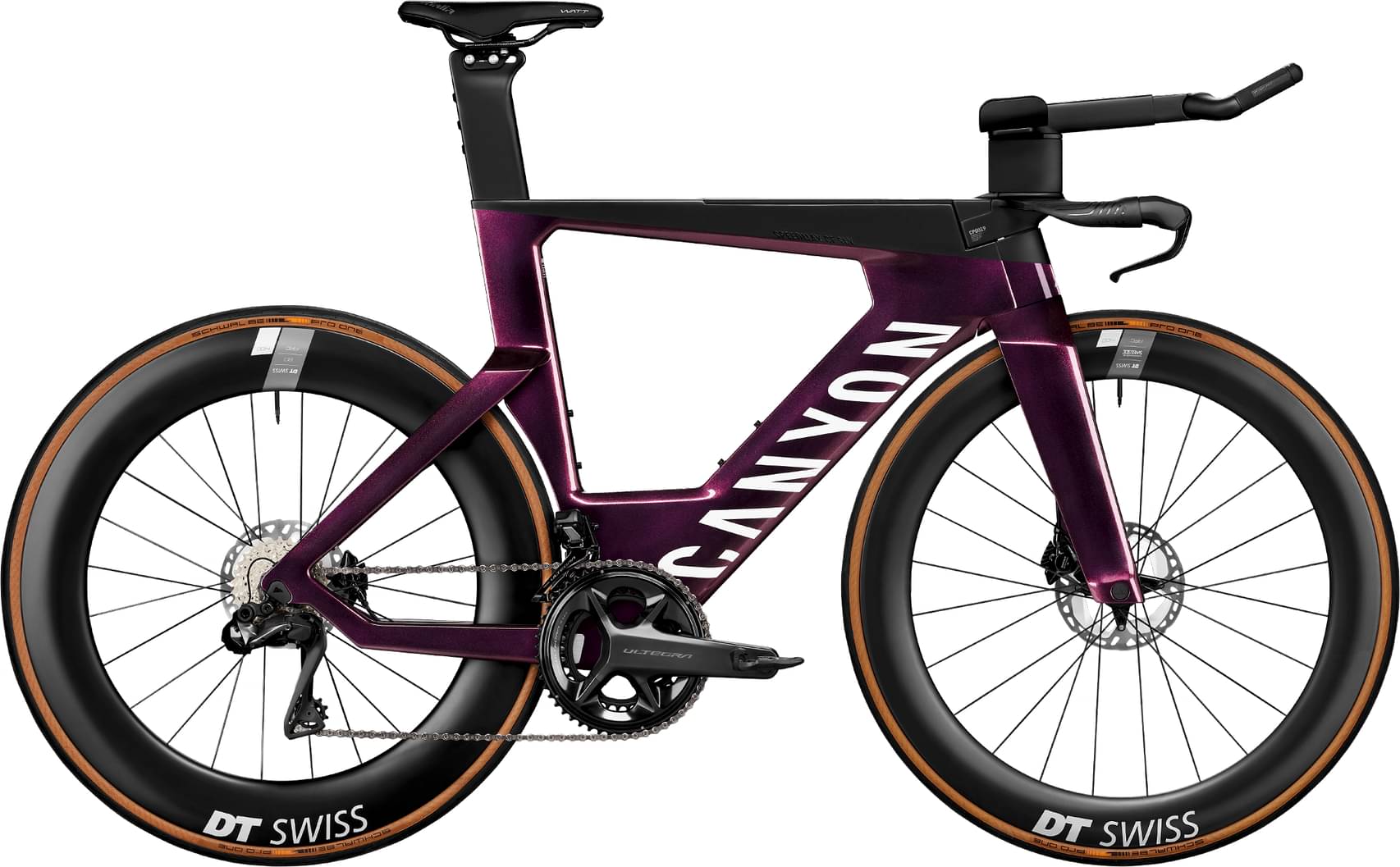

Canyon Speedmax CF SLX 8 Disc Di2 2024
2024 Road
Estimate price |
8,500$
Weight | 9.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components

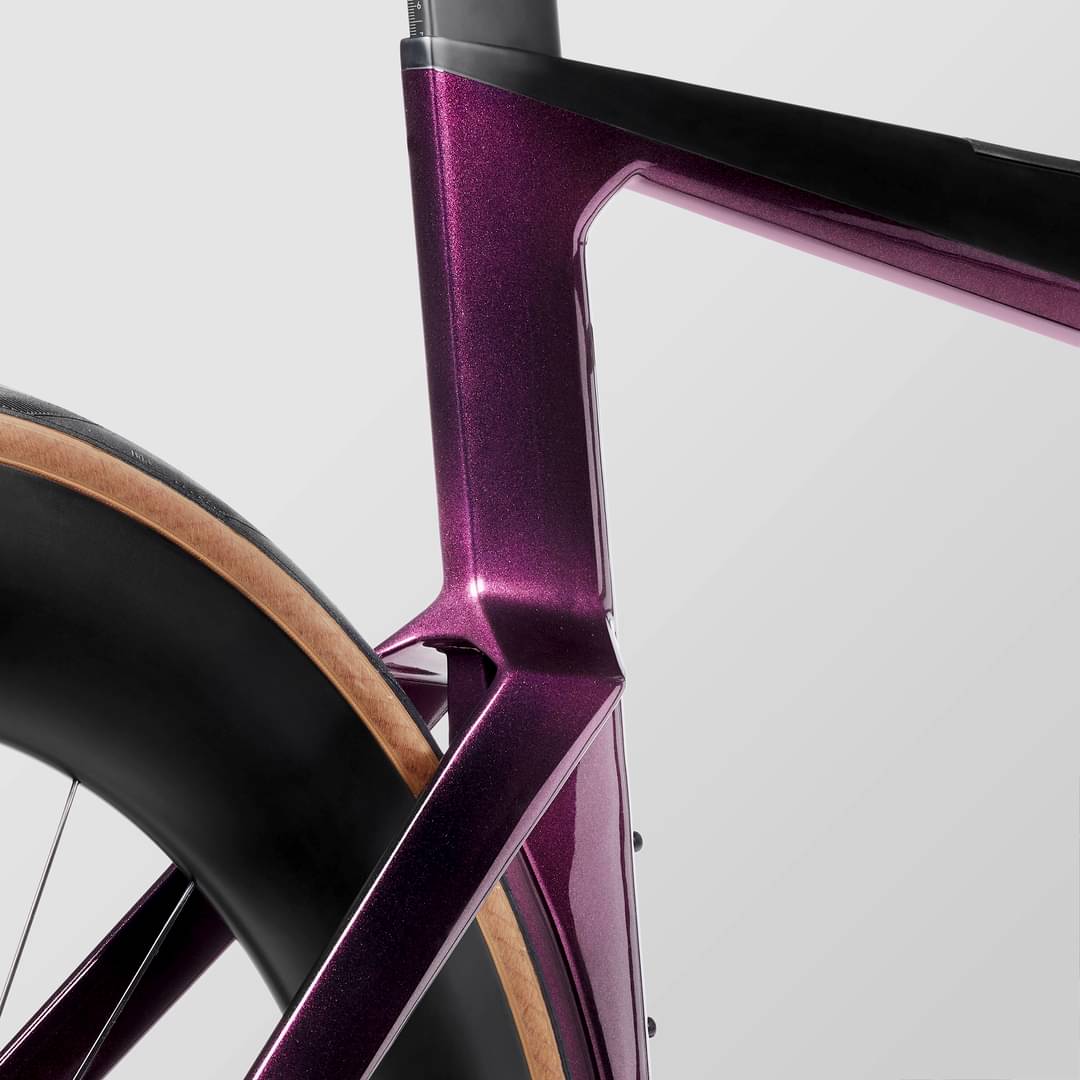

Frame
Frame
Canyon Speedmax CF SLX Disc, All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre Clearance: 30MM, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/8", Tyre Clearance: 30MM, Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Front Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Shift Levers
Shimano Dura-Ace Di2 R9160 Remote TT
Cassette
Shimano Ultegra R8100,12-speed, 11-30T, Number of sprockets: 12, Range: 11-30
Crank
Shimano Ultegra R8100 4iiii Precision Powermeter, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB72, Bottom bracket standard: PF 86,5, Weight: 40 g
Chain
Shimano CN-M8100 12s
Pedals
None included
Wheels
Rims
DT Swiss ARC 1400 Dicut, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Weight: 817 g | DT Swiss ARC 1400 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 80 mm, Weight: 978 g
Tires
Schwalbe Pro One, 25mm, Width: 25mm, Weight: 235 g | Schwalbe Pro One, 28mm, Width: 28mm, Weight: 250 g
Brakes
Brakes
Shimano Flat Mount Adapter +20mm
Brake Levers
Shimano Dura-Ace Di2 R9180

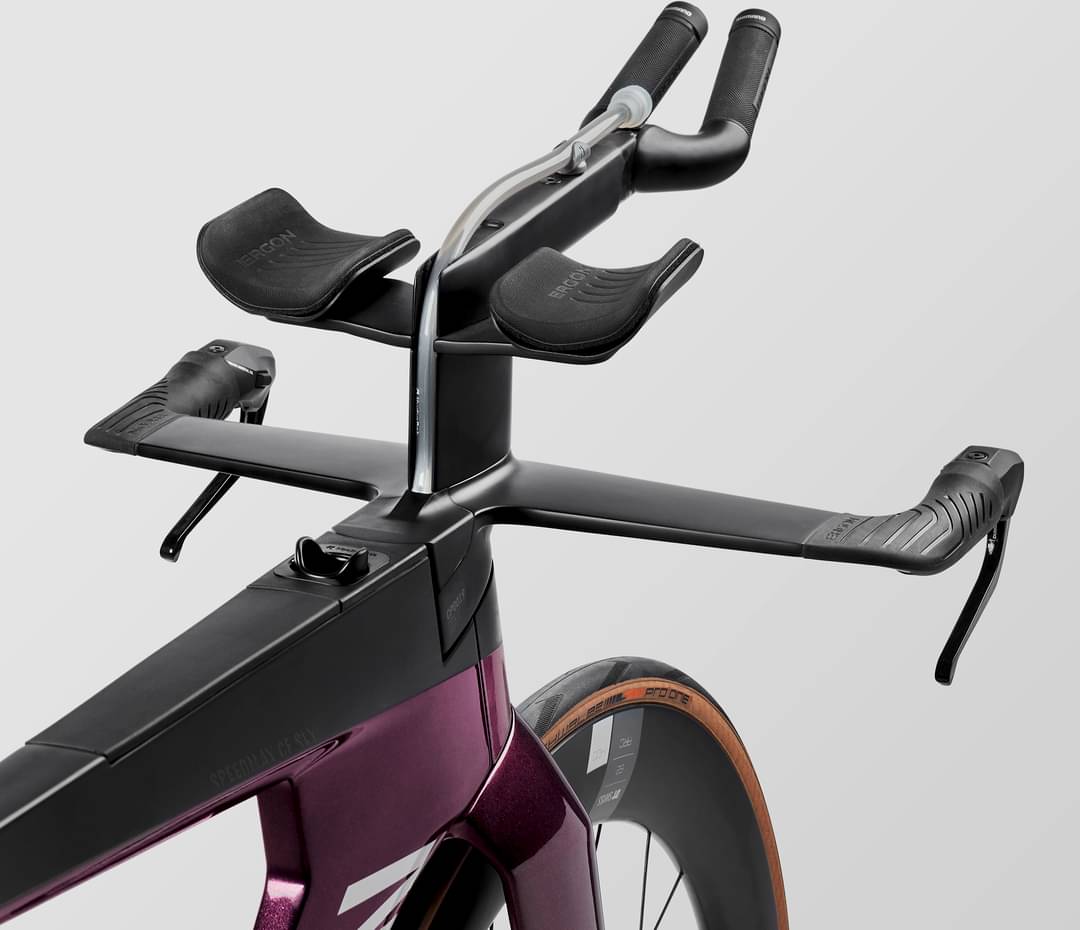

Cockpit
Handlebar
Canyon GP0226 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
Seat
Saddle
Selle Italia Watt Superflow
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.107 mm | 1.13 mm | 1.116 mm | 1.148 mm | 1.145 mm |
| Front Center | 556 mm | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 435 mm | 469 mm | 489 mm | 527 mm | 553 mm |
| Reach | 393 mm | 415 mm | 438 mm | 459 mm | 483 mm |
| Top Tube Length | 466 mm | 494 mm | 519 mm | 548 mm | 576 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 488 mm | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 64 mm | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 410 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 960 mm | 986 mm | 1014 mm | 1047 mm | 1079 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 759 mm | 797 mm | 816 mm | 857 mm | 881 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 197 cm | cm |
About this model
Speedmax CF SLX 8 Disc Di2 belongs to the Canyon Speedmax model. Canyon released 106 bikes variations of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Canyon Speedmax CFR Disc Di2 2024 is the most economical model, with a starting price of 2799$. Canyon Speedmax CFR Moonshot 2024 on the other hand costs 13766$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Canyon Speedmax CF SLX 8 Disc Di2 price was 8500$. In conclusion, this bike price is 103.5% higher than the price of the average Triathlon bike.
Triathlon bikes average weight
If we make a quick analysis of the average weight of a Triathlon bike, we get 8.9 kg (19.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canyon Speedmax CF SLX 8 Disc Di2 it’s weighing 9.34 kg (20.59 lbs). At this weight, is slightly heavier than average. In other words, this model is 4.94% heavier than the average Triathlon bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
Speedmax CF SLX 8 Disc Di2 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Speedmax CF SLX 8 Disc Di2 model has carbon wheels. The 650c wheels are smaller in diameter than 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.

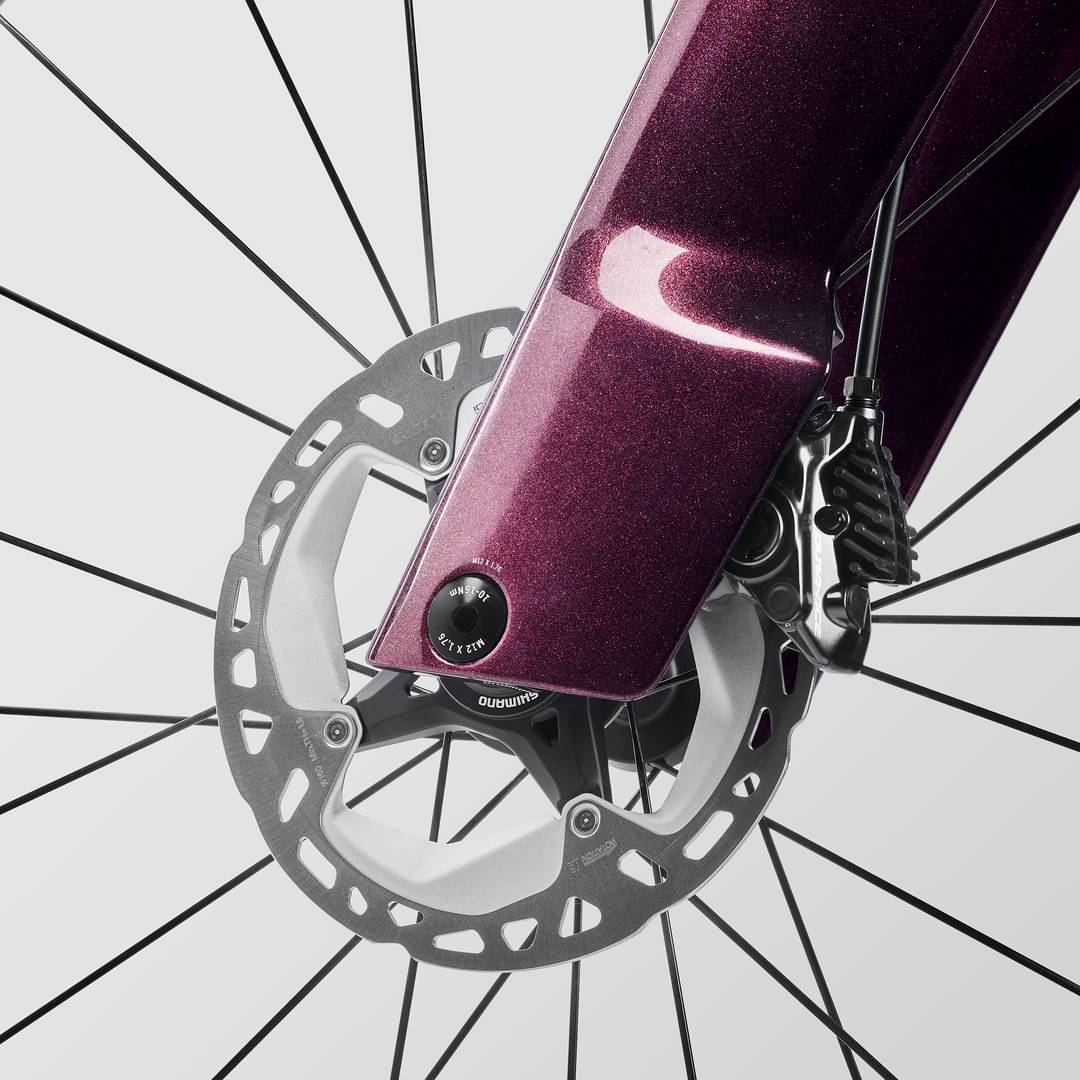

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speedmax CF SLX 8 Disc Di2 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
