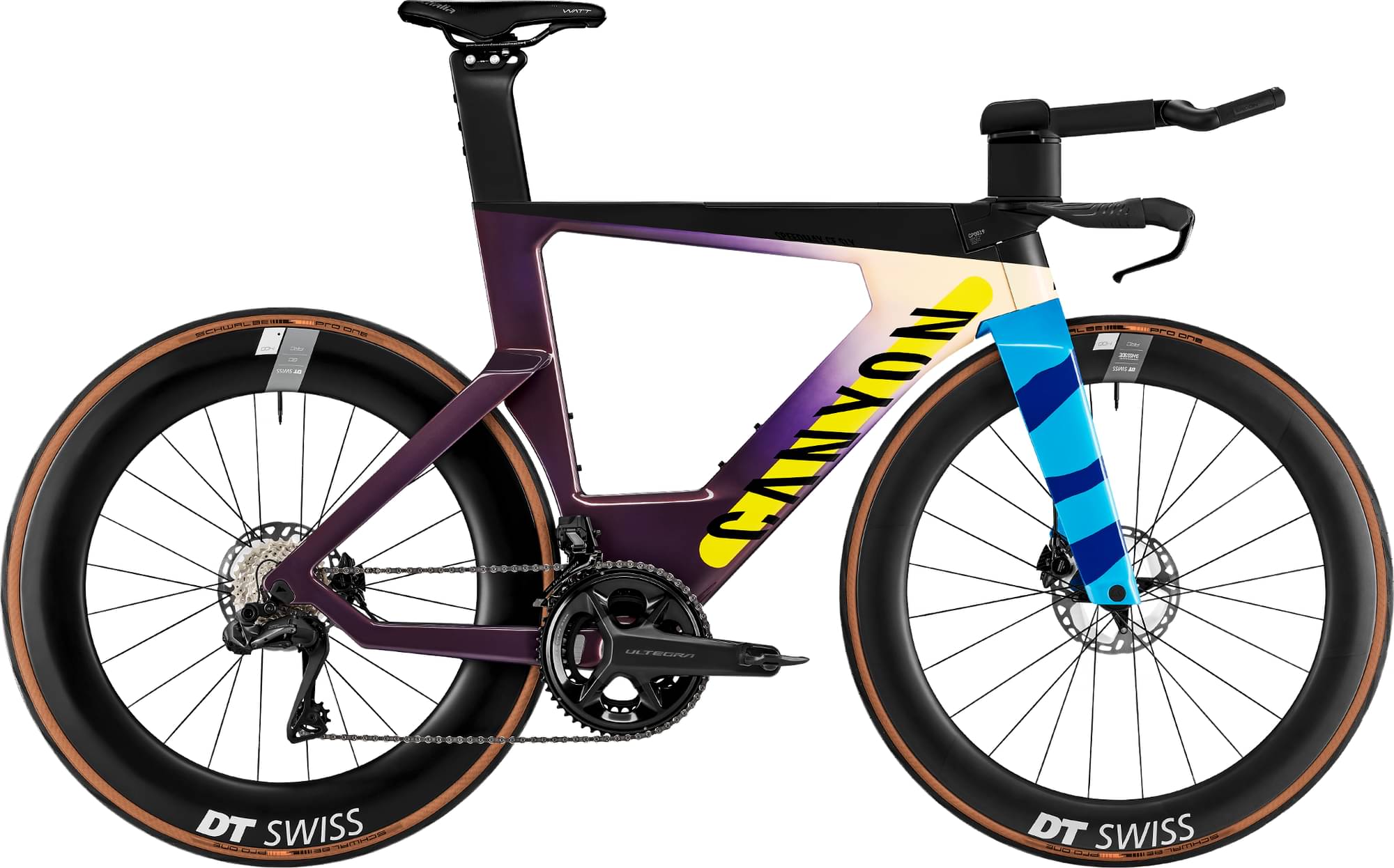

Canyon Speedmax CF SLX Hawaii LTD 2022
2022 Road
Estimate price |
10,321$
Weight | 9.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CF SLX Disc, Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved.
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150, 12-speed, Electronic 12-speed rear derailleur. 58% faster shifting., Maximum cassette size: 34T
Front Derailleur
Shimano Ultegra Di2 R8150, 12-speed, Electronic front derailleur for 2x12 shifting setups., Maximum chainring size: 50-52T, Mounting interface: braze-on
Shift Levers
Shimano Dura-Ace Di2 R9160 Remote TT, Pair of shifters for aero bar-ends. Programmable shifting modes, with Shimano Synchronized Shift tech. Function customisable using E-TUBE tech to fit your riding style., Weight: 40 g / pair
Cassette
Shimano Ultegra R8100,12-speed, 11-30T | Shimano CS-R8100 Ultegra 12-speed Cassette
Crank
Shimano Ultegra R8100 4iiii Precision Powermeter, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB72, Pressfit BB86 road standard, compatible with 24 mm axles featuring Hollowtech 2 technology., Weight: 69 g | Ceramicspeed BB86 Shimano PressFit Bottom Bracket | Shimano SM-BB72-41B II Press-Fit Bottom Bracket
Chain
Shimano CN-M8100 12s, Chain featuring SIL-TEC ultra-low friction surface treatment on inner plate for precise shifting and improved durability. Extended inner plates also improve chain engagement and retention. With quick link for fast fitting and assembly.
Pedals
None included
Wheels
Rims
DT Swiss ARC 1400 Dicut, Front wheel with Aero+ technology for stability and low drag. Tubeless-ready., Rim depth: 62 mm, Inner width: 20 mm, Weight: 817 g | DT Swiss ARC 1400 Dicut, Rear wheel with Aero+ technology for stability and low drag. Tubeless-ready., Rim depth: 80 mm, Inner width: 20 mm, Driver: Shimano 11-speed road, Weight: 978 g
Tires
Schwalbe Pro One, 25mm, High-end road tyre that combines suppleness, speed, and control at the highest level., Tech: tubeless-ready, v-guard puncture protection, Compound: Addix Race | Schwalbe Pro One, 28mm, High-end road tyre that combines suppleness, speed, and control at the highest level., Tech: tubeless-ready, v-guard puncture protection, Compound: Addix Race
Brakes
Brakes
Shimano Flat Mount Adapter +20mm, Adapter that makes it possible to mount 160 mm brake rotors.
Brake Levers
Shimano Dura-Ace Di2 R9180, Pro-level electronic dual-control shifters, specially developed for time trial riding. Shifting is possible in multiple different hand positions, and under braking. Top-rate ergonomics, lighter and smoother lever action, and improved modulation thanks to feedback from pro athletes. With adjustable reach.
Cockpit
Handlebar
Canyon GP0226 Aerobar, Size: Medium, Length: 325 - 405 mm, Grip Adjustment: 7°, Telescopic mono-extension with ergonomically optimised dual grip.
Seat
Saddle
Selle Italia Watt Superflow, Lightweight triathlon-specific saddle with greater gel padding, central cutout, and Superflow technology for unprecedented pedaling comfort., Nose width: 50 mm, Length: 255 mm, Rail material: manganese, Weight: 253 g
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Weight: 295 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.11 mm | 1.13 mm | 1.12 mm | 1.15 mm | 1.14 mm |
| Front Center | 556 mm | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 438 mm | 472 mm | 492 mm | 530 mm | 556 mm |
| Reach | 396 mm | 418 mm | 441 mm | 462 mm | 486 mm |
| Top Tube Length | 469 mm | 497 mm | 522 mm | 551 mm | 579 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° | 80.5 ° |
| Seat Tube Length | 488 mm | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 64 mm | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 963 mm | 989 mm | 1017 mm | 1050 mm | 1082 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 762 mm | 800 mm | 820 mm | 860 mm | 884 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 197 cm | cm |
About this model
Speedmax CF SLX Hawaii LTD completes the Canyon Speedmax model. 95 bikes variations carry this model name so far. Take a sneak peek at all Canyon Speedmax bikes models from 2022, by clicking here.
Model range prices
Canyon Speedmax CF 7 DISC 2022 is the cheapest bike model and costs 3799$. Canyon Speedmax CFR eTap 2022 is the most expensive one and costs 12740$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Triathlon bikes
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, this doesn’t mean that if you spend less money on a Triathlon bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9555$. Doing a quick comparison, we notice that Speedmax CF SLX Hawaii LTD price is 128.75% higher than the average cost of a Triathlon bike.
Triathlon bikes average weight
If we make a quick analysis of the average weight of a Triathlon bike, we get 8.9 kg (19.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 9.36 kg (20.64 lbs), Canyon bike is a bit heavier than average. In conclusion, the average Triathlon bike weighs 5.17% less than Speedmax CF SLX Hawaii LTD.
Speedmax CF SLX Hawaii LTD components
Fork material
Speedmax CF SLX Hawaii LTD has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Canyon Speedmax CF SLX Hawaii LTD 2022, has a carbon model. These wheels are less popular than 650b and 700c. However, they are a little lighter than 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speedmax CF SLX Hawaii LTD comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
