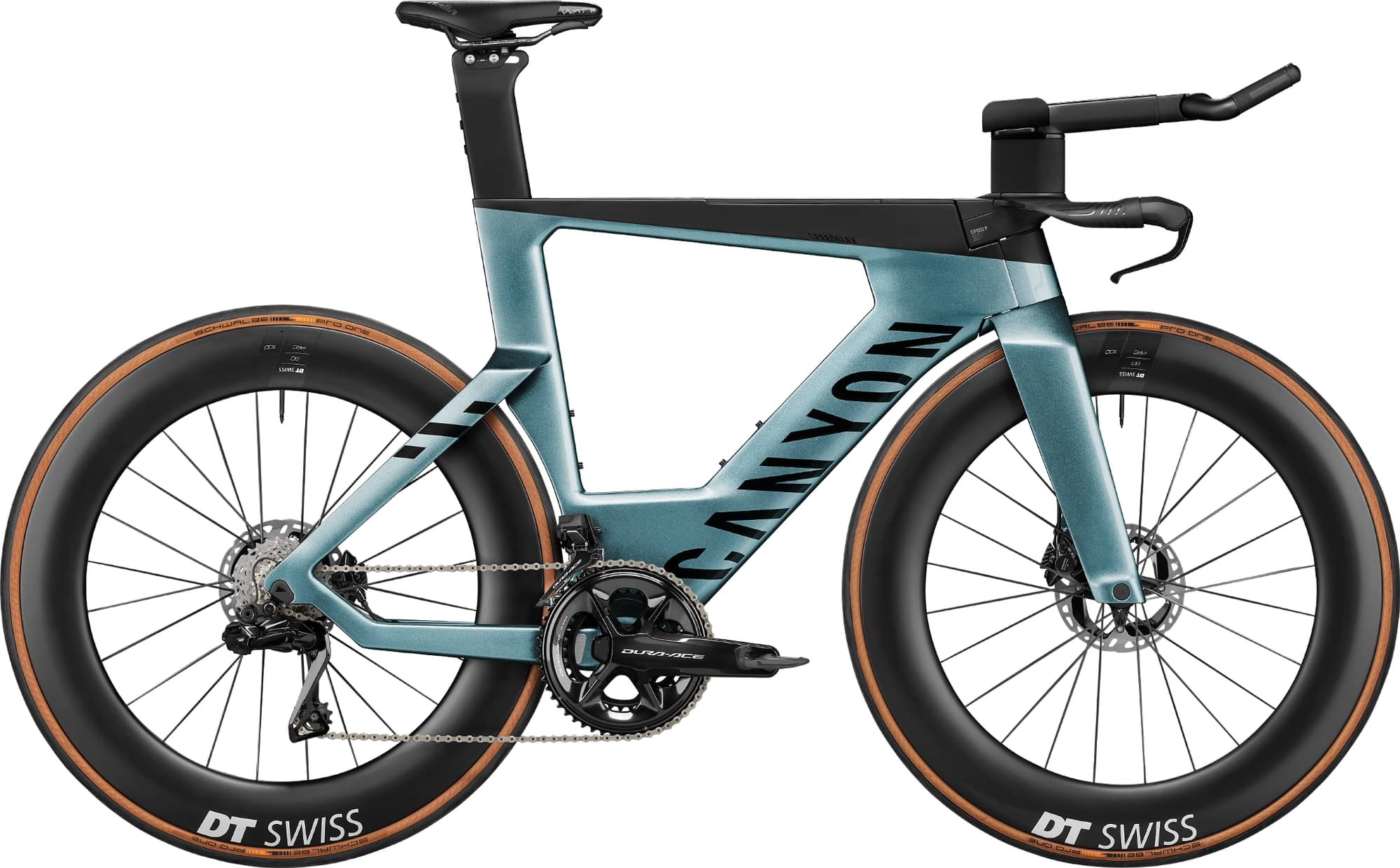

Canyon Speedmax CFR Disc LTD 2022
2022 Road
Estimate price |
13,189$
Weight | 9.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
169cm - 179cm
MD
177cm - 187cm
LG
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Speedmax CFR DISC, Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0080 CF Disc
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250, 12-speed, Pro-level semi-wireless rear derailleur. Incredible shifting speed: 58% faster. Max cassette size: 34T.
Front Derailleur
Shimano Dura-Ace Di2 R9250, Semi-wireless derailleur with world-class performance. 45% faster shifting. 33% smaller frontal area. Superlight: only 99g. Attachment type: braze-on.
Shift Levers
Shimano Dura-Ace Di2 R9160 Remote TT, Pair of shifters for aero bar-ends. Programmable shifting modes, with Shimano Synchronized Shift tech. Function customisable using E-TUBE tech to fit your riding style. Weight: 40 g / pair
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-30, The latest generation of superlight Shimano cassettes. Gear range: 11-30T.
Crank
Shimano Dura-Ace Di2 R9200 Powermeter, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB92, Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology. Weight: 54 g
Chain
Shimano XTR CN-M9100 12-speed Chain | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut, Front wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready. Rim height: 80 mm, inner width: 20 mm, weight: 820 g | DT Swiss ARC 1100 Dicut, Rear wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready. Rim depth: 80 mm, inner width: 20 mm, driver: Shimano 11-speed road, weight: 942 g
Tires
Schwalbe Pro One, 25mm, High-end road tyre that combines suppleness, speed, and control at the highest level. Tech: tubeless-ready, v-guard puncture protection Compound: Addix Race | Schwalbe Pro One, 28mm, High-end road tyre that combines suppleness, speed, and control at the highest level. Tech: tubeless-ready, v-guard puncture protection Compound: Addix Race
Brakes
Brakes
Shimano Flat Mount Adapter +20mm, Adapter that makes it possible to mount 160 mm brake rotors.
Brake Levers
Shimano Dura-Ace Di2 R9180, Pro-level electronic dual-control shifters, specially developed for time trial riding. Shifting is possible in multiple different hand positions, and under braking. Top-rate ergonomics, lighter and smoother lever action, and improved modulation thanks to feedback from pro athletes. With adjustable reach.
Disk Rotors
Shimano RT-MT900, Premium XTR rotor with superb stopping power for the most aggressive riding, with Ice Freeza tech for superior heat management., Superlight: 108 g., Disc Mount: Centerlock
Cockpit
Handlebar
Canyon GP0226 Aerobar, Telescopic mono-extension with ergonomically optimised dual grip., Size: Medium, Length: 325 - 405 mm, Grip Adjustment: 7°
Seat
Saddle
Selle Italia Watt Kit Carbonio Superflow, Lightweight, comfortable saddle with a redesigned shape, optimised for long-distance riding., Rail material: carbon, Rail length: 10 mm longer for more fitting options, Cover material: anti-slip for greater stability
Seatpost
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile, weight: 295 g.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.11 mm | 1.13 mm | 1.12 mm | 1.15 mm | 1.14 mm |
| Front Center | 556 mm | 577 mm | 605 mm | 637 mm | 669 mm |
| Rake | 34 mm | 34 mm | 33 mm | 34 mm | 34 mm |
| Trail | 67 mm | 67 mm | 68 mm | 67 mm | 67 mm |
| Stack | 438 mm | 472 mm | 492 mm | 530 mm | 556 mm |
| Reach | 396 mm | 418 mm | 441 mm | 462 mm | 486 mm |
| Top Tube Length | 469 mm | 497 mm | 522 mm | 551 mm | 579 mm |
| Seat Tube Angle | 80.5 ° | 80.5 ° | 80.5 ° | 80.37 ° | 80.5 ° |
| Seat Tube Length | 488 mm | 531 mm | 552 mm | 592 mm | 616 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 64 mm | 62 mm | 83 mm | 123 mm | 150 mm |
| Chainstay Length | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 963 mm | 989 mm | 1017 mm | 1050 mm | 1082 mm |
| Bottom Bracket Drop | 52 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 762 mm | 800 mm | 820 mm | 860 mm | 884 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 171 cm | 179 cm | 187 cm | 197 cm | cm |
Model Overview
Speedmax CFR Disc LTD completes the Canyon Speedmax model. There are 95 bikes that carry this model name. You can easily view all of the Canyon Speedmax bikes models from 2022, here.
Model range prices
Canyon Speedmax CF 7 DISC 2022 is the most economical model, with a starting price of 3799$. Canyon Speedmax CFR eTap 2022 on the other hand costs 12740$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Triathlon bikes average price
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 12209$. If we compare this with the average Triathlon bike cost we notice that the price is 192.29% more expensive.
Triathlon bikes average weight
If we make a quick analysis of the average weight of a Triathlon bike, we get 8.9 kg (19.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Speedmax CFR Disc LTD it’s weighing 9.4 kg (20.72 lbs). At this weight, is a bit heavier than average. In other words, this model is 5.62% heavier than the average Triathlon bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Speedmax CFR Disc LTD 2022 bike is equipped with carbon wheels when leaving the factory. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Speedmax CFR Disc LTD has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
