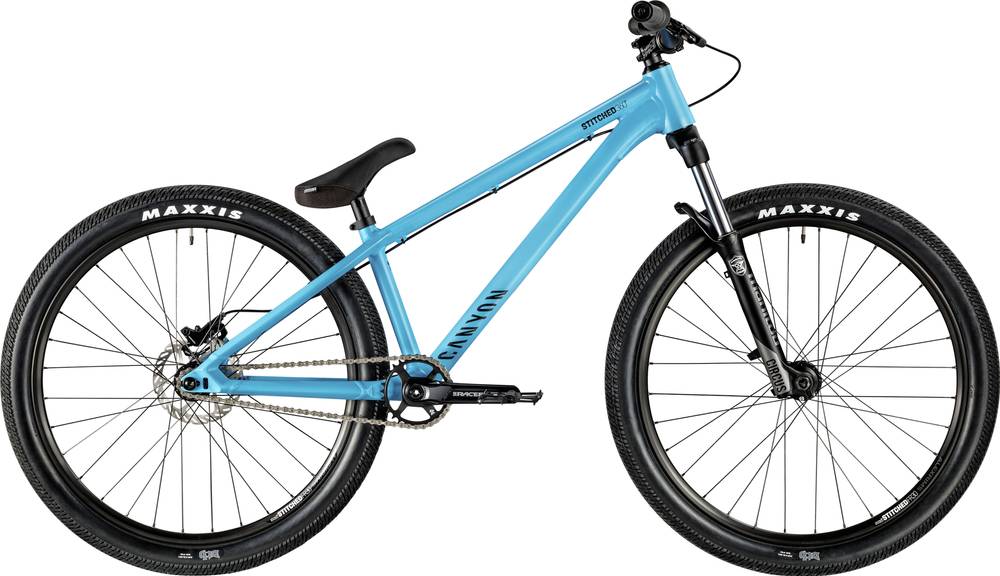

Canyon Stitched 360 2019
2019 Mountain
Estimate price |
974$
Weight | 11.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Circus Comp
-
Groupset Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched, Material: Aluminium 6061, Axle Dimension: 9 x 135 mm, Brake Mount: IS-Mount
Suspension Fork
Manitou Circus Sport, Travel: 100 mm, Axle Dimension: 20 x 110 mm
Drivetrain
Crank
Race Face Aeffect 30T 30
Bottom Bracket
Race Face BSA Cinch
Chain
KMC Z510HX 1s
Pedals
None included
Wheels
Rims
Alexrims FR30 | Stitched Hubs, Rim Material: Aluminium, Inner Width: 23 mm
Tires
MAXXIS DTH 2.3"
Brakes
Brakes
SRAM Level
Disk Rotors
Avid G2, Disc Mount: 6-Hole
Cockpit
Stem
Race Face Chester
Handlebar
Race Face Chester Riserbar, Material: Aluminium, Rise: 35 mm
Grips
Canyon Stitched
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 657 mm | 674 mm |
| Rake | 43 mm | 43 mm |
| Trail | 89 mm | 89 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 377 mm | 377 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
| Rider Max Height | 210 cm | cm |
About this model
Stitched 360 belongs to the Canyon Stitched model. Canyon launched 26 bikes of this model so far. Take a sneak peek at all Canyon Stitched bikes models from 2019, by clicking here.
Model range prices
Canyon Stitched 360 2019 is the cheapest bike model and costs 901$. Canyon Stitched 720 Pro 2019 is the most expensive one and costs 1804$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Dirt Jump bikes average price
If you want an acceptable Dirt Jump bike you should know that the average price is 863$. However, even if your budget is less than the average, you might still be able to get a top-quality Dirt Jump bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 901$. In conclusion, this bike price is 4.4% higher than the price of the average Dirt Jump bike.
Average weight for Dirt Jump bikes
The average weight for Dirt Jump bikes is 12.37 kg (27.27 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Stitched 360 weighs 11.7 kg (25.79 lbs) and is a bit lighter than the average. In other words, this model is 5.73% lighter than the average Dirt Jump bike.
Stitched 360 components
Fork
This bike has the Manitou Circus Comp fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Stitched 360 bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Stitched 360 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
