Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox Pike DJ
-
Groupset Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
140cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched, Material: Aluminium 6061, Travel: 100 mm, Axle Dimension: 10 x 135 mm, Brake Mount: IS-Mount
Suspension Fork
RockShox Pike DJ, Travel: 100 mm, Technology: Solo Air, Axle Dimension: 15 x 100 mm
Rear Shock
RockShox Monarch RT, Length: 190 x 51 mm
Drivetrain
Crank
Truvativ Descendant 6K DUB 30T 30
Bottom Bracket
SRAM BSA DUB
Chain
KMC Z510HX 1s
Pedals
None included
Wheels
Rims
Alexrims FR30 | Stitched Hubs, Rim Material: Aluminium, Inner Width: 23 mm
Tires
MAXXIS DTH 2.3"
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Canyon G5
Handlebar
Canyon H42 Rise, Material: Aluminium, Rise : 38 mm
Grips
Canyon Stitched
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.3 mm |
| Bottom Bracket Height | 323 mm |
| Stack | 550 mm |
| Reach | 424 mm |
| Top Tube Length | 521 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 326 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 118 mm |
| Chainstay Length | 391 mm |
| Bottom Bracket Drop | 20 mm |
| Front Travel | 100 mm |
| Rear Travel | 100 mm |
| Wheels | 26" |
| Rider Min Height | 140 cm |
| Rider Max Height | 210 cm |
About this model

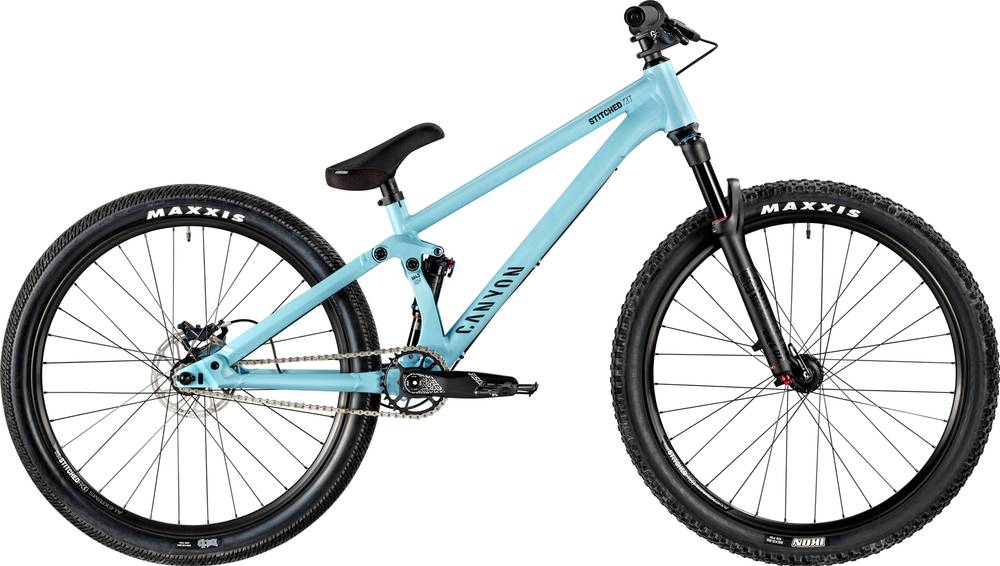

Stitched 720 Pro is part of the Canyon Stitched model. 26 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Stitched 360 2019 has a starting price of 901$. Canyon Stitched 720 Pro 2019 on the other hand is the most expensive at 1804$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Dirt Jump bikes average price
Our math shows that the average cost of a dependable Dirt Jump bike is 863$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Canyon released this model in 2019, its price was 1804$. Comparing this to the average Dirt Jump bike price, we see that the price is 109.04% higher.
Overview of components
Fork
Canyon Stitched 720 Pro 2019 bike is equipped with the RockShox Pike DJ fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Canyon Stitched 720 Pro bike has the RockShox Monarch RT model installed, and has a travel of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Stitched 720 Pro are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stitched 720 Pro comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Canyon Stitched 720 Pro 2019 is available in one size only. In short, make sure you double-check if it fits you.
