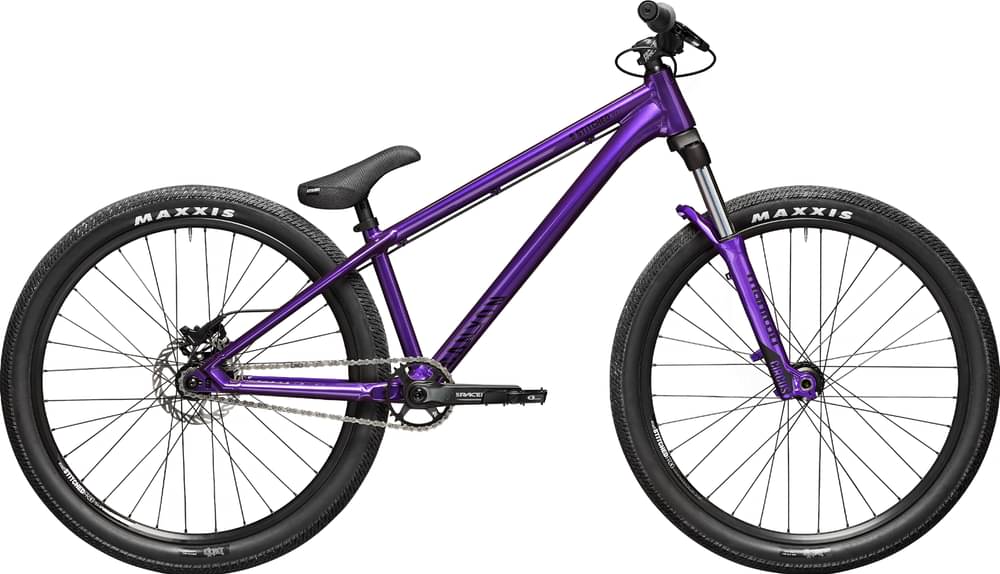

Canyon Stitched 360 2020
2020 Mountain
Estimate price |
1,146$
Weight | 12.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Circus Comp
-
Groupset Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
140cm - 170cm
LG
160cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched
Suspension Fork
Manitou Circus Sport
Drivetrain
Crank
Race Face Aeffect 30T
Bottom Bracket
Race Face BSA Cinch
Chain
KMC Z510HX 1s
Pedals
None included
Wheels
Rims
Alexrims FR30 | Stitched Hubs, Rim Material: Aluminium, Inner Width: 23 mm
Tires
MAXXIS DTH 2.3"
Brakes
Brakes
SRAM Level T
Disk Rotors
Avid G2, Disc Mount: 6-Hole
Cockpit
Stem
Race Face Chester
Handlebar
Race Face Chester Riserbar, Material: Aluminium, Rise: 35 mm
Grips
Canyon Stitched
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 656 mm | 673 mm |
| Rake | 42 mm | 42 mm |
| Trail | 90 mm | 90 mm |
| Stack | 550 mm | 550 mm |
| Reach | 395 mm | 412 mm |
| Top Tube Length | 578 mm | 595 mm |
| Seat Tube Angle | 71.7 ° | 71.7 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 110 mm |
| Chainstay Length | 378 mm | 378 mm |
| Wheelbase | 1033 mm | 1050 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 140 cm | 160 cm |
| Rider Max Height | 170 cm | 200 cm |
About this model
Stitched 360 belongs to the Canyon Stitched model. There are 26 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Canyon Stitched 360 2020 is the most affordable bike of this model and has a price of 1061$. On the other hand, Canyon Stitched 720 2020, is the most expensive and costs 1910$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Dirt Jump bikes average price
If you want an acceptable Dirt Jump bike you should know that the average price is 863$. However, you could also get a good Dirt Jump bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 1061$. If we compare this with the average Dirt Jump bike cost we notice that the price is 22.94% more expensive.
Average weight for Dirt Jump bikes
On a deeper look, we notice that the average weight of a Dirt Jump bike is 12.37 kg (27.27 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Stitched 360 it’s weighing 12.2 kg (26.9 lbs). At this weight, is slightly lighter than average. In short, the average Dirt Jump bike weight is 1.39% higher than this one.
Overview of components
Fork
The Manitou Circus Comp is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Canyon Stitched 360 2020, has a 26″ aluminum model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Stitched 360 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Canyon Stitched 360 bike has 2 sizes, in the range of 140 cm – 200 cm (4.59 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
