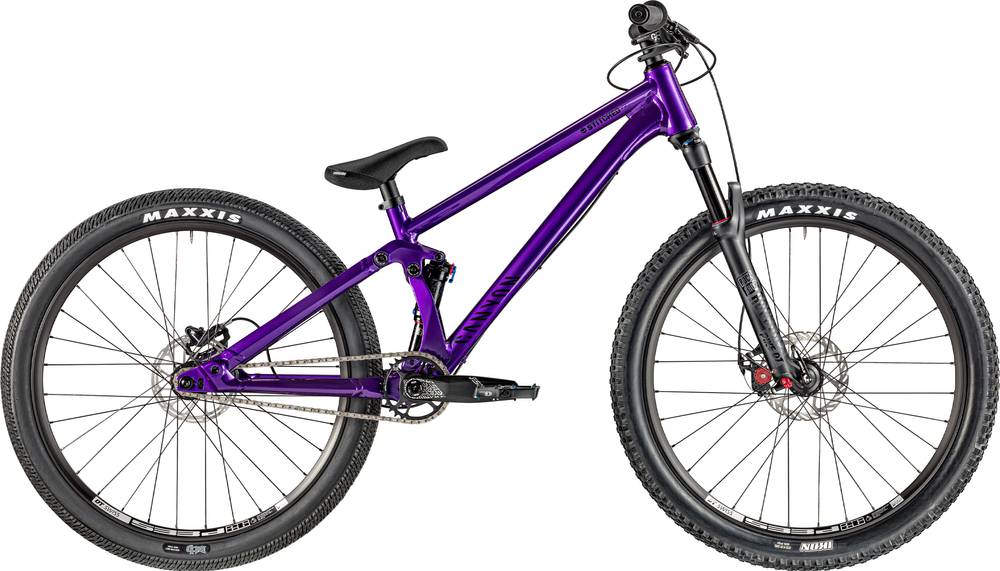

Canyon Stitched 720 2020
2020 Mountain
Estimate price |
2,063$
Weight | 12.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox Pike DJ
-
Groupset Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched, Material: Aluminium 6061, Travel: 100 mm, Axle Dimension: 10 x 135 mm, Brake Mount: IS-Mount
Suspension Fork
RockShox Pike DJ, Travel: 100 mm, Technology: Solo Air, Axle Dimension: 15 x 100 mm
Rear Shock
RockShox Monarch RT, Length: 190 x 51 mm
Drivetrain
Crank
Truvativ Descendant 6K DUB 30T 30
Bottom Bracket
SRAM BSA DUB
Chain
KMC Z510HX 1s
Pedals
None included
Wheels
Rims
DT Swiss 533D | Stitched HUB
Tires
MAXXIS Ikon 2.35'' | MAXXIS DTH 2.3"
Brakes
Brakes
SRAM Level TL
Disk Rotors
Avid G2, Disc Mount: 6-Hole | SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Canyon G5
Handlebar
Canyon H42 Rise, Material: Aluminium, Rise : 38 mm
Grips
Canyon Stitched
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.3 mm |
| Bottom Bracket Height | 323 mm |
| Front Center | 685 mm |
| Rake | 46 mm |
| Trail | 82 mm |
| Stack | 550 mm |
| Reach | 424 mm |
| Top Tube Length | 521 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 326 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 118 mm |
| Chainstay Length | 391 mm |
| Wheelbase | 1075 mm |
| Bottom Bracket Drop | 20 mm |
| Front Travel | 100 mm |
| Rear Travel | 100 mm |
| Wheels | 26" |
| Rider Max Height | 210 cm |
About this model
Stitched 720 is part of the Canyon Stitched model. Canyon launched 26 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Canyon Stitched 360 2020 is the most economical model, with a starting price of 1061$. Canyon Stitched 720 2020 on the other hand costs 1910$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Dirt Jump bikes
According to our calculations, the average cost of a Dirt Jump bike that is reliable is 863$. However, even if your budget is less than the average, you might still be able to get a top-quality Dirt Jump bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2020, its price was 1910$. Comparing the average cost of a Dirt Jump bike to this one, you will see that Stitched 720 price is 121.32% higher.
Average weight for Dirt Jump bikes
Dirt Jump bikes weigh an average of 12.37 kg (27.27 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 12.55 kg (27.67 lbs), the Stitched 720 model is slightly heavier than average. In other words, this model is 1.46% heavier than the average Dirt Jump bike.
Overview of components
Fork
This bike has the RockShox Pike DJ fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Monarch RT model, with a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Canyon Stitched 720 2020, has a 26″ aluminum model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stitched 720 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
