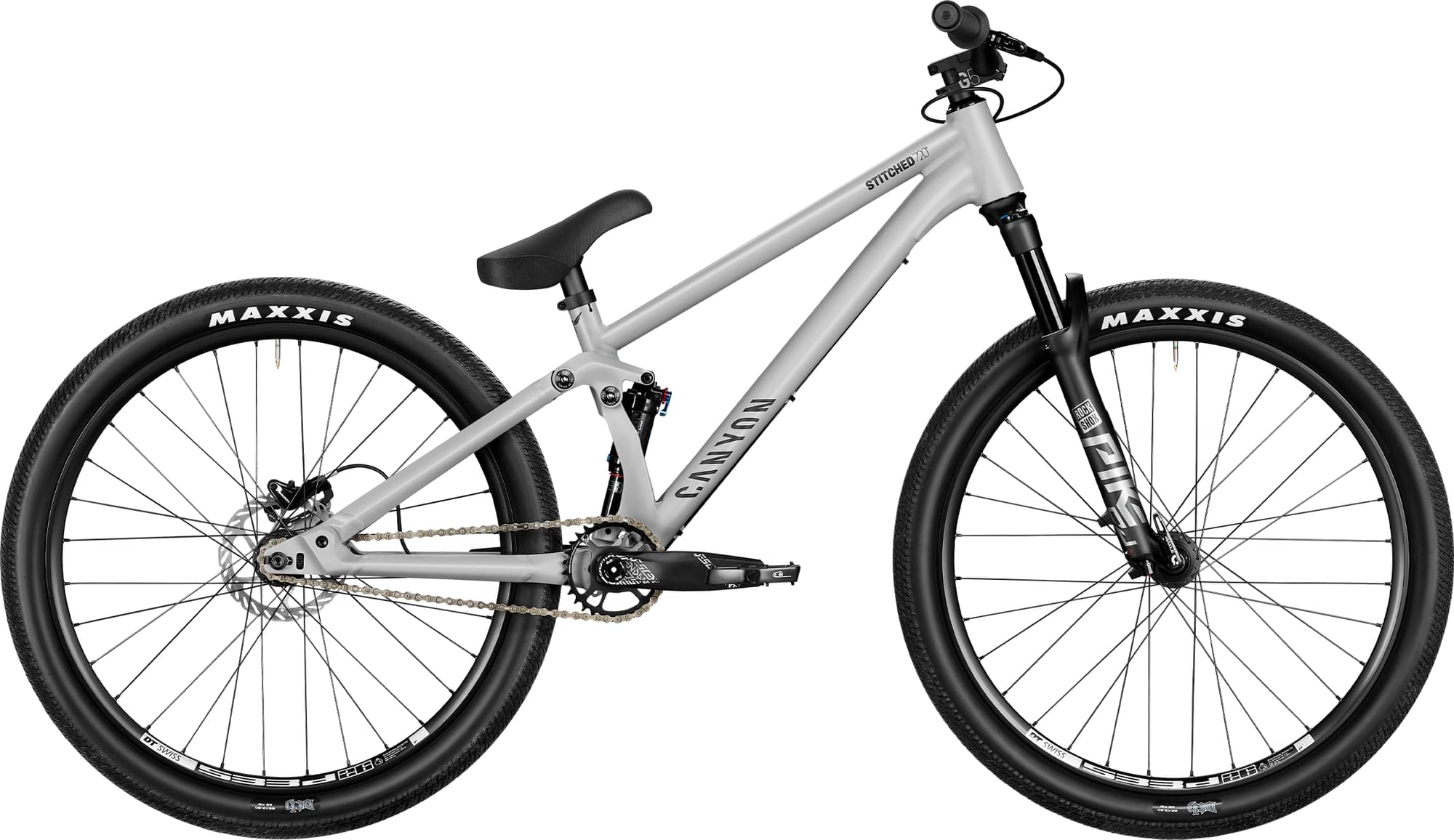

Canyon Stitched 720 2022
2022 Mountain
Estimate price |
2,275$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Pike DJ
-
Groupset Truvativ Descendant -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
140cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched, Lightweight but highly robust frame. Category: 5. With BB box design for maximum bottom bracket stiffness, and progressive rear suspension tune for more airtime and harder impacts., Material: Aluminium (AL)
Suspension Fork
RockShox Pike DJ, Dirt jump fork., Stanchion diameter: 35 mm., Axle dimensions: 15 x 110 mm., Offset: 40 mm., Crown to axle: 482 mm., Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1 1/4"
Rear Shock
RockShox Monarch RT, Air-sprung shock with two-position compression adjustment (open/lock). Externally tunable rebound. Size: 190 x 51 mm.
Drivetrain
Crank
Truvativ Descendant 6K DUB 30T, Aluminium crankset., Chainring size: 30T., Arm length: 165 mm., Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, SRAM BSA bottom bracket with DUB (Durable Unified Bottom Bracket) technology for optimal power transfer. With sealed cartridge bearings for dependable protection against dirt and moisture. Shell width: 68 / 73 mm.
Chain
KMC Z510HX 1s
Pedals
None included
Wheels
Rims
DT Swiss 533D | Stitched Hub, Robust 26-inch Canyon aluminium rear wheel. With industrial bearings for enhanced durability. Axle dimensions: 9 x 135 mm., Rotor Mount: IS 6-bolt | DT Swiss 533D | Stitched Hub, Robust 26-inch Canyon aluminium front wheel. With industrial bearings for enhanced durability. Axle dimensions: 15 x 100 mm., Rotor Mount: IS 6-bolt
Tires
MAXXIS DTH 2.3", Latest-generation dirt and street tyres. 26-inch. Low weight, huge grip. Width: 2.3-inch., Width: 2.3"
Brakes
Brakes
SRAM Level TL, Hydraulic post-mount disc brake with organic pads and 2-piston calliper.
Disk Rotors
SRAM G2 Centerline, Brake rotor with 6-bolt hub interface. Diameter: 160 mm.
Cockpit
Stem
Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Material: aluminium. Length: 40 mm. Clamping diameter: 31.8 mm., Clamping Diameter: 31,8 mm
Handlebar
Canyon G5 Riser Bar, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping Diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Grips
Canyon Stitched, Canyon Stitched grips for direct handling and extra shock absorption.
Seat
Saddle
Canyon Stitched
Seatpost
Canyon Stitched, Clamp diameter: 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.3 mm |
| Bottom Bracket Height | 323 mm |
| Front Center | 685 mm |
| Rake | 46 mm |
| Trail | 82 mm |
| Stack | 550 mm |
| Reach | 424 mm |
| Top Tube Length | 521 mm |
| Seat Tube Angle | 72.5 ° |
| Seat Tube Length | 326 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 118 mm |
| Chainstay Length | 391 mm |
| Wheelbase | 1075 mm |
| Bottom Bracket Drop | 20 mm |
| Front Travel | 100 mm |
| Wheels | 26" |
| Rider Min Height | 140 cm |
| Rider Max Height | 200 cm |
Model Overview
Stitched 720 is a Canyon Stitched model. 26 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Canyon Stitched 360 2022 is the most economical model, with a starting price of 1167$. Canyon Stitched CFR Trial 2022 on the other hand costs 3184$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Dirt Jump bikes
According to our math, the average price for a trustworthy Dirt Jump bike is 863$. However, this doesn’t mean that if you spend less money on a Dirt Jump bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 2123$. Comparing the average cost of a Dirt Jump bike to this one, you will see that Stitched 720 price is 146% more expensive.
Dirt Jump bikes average weight
If we make a quick analysis of the average weight of a Dirt Jump bike, we get 12.37 kg (27.27 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canyon Stitched 720 it’s weighing 12.7 kg (28 lbs). At this weight, is slightly heavier than average. In conclusion, the average Dirt Jump bike weighs 2.67% less than Stitched 720.
Overview of components
Fork
Canyon Stitched 720 2022 bike is equipped with the RockShox Pike DJ fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Stitched 720 model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Stitched 720 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Canyon Stitched 720 2022 is available in one size only. In conclusion, make sure it fits you, or look for another model.
