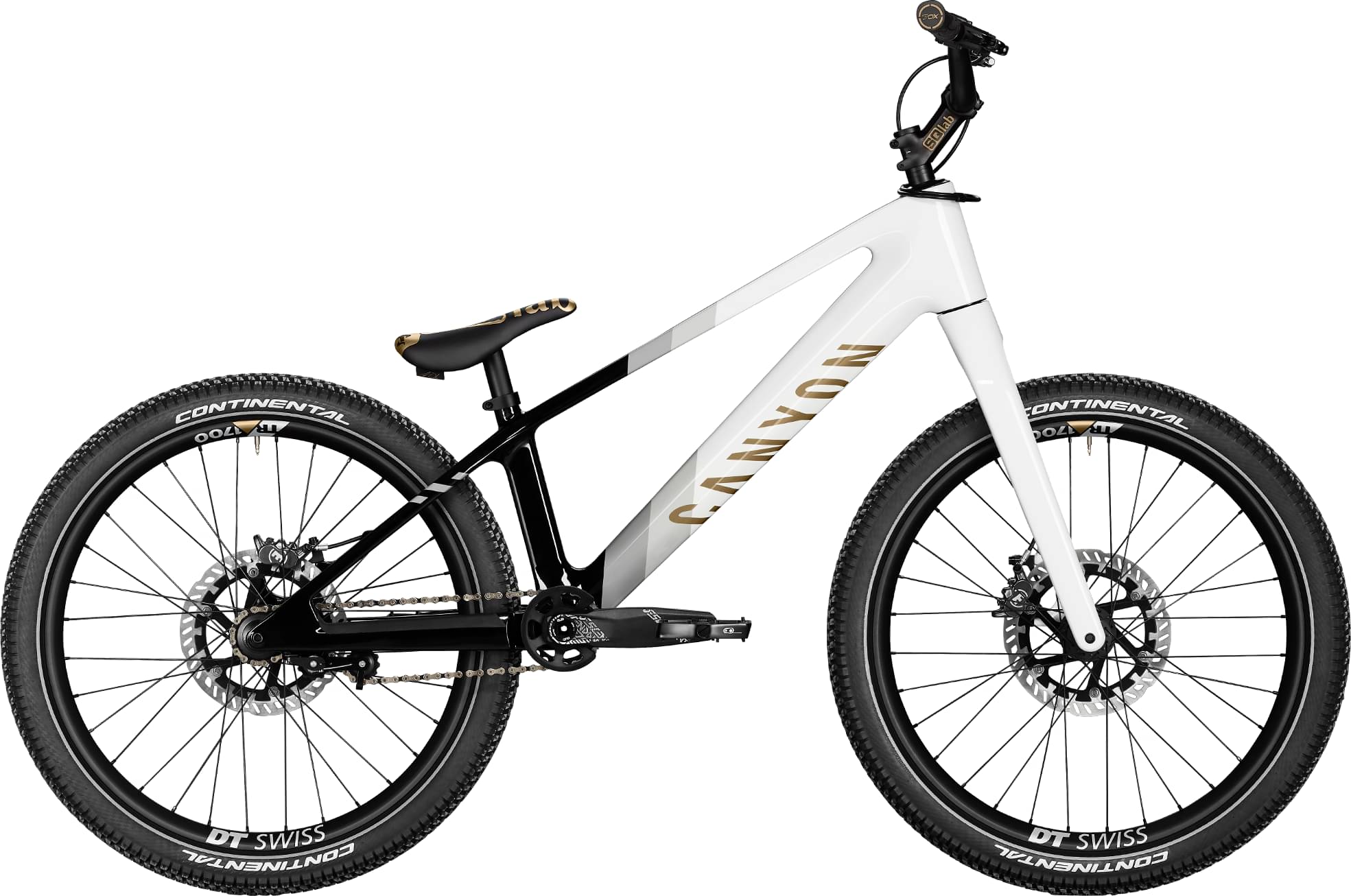

Canyon Stitched CFR Trial Fabio Wibmer 2022
2022 Mountain
Estimate price |
3,440$
Weight | 9.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 24" -
Groupset Truvativ Descendant -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
140cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Stitched Trial, High-end carbon frame with integrated impact protection for maximum durability at a low weight of only 1,700 g., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0097-01, The Stitched CFR Trial carbon fork: the new benchmark in incredible durability and low weight.
Drivetrain
Cassette
Canyon EP1549-01
Crank
SRAM Descendant 6K, Number of chainrings: 1
Bottom Bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Chain
KMC X11-93, Durable 11-speed chain with nickel-plated outer links. The precision-manufactured KMC Double X Bridge, combined with specially chamfered inner and outer plates, keep the chain running super-smooth and guarantee fast, clean gear changes.
Chain Guide
Canyon GP0361-01, This chainguard keeps the chain securely on the chainring. | Canyon Stitched Trial, Integrated chain tensioner for incredible control, pedal feedback, and chain smoothness.
Pedals
None included
Wheels
Rims
DT Swiss TR1700, Rotor Mount: IS 6-bolt | DT Swiss TR1700, Durable, stiff 24-inch aluminium wheels for agile handling., Rotor Mount: IS 6-bolt
Tires
Continental Air King, Width: 2.35"
Brakes
Brakes
Magura MT7 HC3, Forged brake lever with adjustable reach and modulation for precise stopping power in all situations. | Magura MT7, Get legendary stopping power with a 4-piston design. Thanks to precise modulation and plenty power, the perfect brakes for demanding trails courses.
Disk Rotors
Magura MDR-P, Oversized high-performance MDR-P brake rotors. Diameter: 203 mm, for huge braking power in all conditions.
Cockpit
Stem
SQlab 80X Trial Fabio Wibmer, Clamping Diameter: 31,8 mm
Handlebar
SQlab 30X Trial Fabio Wibmer, Robust Fabio Wibmer signature aluminium bar., Rise: 84 mm., Clamping diameter: 31.8 mm., Backsweep: 9°., Weight: 330 g., Clamping Diameter: 31,8 mm, Width: 730 mm, Rise: 84 mm
Grips
SQlab 70X Fabio Wibmer, Fabio's signature grips give maximum control and grip on rough terrain. The clamping mechanism on the inside edge increases absorption for more hand comfort. Length: 134.8 mm.
Seat
Saddle
Canyon Stitched Sattel
Seatpost
Canyon Stitched, Canyon aluminium seatpost., Clamp diameter: 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.2 mm |
| Front Center | 626 mm |
| Rake | 25 mm |
| Stack | 527 mm |
| Reach | 440 mm |
| Top Tube Length | 576 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 284 mm |
| Head Tube Angle | 73 ° |
| Head Tube Length | 145 mm |
| Chainstay Length | 366 mm |
| Wheelbase | 992 mm |
| Bottom Bracket Drop | -10 mm |
| Standover Height | 705 mm |
| Wheels | 24" |
| Rider Min Height | 140 cm |
| Rider Max Height | 200 cm |
Model Overview
Stitched CFR Trial Fabio Wibmer is a Canyon Stitched model. 26 bikes variations carry this model name so far. You can easily view all of the Canyon Stitched bikes models from 2022, here.
Model range prices
Canyon Stitched 360 2022 is the most economical model, with a starting price of 1167$. Canyon Stitched CFR Trial 2022 on the other hand costs 3184$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Dirt Jump bikes
If you want an acceptable Dirt Jump bike you should know that the average price is 863$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2022, its price was 3184$. Doing a quick comparison, we notice that Stitched CFR Trial Fabio Wibmer price is 268.95% more expensive than the average cost of a Dirt Jump bike.
Average weight for Dirt Jump bikes
On a deeper look, we notice that the average weight of a Dirt Jump bike is 12.37 kg (27.27 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 9.95 kg (21.94 lbs), the Stitched CFR Trial Fabio Wibmer model is much lighter than average. In conclusion, the average Dirt Jump bike weighs 24.32% more than Stitched CFR Trial Fabio Wibmer.
Stitched CFR Trial Fabio Wibmer components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Stitched CFR Trial Fabio Wibmer are the 24″ aluminum type. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Canyon Stitched CFR Trial Fabio Wibmer 2022 is available in one size only. In short, make sure you double-check if it fits you.
