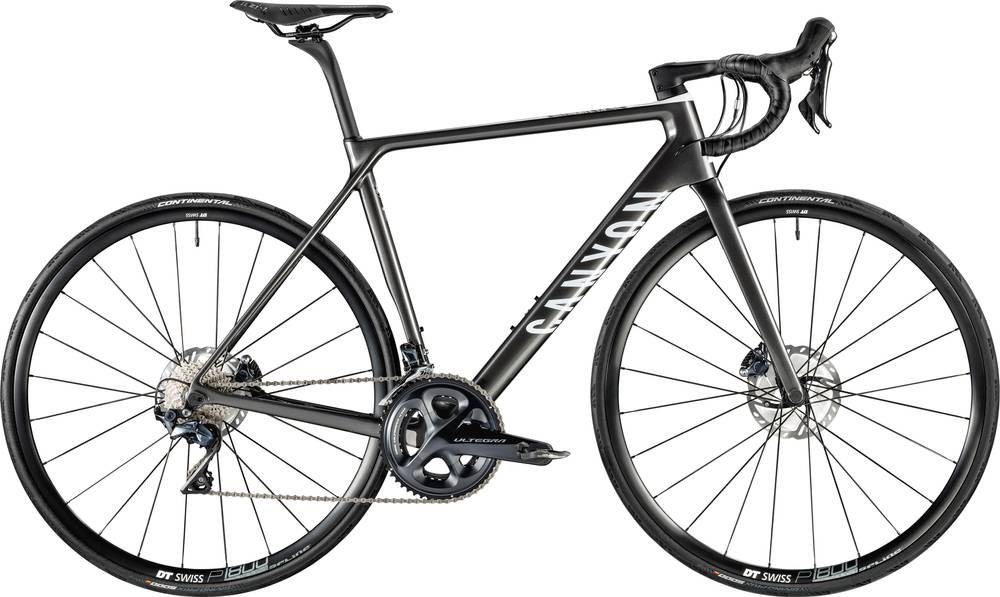

Canyon Ultimate CF SL Disc 8.0 2020
2020 Road
Estimate price |
2,999$
Weight | 7.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0086 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 SS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8020 2s, Weight: 277 g | Shimano Ultegra R8020 11s, Weight: 277 g
Cassette
Shimano Ultegra R8000 11-30 11s
Crank
Shimano Ultegra R8000 52/36
Bottom Bracket
Shimano Pressfit BB72
Pedals
None included
Wheels
Rims
DT Swiss P 1800 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 18 mm, Weight: 763 g | DT Swiss P 1800 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 18 mm, Weight: 900 g
Tires
Continental Grand Prix 5000 / Attack 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brake Levers
Shimano Ultegra R8020 2s, Weight: 277 g | Shimano Ultegra R8020 11s, Weight: 277 g
Disk Rotors
Shimano RT800, Disc Mount: Centerlock
Seat
Saddle
Fizik Antares R5
Seatpost
Canyon S13 VCLS CF, Material: Carbon, Setback: 15 - 35 mm, Technology: VCLS, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.359 mm | 1.381 mm | 1.418 mm | 1.45 mm | 1.484 mm | 1.467 mm | 1.474 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 584 mm | 588 mm | 591 mm | 606 mm | 629 mm | 641 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 78 mm | 69 mm | 60 mm | 54 mm | 55 mm | 54 mm | 52 mm |
| Stack | 500 mm | 522 mm | 546 mm | 567 mm | 592 mm | 613 mm | 631 mm |
| Reach | 368 mm | 378 mm | 385 mm | 391 mm | 399 mm | 418 mm | 428 mm |
| Top Tube Length | 513 mm | 529 mm | 543 mm | 556 mm | 571 mm | 596 mm | 612 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 434 mm | 467 mm | 494 mm | 522 mm | 554 mm | 584 mm | 614 mm |
| Head Tube Angle | 69.6 ° | 71 ° | 72.3 ° | 73.3 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 89 mm | 107 mm | 130 mm | 148 mm | 174 mm | 195 mm | 213 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 983 mm | 988 mm | 993 mm | 996 mm | 1011 mm | 1034 mm | 1046 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 720 mm | 748 mm | 775 mm | 801 mm | 828 mm | 851 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Ultimate CF SL Disc 8.0 is a Canyon Ultimate model. Canyon launched 158 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Canyon Ultimate CF SL Disc 7.0 2020 is the cheapest bike model and costs 2299$. Canyon Ultimate CF SLX Disc 9.0 Team Movistar 2020 is the most expensive one and costs 9000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2020, its price was 2999$. Comparing this to the average Race bike price, we see that the price is 11.7% smaller.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Ultimate CF SL Disc 8.0 weighs 7.6 kg (16.76 lbs) and is considerably heavier than the average. In other words, this model is 11.44% heavier than the average Race bike.
Overview of components
Fork material
Ultimate CF SL Disc 8.0 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Ultimate CF SL Disc 8.0 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
