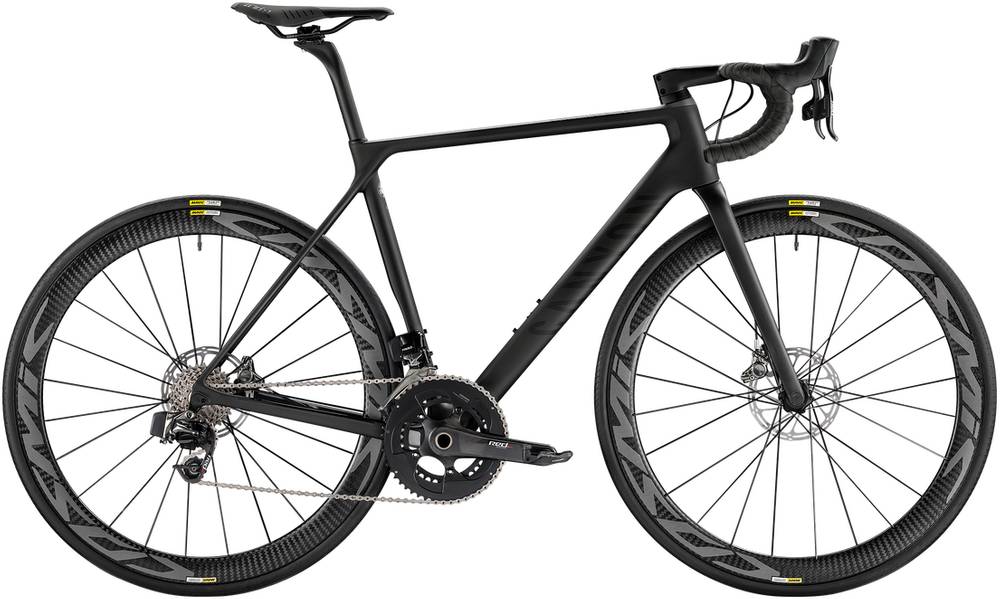

Canyon Ultimate CF SLX Disc 9.0 SL 2018
2018 Road
Estimate price |
6,499$
Weight | 7.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate CF SLX, Material: Carbon, SPORT PRO Geometry, Comfort enhanced by 15% over predecessor, Straight 1 1/4" head tube, Newly developed seatpost clamp, Carbon droputs, Flat mount brake absorption, Weight: 820 g (Size M)
Suspension Fork
Canyon One One Four SLX Disc, Full carbon fork, 1 1/4" fork shaft, Flat mount disc brake standard, Through Axles (12 x 100 mm), Weight: 325 g
Drivetrain
Rear Derailleur
SRAM Red e-Tap, 11s, 11-speed, E-tap shift logic, Wireless connection via AIREA for quick installation
Front Derailleur
SRAM Red e-Tap, 11s, 11-speed, YAW technology
Shift Levers
SRAM Red eTap HRD, 11s, 11-speed, Wireless/hydraulic brake shift levers, Optimised brake force and modulation for greater control of the speed
Cassette
SRAM XG-1190, 11s, Extremely lightweight, Heat-treated and made of high-quality tool steel, StealthRing™ elastomers, XG1190, Gradations: 11-12-13-14-15-16-17-19-22-25-28Z
Crank
SRAM Red, 11s, Carbon cranks, Stiff chainrings (5 mm, aluminium 7075-T6, CNC-milled) feature switching bolts with a modern design, Weight: 557 g
Bottom Bracket
SRAM GXP Pressfit
Chain
SRAM PC1190, 11s
Pedals
none included
Wheels
Rims
Mavic Cosmic Pro Carbon Disc, clincher rims, Rim profile: 45 mm, Internal rim width: 17 mm, RWS quick release skewers with detachable lever that can be used on both the front and rear wheel, Weight: 1760g
Tires
Mavic Yksion Pro Griplink C, 25 mm tyre width, Maximum traction in corners and control due to superior grip, Dual Compound "S+” rubber compound with silicia additive, Lightweight, forged and extra thick carcass, Reduced risk of punctures due to firm nylon protective insert
Brakes
Brakes
SRAM Red eTap HRD, Flat mount brake, SRAM Centerline Rotor, 160 mm Diameter, With enhanced temperature management and speed control
Brake Levers
SRAM Red eTap HRD, 11s, 11-speed, Wireless/hydraulic brake shift levers, Optimised brake force and modulation for greater control of the speed
Cockpit
Headset
Canyon | Acros
Seat
Saddle
Fizik Antares R5, Carbon reinforced nylon shell, Wing Flex for greater freedom of movement in the thigh and enhanced power transmission
Seatpost
Canyon S13 VCLS CF (15 - 35 mm Setback), Length: 330 mm, Diameter: 27.2 mm, In-house developed Canyon seatpost with VCLS technology for extra comfort and stability, Wide-ranging setback adjustability: 15 - 35 mm, Compliant with Canyon Category 2 testing standards
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.49 mm | 1.47 mm | 1.48 mm |
| Stack | 496 mm | 518 mm | 542 mm | 563 mm | 588 mm | 609 mm | 627 mm |
| Reach | 364 mm | 374 mm | 381 mm | 387 mm | 395 mm | 414 mm | 424 mm |
| Top Tube Length | 509 mm | 525 mm | 539 mm | 552 mm | 567 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 69.6 ° | 71 ° | 72.25 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 89 mm | 107 mm | 130 mm | 148 mm | 174 mm | 195 mm | 213 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 979 mm | 984 mm | 989 mm | 992 mm | 1007 mm | 1029 mm | 1042 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
Ultimate CF SLX Disc 9.0 SL completes the Canyon Ultimate model. Canyon launched 158 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Canyon Ultimate CF SL Disc 8.0 2018 is the most economical model, with a starting price of 2799$. Canyon Ultimate CF EVO 10.0 LTD 2018 on the other hand costs 8500$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 6499$. Comparing the average cost of a Race bike to this one, you will see that Ultimate CF SLX Disc 9.0 SL price is 94% more expensive.
Race bikes average weight
Race bikes weigh an average of 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 7.4 kg (16.31 lbs), Canyon bike is a bit heavier than average. In conclusion, the average Race bike weighs 8.5% less than Ultimate CF SLX Disc 9.0 SL.
Ultimate CF SLX Disc 9.0 SL components
Fork material
Ultimate CF SLX Disc 9.0 SL has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Ultimate CF SLX Disc 9.0 SL 2018 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Ultimate CF SLX Disc 9.0 SL has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, you can easily find one that suits you.
