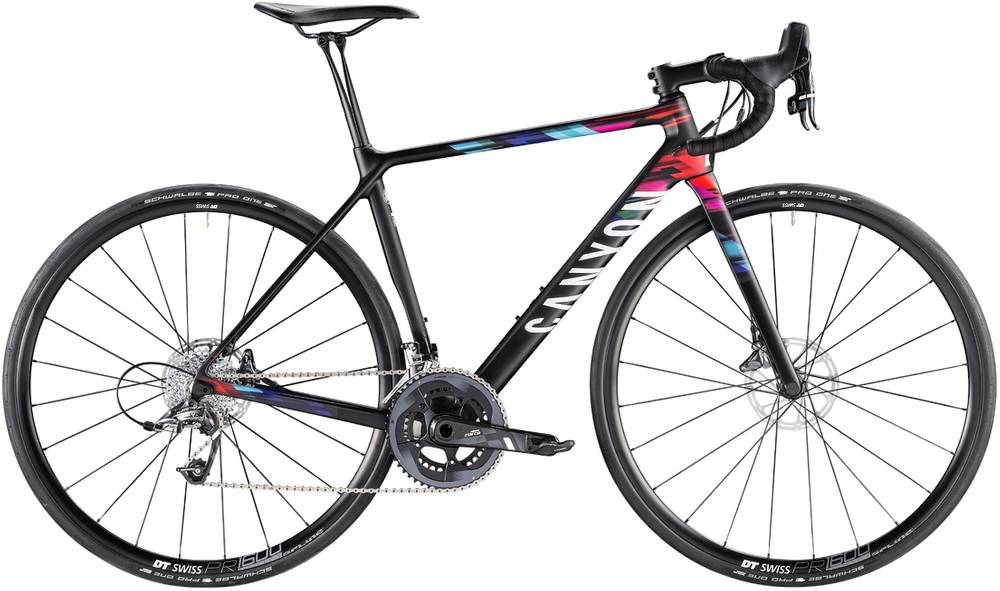

Canyon Ultimate WMN CF SLX Disc 8.0 Team CSR 2018
2018 Road
Estimate price |
2,999$
Weight | 7.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650c / 700c -
Groupset Force 22 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
159cm - 166cm
XS
166cm - 172cm
SM
172cm - 178cm
MD
178cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate WMN CF SLX, Newly developed sizing concept means every frame size produces the same handling dynamics, 650B wheels on 3XS and 2XS frames deliver previously unattainable handling responsiveness and agility, Maximus Seat Tube ensures efficient power transfer and a smooth ride, Balanced Sport Geometry riding position boosts comfort on the longest rides, Slender VCLS Stays kill road buzz, Flat Mount standard brake mounts, 12x142 mm Through Axles, Full carbon frame, Weight: 780 g (size XS)
Suspension Fork
Canyon One One Four SLX Disc, Full carbon fork, 1 1/4" fork shaft, Flat mount disc brake standard, Through Axles (12 x 100 mm), Removable spanner that can be used for front and rear, Weight: 325 g
Drivetrain
Rear Derailleur
SRAM Force 22 WiFLi, 11s, Exact-actuation gear ratio for an even and relaxed gear change, AeroGlide pulleys: New, quiet shifting procedure with optimised Aeroglide shift rollers, New adjusting screw preloaded with a spring
Front Derailleur
SRAM Force 22 Yaw inkl. Chain Catcher, 11s, Optimised to work with X-GlideR chainrings, Combining aluminium and steel tesults in the strongest cage SRAM has ever made, Adjustabe integrated chain catcher protects the fame and keeps the chain in place
Shift Levers
SRAM Force 22 Disc, 11s, DoubleTap Technology: One lever for upshifts and downshifts, Ergonomic design for improved comfort, Reach Adjust
Cassette
SRAM PG-1170, 11s, Cassette with great shifting performance and low-noise combination of chain and cassette, Half of the chainrings are mounted on a spider, PG1170, Gradation: 11-32
Crank
SRAM Force 22, 11s, X-Glide Chainrings provide pro-level shifting accuracy, stiffness and robustness., Crankarms: Carbon-Aluminium, Chainrings: 7075-T6 Aluminium, Spindle length: 110mm, 11 Speed
Bottom Bracket
SRAM GXP Pressfit
Chain
SRAM PC1170, 11s
Pedals
none included
Wheels
Rims
DT Swiss PR 1600 Spline DB, Tubeless-ready rims, DT new aero spokes, DT Pro Lock nipples, DT Ratchet System, 12 mm Through Axle with RWS release system for both wheels, Width: 18 mm internal / 22 mm external, Profile: 23 mm, Weight: 1638 g (700C); 1560 g (650B)
Tires
Schwalbe Pro One, 25 mm wide, Tubeless Easy, MikroSkin technology
Brakes
Brakes
SRAM Force Disc, Flat mount brake, SRAM Centerline Rotor, 160 mm Diameter, With enhanced temperature management and speed control
Brake Levers
SRAM Force 22 Disc, 11s, DoubleTap Technology: One lever for upshifts and downshifts, Ergonomic design for improved comfort, Reach Adjust
Cockpit
Stem
Canyon V13, Angle: +/- 6°, 1 1/4" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Square profile design for extra torsional stiffness, Compliant with Canyon Category 2 testing standards
Handlebar
Canyon H17 Ergo AL, In-house developed Canyon aluminium ergonomic handlebars, Short reach and width-dependent drop facilitate a quick change of grip, Variable top handlebar diameter: Depending on the width of the handlebar, adapted to average palm size for a perfect ergonomic fit, Compliant with Canyon Category 2 Testing Standards
Headset
Canyon | Acros
Seat
Saddle
San Marco Aspide Supercomfort Wide
Seatpost
Canyon S13 VCLS CF (15 - 35 mm Setback), Length: 330 mm, Diameter: 27.2 mm, In-house developed Canyon seatpost with VCLS technology for extra comfort and stability, Wide-ranging setback adjustability: 15 - 35 mm, Compliant with Canyon Category 2 testing standards
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.47 mm |
| Stack | 490.5 mm | 512 mm | 534 mm | 557 mm | 579 mm |
| Reach | 356 mm | 361 mm | 374 mm | 384 mm | 395 mm |
| Top Tube Length | 496.5 mm | 507.3 mm | 527.4 mm | 543.4 mm | 561.2 mm |
| Seat Tube Angle | 73.83 ° | 73.83 ° | 73.83 ° | 73.83 ° | 73.83 ° |
| Seat Tube Length | 406 mm | 436 mm | 466 mm | 496 mm | 526 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71 ° | 72.25 ° | 72.25 ° |
| Head Tube Length | 100.2 mm | 119.4 mm | 113.3 mm | 132.5 mm | 154.4 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 961 mm | 965 mm | 987 mm | 992 mm | 1005 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 |
Model Overview
Ultimate WMN CF SLX Disc 8.0 Team CSR is part of the Canyon Ultimate model. Canyon released 158 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Canyon Ultimate CF SL Disc 8.0 2018 has a starting price of 2799$. Canyon Ultimate CF EVO 10.0 LTD 2018 on the other hand is the most expensive at 8500$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2999$. Comparing this to the average Race bike price, we see that the price is 11.7% smaller.
Race bikes average weight
On a deeper look, we notice that the average weight of a Race bike is 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit heavier than average, Ultimate WMN CF SLX Disc 8.0 Team CSR has a weight of 7.3 kg (16.09 lbs). To sum up, it’s 7.04% heavier than the average weight of Race bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Canyon Ultimate WMN CF SLX Disc 8.0 Team CSR 2018, has a aluminum model. The 650c wheels are smaller in diameter than 700c. However, they are a little lighter than 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Ultimate WMN CF SLX Disc 8.0 Team CSR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
