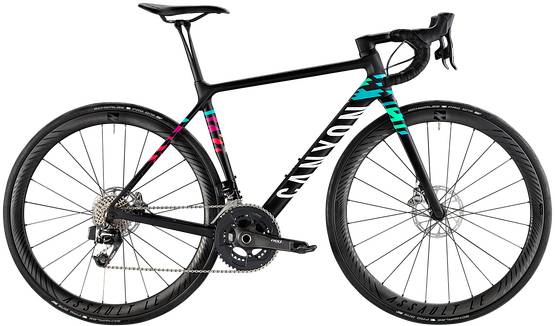

Canyon Ultimate WMN CF SLX Disc 9.0 Team CSR 2018
2018 Road
Estimate price |
6,999$
Weight | 7.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650c / 700c -
Groupset RED eTAP, RED 22 -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
159cm - 166cm
XS
166cm - 172cm
SM
172cm - 178cm
MD
178cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Ultimate WMN CF SLX, Newly developed sizing concept means every frame size produces the same handling dynamics, 650B wheels on 3XS and 2XS frames deliver previously unattainable handling responsiveness and agility, Maximus Seat Tube ensures efficient power transfer and a smooth ride, Balanced Sport Geometry riding position boosts comfort on the longest rides, Slender VCLS Stays kill road buzz, Flat Mount standard brake mounts, 12x142 mm Through Axles, Full carbon frame, Weight: 780 g (size XS)
Suspension Fork
Canyon One One Four SLX Disc, Full carbon fork, 1 1/4" fork shaft, Flat mount disc brake standard, Through Axles (12 x 100 mm), Removable spanner that can be used for front and rear, Weight: 325 g
Drivetrain
Rear Derailleur
SRAM Red e-Tap, 11s, 11-speed, E-tap shift logic, Wireless connection via AIREA for quick installation
Front Derailleur
SRAM Red e-Tap, 11s, 11-speed, YAW technology
Shift Levers
SRAM Red eTap HRD, 11s, 11-speed, Wireless/hydraulic brake shift levers, Optimised brake force and modulation for greater control of the speed
Cassette
SRAM PG-1190, 11s, Extremely lightweight, Heat-treated and made of high-quality tool steel, StealthRing™ elastomers, Gradations: 11-12-13-14-15-17-19-22-25-28-32Z
Crank
SRAM Red 22, 11s, Carbon cranks, Stiff chainrings (5 mm, aluminium 7075-T6, CNC-milled) feature switching bolts with a modern design, Weight: 557 g
Bottom Bracket
SRAM GXP Pressfit
Chain
SRAM PC1190, 11s
Pedals
none included
Wheels
Rims
Reynolds Assault LE Disc Carbon, Rim height: 41 mm, Rim type:Clincher, RWS quick release skewers with detachable lever that can be used on both the front and rear wheel
Tires
Schwalbe Pro One, 25 mm wide, Tubeless Easy, MikroSkin technology
Brakes
Brakes
SRAM Red eTap HRD, Flat mount brake, SRAM Centerline Rotor, 160 mm Diameter, With enhanced temperature management and speed control
Brake Levers
SRAM Red eTap HRD, 11s, 11-speed, Wireless/hydraulic brake shift levers, Optimised brake force and modulation for greater control of the speed
Cockpit
Headset
Canyon | Acros
Seat
Saddle
San Marco Aspide Supercomfort Wide
Seatpost
Canyon S14 VCLS 2.0 CF (2 / -10 mm Setback), Length: 330 mm, Diameter: 27.2 mm, In-house developed Canyon seatpost, Revolutionary leaf spring design absorbs shocks and vibrations, drastically increasing rider comfort, Flip Head provides adjustable setback: +2 / -10 mm, Compliant with Canyon Category 2 testing standards
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.42 mm | 1.43 mm | 1.45 mm | 1.47 mm |
| Stack | 491 mm | 512 mm | 534 mm | 557 mm | 579 mm |
| Reach | 356 mm | 361 mm | 374 mm | 384 mm | 395 mm |
| Top Tube Length | 497 mm | 507 mm | 527 mm | 543 mm | 561 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 406 mm | 436 mm | 466 mm | 496 mm | 526 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 100 mm | 119 mm | 113 mm | 133 mm | 154 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 962 mm | 965 mm | 987 mm | 992 mm | 1005 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 |
Model Overview
Ultimate WMN CF SLX Disc 9.0 Team CSR completes the Canyon Ultimate model. There are 158 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Canyon Ultimate CF SL Disc 8.0 2018 is the most economical model, with a starting price of 2799$. Canyon Ultimate CF EVO 10.0 LTD 2018 on the other hand costs 8500$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6999$. In conclusion, this bike price is 108.93% more expensive than the price of the average Race bike.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Ultimate WMN CF SLX Disc 9.0 Team CSR has a weight of 7.1 kg (15.65 lbs). In short, the average Race bike weight is 4.11% lower than this one.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Ultimate WMN CF SLX Disc 9.0 Team CSR model has carbon wheels. The 650c wheels are smaller in diameter than 700c. However, they are a little lighter than 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ultimate WMN CF SLX Disc 9.0 Team CSR comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
