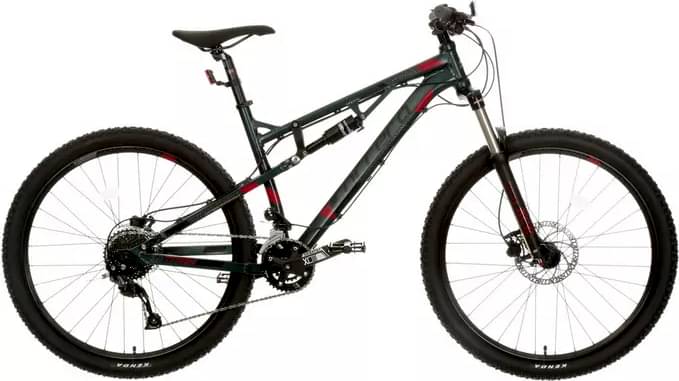

Carrera Titan Mens Full Suspension Mountain Bike 2023
2023 Mountain
Estimate price |
928$
Weight | 15.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Alivio, Suntour -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Suntour XCR 32
Drivetrain
Rear Derailleur
Shimano Alivio 7/8 speed, M310
Front Derailleur
Shimano Alivio, 9 speed direct mount, M2000
Shift Levers
Shimano Alivio M3000, 2x9
Cassette
Shimano HG200 9 speed 11-36T
Crank
Suntour XCM, Square Taper, 36/22T (S - 170mm, M/L - 175mm)
Bottom Bracket
Sealed bearing, 73x127
Chain
KMC X9
Pedals
Alloy Black MTB, 9/16"
Wheels
Front Hub
Alloy, 9x100m quick release
Rear Hub
Alloy, 10x135mm quick release, 8/9/10 speed freehub body
Rims
Carrera double-wall alloy, 32H
Tires
Kenda Kadre tyre with Carrera Puncture Protect
Brakes
Brakes
Front: Tektro, Hydraulic Disc, 180mm Rotor, Rear: Tektro, Hydraulic Disc, 180mm Rotor
Cockpit
Stem
Carrera alloy, 45mm, 31.8mm clamp
Handlebar
Carrera Alloy, 31.8mm clamp, 12mm rise (Width: all sizes - 720mm)
Grips
Carrera by Velo
Headset
Semi-Integrated, 1 1/8" (44/44mm)
Seat
Saddle
Carrera Memory Foam Saddle
Seatpost
Carrera Alloy, 31.6 x 350mm, 34.9mm seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 586 mm | 593 mm | 600 mm |
| Reach | 400 mm | 422 mm | 435 mm |
| Top Tube Length | 554 mm | 577 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Titan Mens Full Suspension Mountain Bike is a Carrera Titan model. There are 6 bikes that carry this model name. You can easily view all of the Carrera Titan bikes models from 2023, here.
Model range prices
The most economical model, the Carrera Titan Mens Full Suspension Mountain Bike 2023 has a starting price of 833$. Carrera Titan X Mens Full Suspension Mountain Bike 2023 on the other hand is the most expensive at 1168$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 833$. If we compare this with the average Trail bike cost we notice that the price is 231.57% smaller.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 15.8 kg (34.83 lbs), the Titan Mens Full Suspension Mountain Bike model is much heavier than average. In short, the average Trail bike weight is 21.73% lower than this one.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Titan Mens Full Suspension Mountain Bike 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Carrera Titan Mens Full Suspension Mountain Bike has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Titan Mens Full Suspension Mountain Bike comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
