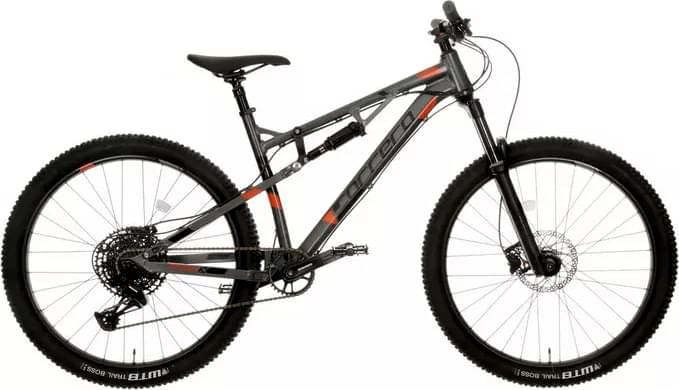

Carrera Titan X Mens Full Suspension Mountain Bike 2023
2023 Mountain
Estimate price |
1,301$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Rock Shox Recon RL, 15x100mm Maxle
Drivetrain
Rear Derailleur
SRAM SX Eagle 12 speed
Shift Levers
SRAM SX 12 speed
Cassette
SRAM SX Eagle 11-50T (PG1210)
Crank
SRAM SX Eagle Boost 148mm, Powerspline, 32T (S - 170mm, M/L - 175mm)
Bottom Bracket
SRAM Powerspline 118x73mm
Chain
SRAM NX Eagle 12 speed
Pedals
Alloy Black MTB, 9/16"
Wheels
Front Hub
Alloy, 15x100mm
Rear Hub
Alloy, 10x135mm quick release, 8/9/10 speed freehub body
Rims
Carrera double-wall alloy, 32H, Tubeless Ready
Tires
WTB Trail Boss with Puncture Protect
Brakes
Brakes
Front: Shimano MT200, Hydraulic Disc, 180mm Rotor, Rear: Shimano MT200, Hydraulic Disc, 180mm Rotor
Cockpit
Stem
Carrera alloy, 45mm, 31.8mm clamp
Handlebar
Alloy, 31.8mm clamp, 12mm rise (Width: S - 720mm, M/L - 740mm)
Grips
Carrera by Velo
Headset
Semi-Integrated, tapered 1 1/8" - 1.5" (44/56mm)
Seat
Saddle
Men's Carrera MTB by Velo
Seatpost
Trans-X Dropper post, 31.6mm, 420mm x 120mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 586 mm | 593 mm | 600 mm |
| Reach | 400 mm | 422 mm | 435 mm |
| Top Tube Length | 554 mm | 577 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 460 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Titan X Mens Full Suspension Mountain Bike completes the Carrera Titan model. Carrera launched 6 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Carrera Titan Mens Full Suspension Mountain Bike 2023 is the cheapest bike model and costs 833$. Carrera Titan X Mens Full Suspension Mountain Bike 2023 is the most expensive one and costs 1168$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1168$. Doing a quick comparison, we notice that Titan X Mens Full Suspension Mountain Bike price is 136.47% lower than the average cost of a Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, Titan X Mens Full Suspension Mountain Bike has a weight of 14.5 kg (31.97 lbs). To sum up, it’s 11.71% heavier than the average weight of Trail bikes.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The Titan X Mens Full Suspension Mountain Bike 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Carrera model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
