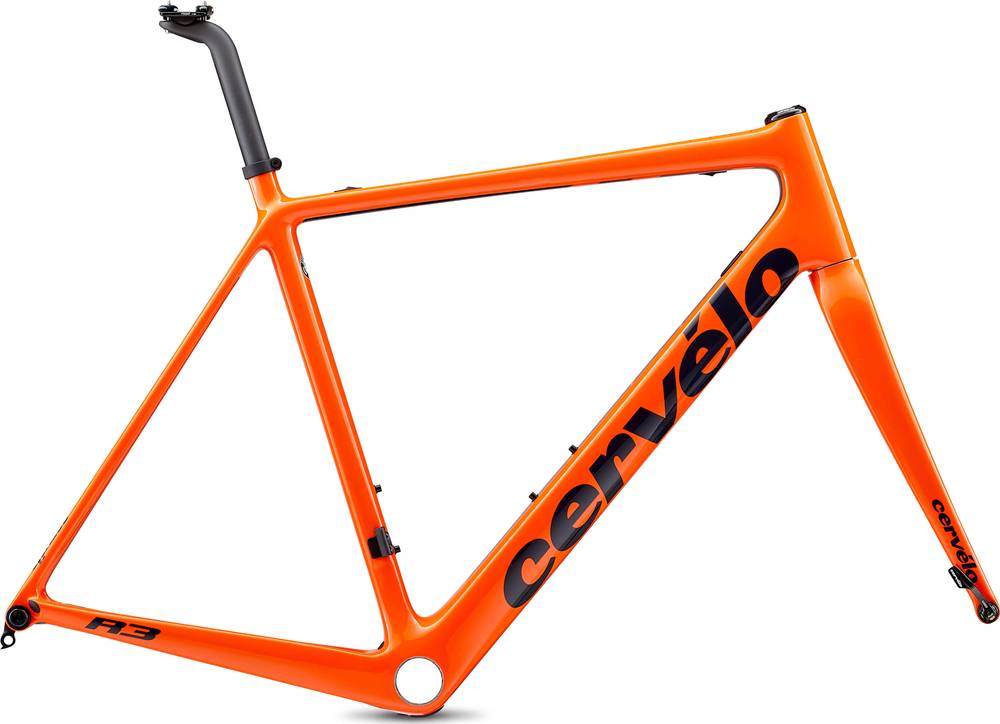

Cervélo R-Series Frameset Disc 2020
2020 Road
Estimate price |
3,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R3 Fork for Disc
Cockpit
Headset
FSA IS2 1-1/8 x 1-1/2
Seat
Seatpost
Cervélo Carbon, SP19
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 575 mm | 577 mm | 594 mm | 611 mm | 627 mm |
| Rake | 57 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 500 mm | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 355 mm | 364 mm | 373 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 510 mm | 527 mm | 543 mm | 558 mm | 576 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 89 mm | 110 mm | 133 mm | 159 mm | 188 mm | 214 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 969 mm | 968 mm | 988 mm | 1006 mm | 1022 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 688 mm | 718 mm | 748 mm | 779 mm | 810 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
R-Series Frameset Disc is a Cervelo R Series model. Cervélo released 10 frames variations of this model so far. You can easily view all of the Cervelo R Series frames models from 2020, here.
Model range prices
Cervélo R-Series Frameset Disc 2020 is the cheapest frame model and costs 3000$. Cervélo R-Series Frameset Rim 2020 is the most expensive one and costs 3000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance frames
According to our calculations, the average cost of an Endurance frame that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3000$. Doing a quick comparison, we notice that R-Series Frameset Disc price is 57.48% more expensive than the average cost of an Endurance frame.
R-Series Frameset Disc components
Fork material
The fork on this frame is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
