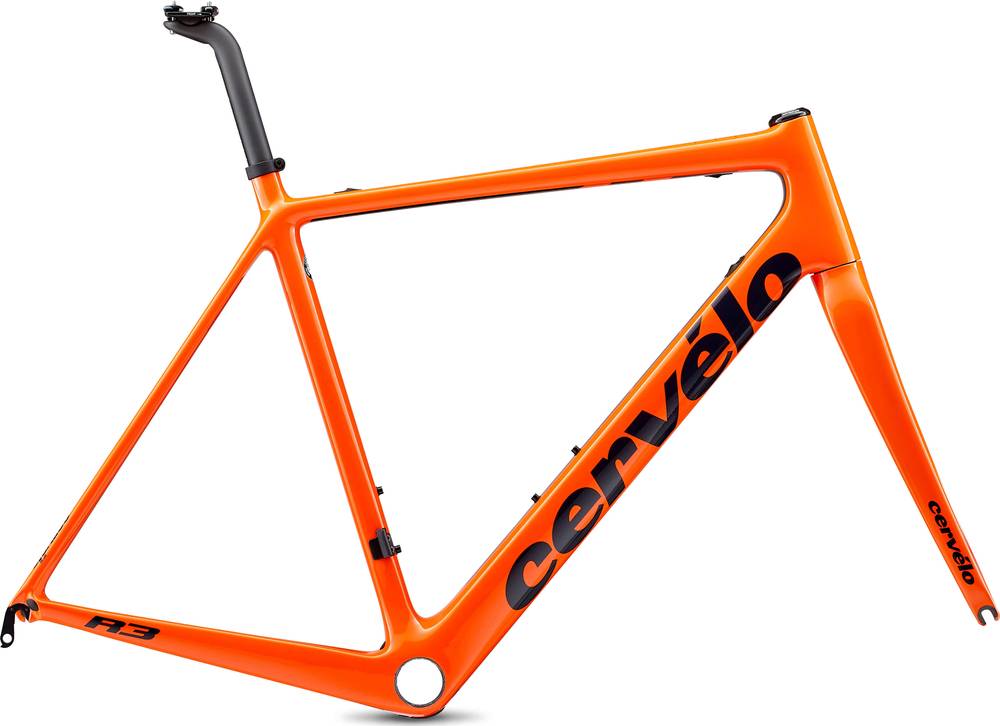

Cervélo R-Series Frameset Rim 2020
2020 Road
Estimate price |
3,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R3 Fork
Cockpit
Headset
FSA IS2 1-1/8 x 1-1/2
Seat
Seatpost
Cervélo Carbon, SP19
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 575 mm | 577 mm | 594 mm | 611 mm | 627 mm |
| Rake | 57 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 500 mm | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 355 mm | 364 mm | 373 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 510 mm | 527 mm | 543 mm | 558 mm | 576 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 89 mm | 110 mm | 133 mm | 159 mm | 188 mm | 214 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 969 mm | 968 mm | 988 mm | 1006 mm | 1022 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 688 mm | 718 mm | 748 mm | 779 mm | 810 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
R-Series Frameset Rim is a Cervelo R Series model. Cervélo launched 10 frames of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Cervélo R-Series Frameset Disc 2020 is the most affordable frame of this model and has a price of 3000$. On the other hand, Cervélo R-Series Frameset Rim 2020, is the most expensive and costs 3000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance frames
Our math shows that the average cost of a dependable Endurance frame is 1905$. However, this doesn’t mean that if you spend less money on an Endurance frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Cervélo released this model in 2020, its price was 3000$. Comparing this to the average Endurance frame price, we see that the price is 57.48% higher.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
