Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R5 Fork
Drivetrain
Rear Derailleur
SRAM RED eTap AXS 12 spd
Front Derailleur
SRAM RED eTap AXS 12 spd
Shift Levers
SRAM RED eTap AXS HRD 12 spd
Cassette
SRAM RED 12s XG1290, 10-28
Crank
SRAM Red AXS 48/35 with Power Meter
Bottom Bracket
Ceramic Speed Dub
Chain
SRAM RED 12 spd
Wheels
Rims
New Reserve 34/37mm DT240 XDR, 24h (F), 24h (R), 22.6mm IW (F), 21.6mm IW (R), Center-Lock, Tubeless Ready
Tires
Vittoria Corsa TLR G2.0 25c
Brakes
Brakes
hydraulicDisc
Cockpit
Stem
Cervélo ST31 Carbon
Handlebar
Cervélo HB13 Carbon
Headset
FSA IS2 1-1/4 x 1-1/2
Seat
Saddle
Prologo Scratch M5 NACK OR Selle Italia FLITE BOOST SuperFlow Carbon
Seatpost
Cervelo SP24 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.45 mm | 1.48 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 574 mm | 576 mm | 578 mm | 594 mm | 611 mm | 628 mm |
| Rake | 57.5 mm | 51.5 mm | 45.5 mm | 45.5 mm | 45.5 mm | 45.5 mm |
| Trail | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm | 57.3 mm |
| Stack | 492 mm | 517 mm | 542 mm | 567 mm | 592 mm | 617 mm |
| Reach | 358 mm | 366 mm | 375 mm | 384 mm | 393 mm | 402 mm |
| Top Tube Length | 510 mm | 526 mm | 543 mm | 559 mm | 576 mm | 593 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 93 mm | 114 mm | 137 mm | 163 mm | 192 mm | 218 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 969 mm | 972 mm | 989 mm | 1006 mm | 1023 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 690 mm | 719 mm | 750 mm | 773 mm | 795 mm | 819 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

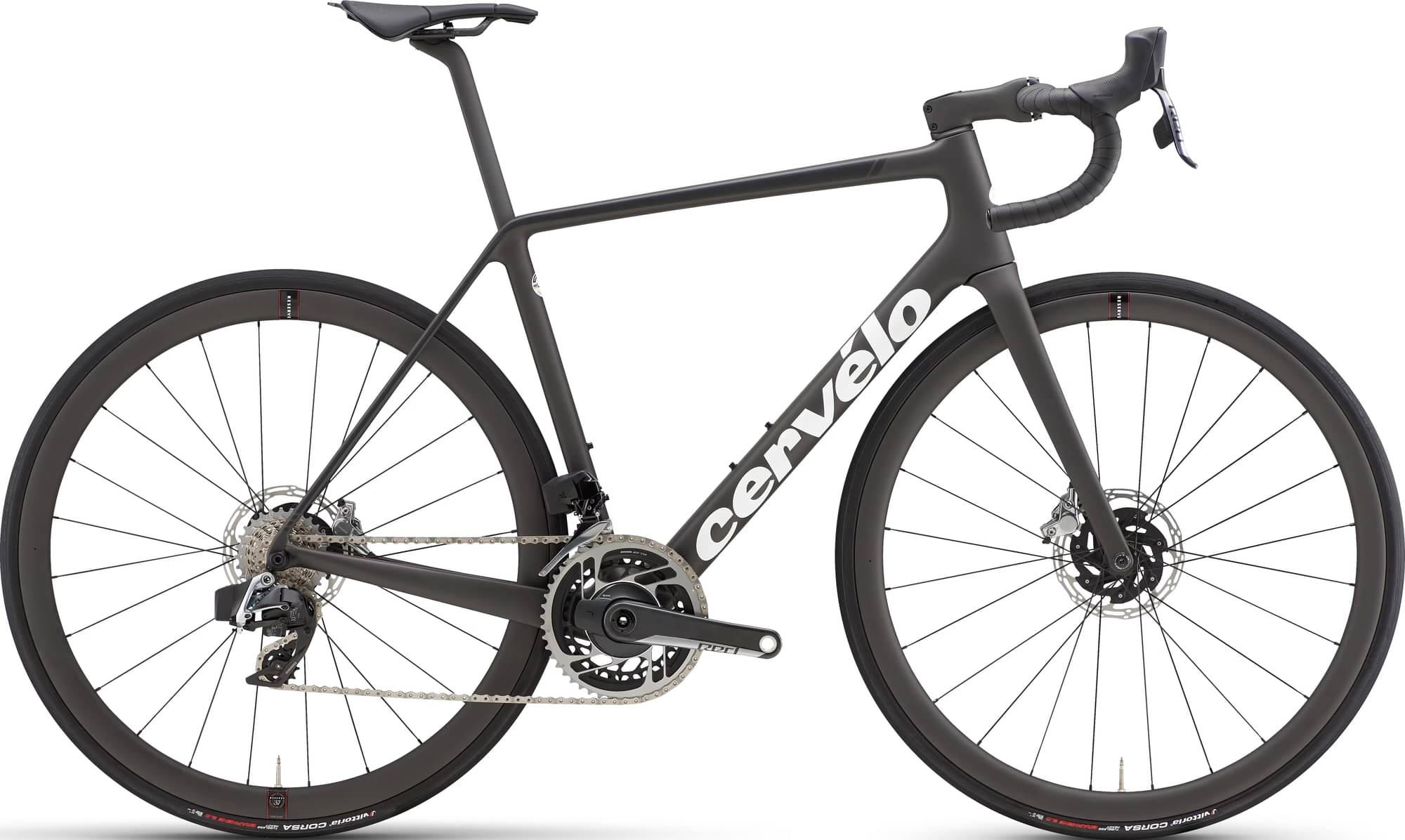

Model Overview
R5 Red eTap AXS is a Cervelo R5 model. 33 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Cervélo R5 Force eTap AXS 2022 has a starting price of 8400$. Cervélo R5 Dura Ace Di2 2022 on the other hand is the most expensive at 12000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Cervélo R5 Red eTap AXS price was 12000$. Doing a quick comparison, we notice that R5 Red eTap AXS price is 258.21% higher than the average cost of a Race bike.
R5 Red eTap AXS components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the R5 Red eTap AXS bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cervélo R5 Red eTap AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
