Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XX1 Eagle AXS, SRAM -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Rockshox SID SL Ultimate, DebonAir spring, Charger Race Day damper, tapered steerer, 15x110mm, Maxle Stealth, 44mm offset, 100mm travel
Drivetrain
Rear Derailleur
SRAM XX SL Eagle AXS, 12 speed
Shift Levers
SRAM Pod AXS controller
Cassette
SRAM XX SL, 10-52, 12 Speed
Crank
SRAM XX SL Eagle,32T, Boost 148 DUB
Bottom Bracket
SRAM DUB, BSA 73mm
Chain
SRAM XX SL, 12 speed
Wheels
Rims
Rear: Reserve 28 XC, 28mm IW, DT Swiss 240,12x148mm, XD freehub, 24H, centerlock, tubeless compatible Front: Reserve 28 XC, 28mm IW, DT Swiss 240, 15x110mm, 24H, centerlock, tubeless compatible
Tires
Maxxis Rekon Race, EXO 120TPI, 29x2.4
Brakes
Brakes
SRAM Level Ultimate
Brake Levers
SRAM Level Ultimate Stealth
Cockpit
Stem
Race Face Aeffect Alloy, 35mm clamp, 6 degree
Handlebar
Race Face Next Carbon, 35mm clamp, 760mm width, 10mm rise
Headset
FSA IS2 1-1/2 x 1-1/2
Seat
Saddle
Prologo Dimension NDR Nack
Seatpost
Cervélo SP29 Carbon 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.413 mm | 1.363 mm | 1.314 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 667 mm | 693 mm | 722 mm | 754 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 606 mm | 612 mm | 623 mm | 636 mm |
| Reach | 409 mm | 433 mm | 457 mm | 484 mm |
| Top Tube Length | 582 mm | 608 mm | 635 mm | 666 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 89 mm | 95 mm | 107 mm | 121 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1090 mm | 1116 mm | 1145 mm | 1177 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 705 mm | 740 mm | 782 mm | 810 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

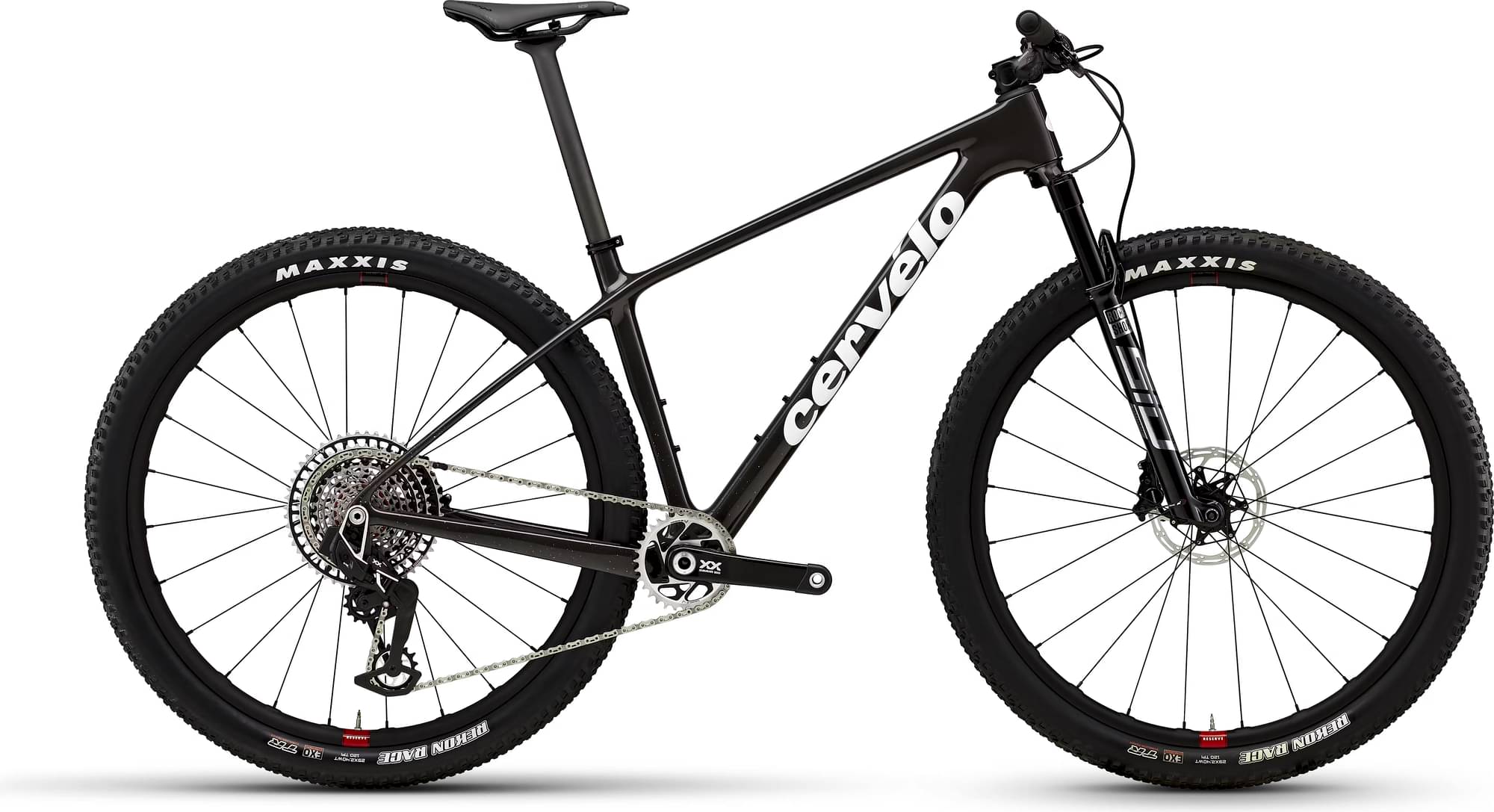

ZHT-5 XX SL AXS is part of the Cervelo Zht 5 model. 5 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Cervélo ZHT-5 GX Eagle 2023 is the cheapest bike model and costs 4000$. Cervélo ZHT-5 XX SL AXS 2023 is the most expensive one and costs 9500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 9500$. If we compare this with the average Crosscountry bike cost we notice that the price is 398.69% higher.
Overview of components
Fork
Cervélo ZHT-5 XX SL AXS 2023 bike is equipped with the RockShox SID SL Ultimate fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the ZHT-5 XX SL AXS model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The ZHT-5 XX SL AXS has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
