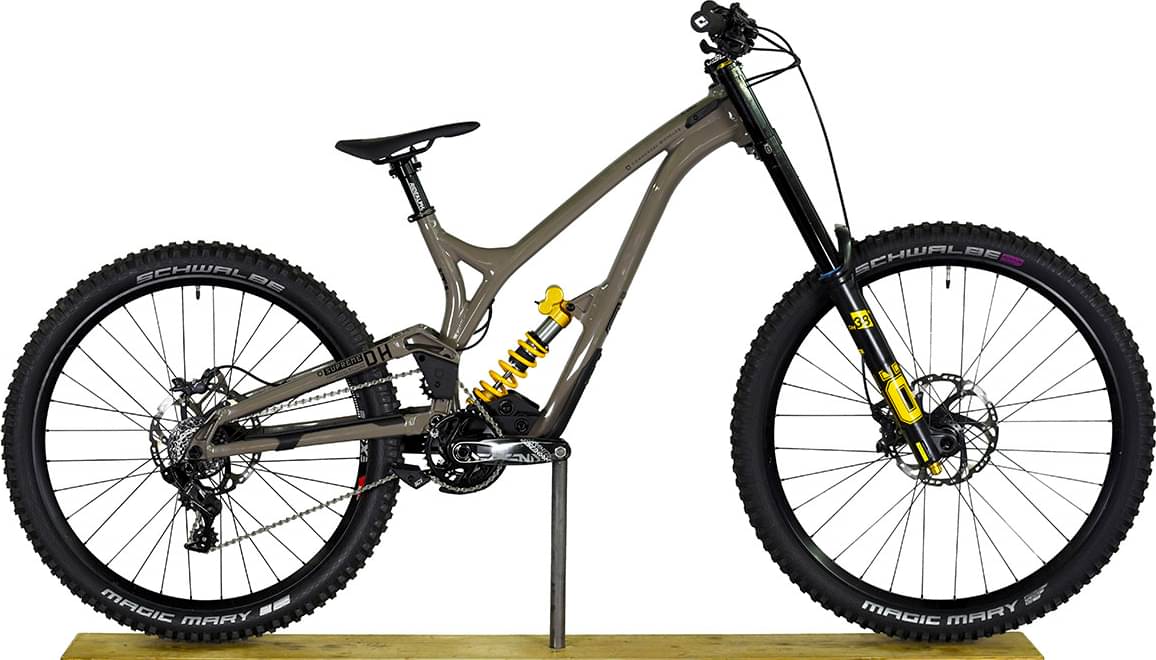

Commençal SUPREME DH 29/27 OHLINS ED 2023
2023 Mountain
Estimate price |
5,620$
Weight | 16.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 200mm -
Travel Rear 200mm -
Fork Öhlins DH38
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
169cm - 182cm
LG
179cm - 192cm
XL
189cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components

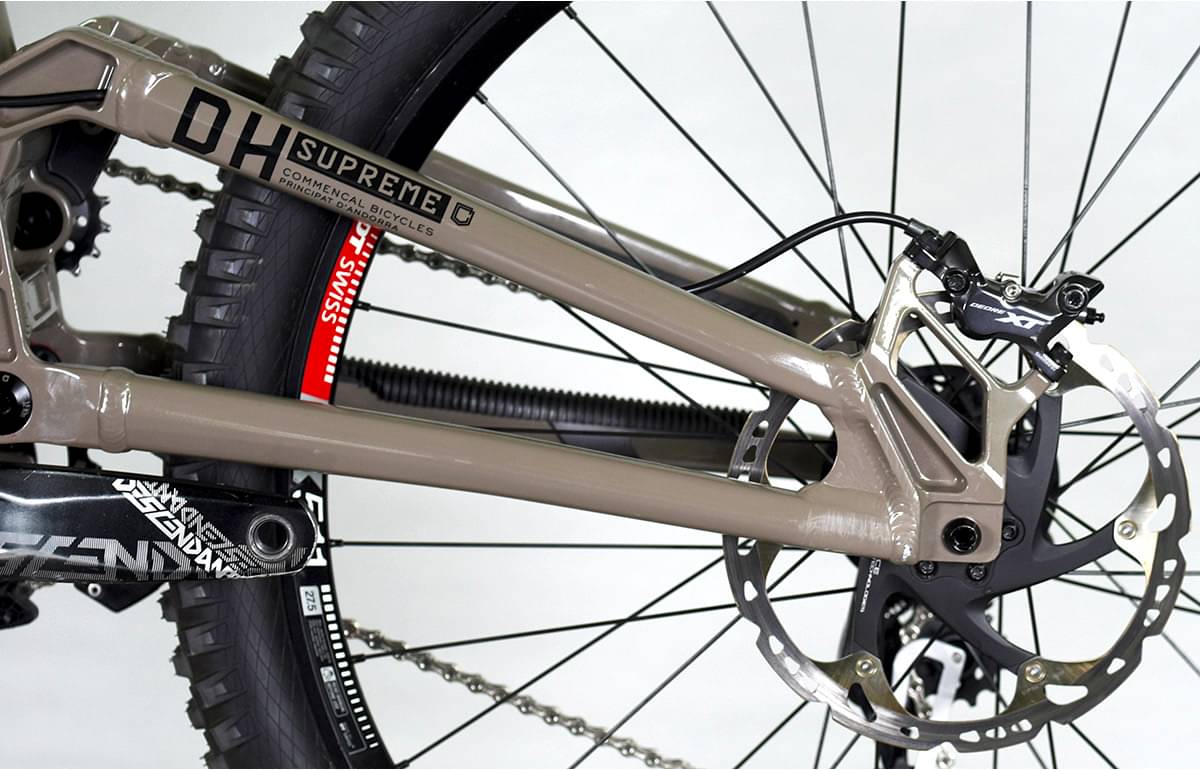

Frame
Frame
2021 Supreme DH 29/27, 200 mm travel, 27/29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Suspension Fork
OHLINS DH38 Air, 200 mm travel, 29", TTX 18 damper, Ramp Up chamber, LSC, HSC, LSR, Boost (20 x 110 mm), 54 mm offset
Rear Shock
?HLINS TTX22M Coil Supreme, 250 x 75 mm. Rebound: P02. Compression: TBC. Spring rates: 343lbs on S, 388 lbs on M, 434 lbs on L, 480 lbs on XL
Drivetrain

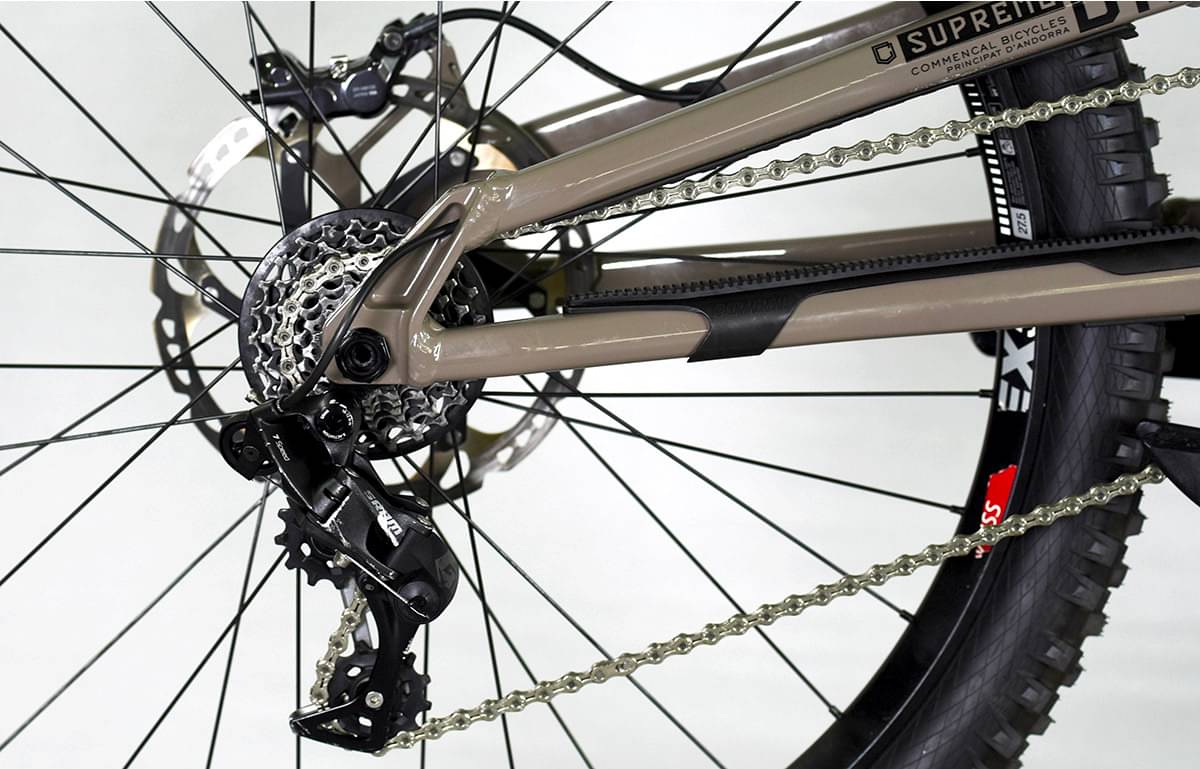

Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM GX DH, 7 sp
Cassette
SRAM GX DH, 7 sp, 11-25t

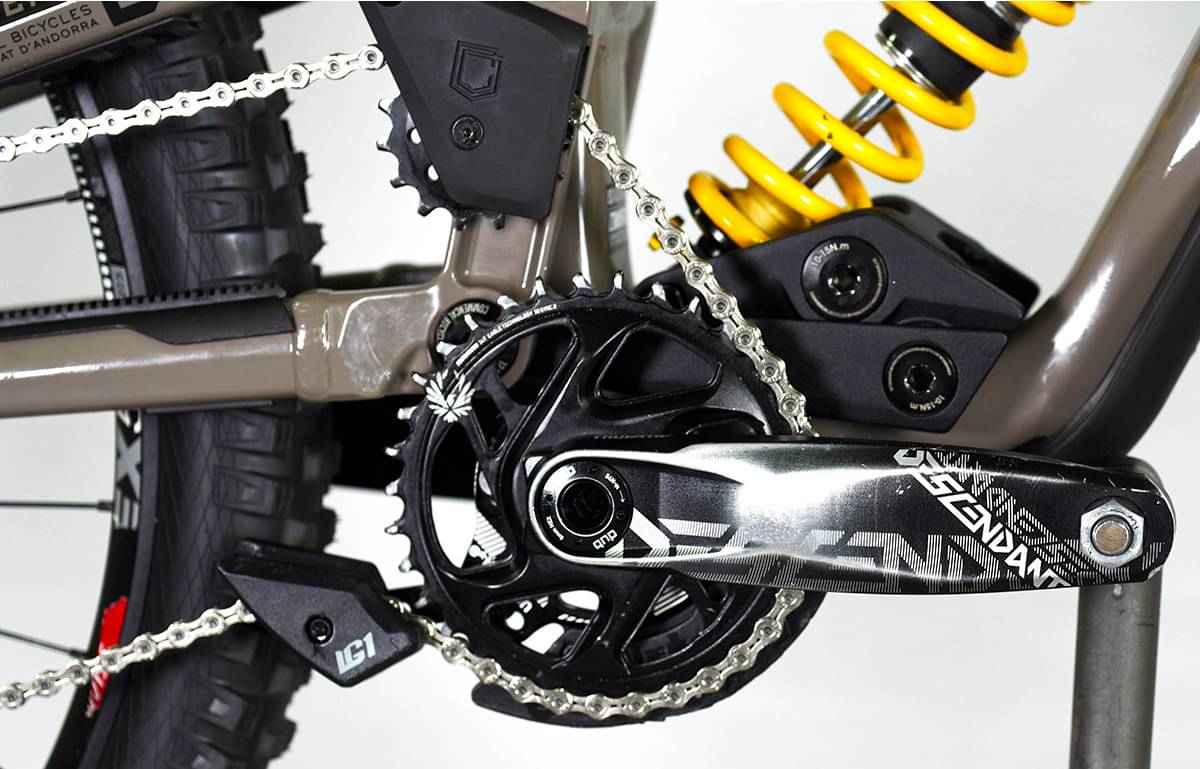

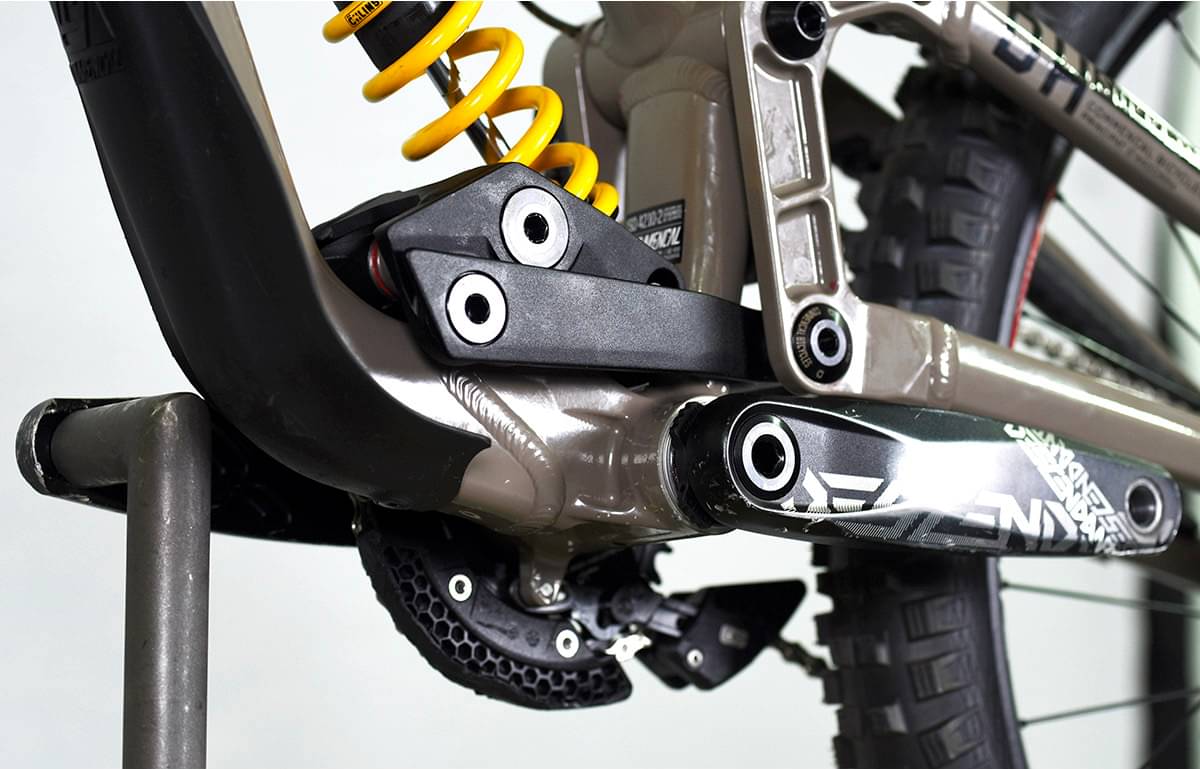

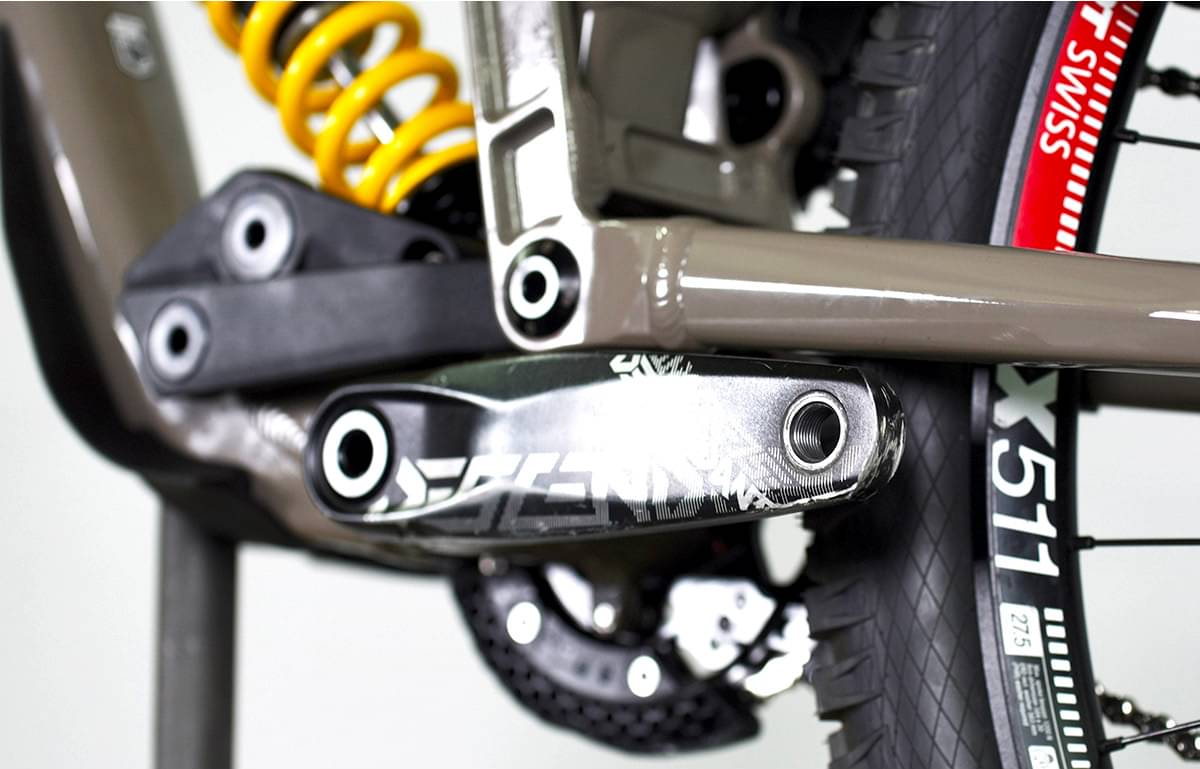

Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Bottom Bracket
SRAM DUB, Pressfit
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 28-34t
Wheels
Front Hub
DT SWISS
Rear Hub
DT SWISS
Rims
DT SWISS, 29''/27.5"
Tires
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary, Rear: 27.5"x2.4", Super DH, Addix Ultra Soft - Front: 29"x2.4", Super DH, Addix Ultra Soft
Brakes
Brakes
SHIMANO XT, 4 pistons, I-Spec EV compatible, Rotor: SHIMANO SM-RT86 203 mm, 6-bolt

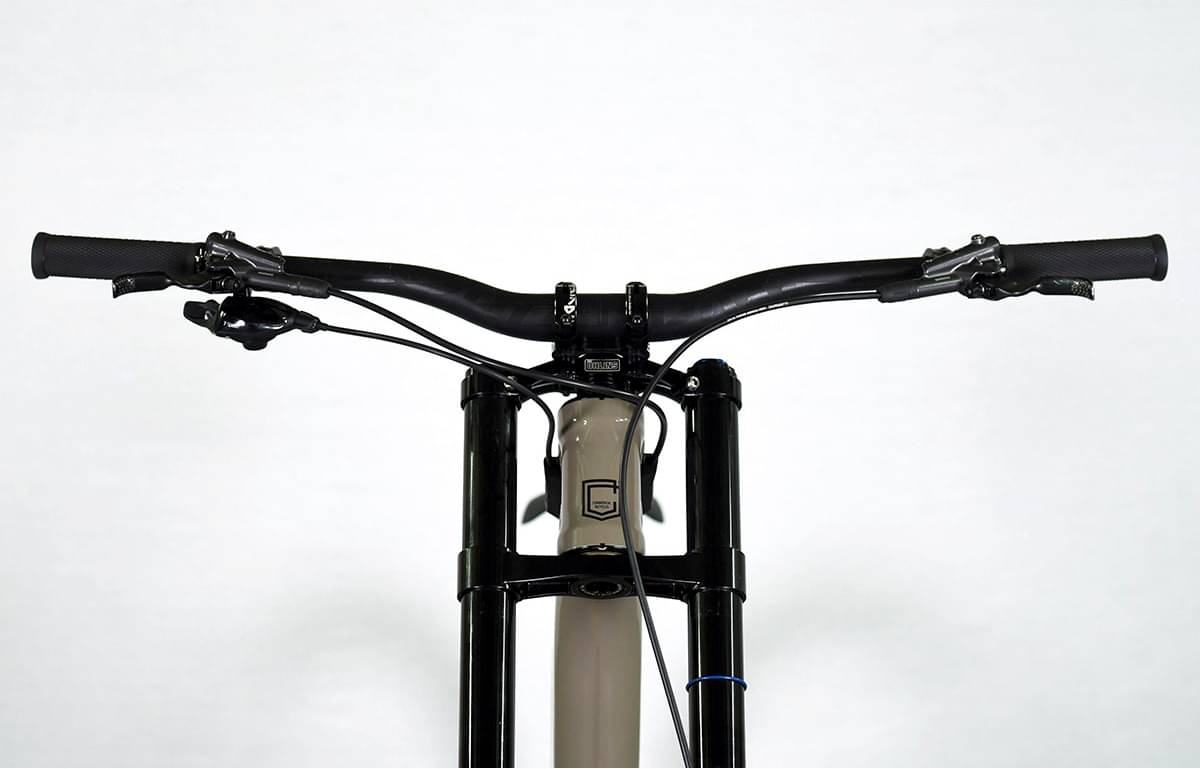

Cockpit
Stem
TRUVATIV Descendant DH 35 mm, 50 mm extension, direct mount, 35 mm, black
Handlebar
TRUVATIV Descendant DH 35 mm, 35 mm, 800 mm width, 25 mm rise, Alloy 7050
Grips
ODI
Headset
CANE CREEK ZS56 / ZS56
Seat
Saddle
FIZIK Alpaca Gravita X5, MG rails, flexible "wings"
Seatpost
RIDE ALPHA, 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.363 mm | 1.292 mm | 1.228 mm |
| Bottom Bracket Height | 365 mm | 370 mm | 370 mm | 370 mm |
| Front Center | 808 mm | 834 mm | 864 mm | 889 mm |
| Rake | 59 mm | 58 mm | 56 mm | 56 mm |
| Trail | 121 mm | 126 mm | 132 mm | 132 mm |
| Stack | 624 mm | 620 mm | 620 mm | 620 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm |
| Top Tube Length | 593 mm | 612 mm | 638 mm | 660 mm |
| Seat Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63.5 ° | 63 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 448 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1256 mm | 1290 mm | 1320 mm | 1345 mm |
| Bottom Bracket Drop | 9 mm | 4 mm | 4 mm | 4 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 172 cm | 182 cm | 192 cm | 203 cm |
Model Overview
SUPREME DH 29/27 OHLINS ED is a Commencal Supreme model. 120 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Commençal SUPREME DH TEAM 2023 has a starting price of 3600$. Commençal SUPREME DH V5 SIGNATURE 2023 on the other hand is the most expensive at 7400$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Downhill bikes
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5203$. If we compare this with the average Downhill bike cost we notice that the price is 53.44% more expensive.
Downhill bikes average weight
On a deeper look, we notice that the average weight of a Downhill bike is 15.89 kg (35.03 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 16.7 kg (36.82 lbs), the SUPREME DH 29/27 OHLINS ED model is a bit heavier than average. In short, the average Downhill bike weight is 5.1% lower than this one.
SUPREME DH 29/27 OHLINS ED components

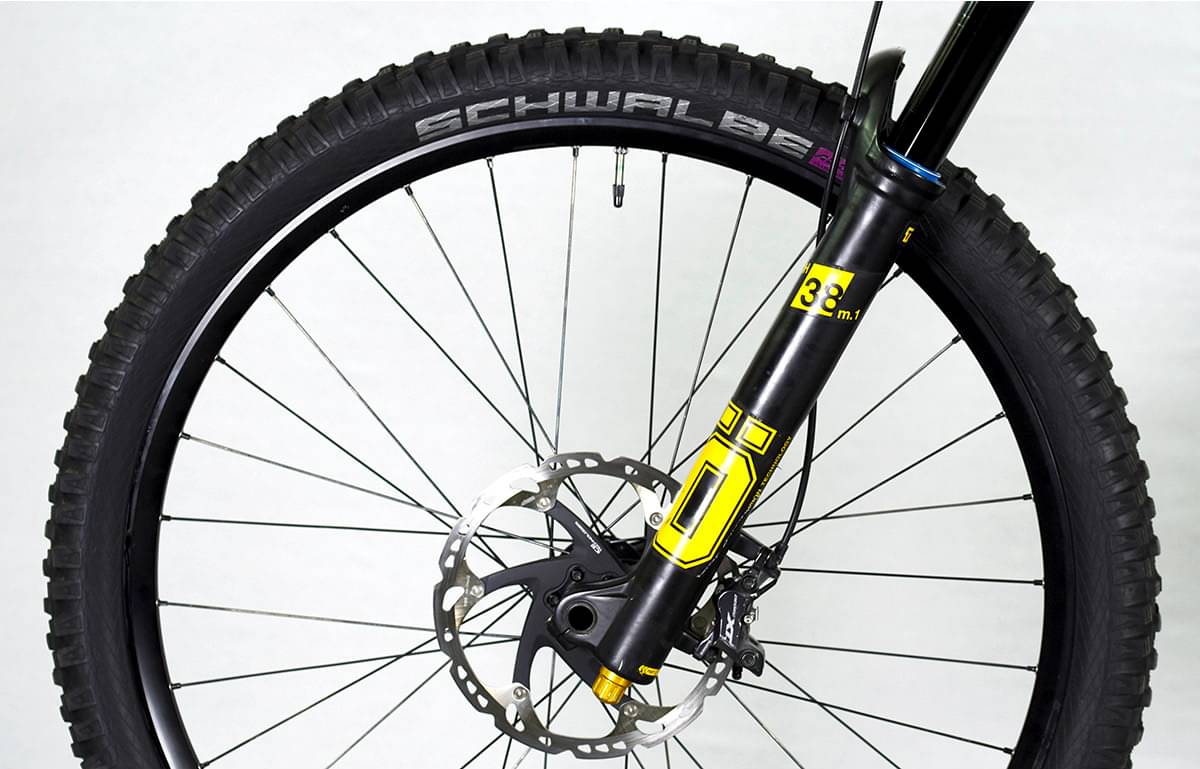

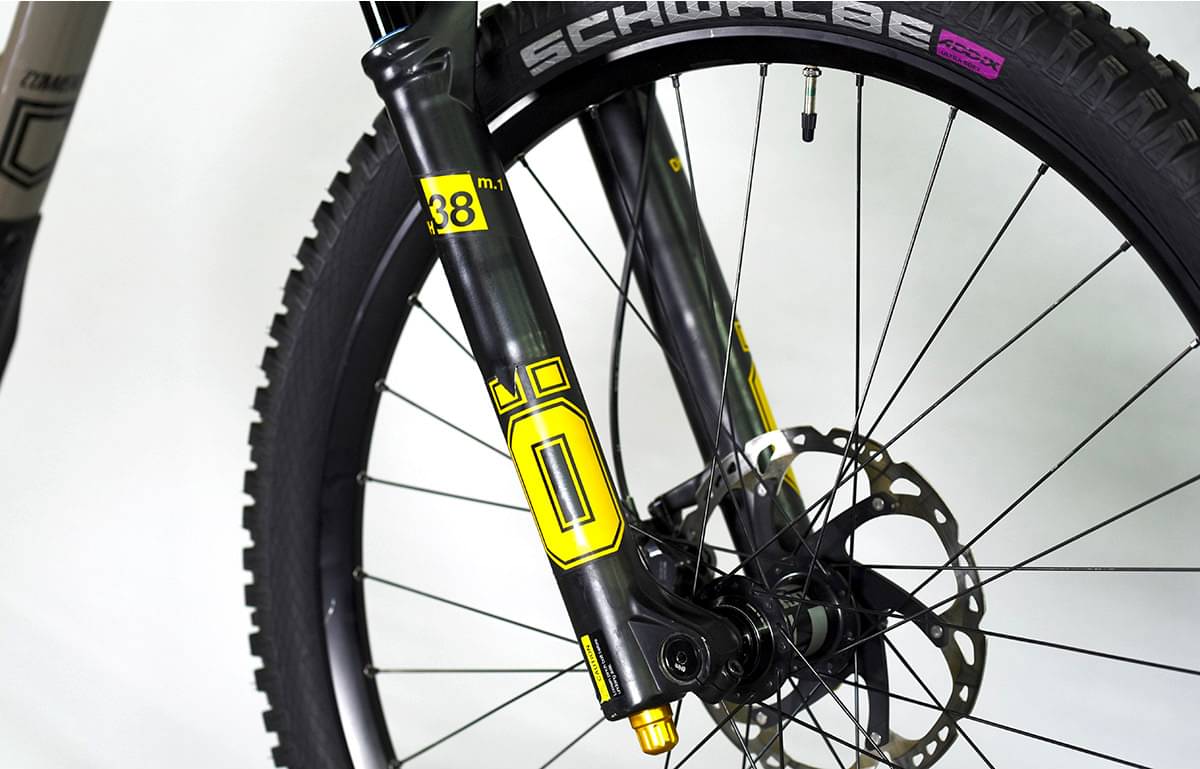

Fork
This bike has the Öhlins DH38 fork installed. The fork’s travel is 200mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the ?HLINS TTX22M Coil Supreme rear shock model, which has a travel of 200mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Commençal SUPREME DH 29/27 OHLINS ED 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.

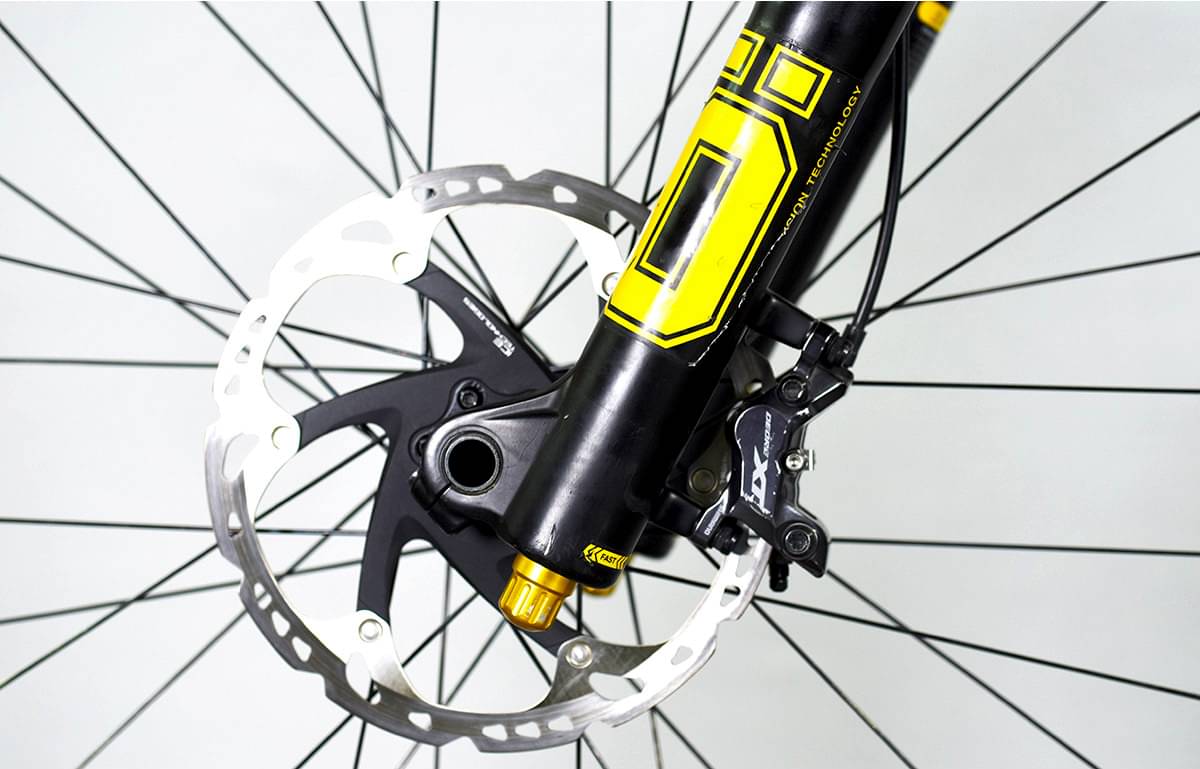

Brakes
Nothing is more important on a bike than its ability to brake properly. Commençal SUPREME DH 29/27 OHLINS ED is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 160 cm – 203 cm (5.25 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
