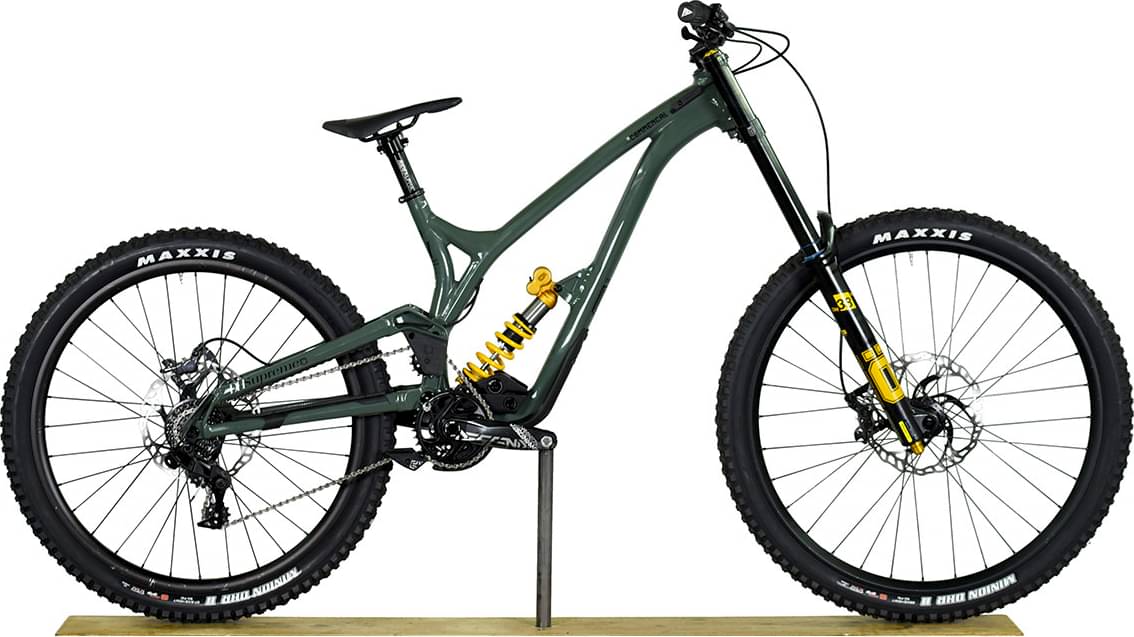

Commençal SUPREME DH OHLINS EDITION 2023
2023 Mountain
Estimate price |
5,505$
Weight | 17.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork Öhlins DH38
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 180cm
LG
178cm - 190cm
XL
188cm - 210cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2022 Supreme DH 29/27, 200 mm travel on S / M / L - 2022 Supreme DH 29, 200 mm travel on XL, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Suspension Fork
OHLINS DH38 Air, 200 mm travel, 29", TTX 18 damper, Ramp Up chamber, LSC, HSC, LSR, Boost (20 x 110 mm), 54 mm offset
Rear Shock
OHLINS TTX22M, 250 x 75 mm, HSC, LSC, rebound. Spring rates: 343lbs on S, 388lbs on M, 434lbs on L, 480lbs on XL
Drivetrain
Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM GX DH, 7 sp
Cassette
SRAM GX DH, 7s, 11-25t
Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Bottom Bracket
SRAM DUB, Pressfit
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 28-34t
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rims
DT SWISS Front / SPANK Rear
Tires
MAXXIS MINION DHR II 29 / MAXXIS MINION DHR II 27.5''
Brakes
Brakes
SHIMANO XT, 4 pistons, I-Spec EV compatible, Rotor: SHIMANO SM-RT66 220 mm, 6-bolt
Cockpit
Stem
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
RIDE ALPHA
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, MG rails, flexible "wings"
Seatpost
RIDE ALPHA, 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.492 mm | 1.418 mm | 1.323 mm | 1.264 mm |
| Bottom Bracket Height | 352 mm | 353 mm | 353 mm | 344 mm |
| Front Center | 808 mm | 834 mm | 864 mm | 868 mm |
| Rake | 51 mm | 51 mm | 49 mm | 56 mm |
| Trail | 126 mm | 130 mm | 132 mm | 113 mm |
| Stack | 634 mm | 631 mm | 631 mm | 632 mm |
| Reach | 425 mm | 445 mm | 477 mm | 500 mm |
| Top Tube Length | 596 mm | 614 mm | 645 mm | 665 mm |
| Seat Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 66.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 62.7 ° | 62.2 ° | 62.2 ° | 63.8 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 448 mm | 456 mm | 456 mm | 433 mm |
| Wheelbase | 1256 mm | 1290 mm | 1320 mm | 1301 mm |
| Bottom Bracket Drop | 3 mm | 2 mm | 2 mm | 11 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 210 cm |
About this model
SUPREME DH OHLINS EDITION completes the Commencal Supreme model. 120 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Commençal SUPREME DH TEAM 2023 is the most affordable bike of this model and has a price of 3600$. On the other hand, Commençal SUPREME DH V5 SIGNATURE 2023, is the most expensive and costs 7400$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Commençal released this model in 2023, its price was 5097$. Doing a quick comparison, we notice that SUPREME DH OHLINS EDITION price is 50.31% higher than the average cost of a Downhill bike.
Average weight for Downhill bikes
If we make a quick analysis of the average weight of a Downhill bike, we get 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 17.4 kg (38.36 lbs), Commençal bike is a bit heavier than average. In other words, this model is 9.5% heavier than the average Downhill bike.
Overview of components
Fork
The Öhlins DH38 is included from the factory. It has a travel distance of 200mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the OHLINS TTX22M model, with a travel of 200mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the SUPREME DH OHLINS EDITION bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The SUPREME DH OHLINS EDITION has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Commençal SUPREME DH OHLINS EDITION bike has 4 sizes, in the range of 158 cm – 210 cm (5.18 ft – 6.89 ft). In short, it won’t be difficult to find the right one for you.
