Bike details
Overview
Key information split into simple groups.

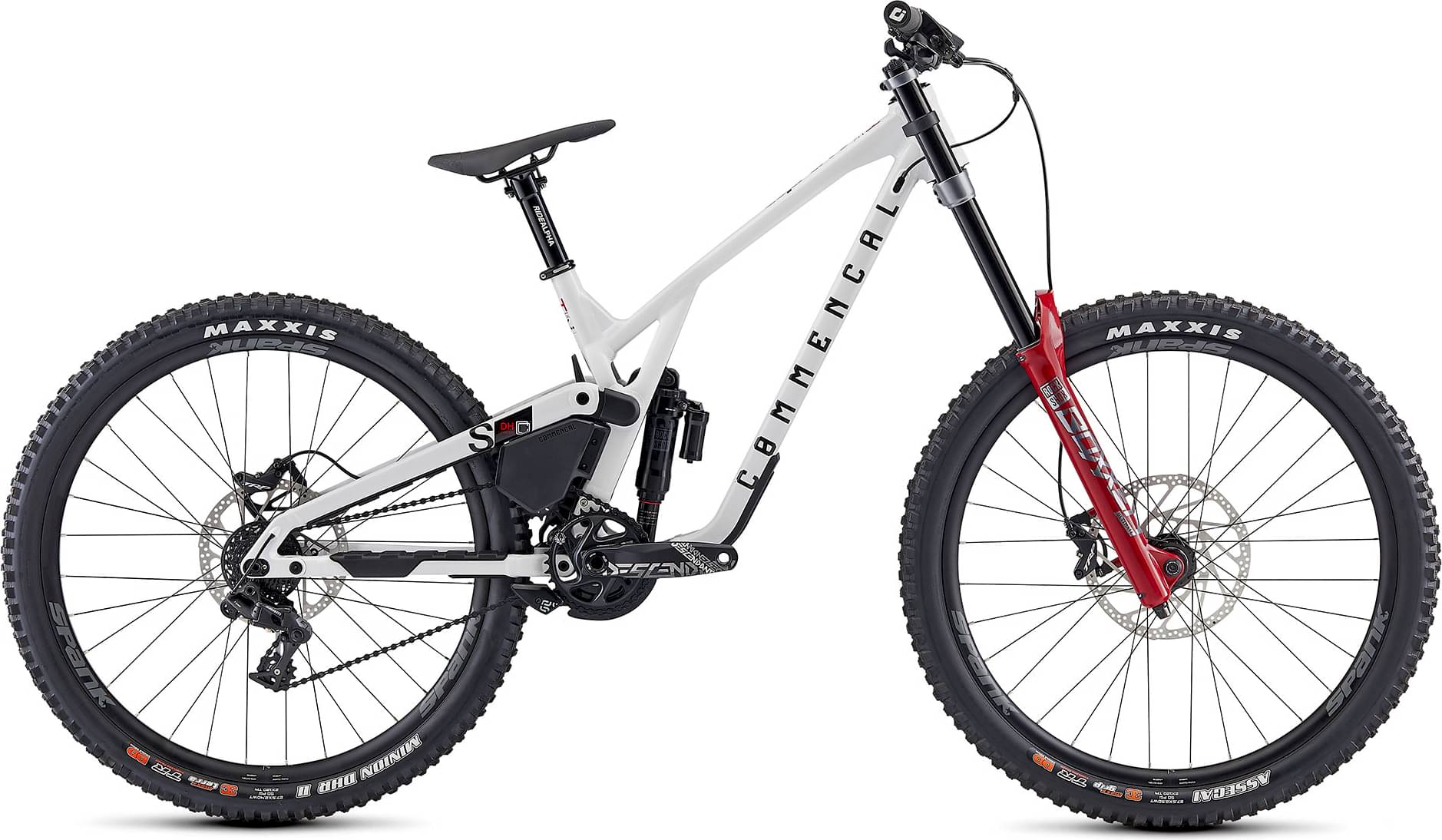

Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 220mm -
Fork RockShox BoXXer Ultimate
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Supreme DH V5 27'', 220 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6
Suspension Fork
ROCKSHOX Boxxer Ultimate, 200 mm travel, 27.5", Charger 2.1 damper, RC2, DebonAir, rebound, Boost (20 x 110 mm), 36 mm offset, 0 Token

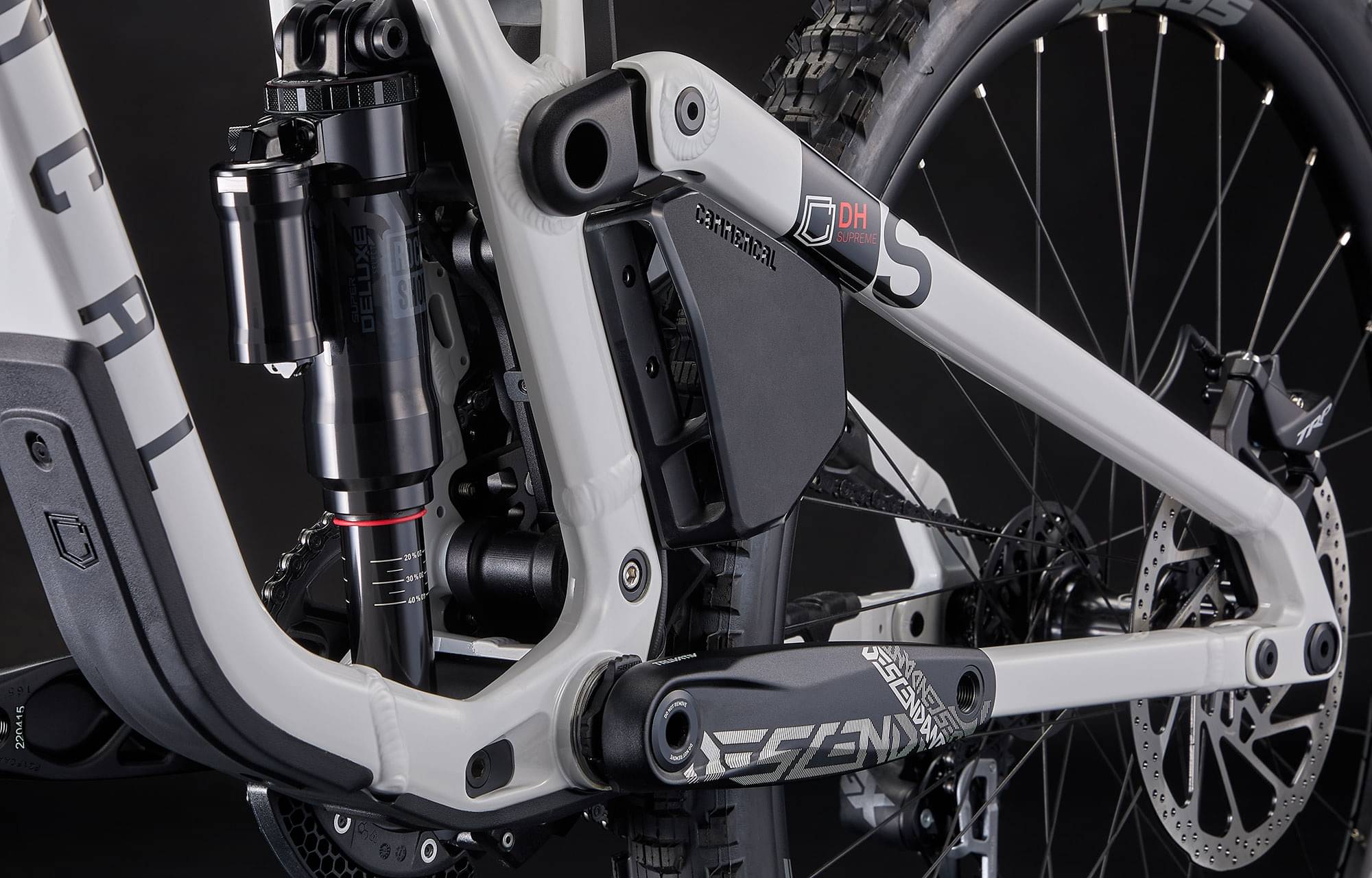

Rear Shock
ROCKSHOX SuperDeluxe Select R, 250 x 75 mm, rebound, DebonAir, 1 Token

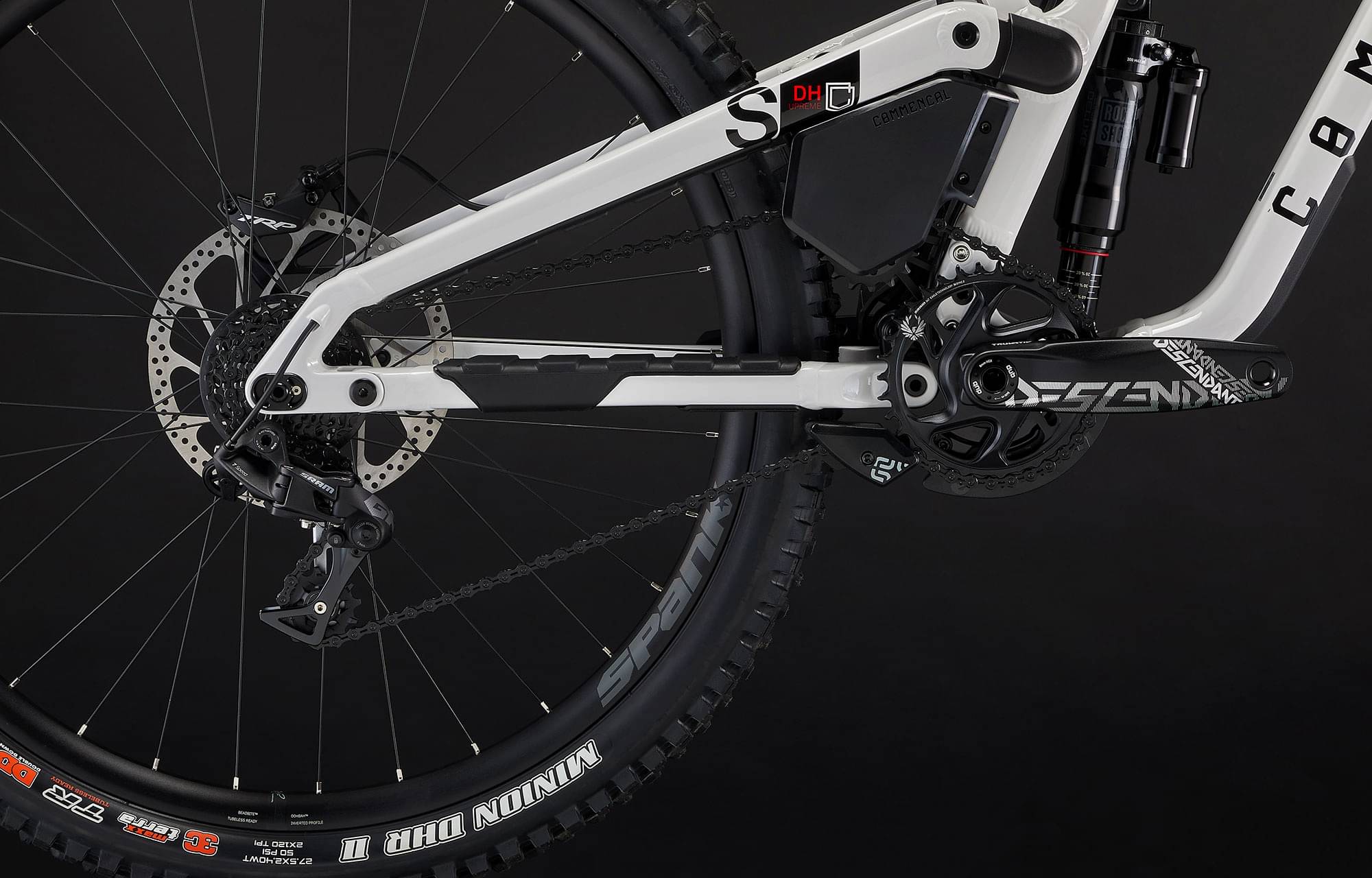

Drivetrain
Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM GX DH, 7 sp
Cassette
SRAM GX DH, 7 sp, 11-25t
Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Bottom Bracket
Press Fit BB 107
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 32-34t
Wheels
Front Hub
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rear Hub
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rims
SPANK Spike Race 33, 27.5'', 32h, 28 mm inner width, tubeless ready
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, REAR: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - FRONT: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready

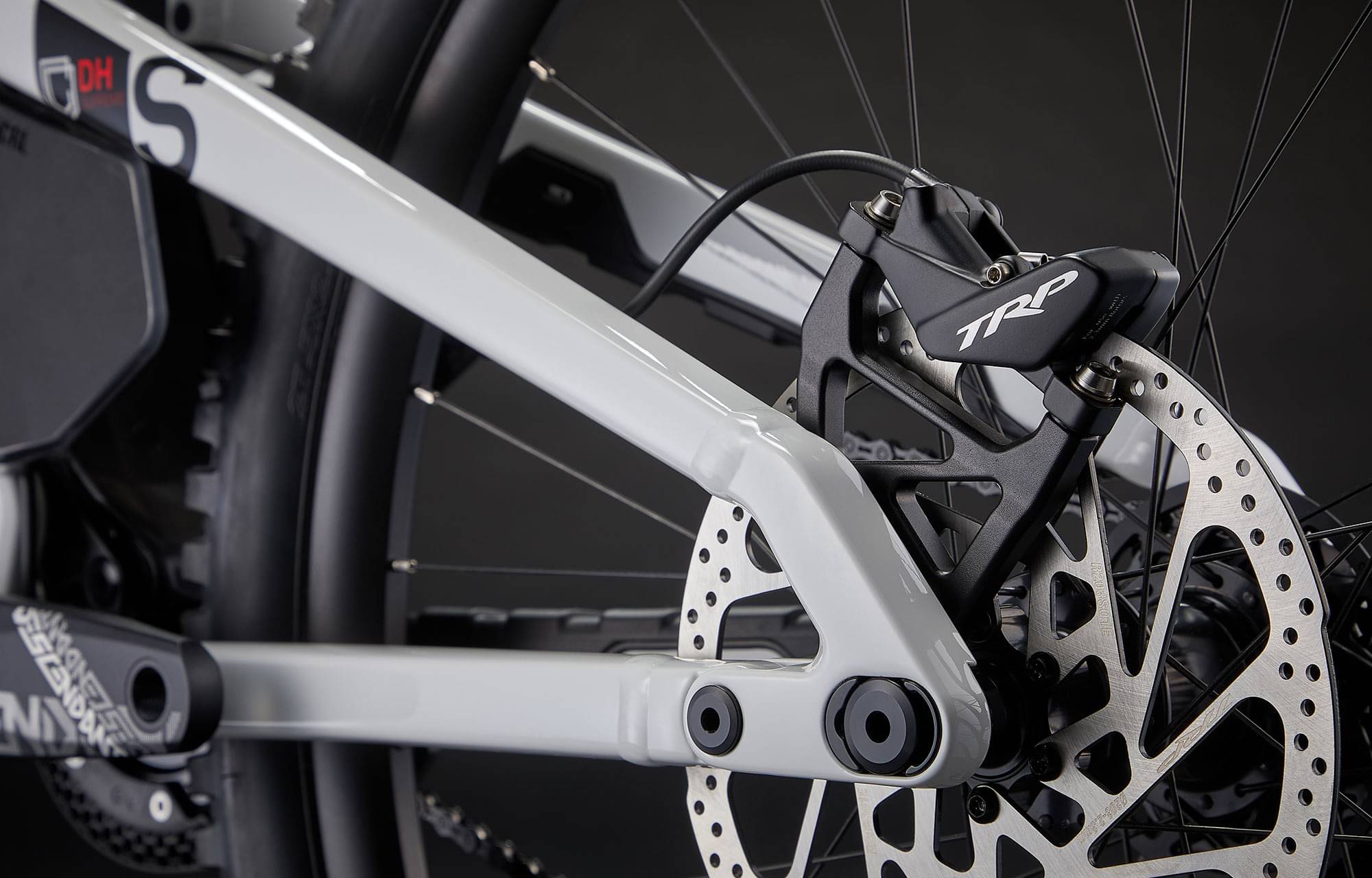

Brakes
Brakes
TRP DH-R Evo, 4 pistons, Rotor: TRP R1 223/203 mm, 6-bolt, 2.3 mm width

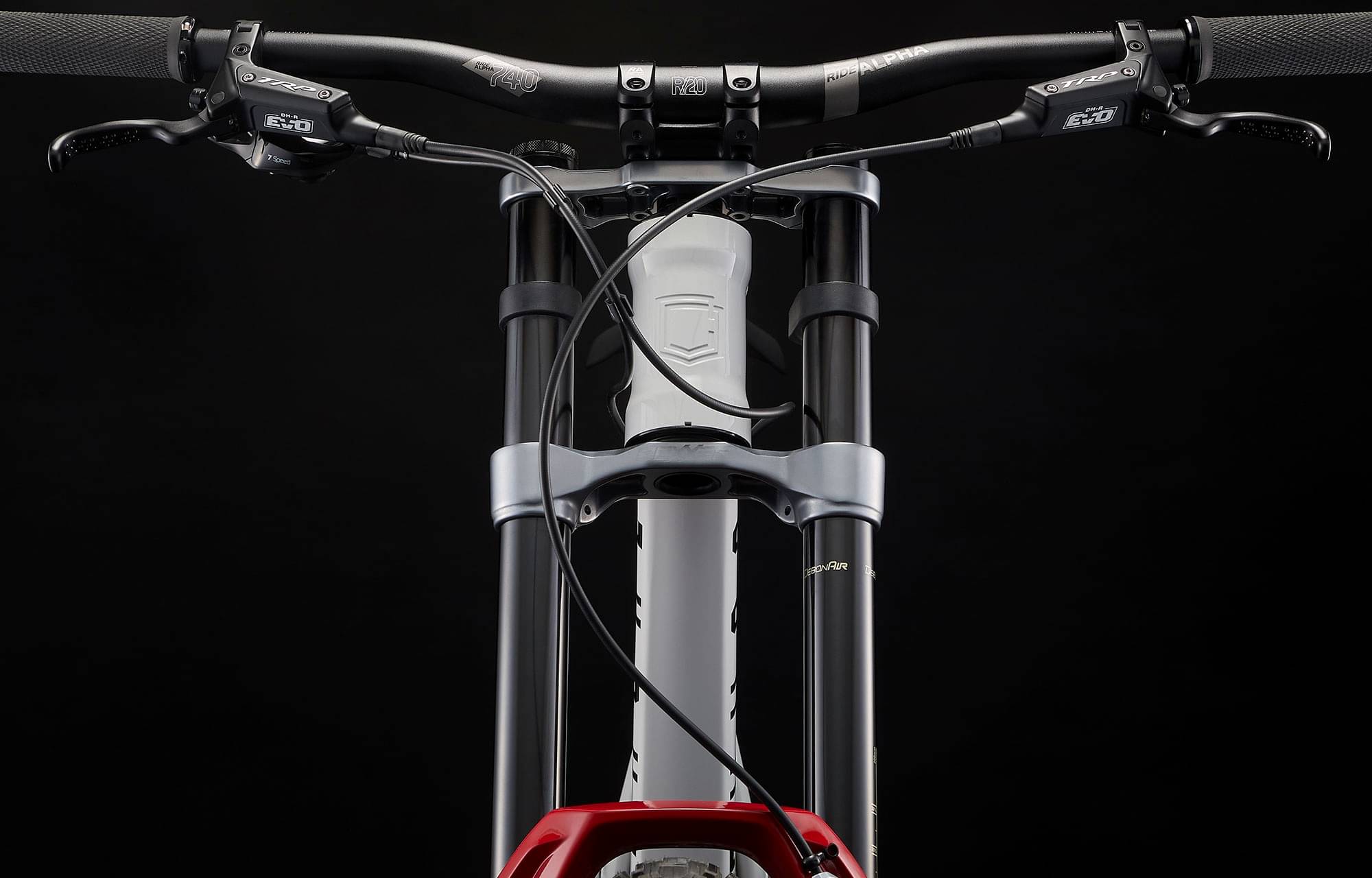

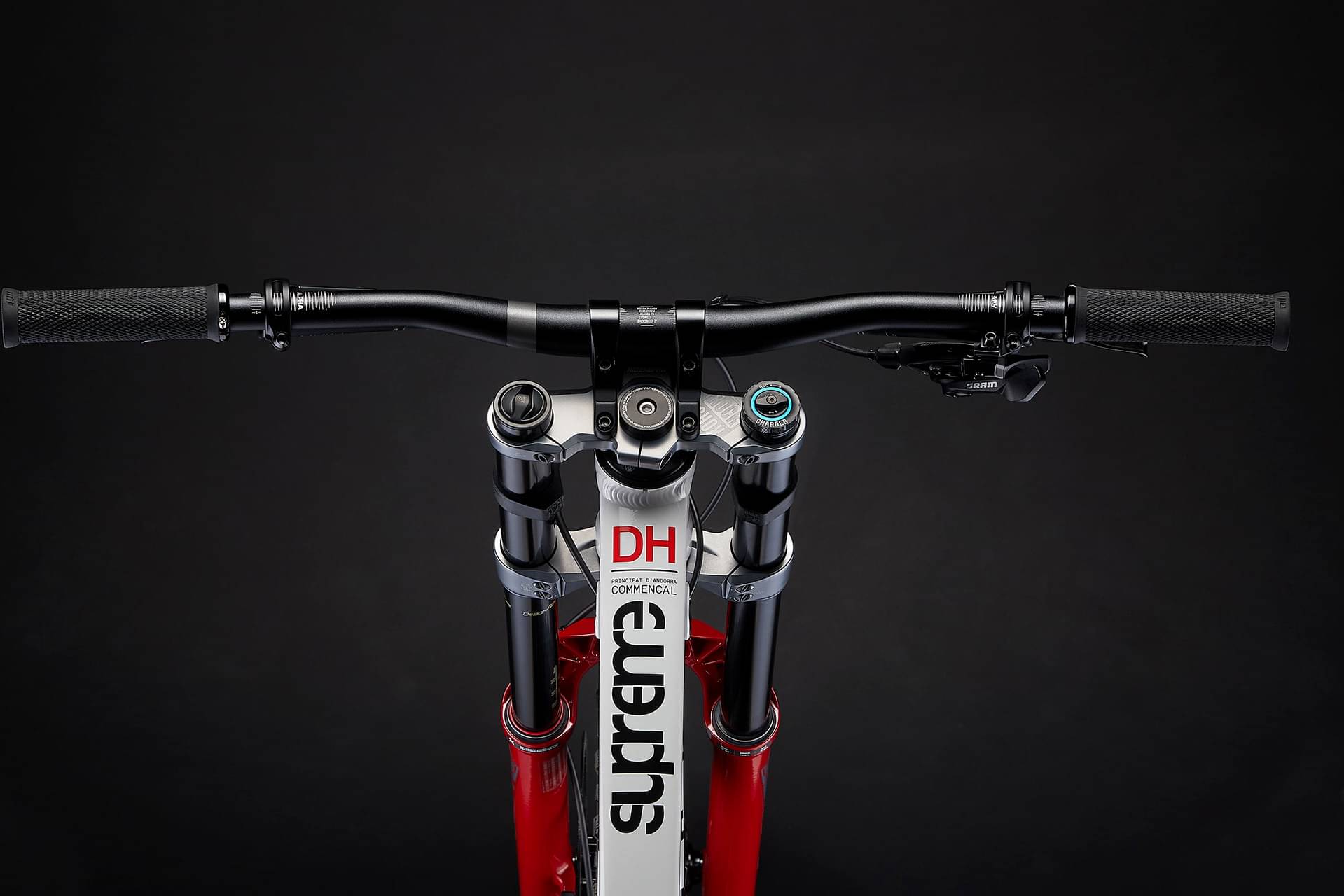

Cockpit
Stem
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R20, 31.8 mm, 740 mm width, 20 mm rise, Alloy 6061
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, MG rails, flexible "wings"
Seatpost
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low |
|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 352 mm | 354 mm |
| Front Center | 754 mm | 754 mm |
| Rake | 52 mm | 52 mm |
| Trail | 110 mm | 116 mm |
| Stack | 606.5 mm | 609 mm |
| Reach | 409 mm | 405 mm |
| Top Tube Length | 550 mm | 552 mm |
| Seat Tube Angle | 67.5 ° | 67.1 ° |
| Seat Tube Length | 370 mm | 370 mm |
| Head Tube Angle | 64.3 ° | 63.9 ° |
| Head Tube Length | 112 mm | 112 mm |
| Chainstay Length | 444 mm | 446 mm |
| Wheelbase | 1198 mm | 1200 mm |
| Bottom Bracket Drop | 3 mm | 1 mm |
| Wheels | 27" | 27" |
Model Overview
SUPREME DH V5 is part of the Commencal Supreme model. Commençal launched 120 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Commençal SUPREME DH 29 TEAM 2022 is the cheapest bike model and costs 4194$. Commençal SUPREME DH V5 SIGNATURE 1 2022 is the most expensive one and costs 7400$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 5500$. Comparing the average cost of a Downhill bike to this one, you will see that SUPREME DH V5 price is 62.19% higher.
Overview of components
Fork
The SUPREME DH V5 comes factory-installed with the RockShox BoXXer Ultimate fork. This has a travel range of 200mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the ROCKSHOX SuperDeluxe Select R model, with a travel of 220mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on SUPREME DH V5 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Commençal SUPREME DH V5 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
