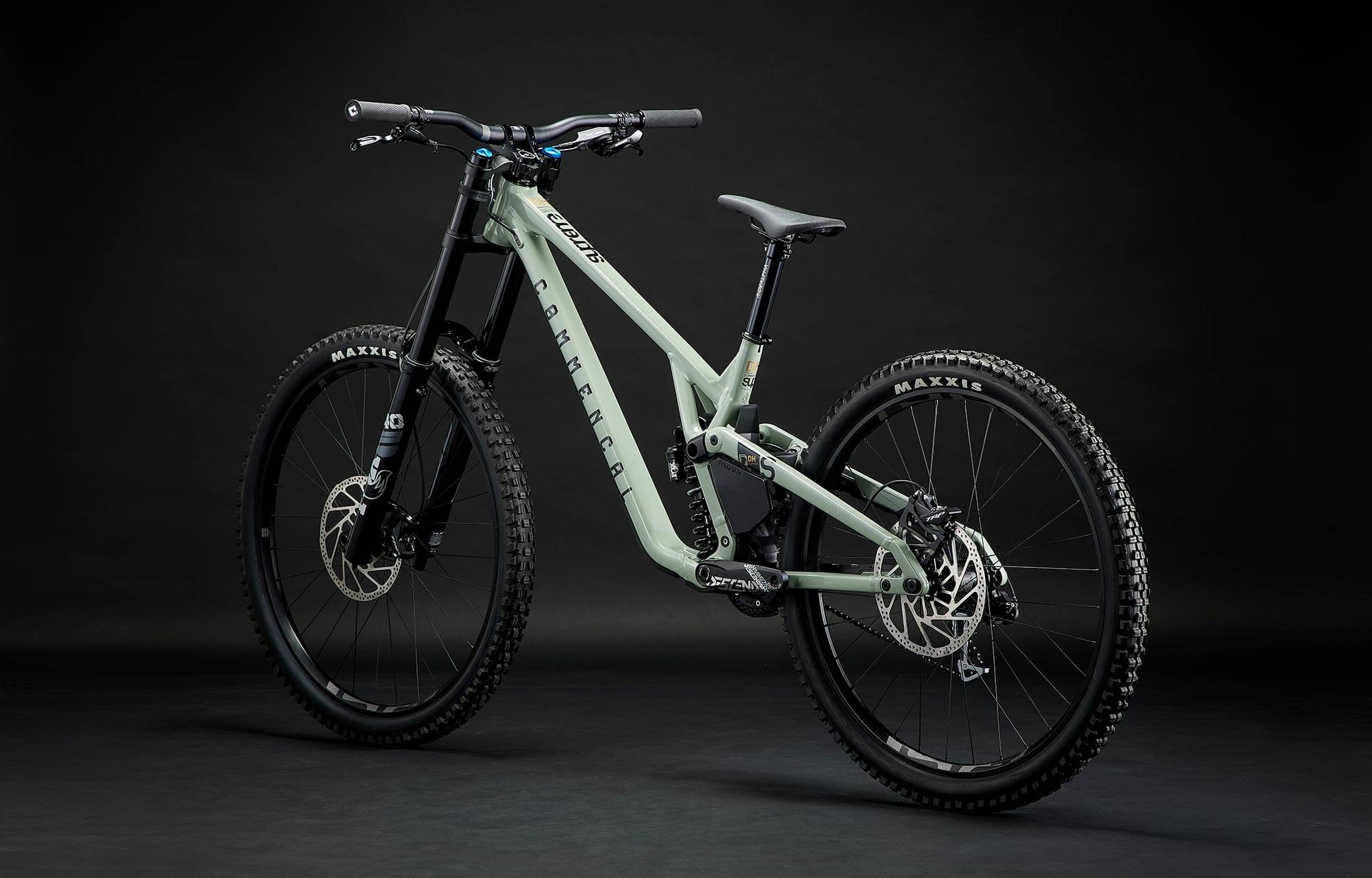

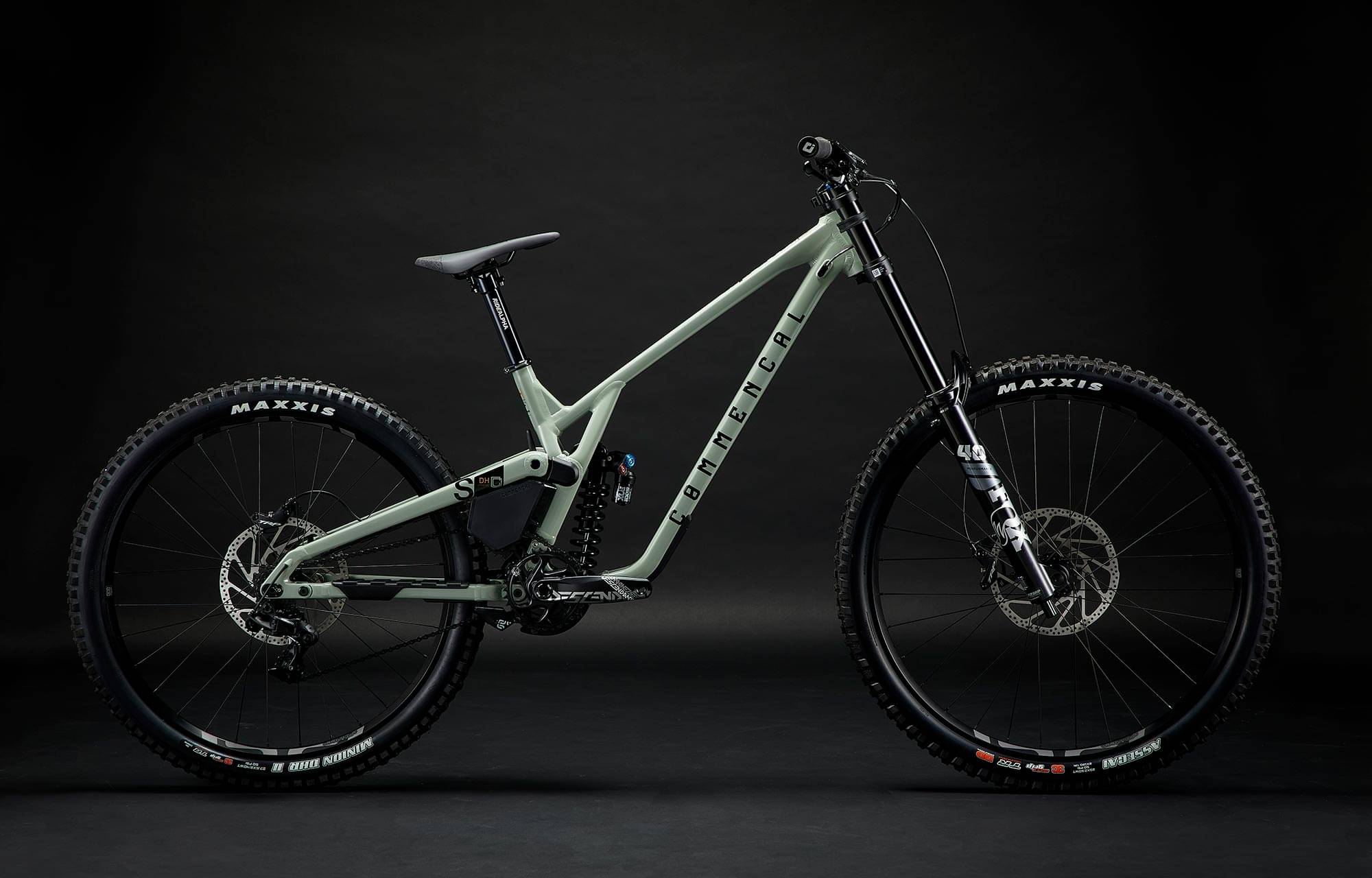

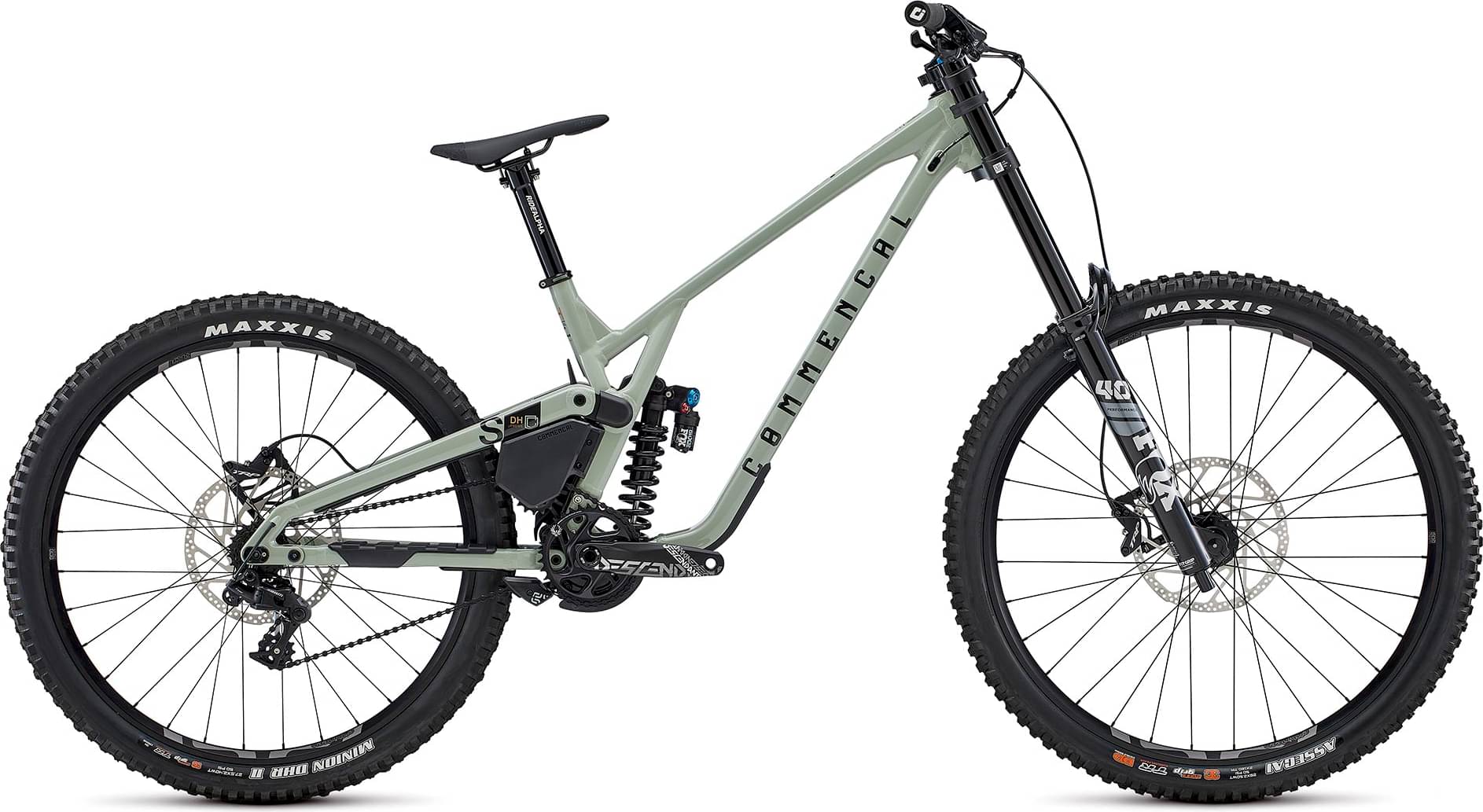

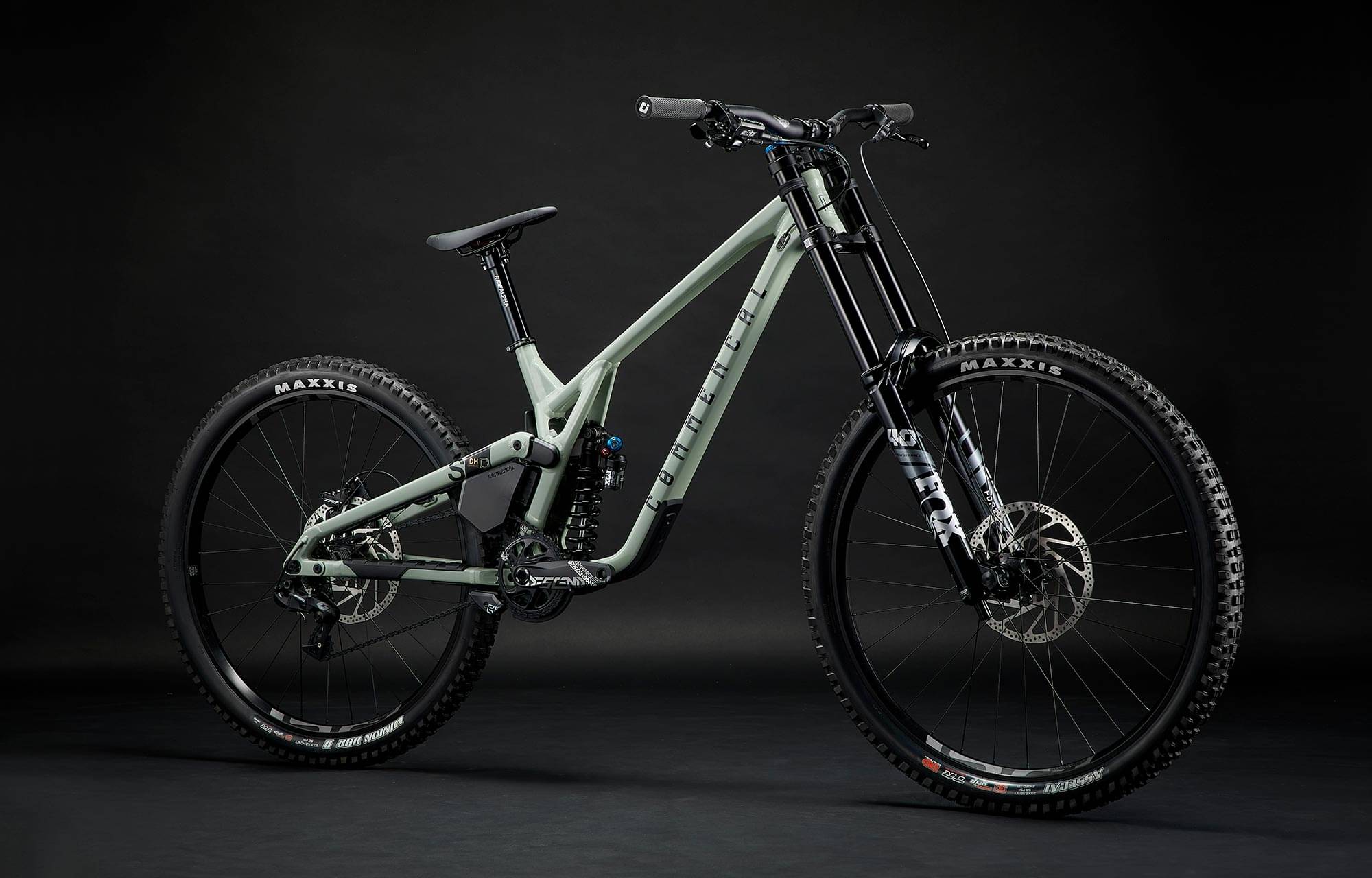

Commençal SUPREME DH V5 ESSENTIAL 2022
2022 Mountain
Estimate price |
6,600$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 220mm -
Fork Fox Performance Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2022 Supreme DH V5 29/27, 220 mm travel on S / M / L / XL, 29'', Alloy 6066, triple butted tubes, T4, T6
Suspension Fork
FOX 40 Performance, 203 mm travel, 29", Grip damper, LSC, LSR, Float Evol. Boost (20 x 110 mm), 56 mm offset, 2 Tokens

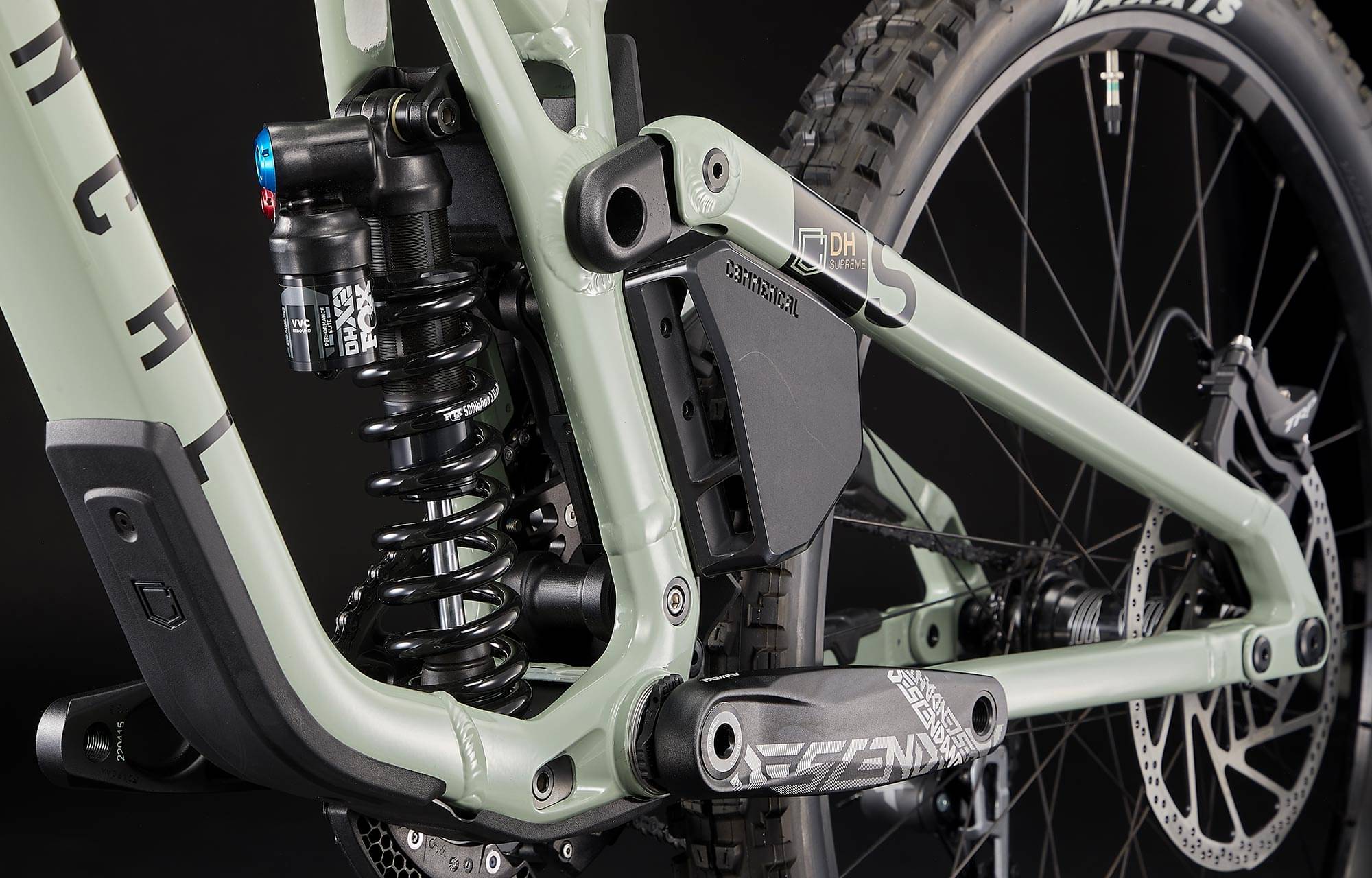

Rear Shock
FOX DHX 2 Performance Elite, 250 x 75 mm, Rebound. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 500 lbs on XL

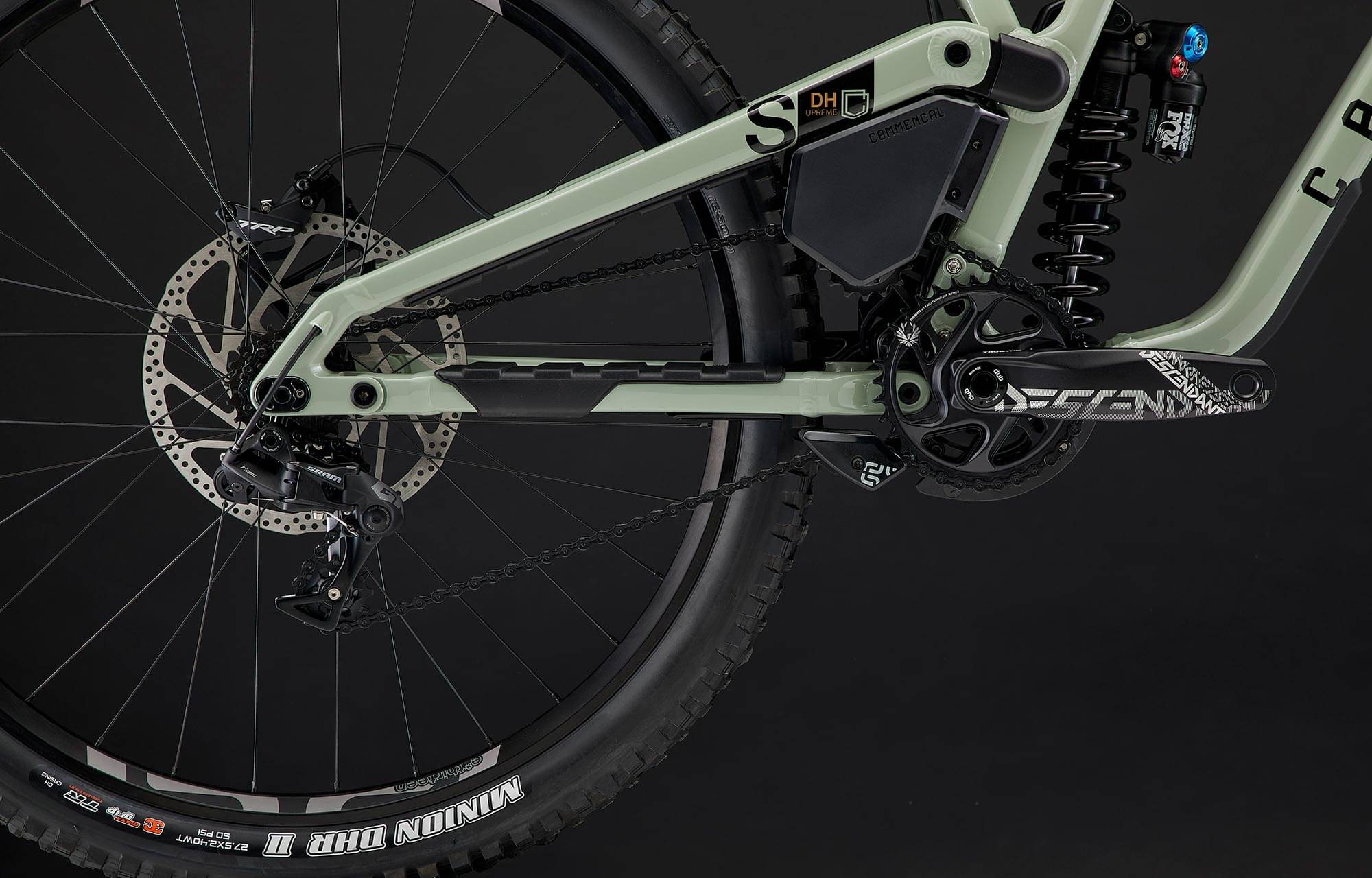

Drivetrain
Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM GX DH, 7 sp
Cassette
E13 LG1 Plus DH, 7s, 9-21t DM Cassette
Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Bottom Bracket
Press Fit BB 107
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 32-34t
Wheels
Front Hub
Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH, Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rear Hub
Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH, Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rims
E13 LG1 Plus DH, REAR: 27.5'', 32h, 30 mm inner width on S / M / L / XL - FRONT: 29'', 32h, 30 mm inner width on S / M / L / XL
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, REAR: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH Casing, Tubeless Ready on S / M / L / XL - FRONT: 29" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready on S / M / L / XL

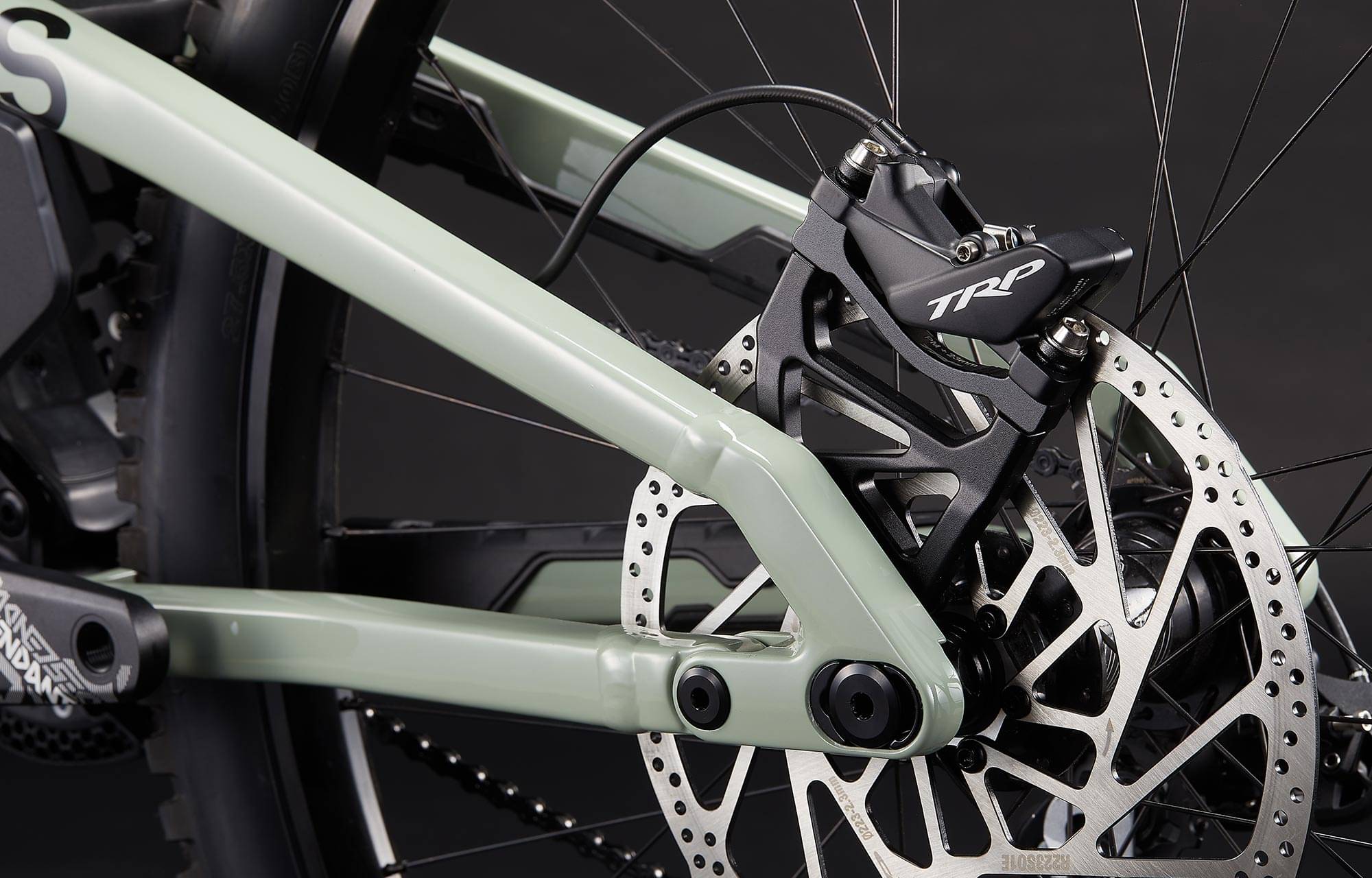

Brakes
Brakes
TRP DH-R Evo, 4 pistons, resin pads, Rotor: TRP R1 223 mm, 6-bolt

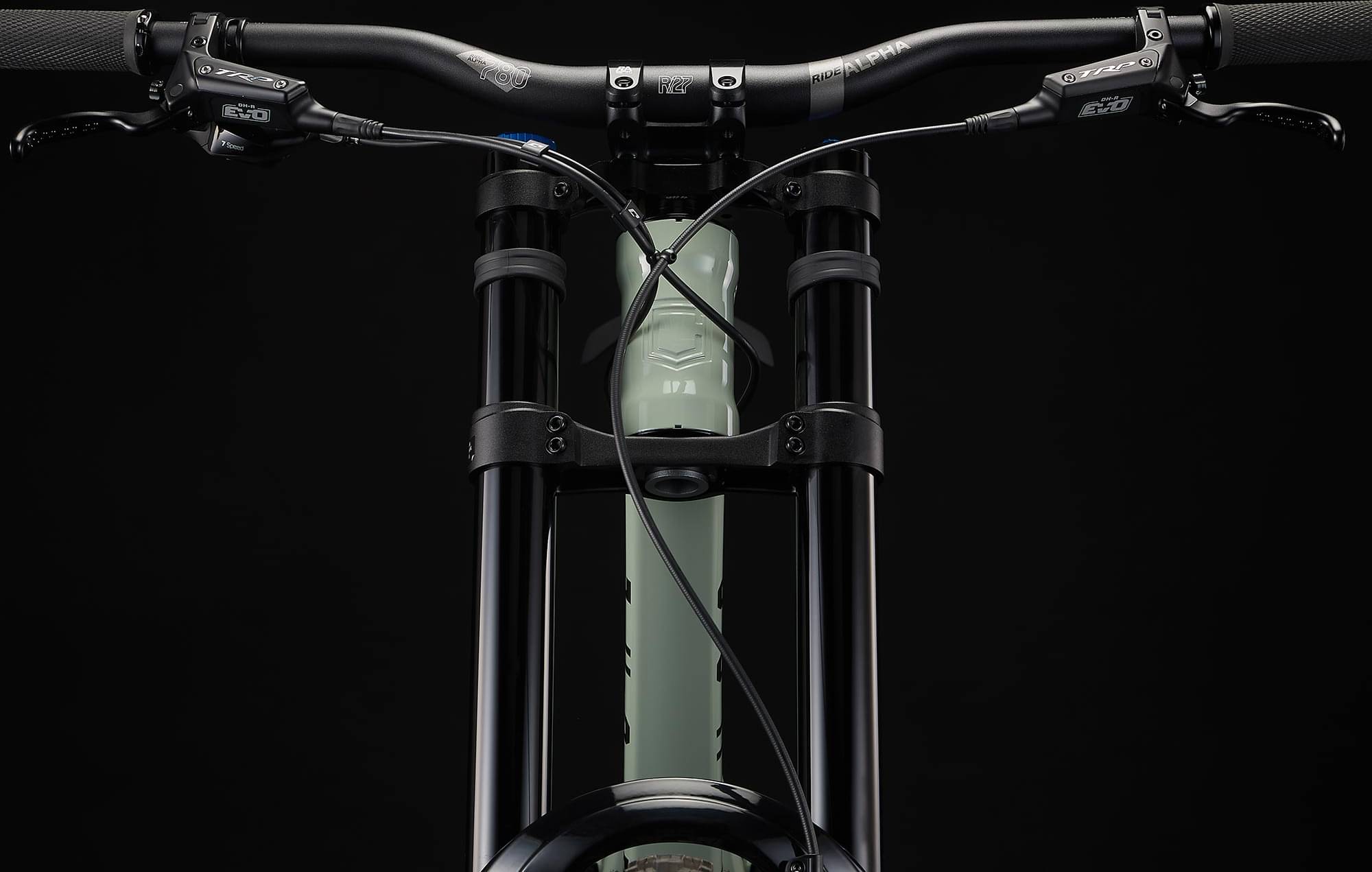

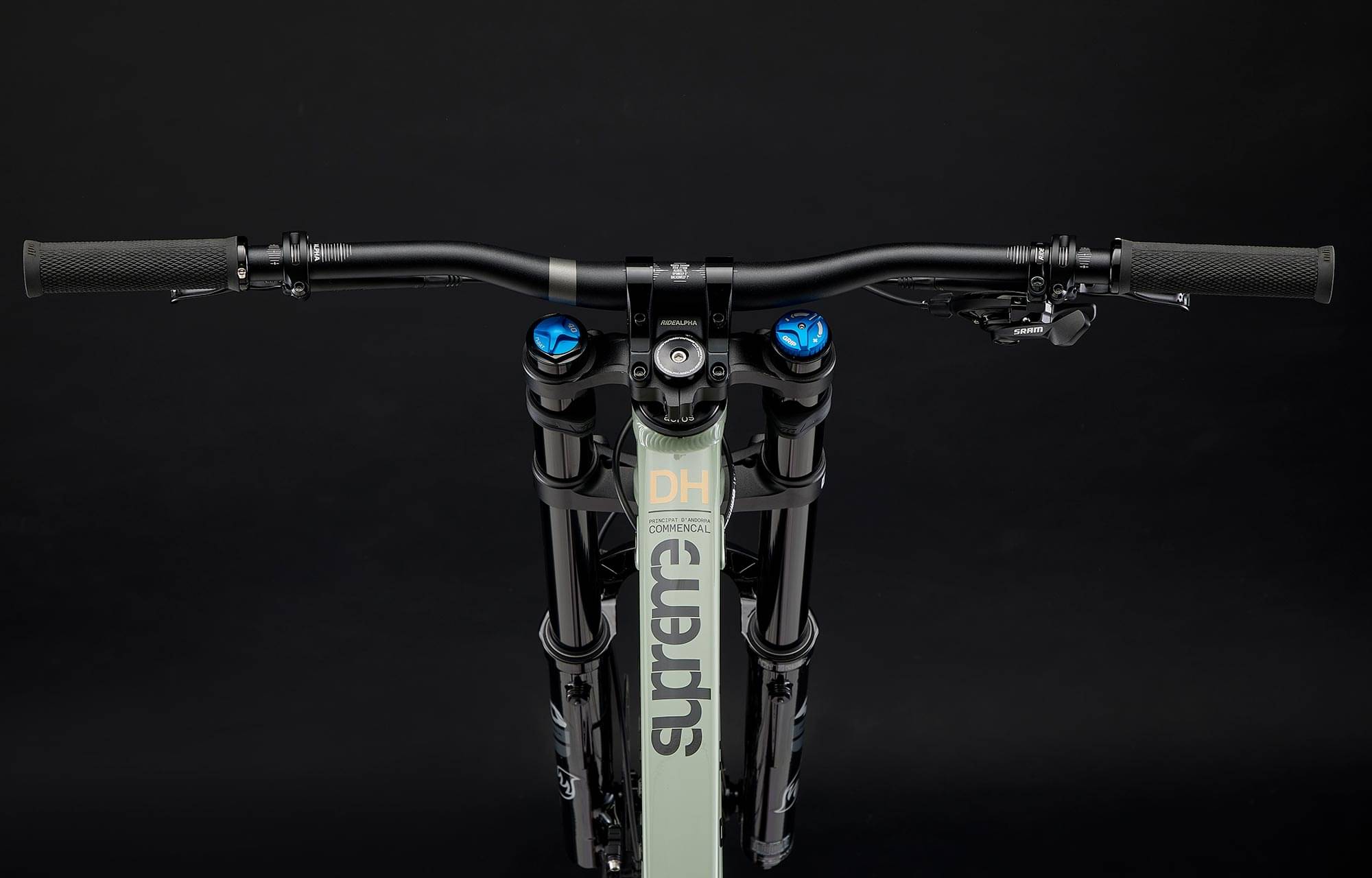

Cockpit
Stem
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, MG rails, flexible "wings"
Seatpost
RIDE ALPHA Super Light, 31.6 mm, 250 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.4 mm | 1.42 mm | 1.32 mm | 1.34 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 352 mm | 353 mm | 352 mm | 353 mm | 352 mm | 353 mm | 352 mm | 353 mm |
| Front Center | 804 mm | 804 mm | 829 mm | 829 mm | 857 mm | 857 mm | 877 mm | 877 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 124 mm | 131 mm | 124 mm | 131 mm | 124 mm | 131 mm | 124 mm | 131 mm |
| Stack | 650 | 653 mm | 650 | 653 mm | 650 | 653 mm | 650 | 653 mm |
| Reach | 439 mm | 435 mm | 464 mm | 460 mm | 492 mm | 488 mm | 512 mm | 508 mm |
| Top Tube Length | 598 mm | 600 mm | 623 mm | 625 mm | 651 mm | 653 mm | 671 mm | 673 mm |
| Seat Tube Angle | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° |
| Seat Tube Length | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Head Tube Angle | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 444 mm | 446 mm | 456 mm | 458 mm | 456 mm | 458 mm | 456 mm | 458 mm |
| Wheelbase | 1248 mm | 1250 mm | 1285 mm | 1287 mm | 1313 mm | 1315 mm | 1333 mm | 1335 mm |
| Bottom Bracket Drop | 3 mm | 2 mm | 3 mm | 2 mm | 3 mm | 2 mm | 3 mm | 2 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
SUPREME DH V5 ESSENTIAL is a Commencal Supreme model. Commençal released 120 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Commençal SUPREME DH 29 TEAM 2022 is the most economical model, with a starting price of 4194$. Commençal SUPREME DH V5 SIGNATURE 1 2022 on the other hand costs 7400$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Commençal SUPREME DH V5 ESSENTIAL price was 6600$. If we compare this with the average Downhill bike cost we notice that the price is 94.63% more expensive.
SUPREME DH V5 ESSENTIAL components
Fork
Commençal SUPREME DH V5 ESSENTIAL 2022 bike is equipped with the Fox Performance Float 40 fork, and has 203mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is FOX DHX 2 Performance Elite, with a travel distance of 220mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the SUPREME DH V5 ESSENTIAL bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
