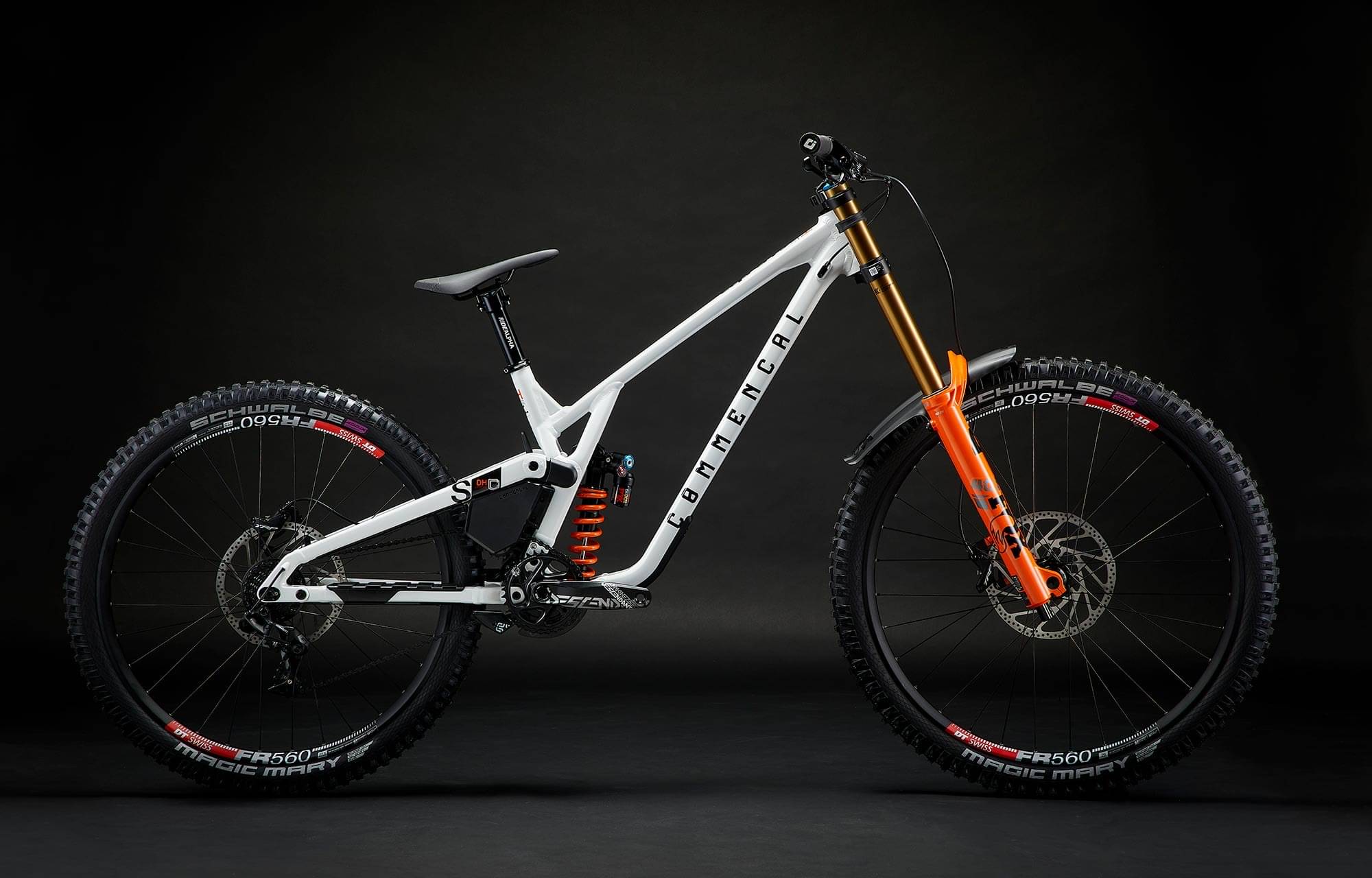

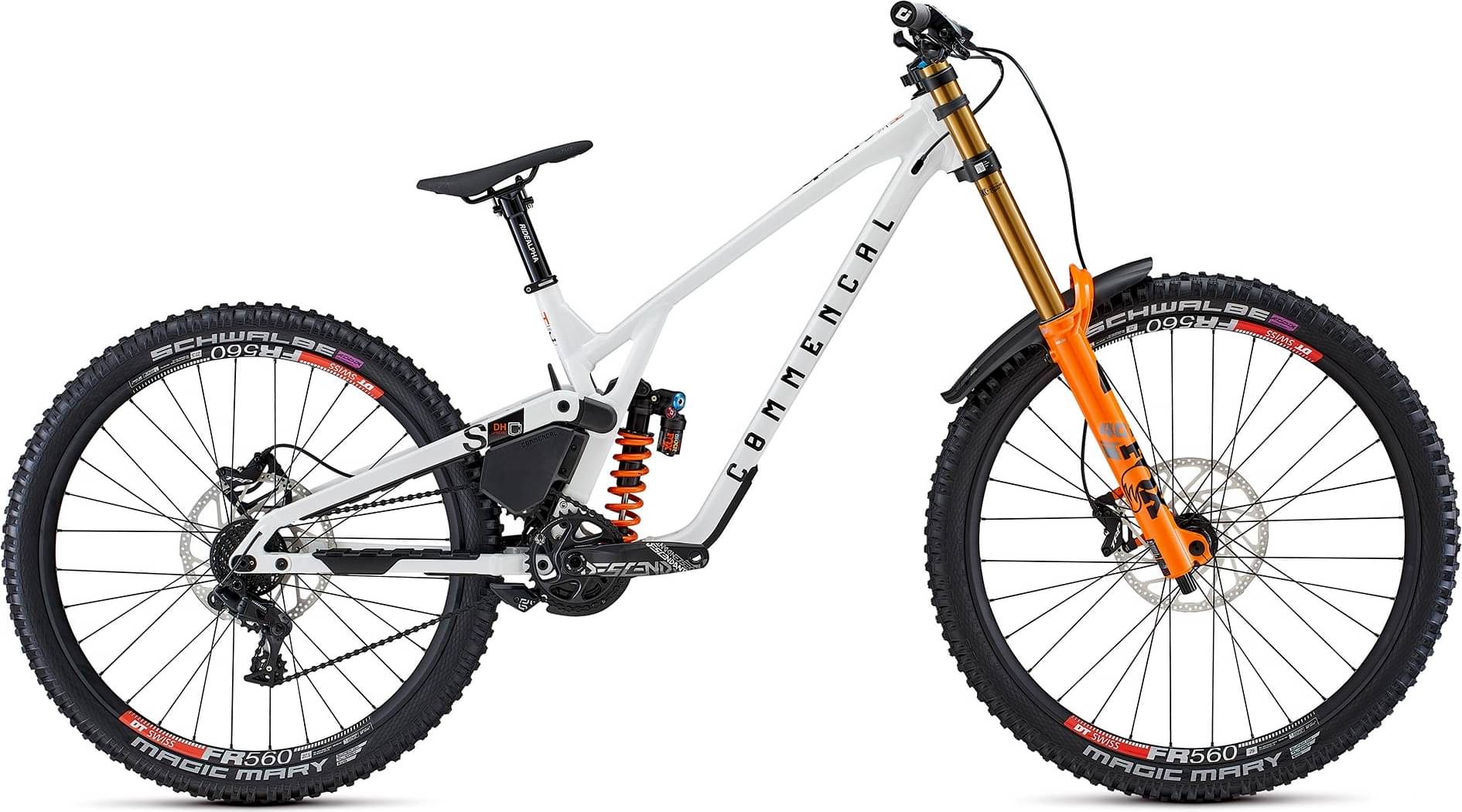

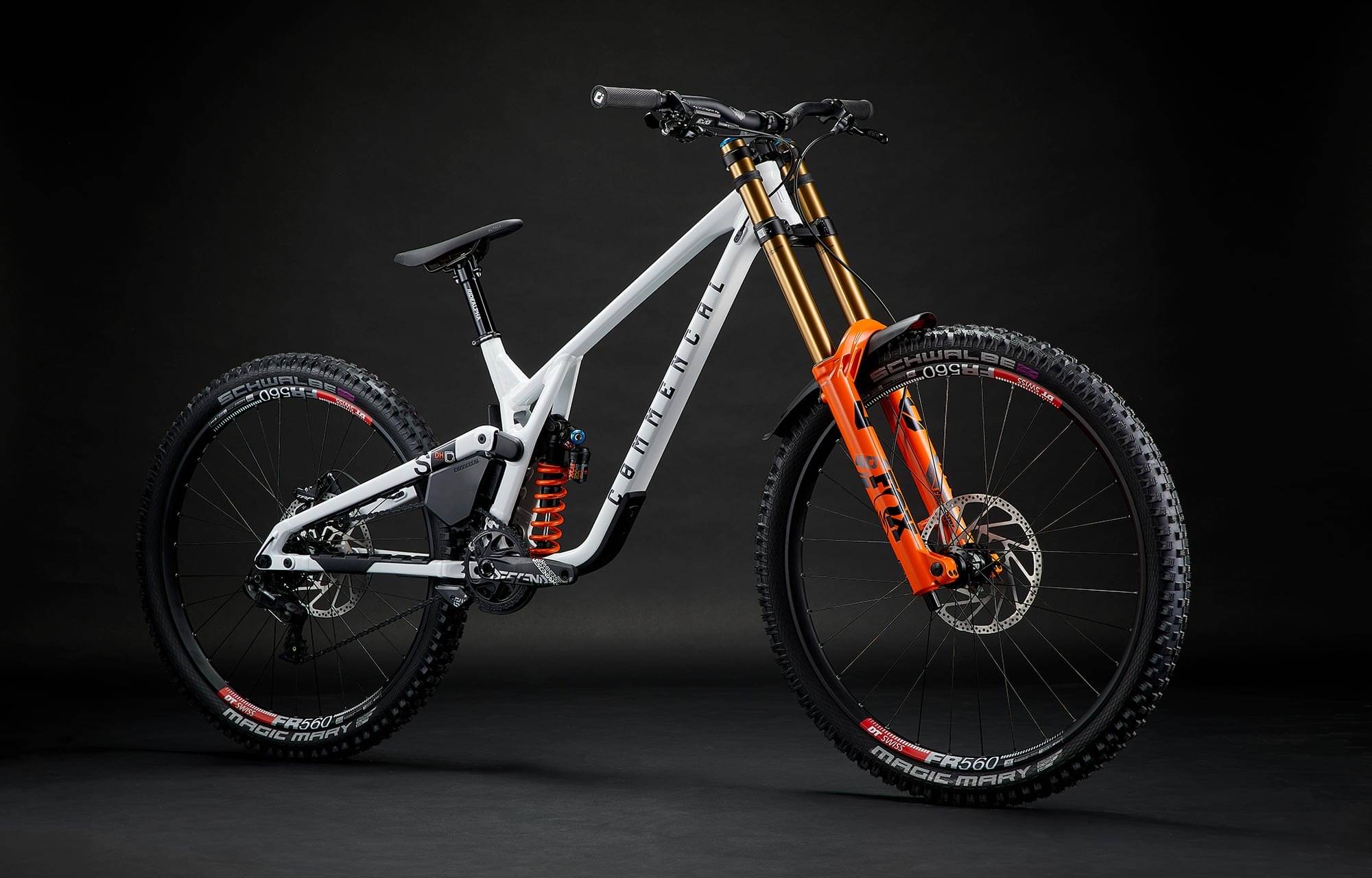

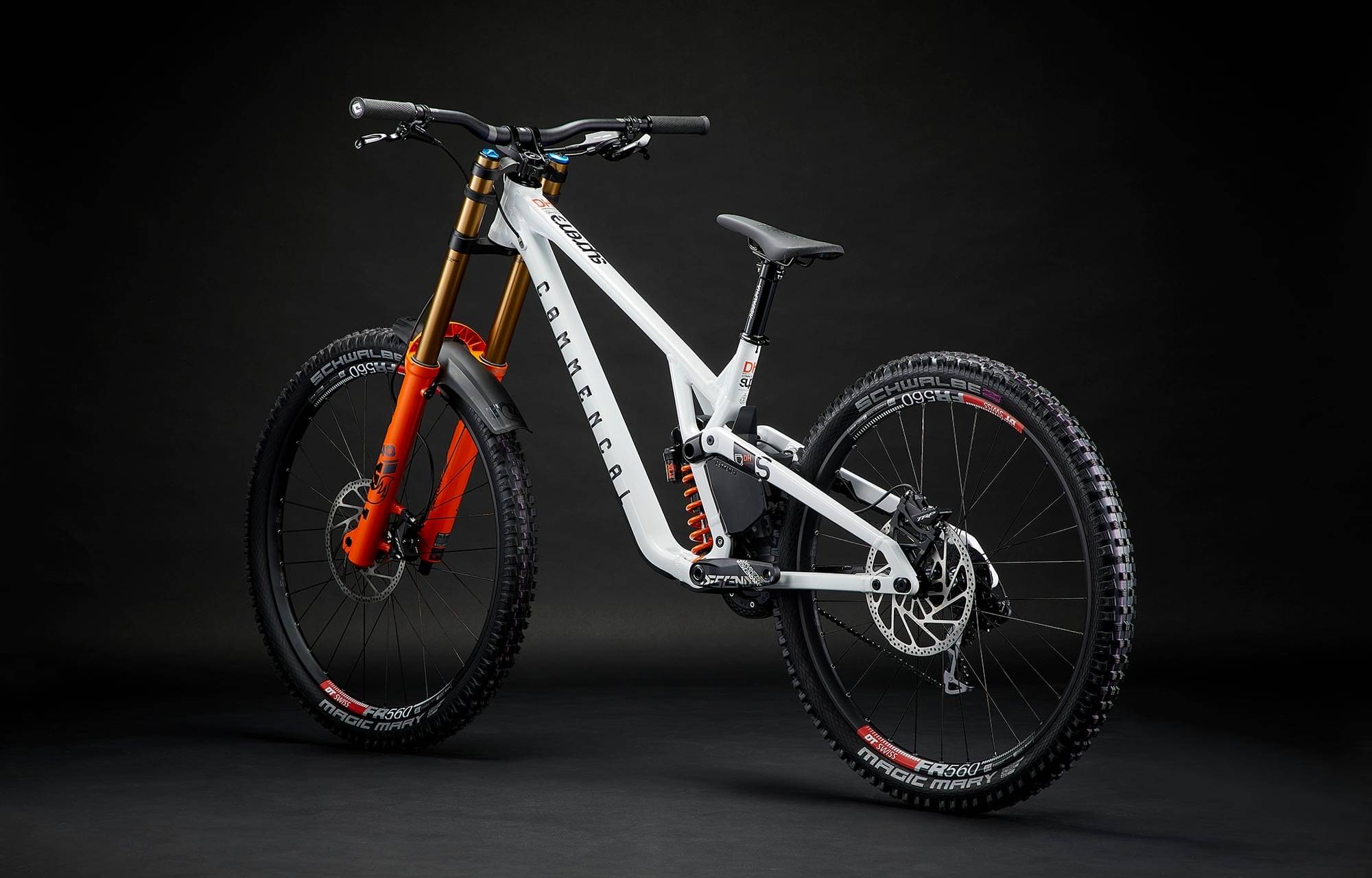

Commençal SUPREME DH V5 SIGNATURE COIL 2022
2022 Mountain
Estimate price |
7,400$
Weight | 18.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 220mm -
Fork Fox Factory Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Supreme DH V5 29/27, 220 mm travel on S / M / L / XL, 29'', Alloy 6066, triple butted tubes, T4, T6
Suspension Fork
FOX 40 Factory, 203 mm travel, 29", Fit Grip2 damper, HSC, LSC, HSR, LSR, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 Tokens
Rear Shock

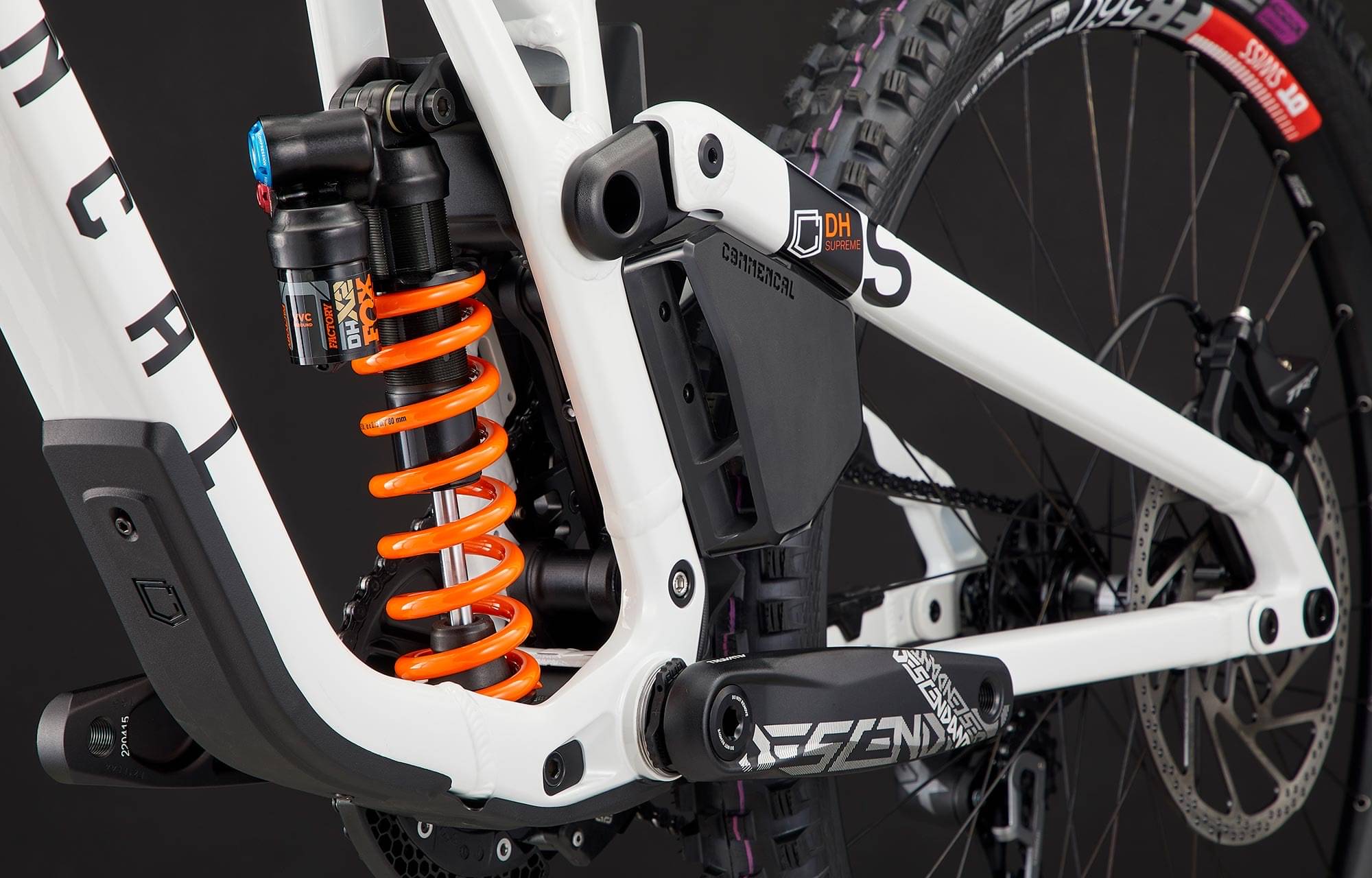

FOX DHX2 Factory, 250 x 75 mm, HSC, LSC, HSR, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 475 lbs on L, 500 lbs on XL
Drivetrain

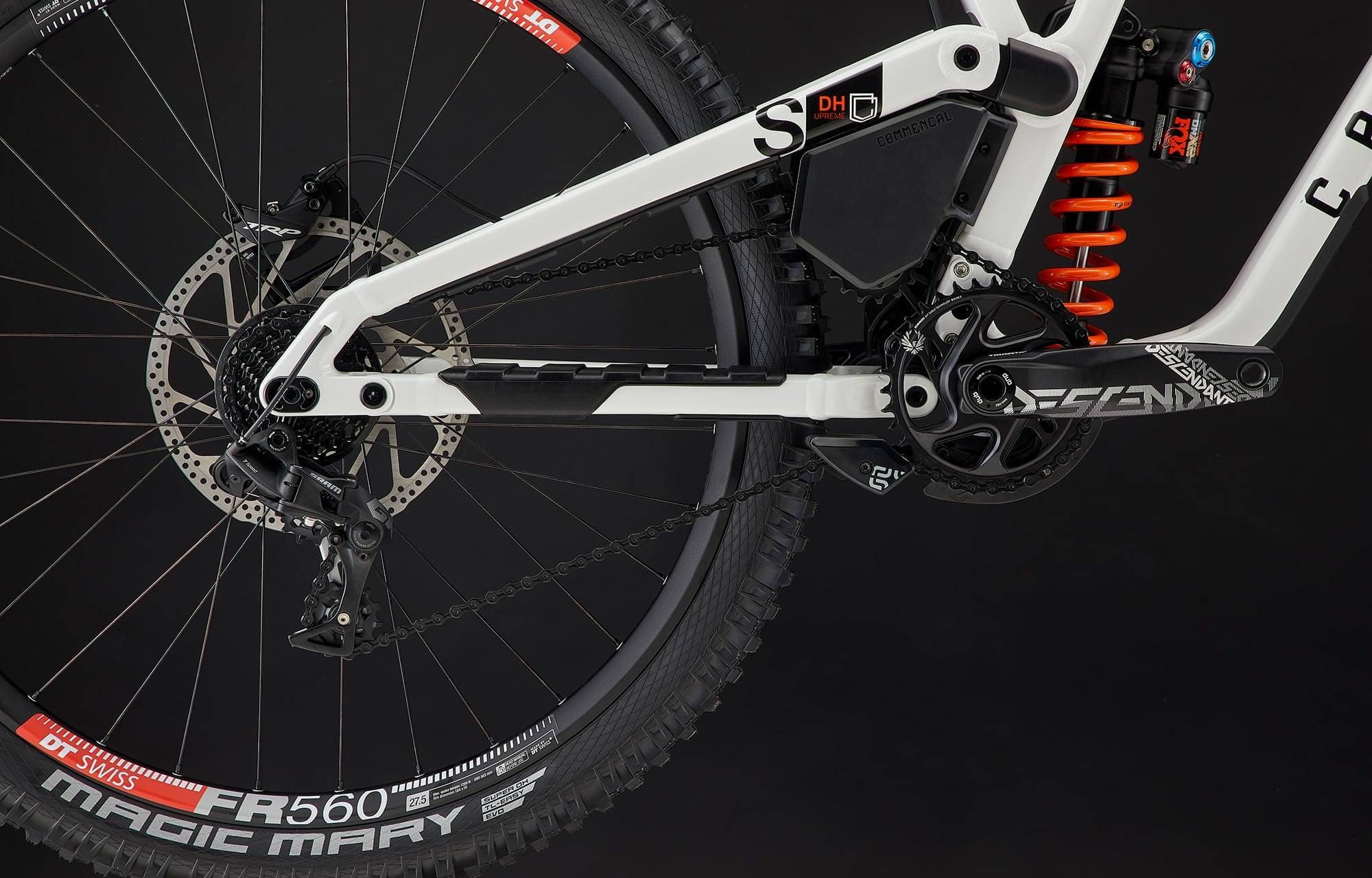

Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM GX DH, 7 sp
Cassette
SRAM GX DH, 7 sp, 11-25t
Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Bottom Bracket
SRAM DUB, Pressfit
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 32-34t
Wheels
Front Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rear Hub
Rear: DT SWISS 350 - Front: DT SWISS 350, Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rims
DT SWISS FR560, REAR: 27.5'', 32h, 30 mm inner width on S / M / L / XL - FRONT: 29'', 32h, 30 mm inner width on S/M/L/XL
Tires
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary, REAR: 27.5'' x 2.4'', Super DH, Addix Ultra Soft on S / M / L / XL - FRONT: 29" x 2.4", Super DH, Addix Ultra Soft on S / M / L / XL
Brakes
Brakes

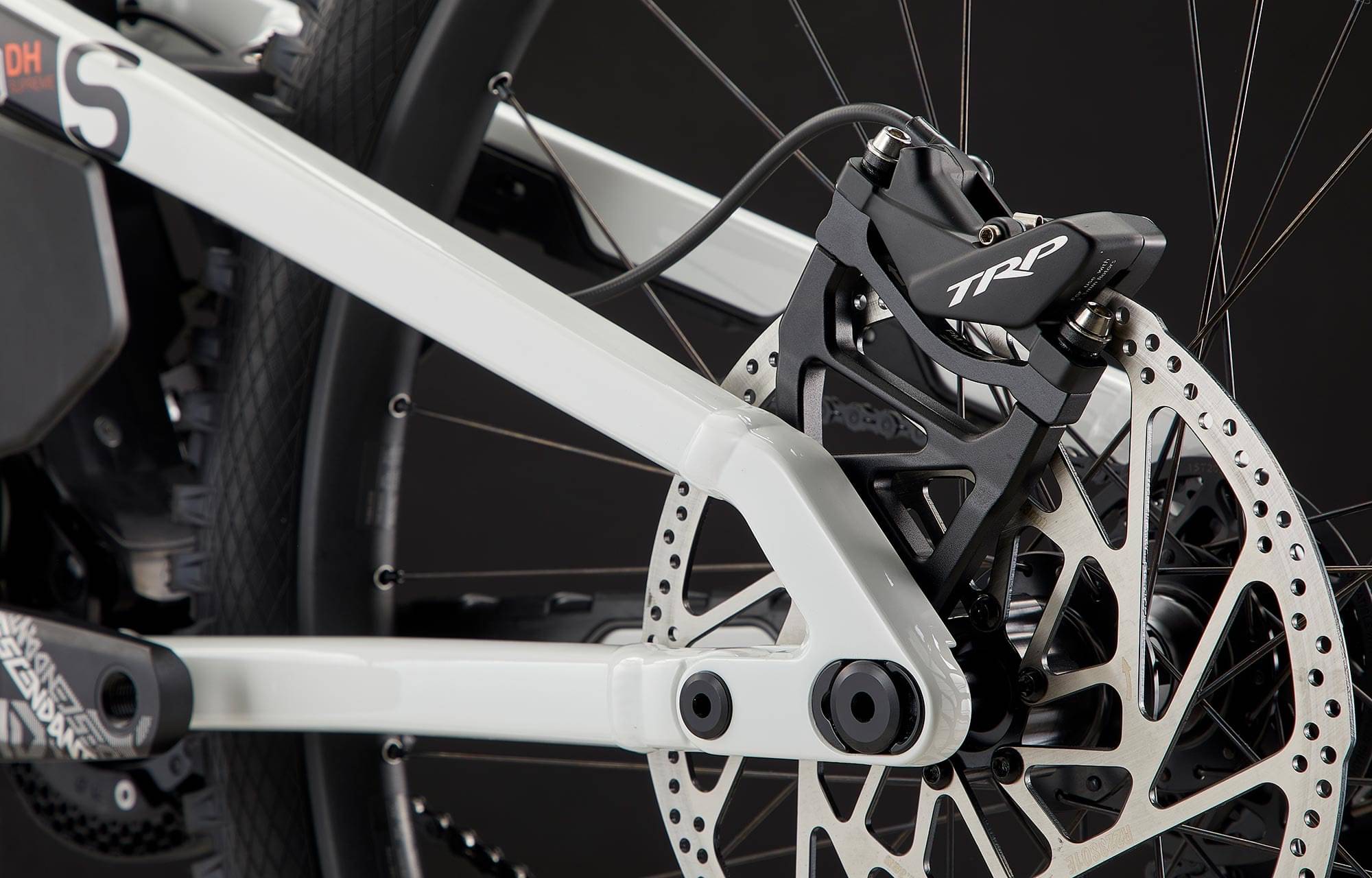

TRP DH-R Evo, 4 pistons, resin pads, Rotor: TRP R1 223 mm, 6-bolt, 2.3 mm width
Cockpit
Stem

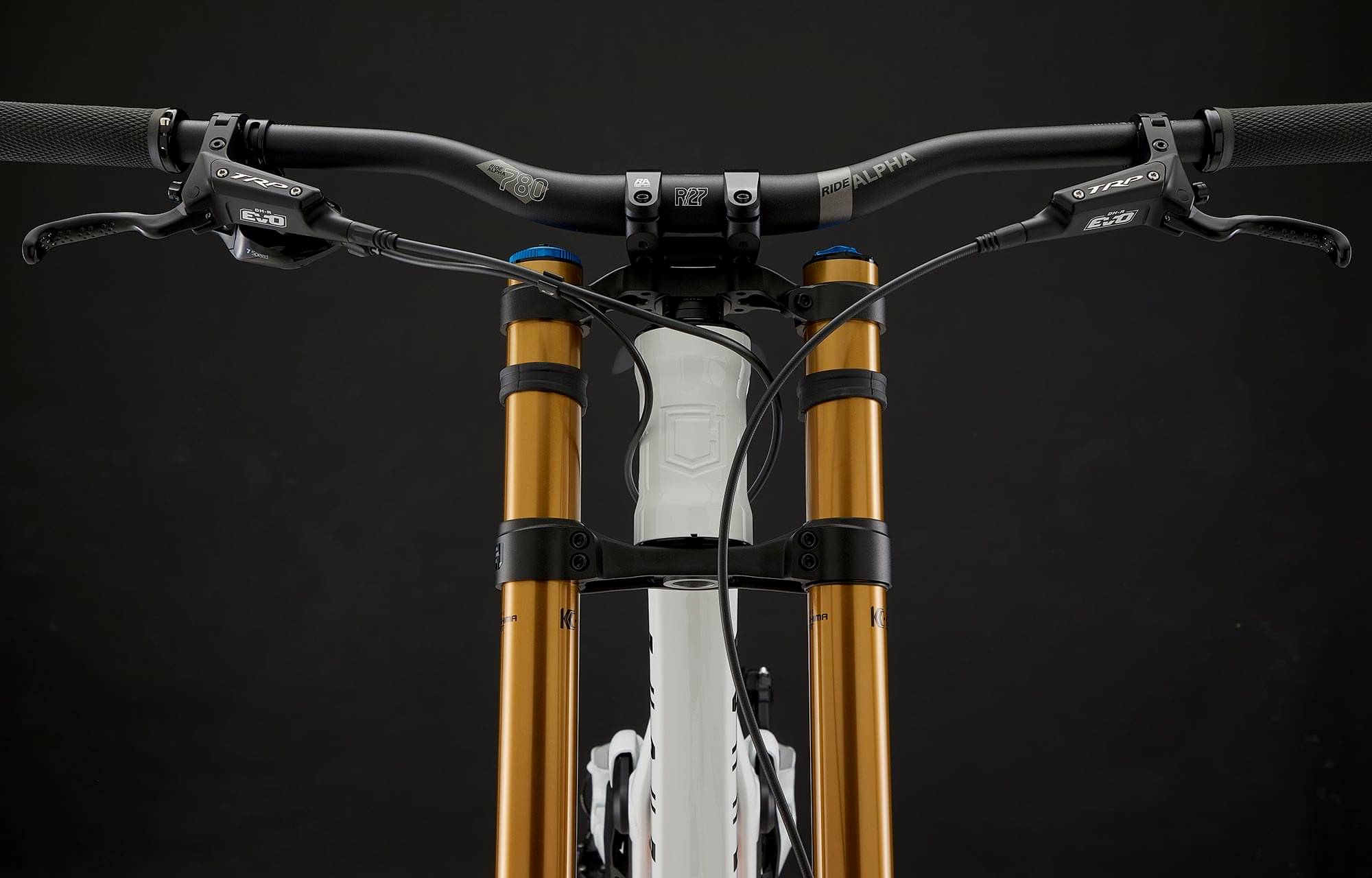

RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
Handlebar

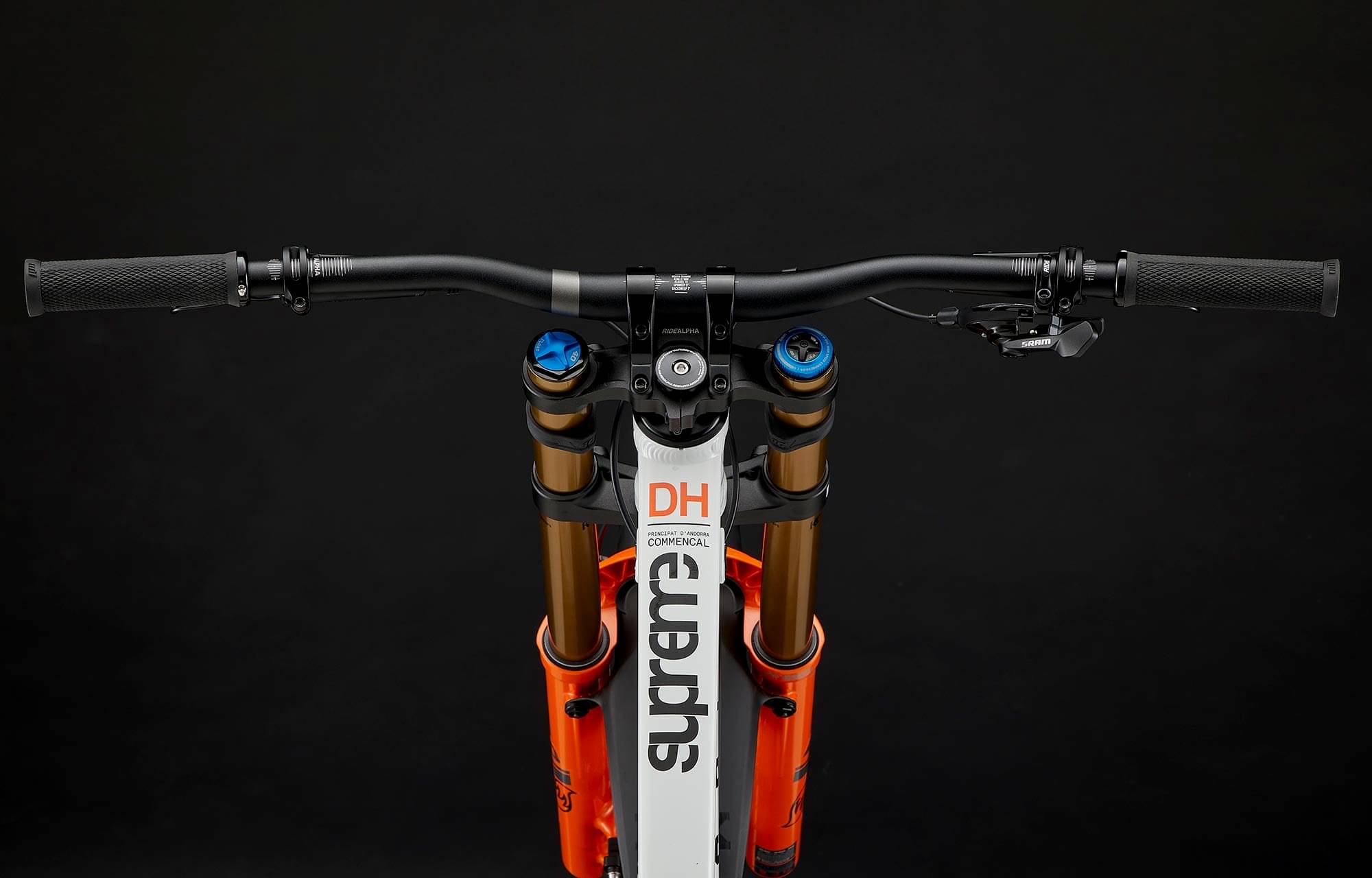

RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, MG rails, flexible "wings"
Seatpost
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm | 1.4 mm | 1.42 mm | 1.32 mm | 1.34 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 352 mm | 353 mm | 352 mm | 353 mm | 352 mm | 353 mm | 352 mm | 353 mm |
| Front Center | 804 mm | 804 mm | 829 mm | 829 mm | 857 mm | 857 mm | 877 mm | 877 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 124 mm | 131 mm | 124 mm | 131 mm | 124 mm | 131 mm | 124 mm | 131 mm |
| Stack | 650 | 653 mm | 650 | 653 mm | 650 | 653 mm | 650 | 653 mm |
| Reach | 439 mm | 435 mm | 464 mm | 460 mm | 492 mm | 488 mm | 512 mm | 508 mm |
| Top Tube Length | 598 mm | 600 mm | 623 mm | 625 mm | 651 mm | 653 mm | 671 mm | 673 mm |
| Seat Tube Angle | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° | 67.5 ° | 67.1 ° |
| Seat Tube Length | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Head Tube Angle | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 444 mm | 446 mm | 456 mm | 458 mm | 456 mm | 458 mm | 456 mm | 458 mm |
| Wheelbase | 1248 mm | 1250 mm | 1285 mm | 1287 mm | 1313 mm | 1315 mm | 1333 mm | 1335 mm |
| Bottom Bracket Drop | 3 mm | 2 mm | 3 mm | 2 mm | 3 mm | 2 mm | 3 mm | 2 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
SUPREME DH V5 SIGNATURE COIL completes the Commencal Supreme model. There are 120 bikes that carry this model name. Take a sneak peek at all Commencal Supreme bikes models from 2022, by clicking here.
Model range prices
Commençal SUPREME DH 29 TEAM 2022 is the cheapest bike model and costs 4194$. Commençal SUPREME DH V5 SIGNATURE 1 2022 is the most expensive one and costs 7400$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7400$. Comparing the average cost of a Downhill bike to this one, you will see that SUPREME DH V5 SIGNATURE COIL price is 118.22% more expensive.
Average weight for Downhill bikes
On a deeper look, we notice that the average weight of a Downhill bike is 15.89 kg (35.03 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 18.3 kg (40.34 lbs), the SUPREME DH V5 SIGNATURE COIL model is much heavier than average. In short, the average Downhill bike weight is 15.17% lower than this one.
Overview of components
Fork
The Fox Factory Float 40 is included from the factory. It has a travel distance of 203mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Commençal SUPREME DH V5 SIGNATURE COIL bike has the FOX DHX2 Factory model installed, and has a travel of 220mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the SUPREME DH V5 SIGNATURE COIL bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Commençal SUPREME DH V5 SIGNATURE COIL is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
