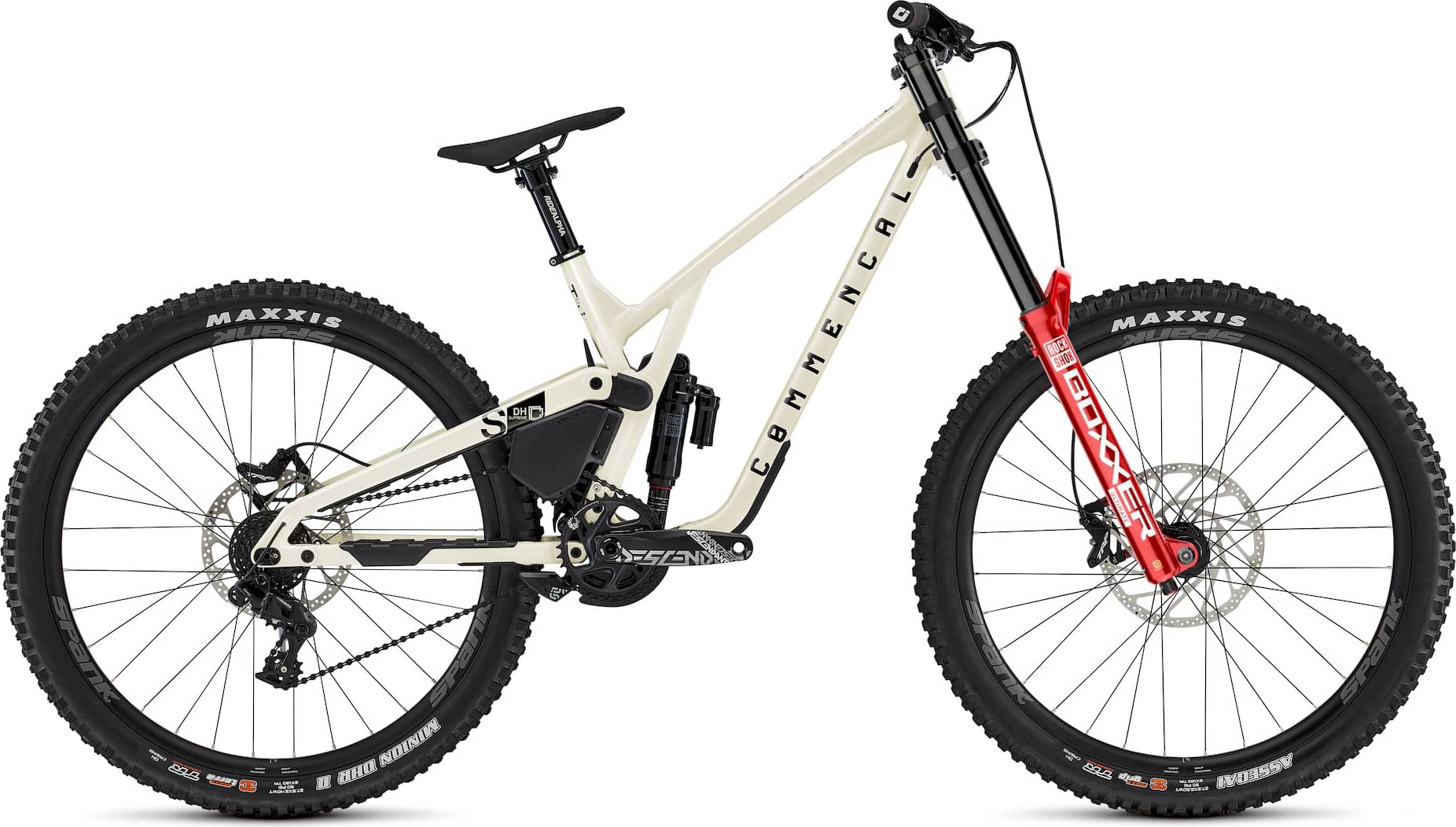

Commençal SUPREME DH V5 XS NEW ROCKSHOX 2023
2023 Mountain
Estimate price |
7,213$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 220mm -
Fork RockShox BoXXer Ultimate
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Supreme DH V5 27'', 220 mm travel, 27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Suspension Fork
ROCKSHOX Boxxer Ultimate, 200 mm travel, 27.5", Charger 3 damper, RC2, HSC, LSC, DebonAir+, Buttercups, rebound, Boost (20 x 110 mm), 48 mm offset, 0 Token
Rear Shock
ROCKSHOX SuperDeluxe Select R, 250 x 75 mm, rebound, DebonAir, 1 Token
Drivetrain
Rear Derailleur
SRAM GX DH, 7 sp
Shift Levers
SRAM GX DH, 7 sp
Cassette
SRAM GX DH, 7 sp, 11-25t
Crank
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t
Bottom Bracket
SRAM DUB, Pressfit
Chain
KMC X11EL, Black
Chain Guide
E13 LG1 + Bottom Guide, 32-34t
Wheels
Front Hub
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rear Hub
Rear: FORMULA DHG-157 - Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Rims
SPANK Spike Race 33, 27.5'', 32h, 28 mm inner width, tubeless ready
Tires
Rear: MAXXIS DHR II - Front: MAXXIS Assegai, REAR: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - FRONT: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready
Brakes
Brakes
TRP DH-R Evo, 4 pistons, Rotor: TRP R1 223/203 mm, 6-bolt, 2.3 mm width
Cockpit
Stem
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R20, 31.8 mm, 740 mm width, 20 mm rise, Alloy 6061
Grips
ODI Elite Motion, Soft pro compound, single clamp, black
Headset
ACROS ZS56 / ZS56, Alloy cups, sealed bearings
Seat
Saddle
FIZIK Gravita Alpaca X5, MG rails, flexible "wings"
Seatpost
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low |
|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.5 mm |
| Bottom Bracket Height | 352 mm | 354 mm |
| Front Center | 754 mm | 754 mm |
| Rake | 55 mm | 52 mm |
| Trail | 110 mm | 116 mm |
| Stack | 606.5 mm | 609 mm |
| Reach | 409 mm | 405 mm |
| Top Tube Length | 550 mm | 552 mm |
| Seat Tube Angle | 67.5 ° | 67.1 ° |
| Seat Tube Length | 370 mm | 370 mm |
| Head Tube Angle | 64.3 ° | 63.9 ° |
| Head Tube Length | 112 mm | 112 mm |
| Chainstay Length | 444 mm | 446 mm |
| Wheelbase | 1198 mm | 1200 mm |
| Bottom Bracket Drop | 3 mm | 1 mm |
| Wheels | 27" | 27" |
About this model
SUPREME DH V5 XS NEW ROCKSHOX is part of the Commencal Supreme model. 120 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Commençal SUPREME DH TEAM 2023 is the most affordable bike of this model and has a price of 3600$. On the other hand, Commençal SUPREME DH V5 SIGNATURE 2023, is the most expensive and costs 7400$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Commençal SUPREME DH V5 XS NEW ROCKSHOX price was 6583$. Doing a quick comparison, we notice that SUPREME DH V5 XS NEW ROCKSHOX price is 94.13% more expensive than the average cost of a Downhill bike.
Downhill bikes average weight
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Commençal SUPREME DH V5 XS NEW ROCKSHOX it’s weighing 17 kg (37.48 lbs). At this weight, is a bit heavier than average. To sum up, it’s 6.99% heavier than the average weight of Downhill bikes.
Overview of components
Fork
This bike has the RockShox BoXXer Ultimate fork installed. The fork’s travel is 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Commençal SUPREME DH V5 XS NEW ROCKSHOX bike has the ROCKSHOX SuperDeluxe Select R model installed, and has a travel of 220mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on SUPREME DH V5 XS NEW ROCKSHOX are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
