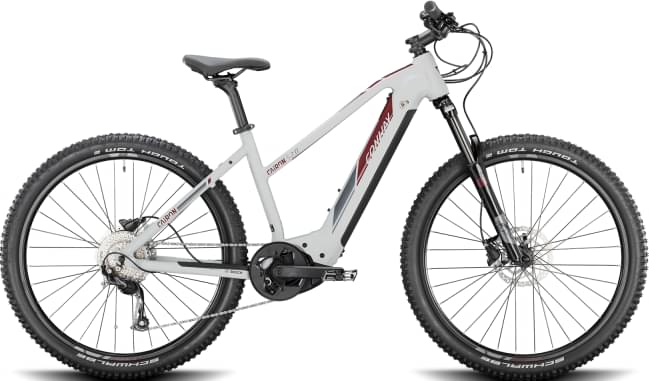

Conway Cairon S 2.0 500 Trapez 2022
2022 E-bike
Estimate price |
3,096$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork RST
-
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Powertube 500 Wh, -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RST "Blaze ML", 120 mm
Drivetrain
Rear Derailleur
TEKTRO "RD-T 350-E", 8speed
Shift Levers
TEKTRO "SL-M 330"
Cassette
TEKTRO "CS-M 330", 11-42 Z.
Crank
MIRANDA "PSI", 170 mm
Wheels
Front Hub
CONWAY "Alloy" QR front
Rear Hub
CONWAY "Alloy" QR rear
Rims
CONWAY Hohlkammer "X17", Disc
Tires
SCHWALBE "Tough Tom"/ SCHWALBE "Tough Tom"
Brakes
Brakes
TEKTRO "HD-M280"
Cockpit
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Seat
Saddle
SELLE ROYAL "Vivo"
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Gen.4 "Performance CX", 36 V, 250 W
Battery
Powertube 500 Wh,
Remote
Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.48 mm | 1.4 mm |
| Stack | 613 mm | 613 mm | 622 mm | 622 mm |
| Reach | 392 mm | 405 mm | 420 mm | 444 mm |
| Top Tube Length | 562 mm | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1128 mm | 1142 mm | 1162 mm | 1182 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Cairon S 2.0 500 Trapez completes the Conway E Cairon model. There are 281 e-bikes that carry this model name. Take a sneak peek at all Conway E Cairon e-bikes models from 2022, by clicking here.
Model range prices
Conway Cairon TF 1.7 2022 is the most economical model, with a starting price of 2653$. Conway Cairon SUV FS 5.7 2022 on the other hand costs 5096$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2866$. Comparing the average cost of a Trail e-bike to this one, you will see that Cairon S 2.0 500 Trapez price is 17.41% lower.
Overview of components
Fork
The fork installed on this bike is the RST model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Cairon S 2.0 500 Trapez model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon S 2.0 500 Trapez comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Cairon S 2.0 500 Trapez comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
