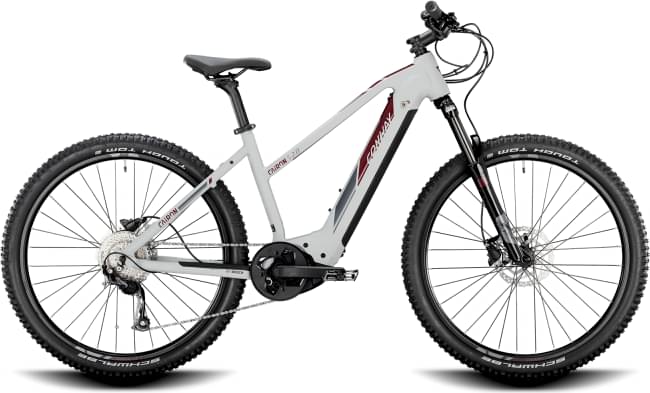

Conway Cairon S 2.0 500 Trapez 2023
2023 E-bike
Estimate price |
3,096$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RST BLAZE
-
Groupset Tektro -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Powertube 500 Wh, -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RST "Blaze ML", 120 mm
Drivetrain
Rear Derailleur
TEKTRO 9-spd. / SHIMANO 9-spd.
Shift Levers
TEKTRO 9-spd. / SHIMANO 9-spd.
Cassette
TEKTRO 9-spd. / SHIMANO 9-spd.
Crank
MIRANDA "PSI", 170 mm
Wheels
Front Hub
CONWAY "Alloy" QR front
Rear Hub
CONWAY "Alloy" QR rear
Rims
CONWAY Hohlkammer "X17", Disc
Tires
SCHWALBE "Tough Tom"/ SCHWALBE "Tough Tom"
Brakes
Brakes
TEKTRO "HD-M280"
Cockpit
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Seat
Saddle
SELLE ROYAL "Vivo"
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Gen.4 "Performance CX", 36 V, 250 W
Battery
Powertube 500 Wh,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.48 mm | 1.4 mm |
| Stack | 613 mm | 613 mm | 622 mm | 622 mm |
| Reach | 392 mm | 405 mm | 420 mm | 444 mm |
| Top Tube Length | 562 mm | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1128 mm | 1142 mm | 1162 mm | 1182 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Cairon S 2.0 500 Trapez completes the Conway E Cairon model. There are 281 e-bikes that carry this model name. Take a sneak peek at all Conway E Cairon e-bikes models from 2023, by clicking here.
Model range prices
Conway Cairon TF 1.7 ladies, wave 2023 is the cheapest e-bike model and costs 2653$. Conway Cairon SUV FS 7.7 2023 is the most expensive one and costs 5839$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2866$. Comparing this to the average Trail e-bike price, we see that the price is 17.41% lower.
Cairon S 2.0 500 Trapez components
Fork
The fork installed on this bike is the RST BLAZE model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Cairon S 2.0 500 Trapez are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon S 2.0 500 Trapez has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Cairon S 2.0 500 Trapez comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
