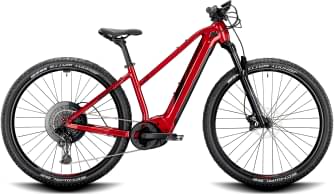

Conway Cairon S 6.0 Trapez 2023
2023 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Powertube 750 Wh, -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
ROCKSHOX "Recon Silver RL", 120 mm
Drivetrain
Rear Derailleur
SRAM "NX Eagle", 12speed
Shift Levers
SRAM "SX Eagle Trigger", single click
Cassette
SRAM "PG 1230 Eagle", 11-50 Z.
Crank
MIRANDA "PSI", 170 mm
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
CONWAY Hohlkammer "X18", Disc
Tires
SCHWALBE "Johnny Watts", 65-628/ SCHWALBE "Johnny Watts", 65-622
Brakes
Brakes
SHIMANO "BR-MT420", "BR-MT410"
Cockpit
Handlebar
LEVEL 9 "Race Riser", Ø 31,8, 780 mm
Seat
Saddle
SELLE ROYAL "Vivo"
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Gen.4 "Performance CX", 36 V, 250 W
Battery
Powertube 750 Wh,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.49 mm | 1.41 mm |
| Stack | 640 mm | 642 mm | 651 mm | 651 mm |
| Reach | 402 mm | 419 mm | 438 mm | 461 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1155 mm | 1167 mm | 1190 mm | 1213 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon S 6.0 Trapez is a Conway E Cairon model. 281 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Conway Cairon TF 1.7 ladies, wave 2023 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, Conway Cairon SUV FS 7.7 2023, is the most expensive and costs 5839$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4246$. Comparing this to the average Trail e-bike price, we see that the price is 26.18% higher.
Overview of components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Conway Cairon S 6.0 Trapez 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Conway Cairon S 6.0 Trapez is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
