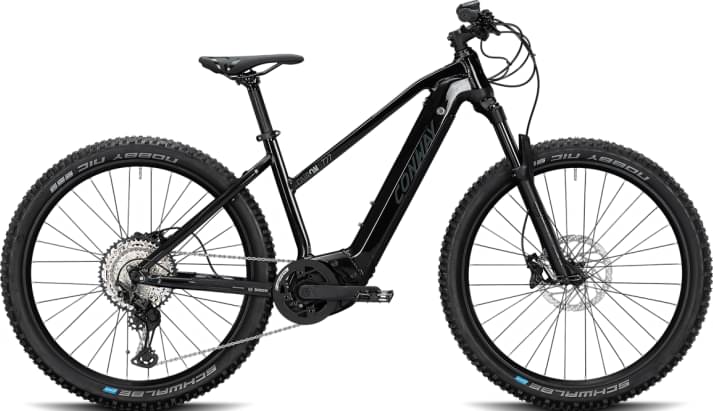

Conway Cairon S 727 Trapez 2020
2020 E-bike
Estimate price |
4,013$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PT, Alu
Suspension Fork
ROCKSHOX "Recon RL", 120 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8100 Shadow Plus", 12-speed
Shift Levers
SHIMANO "Deore SLX SL-M7100"
Cassette
SHIMANO "CS-M7100", 10-51 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-MT400" 15x110 mm Boost
Rear Hub
SHIMANO "FH-MT510 Micro Spline" 12x148 mm Boost
Rims
CONWAY Hohlkammer "X18", Disc
Tires
SCHWALBE "Nobby Nic" EVO, 65-584, faltbar
Brakes
Brakes
SHIMANO "BR-MT400", 203/180 mm
Cockpit
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378" Comfort
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH "Purion", 4-Stufen, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.53 mm | 1.49 mm | 1.42 mm |
| Stack | 613 mm | 613 mm | 622 mm | 622 mm |
| Reach | 381 mm | 400 mm | 417 mm | 437 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1118 mm | 1138 mm | 1159 mm | 1179 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Cairon S 727 Trapez belongs to the Conway E Cairon model. There are 281 e-bikes that carry this model name. You can easily view all of the Conway E Cairon e-bikes models from 2020, here.
Model range prices
Conway Cairon T 270 SE Wave 400 2020 is the cheapest e-bike model and costs 2335$. Conway Cairon T 800 Wave Enviolo 2020 is the most expensive one and costs 4565$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Conway Cairon S 727 Trapez price was 3715$. Comparing the average cost of a Trail e-bike to this one, you will see that Cairon S 727 Trapez price is 10.4% higher.
Trail e-bikes average weight
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Cairon S 727 Trapez has a weight of 23.4 kg (51.59 lbs). In other words, this model is 1.28% lighter than the average Trail e-bike.
Cairon S 727 Trapez components
Fork
Conway Cairon S 727 Trapez 2020 e-bike is equipped with the RockShox Recon Silver RL fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Conway Cairon S 727 Trapez 2020, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon S 727 Trapez comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
