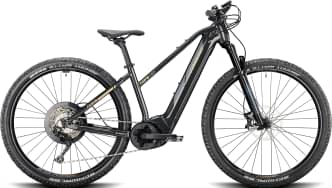

Conway Cairon S 8.0 Trapez 2022
2022 E-bike
Estimate price |
4,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Powertube 750 Wh, -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
ROCKSHOX "35 Gold RL", 120 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8130 Shadow Plus", 11speed
Shift Levers
SHIMANO "Deore XT SL-M8130"
Cassette
SHIMANO "CS-LG600", 11-50 Z.
Crank
MIRANDA "PSI", 170 mm
Wheels
Front Hub
SHIMANO "HB-M6010", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
CONWAY Hohlkammer "X18", Disc
Tires
SCHWALBE "Johnny Watts", 65-630/ SCHWALBE "Johnny Watts", 65-622
Brakes
Brakes
SHIMANO "Deore BR-M6120", "Deore BR-M6100"
Cockpit
Handlebar
LEVEL 9 "Race Riser", Ø 31,8, 780 mm
Seat
Saddle
SELLE ROYAL "Vivo"
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Gen.4 "Performance CX", 36 V, 250 W
Battery
Powertube 750 Wh,
Remote
Kiox 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.49 mm | 1.41 mm |
| Stack | 640 mm | 642 mm | 651 mm | 651 mm |
| Reach | 402 mm | 419 mm | 438 mm | 461 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1155 mm | 1167 mm | 1190 mm | 1213 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon S 8.0 Trapez is a Conway E Cairon model. There are 281 e-bikes that carry this model name. You can easily view all of the Conway E Cairon e-bikes models from 2022, here.
Model range prices
Conway Cairon TF 1.7 2022 is the cheapest e-bike model and costs 2653$. Conway Cairon SUV FS 5.7 2022 is the most expensive one and costs 5096$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 4458$. If we compare this with the average Trail e-bike cost we notice that the price is 32.48% more expensive.
Overview of components
Fork
Conway Cairon S 8.0 Trapez 2022 e-bike is equipped with the RockShox 35 Gold RL fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Cairon S 8.0 Trapez e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon S 8.0 Trapez has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
